MPDRX002S DATA Sheet
1
DC-DC Converter DATA Sheet
MPDRX002S
1. Features
½
Ultra high-speed response is realized by using original ripple
detecting control.
½Up
to 16A output current, non-isolated POL.
½
Wide adjustable output voltage range by connecting external
resistance (0.8V to 1.8V).
o
o
½Wide
operating temperature（-40 C to +85 C）.
½UVLO
function, ON/OFF function, Output voltage sense function,
Over-current function and, Over-temperature function are built in.

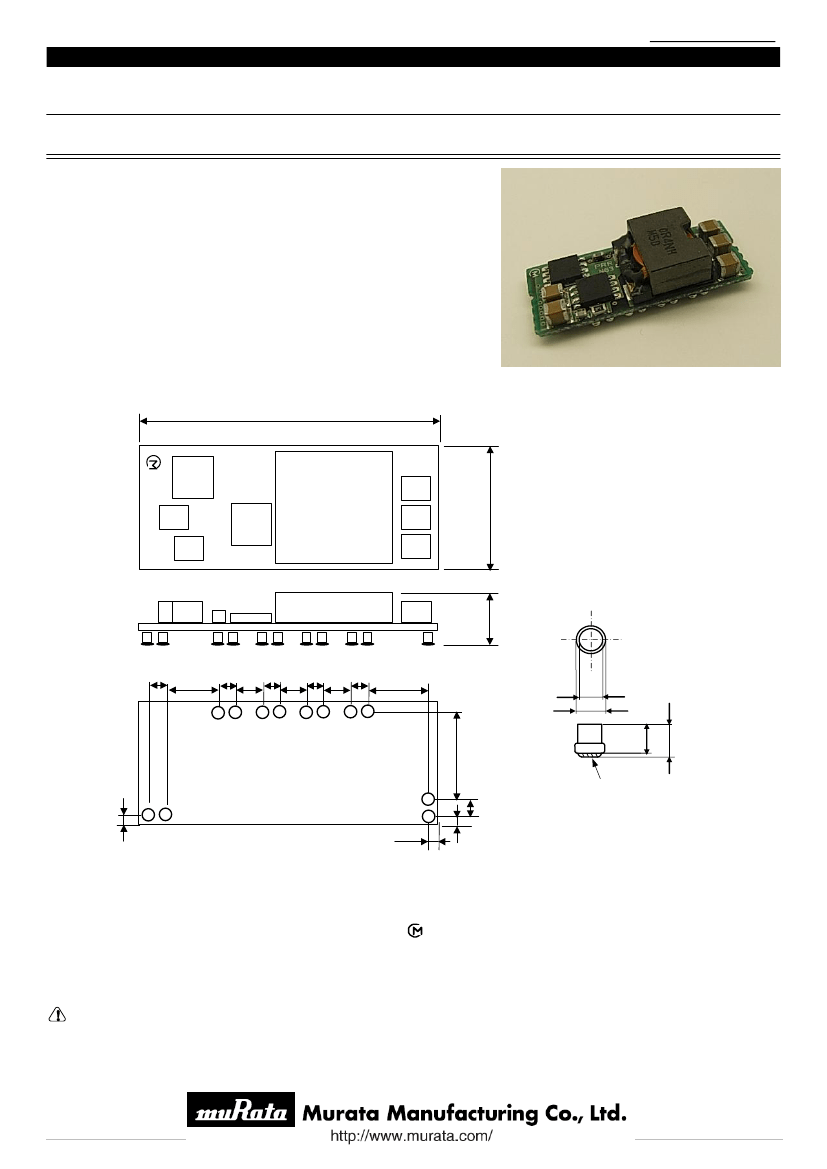

2. Appearance, Dimensions
33.0 +/- 0.2
PRR
①②③
Top View
8.0 max.
13.5 +/- 0.2
Pin detail
1.90
5.97
1.90
2.93
1.90
2.93
1.90
2.93
1.90
6.65
1.20
1.50
1.60
+0.20
-0.10
3 4
5 6
7 8
9 10
(1.45)
Bottom View
9.34
1.29
11
12
1 2
1.22
0.97
1.90
Hatching area :Lead Free Solder
(user soldering portion)
[unit：mm]
Tolerance：0.25mm
Marking
(1) MFG ID/ Pin No.1 marking
(2) Part No.
PRR
(3) Lot No.
①②③
①Production
factory Mark
②Production
Year
③Production
Month（1,2,3,…9,O,N,D）
Note:
1. This datasheet is downloaded from the website of Murata Manufacturing co., ltd. Therefore, it’ s specifications are subject to change or our
products in it may be discontinued without advance notice. Please check with our sales representatives or product engineers b efore ordering.
2. This datasheet has only typical specifications because there is no space for detailed specifications. Therefore, please approve our product
specifications or transact the approval sheet for product specifications before ordering.
エ
ラ
ー
!
連
番
が
指
定
さ
れ
て
い
ま
せ
ん
2012.10.10
。
MPDRX002S DATA Sheet
2
Pin Number and Function
Pin No.
Symbol
1,2
Vin
3,4
GND
5,6
Vout
7,8
TRIM
9,10
SENSE
11,12
ON/OFF
3. Block Diagram
Function
Input
GND
Output
Vout adjust control
Vout sense input
Remote ON/OFF
1,2
Vin
Vout
5,6
SENSE
9,10
3,4
GND
11,12
ON/OFF
Control Circuit
TRIM
7,8
4. Environmental Conditions
4 .1 Operating Temperature Range
4. 2 Storage Temperature Range
4 .3 Operating Humidity Range
4 .4 Storage Humidity Range
4 .5 Maximum Wet Bulb
-40 to +85 °C
（Temperature
gradient ≤10°C/H）
-40 to +85 °C
（Temperature
gradient ≤25°C /H）
20% to 85% (No condensation)
10% to 90% (No condensation)
39°C
5. Absolute Maximun Rating
5 .1 Input Voltage Range
5 .2 ON/OFF Pin Input Voltage Range
3.0V to 5.5V
-0.3V to Vin+0.3V
Note:
1. This datasheet is downloaded from the website of Murata Manufacturing co., ltd. Therefore, it’ s specifications are subject to change or our
products in it may be discontinued without advance notice. Please check with our sales representatives or product engineers b efore ordering.
2. This datasheet has only typical specifications because there is no space for detailed specifications. Therefore, please appro ve our product
specifications or transact the approval sheet for product specifications before ordering.
エ
ラ
ー
!
連
番
が
指
定
さ
れ
て
い
ま
せ
ん
。
2012.10.10
MPDRX002S DATA Sheet
3
6. Characteristics
6. 1 Electrical Characteristics (Ta=25
o
C)
Value
Item
Input Voltage Range
Rising UVLO Threshold
Falling UVLO Threshold
Output Voltage
Adjustable Range
Output Voltage Tolerance
Output Current
Ripple Voltage
Symbol
Vin
UVLOr
UVLOf
Vout
Vo tol
Iout
Vrpl
Ttr
Transient Response
ΔVtr
Efficiency
EFF
Over Vin, Io, Temperature Range
Rset=0.5% tolerance
See the thermal derating curve
in section 6.2.
Vin =3.3V, Iout=16A
Vout=1.8V
BW=20MHz,
Vout=0.8V
Cout=100µF
Vin=3.3V,Vout=1.8V
Recovery
Iout=8⇔16A,
Time
di/dt=2A/µs,
Vout Deviation
Cout=100µF
Vin =3.3V, Vout=1.8V, Iout=16A
Vin =3.3V, Vout=1.8V
Operating Frequency
Frq
Vin =3.3V, Vout=0.8V
-
350
-
Vin Increasing
Vin Decreasing
Condition
Min.
3.0
2.3
2.1
0.8
-2.5
0
-
-
-
-
-
-
Typ.
3.3
2.5
2.4
-
-
-
15
25
20
50
90
450
Max.
5.5
2.7
2.65
1.8
+2.5
16
40
50
-
-
-
-
kHz
ON/OFF pin is pulled up to Vin inside of the DC-DC Converter. If ON/OFF pin is
left open, the DC-DC Converter shall be “ON”. This pin will be pulled down to GND
inside the DC-DC Converter when OCP or OTP events occur. Please do NOT
connect this pin to Vin with low impedance line, so as not to damage the
converter..
If ON/OFF pin is connected to GND, the
0
-
0.7
V
DC-DC Converter shall be “OFF”.
Vin=3.3V，
Reset, Followed by Auto-Recovery
Reset, Followed by Auto-Recovery
When input voltage is ideal voltage
source
17
-
47
-
Output Voltage 0-10% (remote on)
Output Voltage 10-90%
0.2
1
27
115
100
0
0.5
4
-
-
1000
+10
2
8
A
o
Unit
V
V
V
V
%Vo
A
mV(p_p)
µsec
mV
%
ON/OFF pin High Voltage
VIH
ON/OFF pin Low Voltage
Short Circuit Protection
Over Temperature
Protection
External Output Capacitor
Rising Overshoot
Output Delay
Output Rise Time
VIL
SCP
OTP
Cout
Vover
Td
Tr
C
µF
%
msec
msec
Note:
1. This datasheet is downloaded from the website of Murata Manufacturing co., ltd. Therefore, it’ s specifications are subject to change or our
products in it may be discontinued without advance notice. Please check with our sales representatives or product engineers b efore ordering.
2. This datasheet has only typical specifications because there is no space for detailed specifications. Therefore, please appro ve our product
specifications or transact the approval sheet for product specifications before ordering.
エ
ラ
ー
!
連
番
が
指
定
さ
れ
て
い
ま
せ
ん
。
2012.10.10
MPDRX002S DATA Sheet
4
6. 2 Thermal Derating
MPDRX002S Thermal Derating
[ Vin=3.3V , Vout=1.8V ]
MPDRX002S Thermal Derating
[ Vin=5V , Vout=1.8V ]
Output Current [A]
Output Current [A]
15
10
5
0
20
30
40
50
60
70
80
90
Ta [°C]
0m/s
0.5m/s
1.0m/s
2.0m/s
15
10
5
0
20
30
40
50
60
70
80
90
Ta [°C]
0m/s
0.5m/s
1.0m/s
2.0m/s
The above derating limits apply to this product soldered directly to 101.6*180mm*1.6mm PCB (double-sided,
with 70um copper). Any adjacent parts of high temperature may cause overheating. For reliable operation,
please ensure that the FET temperature of this product is maintained below 120°C and the inductor
temperature is below 106°C.
7. Operation information
7. 1 Adjusting the Output Voltage
The output voltage can be adjusted from 0.8V to 1.8V by connecting a resistor between
TRIM-pin(7,8Pin) to GND-pin(3,4Pin).
The following equation gives the required external-resistance value to adjust the output voltage to the
required Vout.
Internal circuit
MPDRX002S
Vout
6.8kΩ
TRIM pin
Rtrim
＝
5440
Vout - 0.8
－
5100
[ohm]
5.1kΩ
Rtrim
Error amp
Note:
1. This datasheet is downloaded from the website of Murata Manufacturing co., ltd. Therefore, it’ s specifications are subject to change or our
products in it may be discontinued without advance notice. Please check with our sales representatives or product engineers b efore ordering.
2. This datasheet has only typical specifications because there is no space for detailed specifications. Therefore, please appro ve our product
specifications or transact the approval sheet for product specifications before ordering.
エ
ラ
ー
!
連
番
が
指
定
さ
れ
て
い
ま
せ
ん
。
2012.10.10
MPDRX002S DATA Sheet
5
<Rtrim calculation example>
Vout [V]
Calculated Rtrim [ohm]
1.8
340
1.5
2671
1.2
8500
1.0
0.8
22100
∞
Rtrim example [ohm]
330
2.4k+270
8.2k＋300
22k＋100
Open
7. 2 ON/OFF Control
ON/OFF function
By using ON/OFF function, the operation of this product can be disabled without disconnection of input voltage.
Sequence of a power supply system and power-saving control can be easily achieved using this function.
ON/OFF Control Operation
When ON/OFF-pins(11,12pin) are left open
When ON/OFF-pins(11,12pin) are connected to GND
……
……
Output Voltage =ON
Output Voltage=OFF
example
MPDRX002S
11,12
3,4
GND
on/off
or
7. 3 Output voltage sensing
By connecting SENSE-pin to the load, output voltage drop in wiring shall be compensated.
Vout
MPDRX002S
SENSE
Load
GND
Please do NOT connect SENSE-pin to the output of LC filter that is set to the Vout line.
When using this way, this product will not operate properly.
Vout
MPDRX002S
SENSE
Load
GND
Note:
1. This datasheet is downloaded from the website of Murata Manufacturing co., ltd. Therefore, it’ s specifications are subject to change or our
products in it may be discontinued without advance notice. Please check with our sales representatives or product engineers b efore ordering.
2. This datasheet has only typical specifications because there is no space for detailed specifications. Therefore, please appro ve our product
specifications or transact the approval sheet for product specifications before ordering.
エ
ラ
ー
!
連
番
が
指
定
さ
れ
て
い
ま
せ
ん
。
2012.10.10
