Technical Datasheet DS05
SuperFlux LEDs
Introduction
This revolutionary package design allows the lighting designer to
reduce the number of LEDs required and provide a more uniform
and unique illuminated appearance than with other LED solutions.
This is possible through the efficient optical package design and
high current capabilities.
The low profile package can be easily coupled with reflectors or
lenses to efficiently distribute light and provide the desired lit
appearance. This product family employs the world's brightest red,
red orange, amber, blue, cyan, and green LED materials, which
allow designers to match the color of many lighting applications
like vehicle signal lamps, specialty lighting, and electronic signs.
HPWA MH00
HPWT MH00
HPWA DH00
HPWT DH00
HPWT RD00
HPWT BH00
HPWT MD00
HPWT RL00
HPWT DD00
HPWT ML00
HPWT BD00
HPWT DL00
HPWT RH00
HPWT BL00
HPWN MB00
HPWN MC00
HPWN MG00
High Luminance
Uniform Color
Low Power Consumption
Low Thermal Resistance
Low Profile
Meets SAE/ECE/JIS
Automotive Color
Requirements
Packaged in tubes for use with
automatic insertion equipment
Key Benefits
Rugged Lighting Products
Electricity Savings
Maintenance Savings
Features
Typical
Applications
Automotive Exterior Lighting
Electronic Signs and Signals
Specialty Lighting

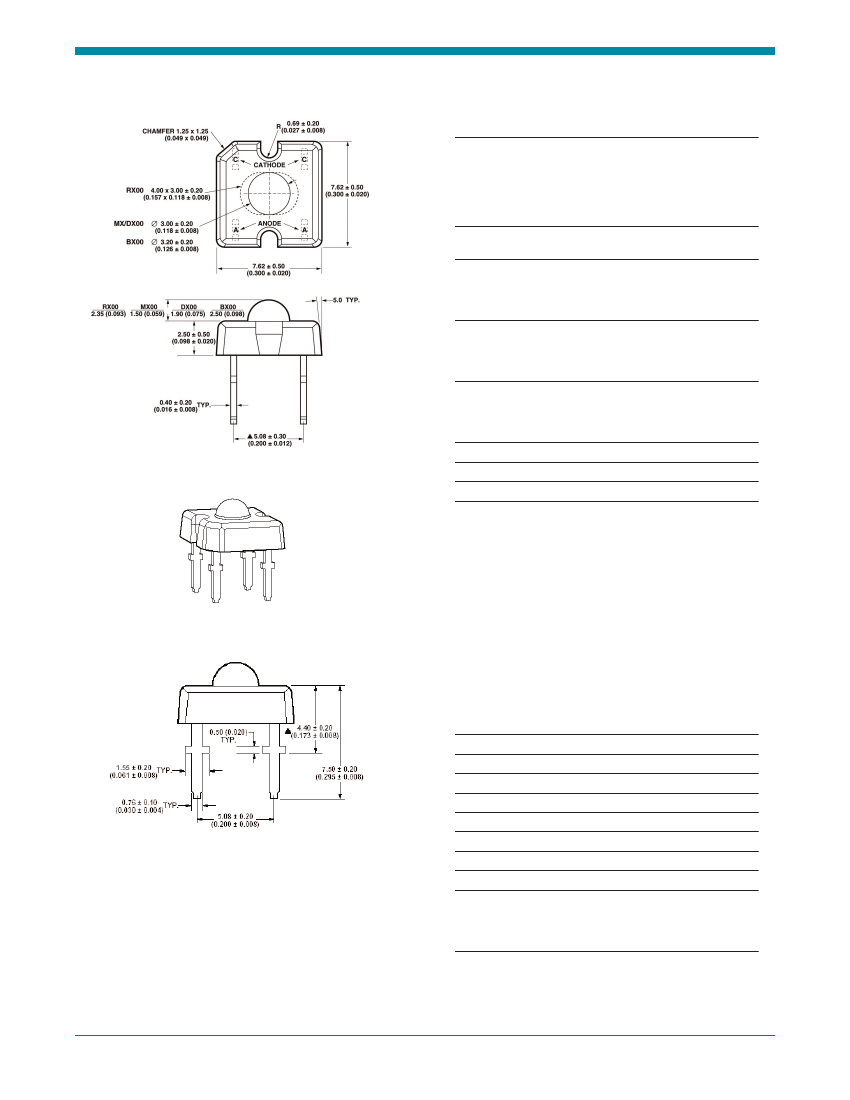

Outline Drawings
Selection Guide
Table 1
Total Flux
Φ
V (LM)
@
H
70 mA
[1]
(H
PWA,
HPWT)
50 mA (HPWN)
Device Type
HPWA MH00
HPWA DH00
HPWT RD00
HPWT MD00
HPWT DD00
HPWT BD00
HPWT RH00
HPWT MH00
HPWT DH00
HPWT BH00
HPWT RL00
HPWT ML00
HPWT DL00
HPWT BL00
HPWN MB00
HPWN MC00
HPWN MG00
InGaN Blue
InGaN Cyan
InGaN Green
2.0
5.0
4.5
TS AlInGaP Amber
2.5
TS AlInGaP Red Orange
5.0
TS AlInGaP Red
3.8
Total Included
Angle
θ
90V
(Degrees)
[2]
Typ.
95
75
44 X 88
100
70
50
44 X 88
100
70
50
44 X 88
100
70
50
110
110
110
LED Color
AS AlInGaP Red Orange
Typ.
2.0
Notes:
1.Φv is the total luminous flux output as measured with
an integrating sphere after the device has stabilized.
(R
θ
J A
= 200°C/W, T
A
= 25ºC)
2.θ
0.90 V
is the included angle at which 90% of the total
luminous flux is captured.
Absolute Maximum Ratings at
T
A
= 25ºC
Table 2
Parameter
DC Forward Current
Power Dissipation
Reverse Voltage (I
R
= 100
μA)
Operating Temperature Range
Storage Temperature Range
High Temperature Chamber
LED Junction Temperature
Solder Conditions
[2]
Preheat Temperature
Solder Temperature
[1]
HPWA
70
187
10
HPWT
70
221
10
40 to +100
55 to +100
HPWN
50
233
0.55
Units
mA
mW
V
ºC
ºC
125ºC, 2 Hours
125ºC
85 +/ 15°C, 20 sec (Max 30 sec)
235 +/ 5°C, 2.5 +/ 0.5 sec
[1.5mm (0.06 in) below seating plane
SuperFlux LEDs Technical Datasheet DS05 (10/06)
2
Optical Characteristics at
T
A
= 25°C, I
F
= 70 mA (HPWA, HPWT),
I
F
= 50 mA (HPWN), R
θ
J A
= 200°C/W
Table 3
Total
Peak
Wavelength
Device
Type
HPWA MH00
HPWA DH00
HPWT RD00
HPWT MD00
HPWT DD00
HPWT BD00
HPWT RH00
HPWT MH00
HPWT DH00
HPWT BH00
HPWT RL00
HPWT ML00
HPWT DL00
HPWT BL00
HPWN MB00
HPWN MC00
HPWN MG00
460
503
520
470
505
525
596
594
626
620
640
630
λ
peak (nm)
Typ.
624
Dominant
Wavelength
λ
dom(nm)
[1]
Typ.
618
Included
Angle
θ
0.90 V
(Degrees)
[2]
Typ.
95
75
44 X 88
100
70
50
44 X 88
100
70
50
44 X 88
100
70
50
110
110
110
Luminous
Intensity/
Total Flux
I
v
(cd)/
Φ
v
(lm)
Typ.
0.6
0.9
1.25
0.6
1.5
2.0
1.25
0.6
1.5
2.0
1.25
0.6
1.5
2.0
0.9
0.9
0.9
Viewing
Angle 2
θ
1/2
(Degrees)
Typ.
90
60
25 x 68
70
40
30
Electrical Characteristics at T
A
=25°C
Table 4
Forward Voltage
V
F
(Volts)
@
I
F
= 70mA (HPWA,
HPWT)
I
F
= 50 mA (HPWN)
Device
Type
HPWA xH00
HPWT xD00
HPWT xH00
HPWT xL00
HPWN xB00
Reverse
Breakdown
V
R
(Volts)
[1]
@ I
R
= 100
μ
A
Capacitance
C (pF)
V
F
= 0,
F = 1MHz.
Thermal
Resistance
R
θ
J PIN
(°C/W)
Speed of
Response
τ
s
(ns)
[2]
Typ.
20
20
20
20
20
20
20
Min
1.83
2.19
2.19
2.19
3.00
3.00
3.00
Typ
2.2
2.6
2.6
2.6
3.8
3.8
3.9
Max
2.67
3.03
3.03
3.15
4.60
4.60
4.60
Min
10
10
10
10
0.55
0.55
0.55
Typ.
20
20
20
20
0.65
0.65
0.65
Typ.
40
40
40
40
1900
1900
1900
Typ.
155
125
125
125
130
130
130
25 x 68
70
40
30
25 x 68
70
40
30
90
90
90
HPWN xC00
HPWN xG00
Notes:
1.Operation in reverse bias is not recommended.
2.τs is the time constant, e
t/τs
.
Notes:
1.The dominant wavelength is derived from the CIE
Chromaticity Diagram and represents the perceived color
of the device.
2.θ
0.90 V
is the included angle at which 90% of the total lumi
nous flux is captured.
SuperFlux LEDs Technical Datasheet DS05 (10/06)
3
Part Number Selection
Red
Part Number
HPWT
HPWT
HPWT
HPWT
HPWT
HPWT
HPWT
HPWT
HPWT
HPWT
HPWT
HPWT
HPWT
HPWT
HPWT
HPWT
RD00 00000
RD00 D4000
RD00 E4000
RD00 F4000
BD00 00000
BD00 D4000
BD00 E4000
BD00 F4000
DD00 00000
DD00 D4000
DD00 E4000
DD00 F4000
MD00 00000
MD00 D4000
MD00 E4000
MD00 F4000
Viewing Angle
2
θ
1/2
(Degrees)
25
25
25
25
X 68
X 68
X 68
X 68
30
30
30
30
40
40
40
40
70
70
70
70
Min. Flux
[1]
Φ
v (lm)
1.5
2.0
2.5
3.0
1.5
2.0
2.5
3.0
1.5
2.0
2.5
3.0
1.5
2.0
2.5
3.0
Max Flux
Φ
v (lm)
4.8
6.1
7.3
4.8
6.1
7.3
4.8
6.1
7.3
4.8
6.1
7.3
Minimum
Intensity (cd)
1.9
2.5
3.1
3.8
3.0
4.0
5.0
6.0
2.3
3.0
3.8
4.5
0.9
1.2
1.5
1.8
Maximum
Intensity (cd)
6.0
7.6
9.1
9.6
12.2
14.6
7.2
9.2
11.0
2.9
3.7
4.4
Note:
1.
Φv
is the total luminous flux output as measured with an integrating sphere after the device has stabilized.
SuperFlux LEDs Technical Datasheet DS05 (10/06)
4
Red Orange
Part Number
HPWT
HPWT
HPWT
HPWT
HPWT
HPWT
HPWT
HPWT
HPWT
HPWT
HPWT
HPWT
HPWT
HPWT
HPWT
HPWT
HPWT
HPWT
HPWT
HPWT
HPWT
HPWT
HPWT
HPWT
HPWA
HPWA
HPWA
HPWA
RH00 00000
RH00 D4000
RH00 E4000
RH00 F4000
RH00 G4000
RH00 H4000
BH00 00000
BH00 D4000
BH00 E4000
BH00 F4000
BH00 G4000
BH00 H4000
DH00 00000
DH00 D4000
DH00 E4000
DH00 F4000
DH00 G4000
DH00 H4000
MH00 00000
MH00 D4000
MH00 E4000
MH00 F4000
MH00 G4000
MH00 H4000
MH00 B4000
DH00 B4000
MH00 C4000
DH00 C4000
Viewing Angle
2
θ
1/2
(Degrees)
25
25
25
25
25
25
X 68
X 68
X 68
X 68
X 68
X 68
30
30
30
30
30
30
40
40
40
40
40
40
70
70
70
70
70
70
90
40
90
40
Min. Flux
Φ
v (lm)
1.5
2.0
2.5
3.0
3.5
4.0
1.5
2.0
2.5
3.0
3.5
4.0
1.5
2.0
2.5
3.0
3.5
4.0
1.5
2.0
2.5
3.0
3.5
4.0
1.0
1.0
1.5
1.5
Max Flux
Φ
v (lm)
4.8
6.1
7.3
9.7
12.0
4.8
6.1
7.3
9.7
12.0
4.8
6.1
7.3
9.7
12.0
4.8
6.1
7.3
9.7
12.0
3.6
3.6
4.2
4.2
Minimum
Intensity (cd)
1.9
2.5
3.1
3.8
4.4
5.0
3.0
4.0
5.0
6.0
7.0
8.0
2.3
3.0
3.8
4.5
5.3
6.0
0.9
1.2
1.5
1.8
2.1
2.4
0.6
1.5
0.9
2.3
Maximum
Intensity (cd)
6.0
7.6
9.1
12.1
15.0
9.6
12.2
14.6
19.4
24.0
7.2
9.2
11.0
14.6
18.0
2.9
3.7
4.4
5.8
7.2
2.2
5.4
2.5
6.3
Amber
Part Number
HPWT
HPWT
HPWT
HPWT
HPWT
HPWT
HPWT
HPWT
HPWT
HPWT
HPWT
HPWT
RL00 00000
RL00 C4000
RL00 D4000
BL00 00000
BL00 C4000
BL00 D4000
DL00 00000
DL00 C4000
DL00 D4000
ML00 00000
ML00 C4000
ML00 D4000
Viewing Angle
2
θ
1/2
(Degrees)
25 X 68
25 X 68
25 X 68
30
30
30
40
40
40
70
70
70
Min. Flux
Φ
v (lm)
1.0
1.5
2.0
1.0
1.5
2.0
1.0
1.5
2.0
1.0
1.5
2.0
Max Flux
Φ
v (lm)
4.2
4.8
4.2
4.8
4.2
4.8
4.2
4.8
Minimum
Intensity (cd)
1.3
1.9
2.5
2.0
3.0
4.0
1.5
2.3
3.0
0.6
0.9
1.2
Maximum
Intensity (cd)
5.3
6.0
8.4
9.6
6.3
7.2
2.5
2.9
SuperFlux LEDs Technical Datasheet DS05 (10/06)
5
