2SA1064 datasheet, PDF - EEWORLD Datasheet

2SA1064: DescriptionSI NPN EPITAXIAL MESA; CategoryDiscrete semiconductor The transistor; File Size208KB，4 Pages; ManufacturerPanasonic; Websitehttp://www.panasonic.co.jp/semicon/e-index.html

Download Datasheet Parametric Compare View All

2SA1064 Overview

SI NPN EPITAXIAL MESA

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
package instruction	,
Reach Compliance Code	unknow
Maximum collector current (IC)	8 A
Configuration	Single
Minimum DC current gain (hFE)	40
JESD-609 code	e0
Maximum operating temperature	140 °C
Polarity/channel type	PNP
Maximum power dissipation(Abs)	100 W
surface mount	NO
Terminal surface	Tin/Lead (Sn/Pb)
Nominal transition frequency (fT)	50 MHz
Base Number Matches	1

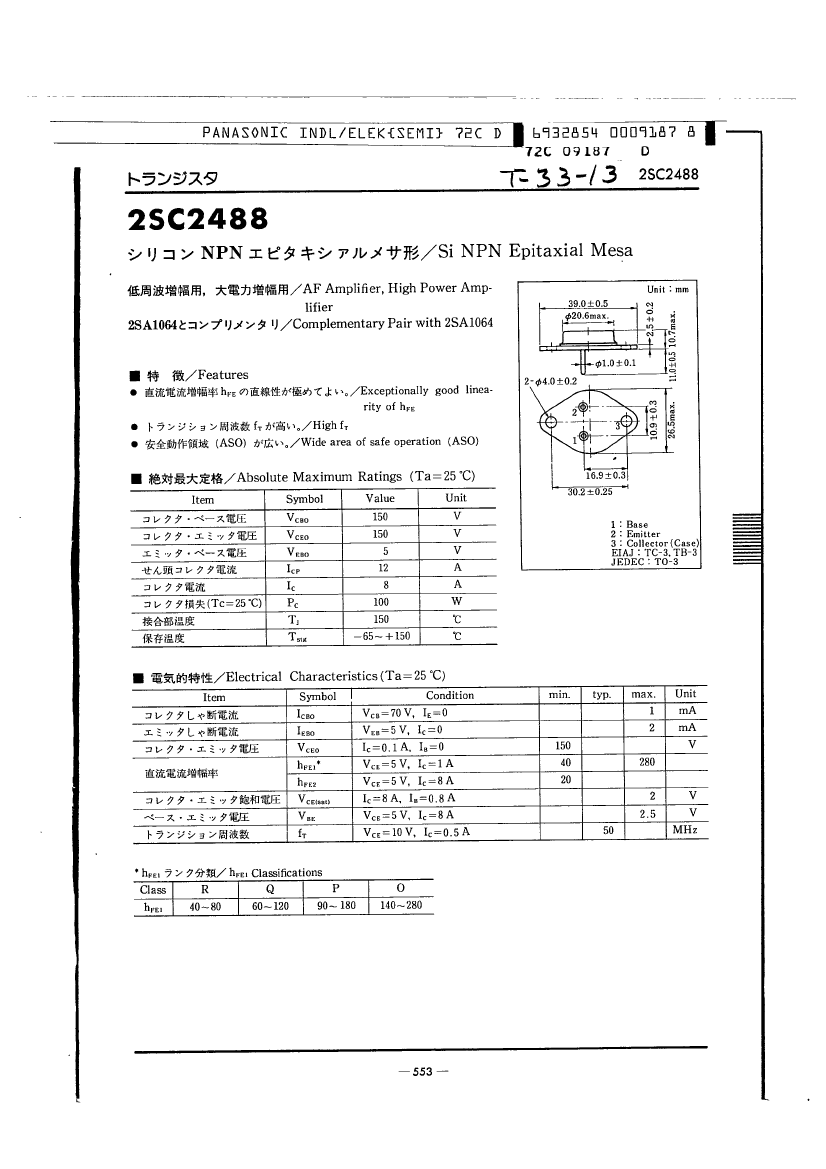

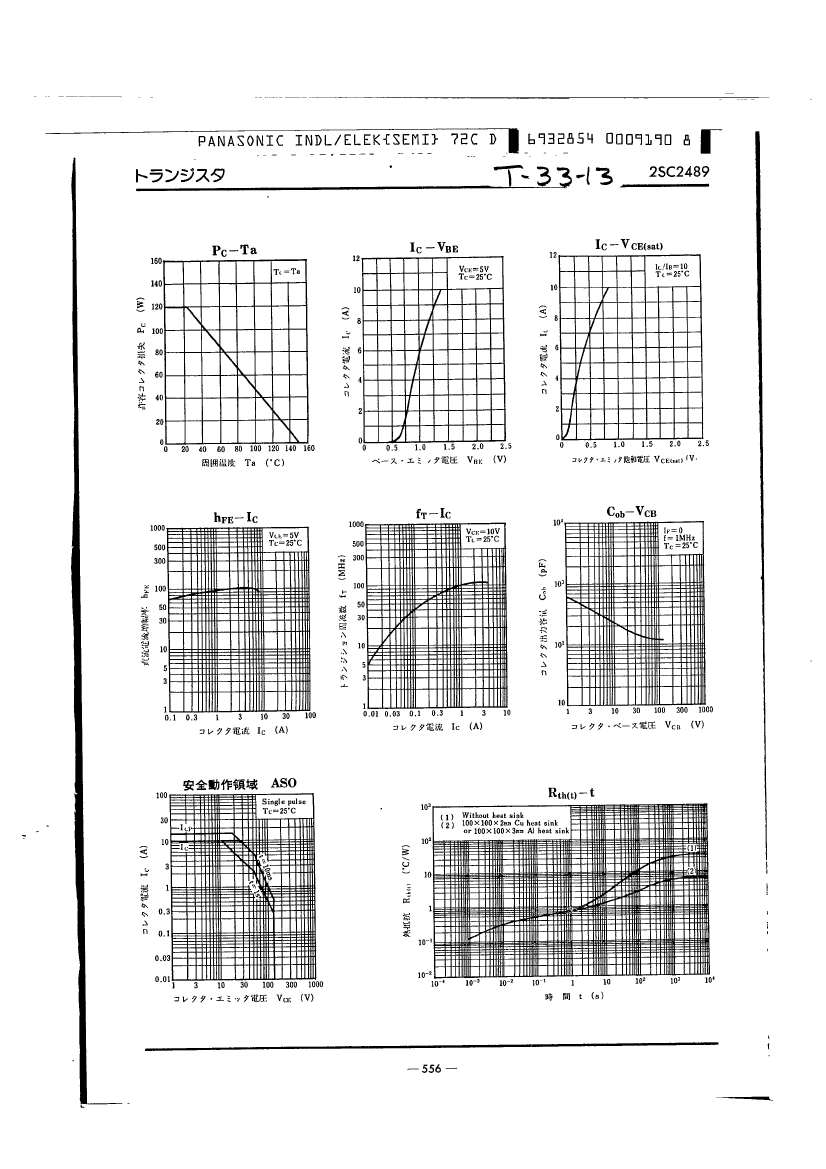

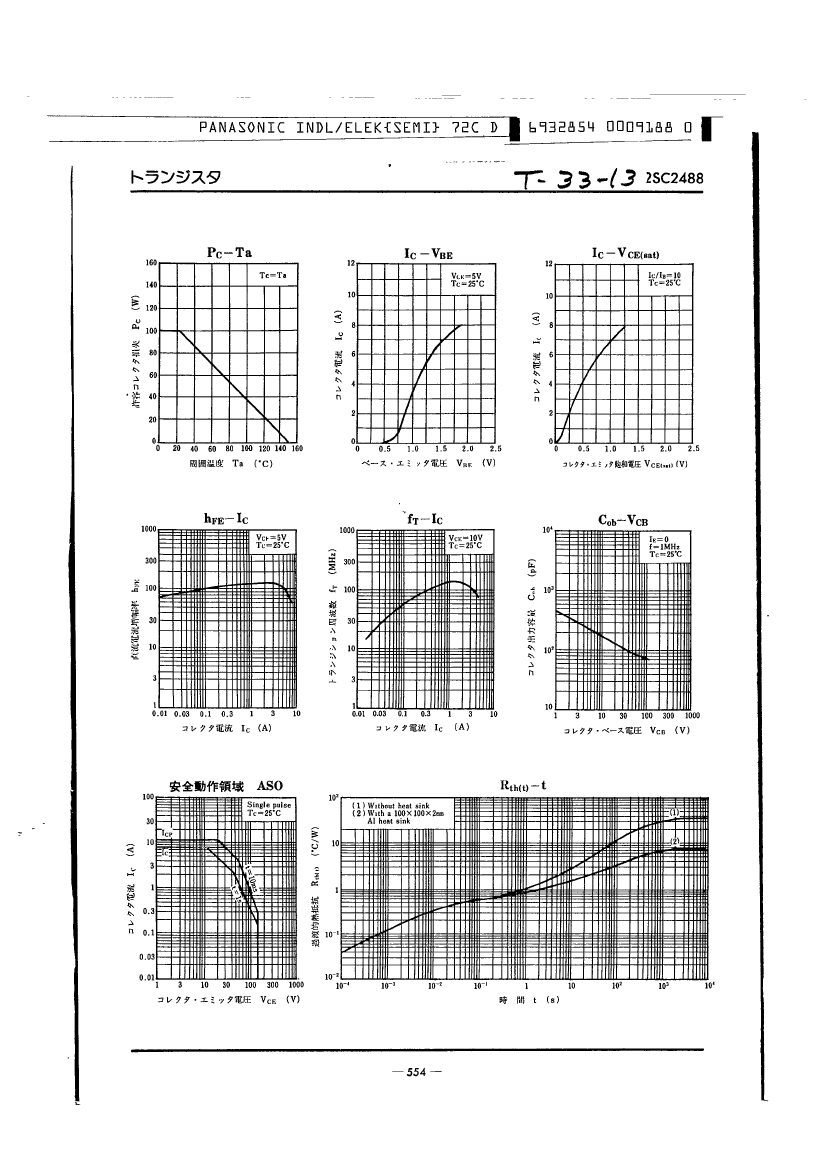

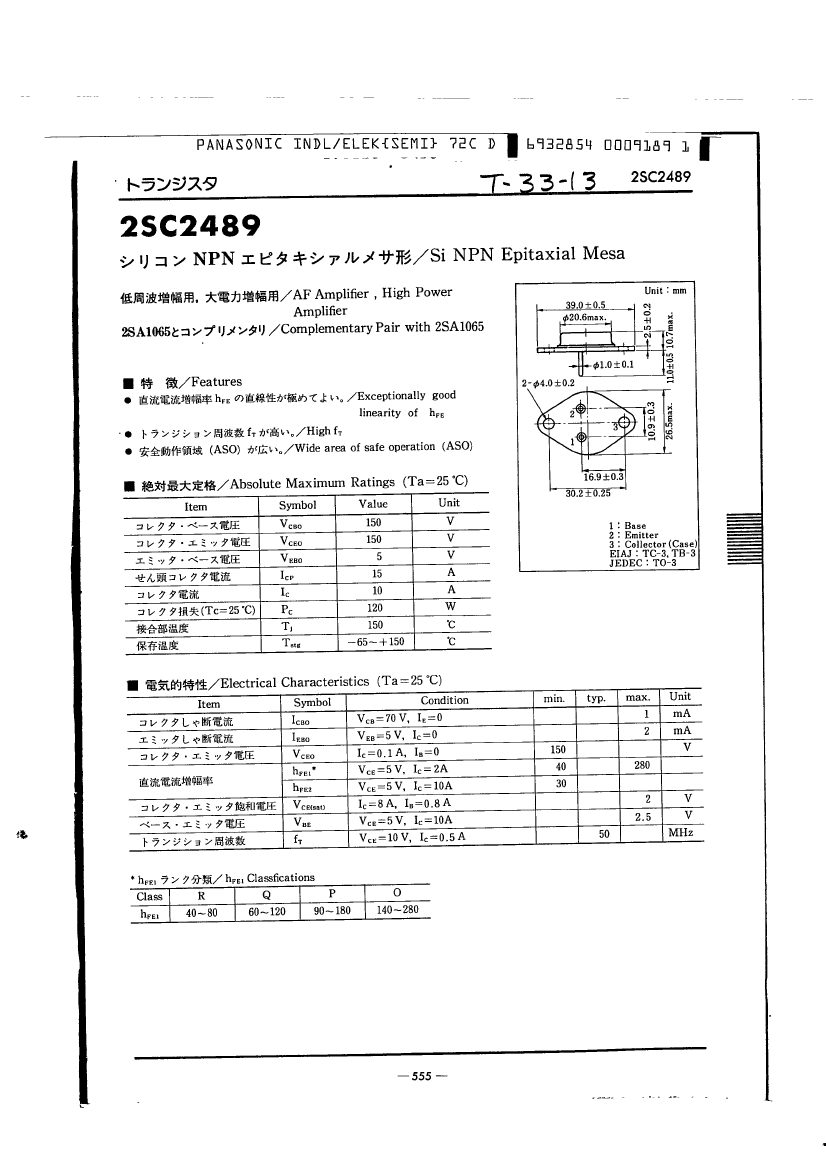

	2SA1064	2SA1065	2SC2488	2SC2489
Description	SI NPN EPITAXIAL MESA	SI NPN EPITAXIAL MESA	SI NPN EPITAXIAL MESA	SI NPN EPITAXIAL MESA
Is it Rohs certified?	incompatible	incompatible	incompatible	incompatible
Reach Compliance Code	unknow	unknow	unknow	unknow
Maximum collector current (IC)	8 A	10 A	8 A	10 A
Configuration	Single	Single	Single	Single
Minimum DC current gain (hFE)	40	40	40	40
JESD-609 code	e0	e0	e0	e0
Maximum operating temperature	140 °C	140 °C	140 °C	140 °C
Polarity/channel type	PNP	PNP	NPN	NPN
Maximum power dissipation(Abs)	100 W	120 W	100 W	120 W
surface mount	NO	NO	NO	NO
Terminal surface	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)
Base Number Matches	1	1	1	1
