531422-3 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> 531422-3

531422-3: DescriptionCONNECTOR, 56 CONTACT(S), FEMALE, VERTICAL SINGLE PART CARD EDGE CONN, WIRE WRAP; CategoryThe connector The connector; File Size638KB，16 Pages; ManufacturerTE Connectivity; Websitehttp://www.te.com

Download Datasheet Parametric Compare View All

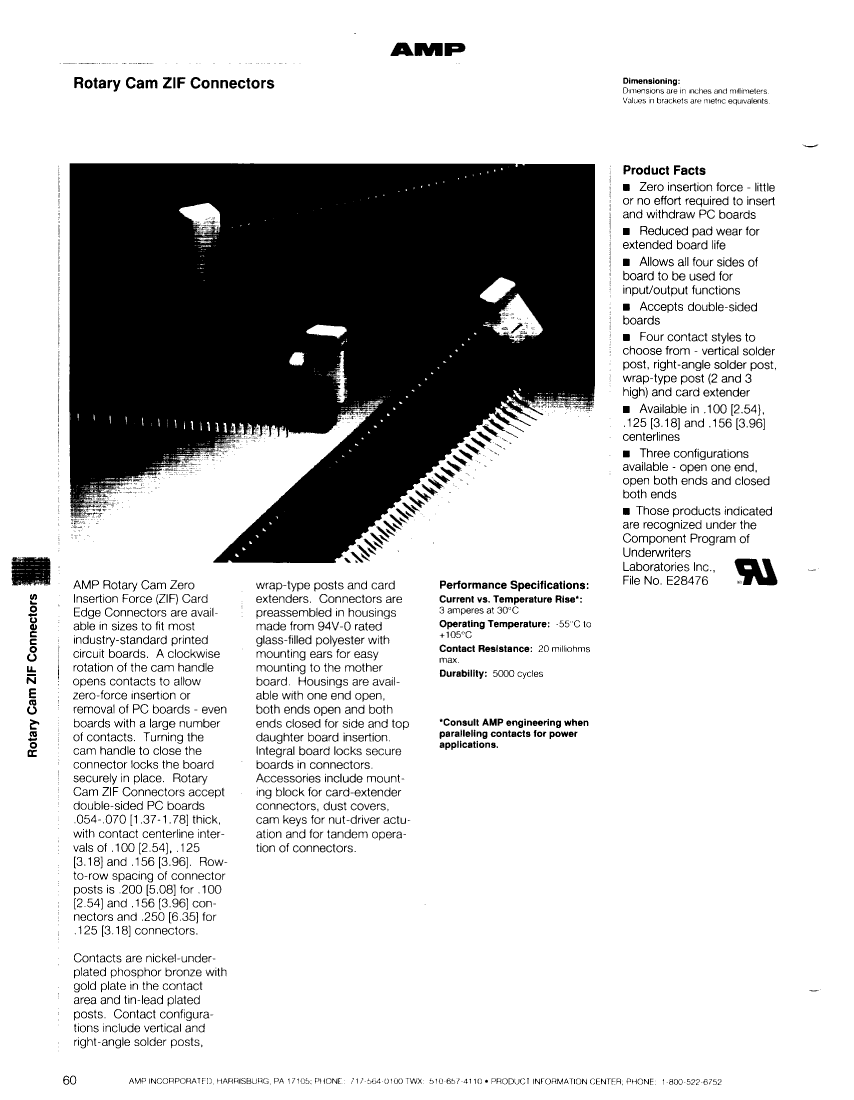

531422-3 Overview

CONNECTOR, 56 CONTACT(S), FEMALE, VERTICAL SINGLE PART CARD EDGE CONN, WIRE WRAP

531422-3 Parametric

Parameter Name	Attribute value
Maker	TE Connectivity
Reach Compliance Code	unknown
Is Samacsys	N
Other features	ZIF
Connector type	CARD EDGE CONNECTOR
Contact point gender	FEMALE
DIN compliance	NO
Filter function	NO
IEC compliance	NO
MIL compliance	NO
Manufacturer's serial number	531422
Mixed contacts	NO
Installation method	STRAIGHT
Installation type	BOARD
Number of rows loaded	2
Terminal pitch	3.17 mm
Termination type	WIRE WRAP
Total number of contacts	56
UL Flammability Code	94V-0
Base Number Matches	1

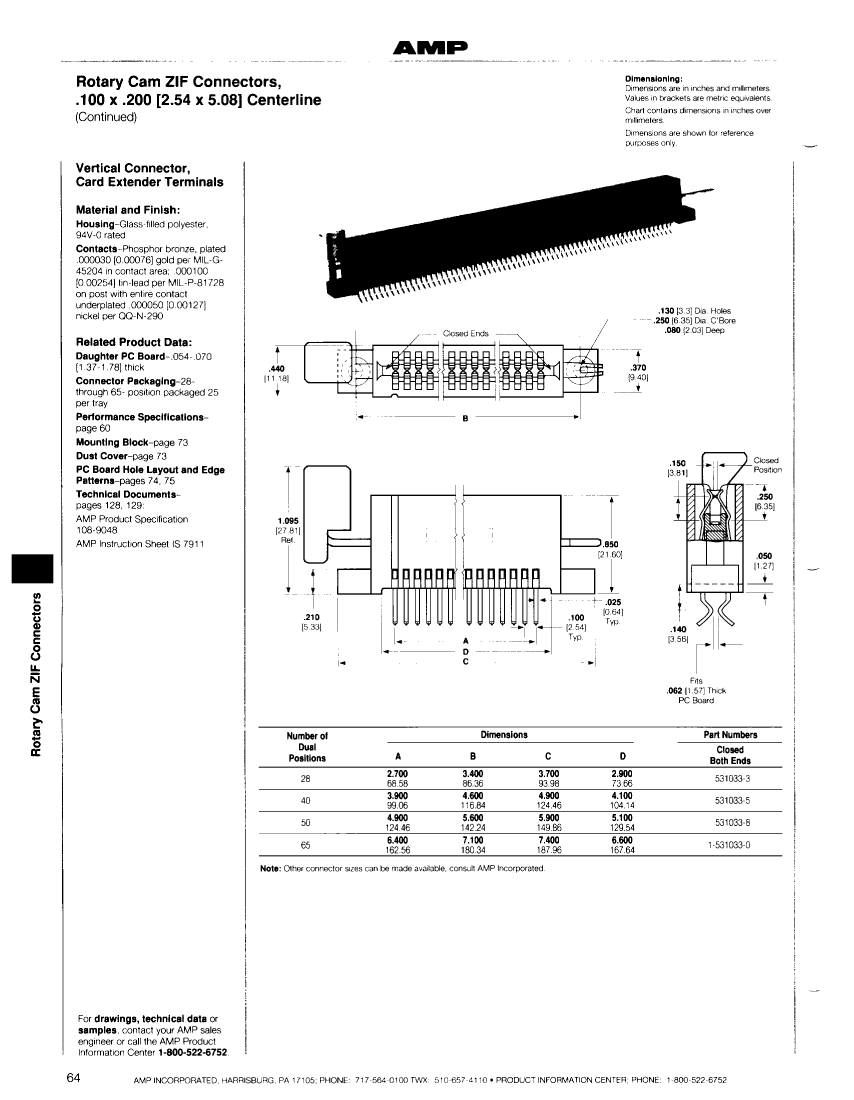

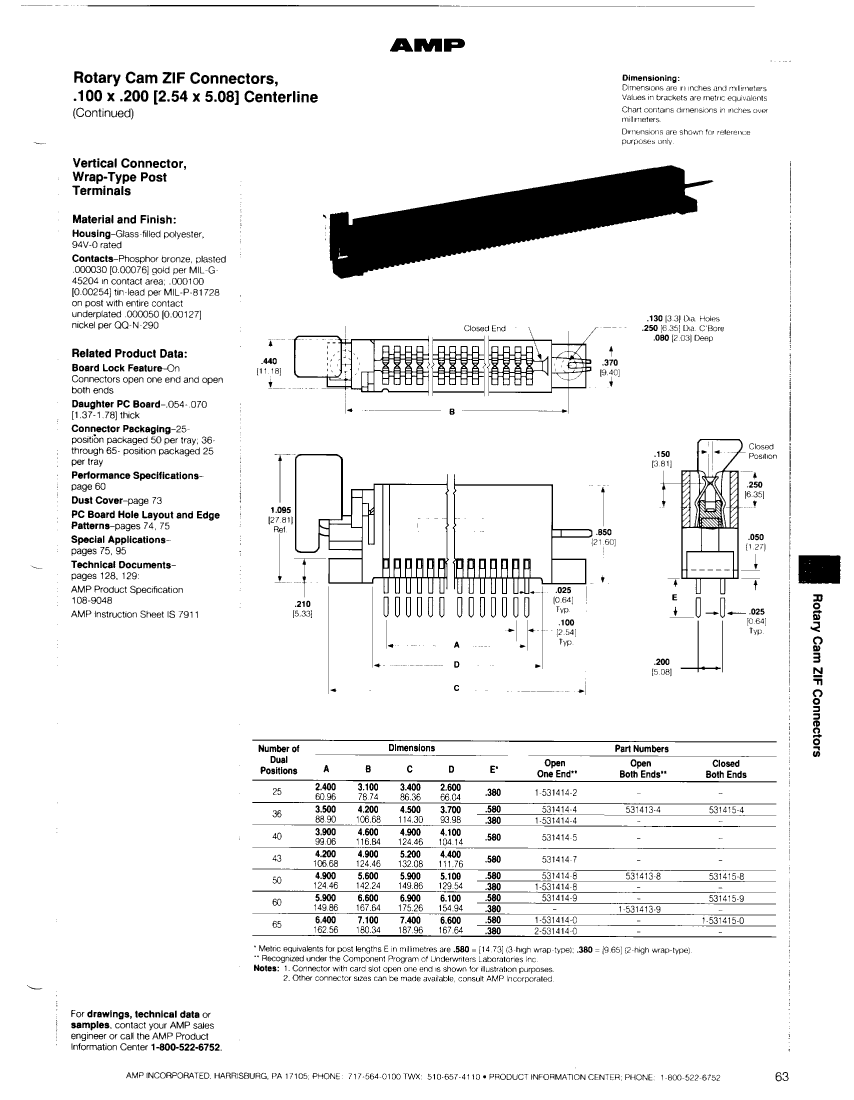

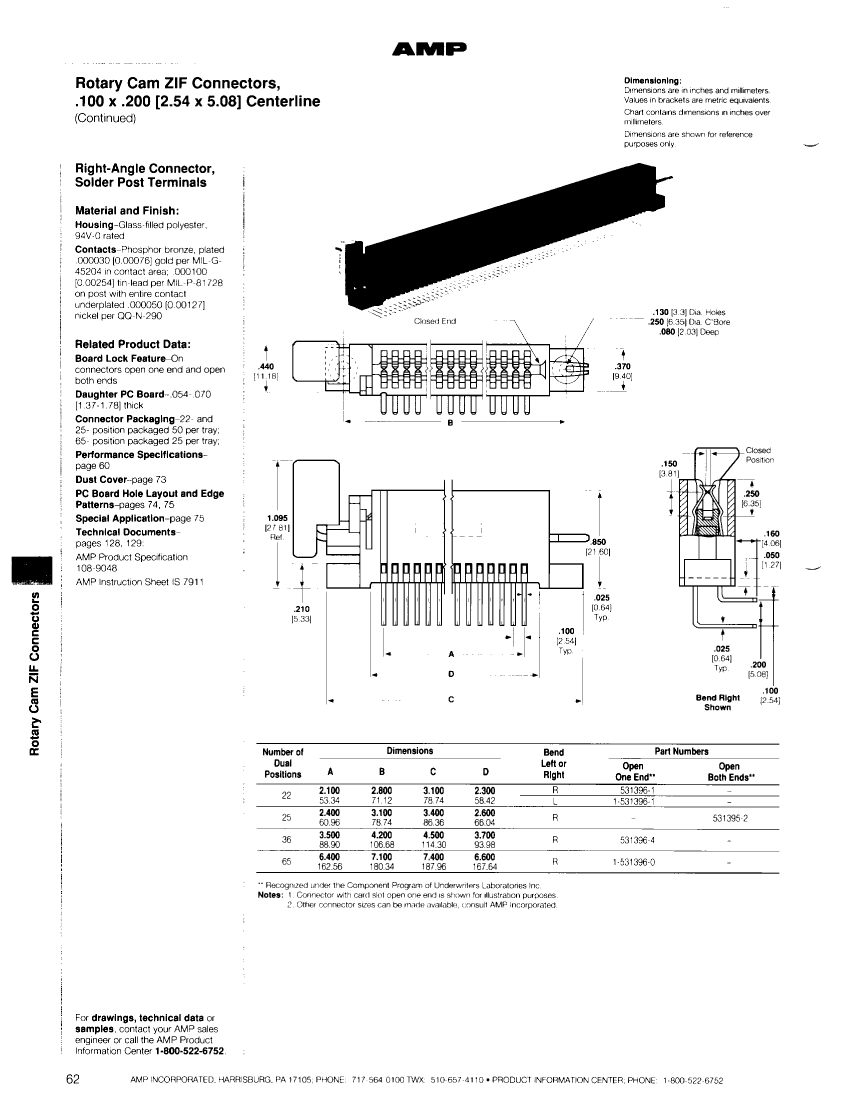

Preview

Download Datasheet

View All
