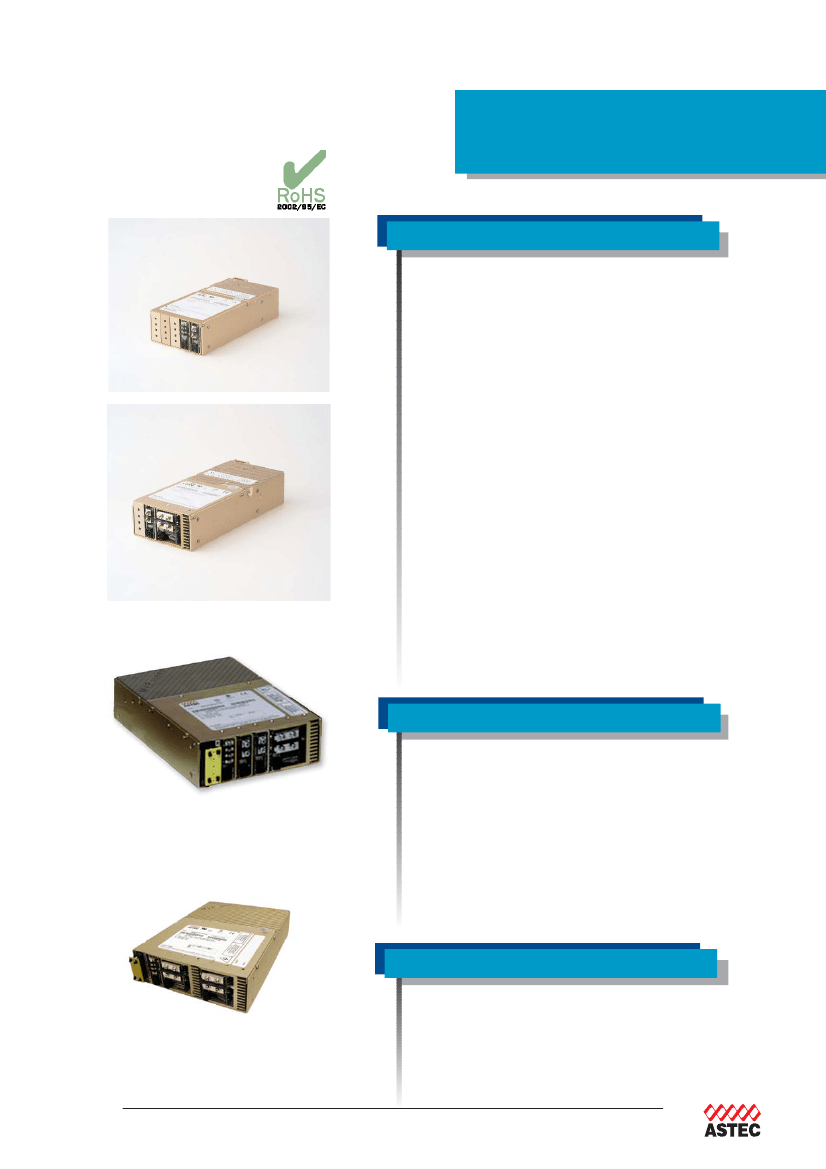

400-1200 Watts
MP Series
Special Features
• Current share on all outputs with ratings
of 10 A or greater
• Remote sense on all outputs with ratings
greater than 2 A
• Overload protection on all outputs
• Voltage adjustment on all outputs
• Margining on all single output modules
• Input OK signal and status indicator LED
• Global DC OK signal and status indicator LED
• Global and individual module inhibits/enable
• 2 year warranty
• Forced air cooling, field replaceable fan
• Isolated 5 V bias voltage
• Power factor correction
• EN61000-3-2 harmonic distortion compliance
• CISPR 22, EN55022 Curve B conducted / radiated EMI
• European CE Mark requirements
• Optional VME timing and system DC OK module
• Customer-provided air option
• Additional 200 W output @ high line (180-264 VAC)
• Low leakage option for medical applications
• EN61000 immunity standards
• Standard modification flexibility (consult factory)
Low noise fan
Fan fail signal
Module enable
Outputs down to 0.5V
MP4
MP6
Environmental
Operating temperature: -20°C to 50°C (start @ 0°C)
(derate each output linearly to 50% at 70°C)
(-20°C to 40°C max. with rear air option)
Shock/Vibration: Mil-Hdbk 810E
MP8
Humidity: 95% non-condensing
Storage temperature: -40°C to +85°C
Temperature coefficient: 0.02% per °C
Cooling: Internal DC fan or customer provided air (option)
Safety
UL
CSA
IEC
VDE
BABT
CB
CE
UL1950
CSA22.2 No. 234 Level 5
IEC950, Class 1
EN60950,
Compliance to EN 60950, BS 7002
Certificate and report
Mark
MP1
136
Technical Support: (888) 41ASTEC or (407) 241-2752
Americas: (760) 930-4600
Europe (UK) 44 (1384) 842-211
Asia (HK) 852-2437-9662
Rev 2.17.06
AMERICAS
5810 Van Allen Way
Carlsbad, CA 92008
Telephone: 760-930-4600
Facsimile: 760-930-0698
EUROPE
Astec House, Waterfront Business Park
Merry Hill, Dudley
West Midlands, DY5 1LX, UK
Telephone: 44 (1384) 842-211
Facsimile: 44 (1384) 843-355
ASIA
Units 2111-2116, Level 21
Tower1, Metroplaza
223, Hing Fong Road
Kwai Fong, New Territories
Hong Kong
Telephone: 852-2437-9662
Facsimile: 852-2402-4426
MP Series
Electrical Specs
Input
Input voltage
Frequency
Inrush current
Efficiency
Power factor
Turn-on time
EMI filter standard
EMI filter
(low leakage option)
Leakage current standard
Leakage current
(low leakage option).
Radiated EMI
Holdover storage
AC OK
85-264 VAC
120-350 VDC
47-440 Hz
40 A peak max. (soft start)
70-80% typ. @ full case load
0.99 typ. meets EN61000-3-2
AC on 1.5 sec typ.,
Inhibit / Enable 150 ms typ.
CISPR 22
EN55022 Level “B”
CISPR 22
EN55022 Level “A”
2.0 mA max. @ 240 VAC
Short circuit protection
300 μA max. @ 240 VAC
CISPR 22
EN55022 Level “B”
20 ms minimum
(independent of input VAC)
>5 ms early warning min.
before outputs loose regulation
Full cycle ride thru (50 Hz)
Meets EN61000-3-2
Meets EN60950
TTL, Logic “1” and Logic “0”
MP4: 10 A
MP6: 15 A
MP8: 20 A
MP1: 20 A
2 years
Overvoltage protection
(measured at sense
connection)
Output
Adjustment range
Margining
Overall reg
Ripple
±10% min. all outputs
±4-6% nom.
0.4% or 20 mV max.
(36 W modules 4% max.)
RMS: 0.1% or 10 mV, whichever is greater
Pk-Pk: 1.0% or 50 mV, whichever is greater
Bandwidth limited to 20 MHz
<2% or 100 mV, with 25% load step.
To within 1% in <300 μsec.
Single, main of dual output module
105-120% of rated output current.
Aux output of dual output module 105-140%
of rated output current.
Triple output module internally protected
Protected for continuous short circuit
Recovery is automatic upon removal of short.
1
Dynamic response
Recovery time
Overcurrent protection
Harmonic distortion
Isolation
Global Inhibit/Enable
Input fuse (internal)
Reverse voltage protection
Thermal protection
Warranty
Remote sense
Single wire parallel
DC OK
Minimum load
Single output modules
2-5.5 V 122-134%
6-60 V 110-120%
Dual output module
2-6 V 122-134%
8-28 V 110-120%
Triple output module.
No overvoltage protection provided. Recycle
the AC input voltage to reset OVP circuit
100% of rated output current
All outputs disabled when internal temp
exceeds safe operating range. >5 ms warning
(AC OK signal) before shutdown
Up to 0.5 V total drop (not available on triple
output module)
Current share to within 2% of total rated current
2
2
100
80
%
Rated
Total
Case
Load
Power Derating Curve
50
-2% to -8% of nominal for any monitored output
Not required on single or triple output modules.
10% required on main of dual output modules
5 VDC @1.0A mA max. present whenever AC
input is applied
TTL, isolated, singles and dual
(both outputs) only
250 kHz
>1 Megohm
POR signal & quad external DC OK
1-slot module providing an additional
34mSec (60mSec total)
hold-up @ 600W loading.
3
Normal
Air Flow
Housekeeping bias voltage
Module inhibit
60
50
40
20
Switching frequency
Output/Output isolation
VME signal option board
Hold-up module (HUP)
30
35
40
45
50
55
60
65
70
TA – Ambient Temperature – °C
Notes:
1. Single output modules only.
2. Single and main of dual output modules only.
3. Contact factory for optional preload if required.
www.astecpower.com
137

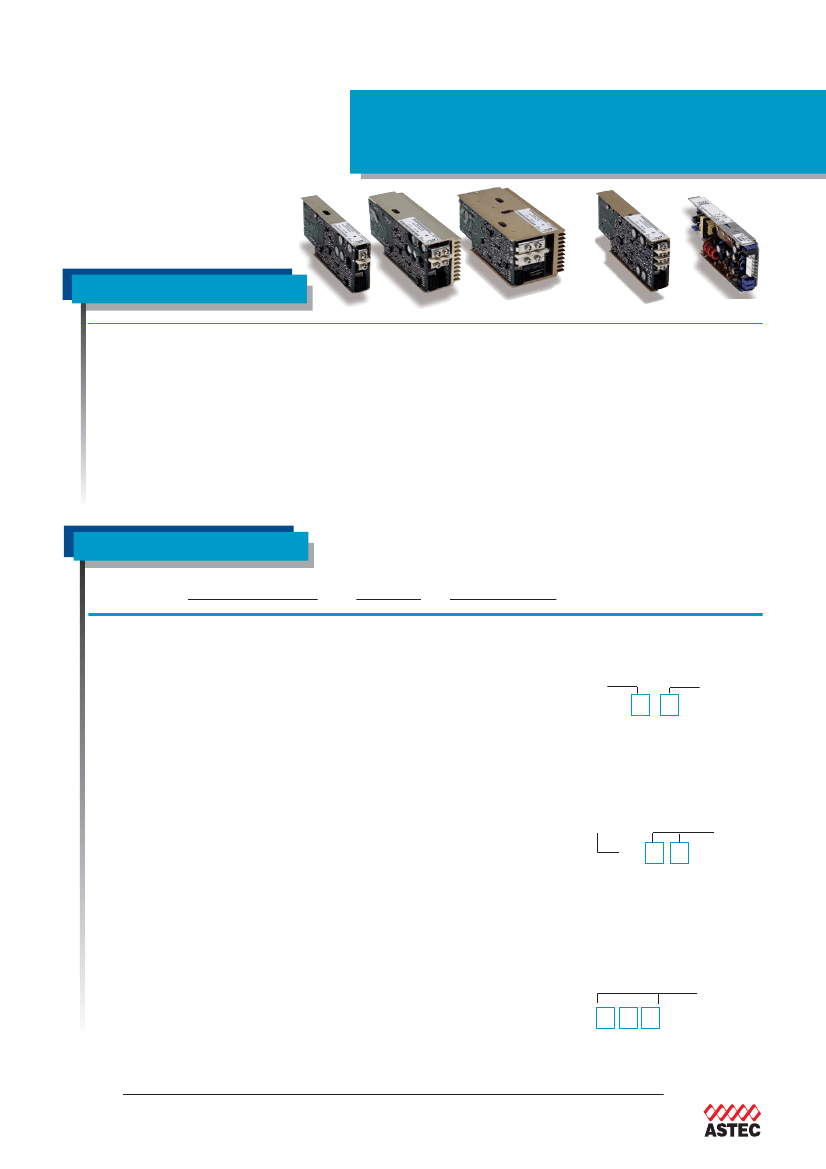

Common Examples
and Specifications
Modules
Single
Outputs
Max output power
Max output current
Volts
Standard voltage increments
Remote sense on outputs
Remote margin/V-Program
Module inhibit (isolated)
Single wire active current share
Over voltage / Over current protection
Minimum load required
Slots occupied in any MP case
1
210 W
35 A
2-60 V
25
Yes
Yes
Yes
Yes
Yes
No
1
1
360 W
60 A
2-60 V
25
Yes
Yes
Yes
Yes
Yes
No
2
600 W
120 A
2-60 V
25
Yes
Yes
Yes
Yes
Yes
No
3
Dual
2
144 W
10 A
2-28 V
19
Yes, both
No
---
Yes, main only
Yes
Yes (10%), main only
1
Triple
3
36 W
2A
2-28 V
18
No
No
---
---
Over current
No
1
Modules
Voltage
Voltage
Code
1
2V
2.2 V
3V
3.3 V
5V
5.2 V
5.5 V
6.0 V
8.0 V
10 V
11 V
12V
14 V
15 V
18 V
20 V
24 V
28 V
30 V
33 V
36 V
42 V
48 V
54 V
60 V
Non-std
2.4V-2.7V
3.6V-4.5V
6.6V-9.2V
8.8V-9.0V
A
B
C
D
E
F
G
H
I
J
K
L
M
N
O
P
Q
R
S
T
U
V
W
X
Y
Z
35
35
20
18
60
60
36
32
120
120
68
60
—
—
10
10
10
10
4
4
—
—
—
—
—
—
—
—
2
2
1
1
1
Single Output
Module Code
2
2
Dual
Output
3
3
1
Triple
Output
V1
—
—
—
—
—
—
—
—
1A
1A
1A
1A
1A
1A
—
—
—
—
—
—
—
—
—
—
—
V2
—
—
—
—
—
—
—
—
1A
1A
1A
1A
1A
1A
0.5 A
0.5 A
0.5 A
0.5 A
—
—
—
—
—
—
—
1
V1
—
—
—
—
10 A
—
—
—
—
—
—
10 A
9A
8A
—
—
4A
3A
—
—
—
—
—
—
—
V2
10 A
10 A
10 A
10 A
10 A
10 A
10 A
10 A
—
—
—
4A
4A
4A
—
—
2A
2A
—
—
—
—
—
—
—
V3
2A
2A
2A
2A
2A
2A
2A
2A
1A
1A
1A
1A
1A
1A
0.5 A
0.5 A
0.5 A
0.5 A
—
—
—
—
—
—
—
35A
35 A
35A
35 A
35A
35 A
34 A
23 A
20 A
18 A
17 A
17A
14 A
14 A
11 A
10.5 A
8.5 A
6.7 A
6.5 A
6.2 A
5.8 A
4.2 A
4.0 A
3.7 A
3.5 A
60 A
60 A
60 A
60 A
60 A
60 A
58 A
42 A
36 A
32 A
31 A
30 A
21 A
20 A
19 A
18 A
15 A
12.8 A
12 A
10.9 A
10 A
7.5 A
7.5 A
6.0 A
6.0 A
120 A
120 A
120 A
120 A
120 A
115 A
109 A
78 A
68 A
60 A
54.5 A
50 A
40.5 A
39 A
33.3 A
30 A
23.5 A
21.4 A
20 A
18.2 A
16.6 A
12.5 A
12.5 A
11 A
10 A
Single Output Example
5 V @ 60A
Module Code
Voltage Code
2
E
1
Dual Output Example
12 V @ 10 A
5 V @ 10 A
Module Code
always 4
Voltage Code
4
L
E
Triple Output Example
12 V @ 1 A
20 V @ 0.5 A
5V@2A
3
2
Voltage Code
Notes:
1
Takes up one slot.
2
Takes up two slots.
3
Takes up three slots.
L P E
Notes:
1. Total load not to exceed 144 W.
2. No module code required.
3. Total load not to exceed 36 W.
138
Americas: (760) 930-4600
Technical Support: (888) 41-ASTEC or (407) 241-2752
Europe (UK) 44 (1384) 842-211
Asia (HK) 852-2437-9662
Rev 6.28.05
AMERICAS
5810 Van Allen Way
Carlsbad, CA 92008
Telephone: 760-930-4600
Facsimile: 760-930-0698
EUROPE
Astec House, Waterfront Business Park
Merry Hill, Dudley
West Midlands, DY5 1LX, UK
Telephone: 44 (1384) 842-211
Facsimile: 44 (1384) 843-355
ASIA
Units 2111-2116, Level 21
Tower1, Metroplaza
223, Hing Fong Road
Kwai Fong, New Territories
Hong Kong
Telephone: 852-2437-9662
Facsimile: 852-2402-4426
MP Series
Ordering Information
Case Size (inches)
4 = 2.5 x 5 x 10
6 = 2.5 x 5 x 11
8 = 2.5 x 7 x 10
1 = 2.5 x 8 x 11
Slot #1
Slots
5 available slots
5 available slots
6 available slots
7 available slots
Slot #2
IN PUT
85-264 VAC
400 W max.
600 W max.
800 W max.
1000 W max.*
Slot #3
180-264 VAC
600 W max.
800 W max.
1000 W max.
1200 W max.
Slot #4
Slot #5
(MP8 & MP1 Only)
Slot #6
Option Code:
0
= no options
1
= rear air exhaust
3
= global enable
5
= option package (options 1 & 3)
M
= low leakage
N
= low leakage plus option 1
P
= low leakage plus option 3
R
= low leakage plus option 5
*1200 W modification available at high line operation
(MP1 Only)
Slot #7
MP
-
2 or 3 digit code
See previous page.
-
-
-
-
-
-
-XXX
Use Only for
Modified Standard
Use “
—
” for Standard Remote Sense
Use “ / ” After any module using Remote Sense with
or-ing diode (redundancy)
Slot 5 Slot 5
available slots
Slot 7
MP8
EXAMPLE
2.5” x 7” x 10”
(6 slots available)
Slot 3
Output 2:
12 V @ 17 A
Slot 5
Output 5:
12 V @ 1 A
Output 6:
12 V @ 1 A
Output 7:
5 V @ 2 A
Factory assisted code
for modifications
VME Card
available slots
Standard
Parallel Codes*
0
= no parallel
1
=1&2
2
=2&3
3
=3&4
4
=4&5
5
=3&4&5
6
=5&6
7
= 4, 5 & 6
8
=6&7
9
= 3 & 4, 6 & 7
MP1
7
6
5 4
3
2
1
MP8-
Slots 1 & 2
Output 1:
5.2 V @ 60 A
2 F / 1 L - 4 L E - L L E -VME -0M-XXX
-HUP
Low Leakage
Slot 4
Output 3:
12 V @ 10
Output 4:
5 V @ 10 A
Size
(inches)
2.5 x 5 x 10
2.5 x 5 x 10
2.5 x 8 x 11
2.5 x 5 x 11
2.5 x 5 x 11
2.5 x 7 x 10
2.5 x 7 x 10
2.5 x 8 x 11
No Paralleling
Hold-up Module
Model Number
SINGLE OUTPUTS
Total
Power
360 W
400 W
600 W
600 W
600 W
800 W
800 W
1000 W
Output
(Volts/Amps)
2 / 180
5 / 80
2 / 275
5 / 120
48 / 12.5
5 / 160
48 / 16.6
5 / 200
MP4-3A-2A-30
MP4-3E-00 - 429
MP6-3A-3A-1A-90
MP6-3E-00
MP6-3W-00
MP8-3E-2E-30 - 415
MP8-3W-1W-30
MP1-3E-3E-30 - 404
*For custom parallel configurations contact
Astec Power Technical Support.
MULTIPLE OUTPUTS
Total
Power
400 W
400 W
400 W
400 W
600 W
600 W
600 W
800 W
800 W
800 W
800 W
1000 W
Output 1
Output 2
(Volts/Amps)
5 / 60
24 / 15
5 / 60
5 / 35
3 / 60
5 / 120
12 / 30
36 / 16.6
5 / 120
15 / 20
2 / 180
3.3 / 120
3.3 / 35
12 / 17
12 / 17
12 / 10
5 / 60
12 / 17
5 / 35
24 / 4
3.3 / 35
5 / 35
5 / 60
5 / 120
Output 3
Output 4
Output 5
Output 6
Size
(inches)
2.5 x 5 x 10
2.5 x 5 x 10
2.5 x 5 x 10
2.5 x 5 x 10
2.5 x 5 x 11
2.5 x 5 x 11
2.5 x 5 x 11
2.5 x 7 x 10
2.5 x 7 x 10
2.5 x 7 x 10
2.5 x 7 x 10
2.5 x 8 x 11
Model Number
12 / 1
5 / 35
12 / 10
3.3 / 10
12 / 10
12 / 10
—
5 / 10
12 / 17
15 / 14
—
—
12 / 1
—
5 / 10
12 / 1
12 / 4
5 / 10
—
12 / 10
12 / 10
24 / 8.5
—
—
12 / 1
—
—
12 / 1
—
—
—
12 / 4
12 / 4
15 / 8
—
—
—
—
—
5/2
—
—
—
—
—
5 / 10
—
—
MP4-2E-1D-LLL-00
MP4-2Q-1L-1E-00
MP4-2E-1L-4LE-00
MP4-1E-4LD-LLE-00
MP6-2C-2E-4LL-00
MP6-3E-1L-4LE-00
MP6-2L-1E-00
MP8-3U-4QE-4LL-00
MP8-3E-1D-1L-4LL-00
MP8-2N-1E-1N-1Q-4NE-00
MP8-3A-2A-2E-30
MP1-3D-3E-00
Slot 1 Slot 1
Slot 6
Slot 4
Slot 3
Slot 2
Notes:
1. Omit digits that do not apply.
2. Specify modules from lowest number of outputs to highest. (Single/Dual/Triple)
3. If number of outputs are equal, specify modules from highest to lowest power increments. If
power increments are equal, specify in descending alphabetical order (1A, B, C . . .).
4. Always start with Slot 1.
5. All MP model configurations created using this selection guide are standard MP products with
standard availability and lead times.
6. Optional VME/DCOK module must always be located in the last slot. Module designator is “VME”.
Parallel Code:
Slot 4
Slot 3 Slot 3
Slot 5
Slot 2
Slot 2
MP4 & MP6
available slots
Slot 6
Slot 4
Slot 1
www.astecpower.com
139

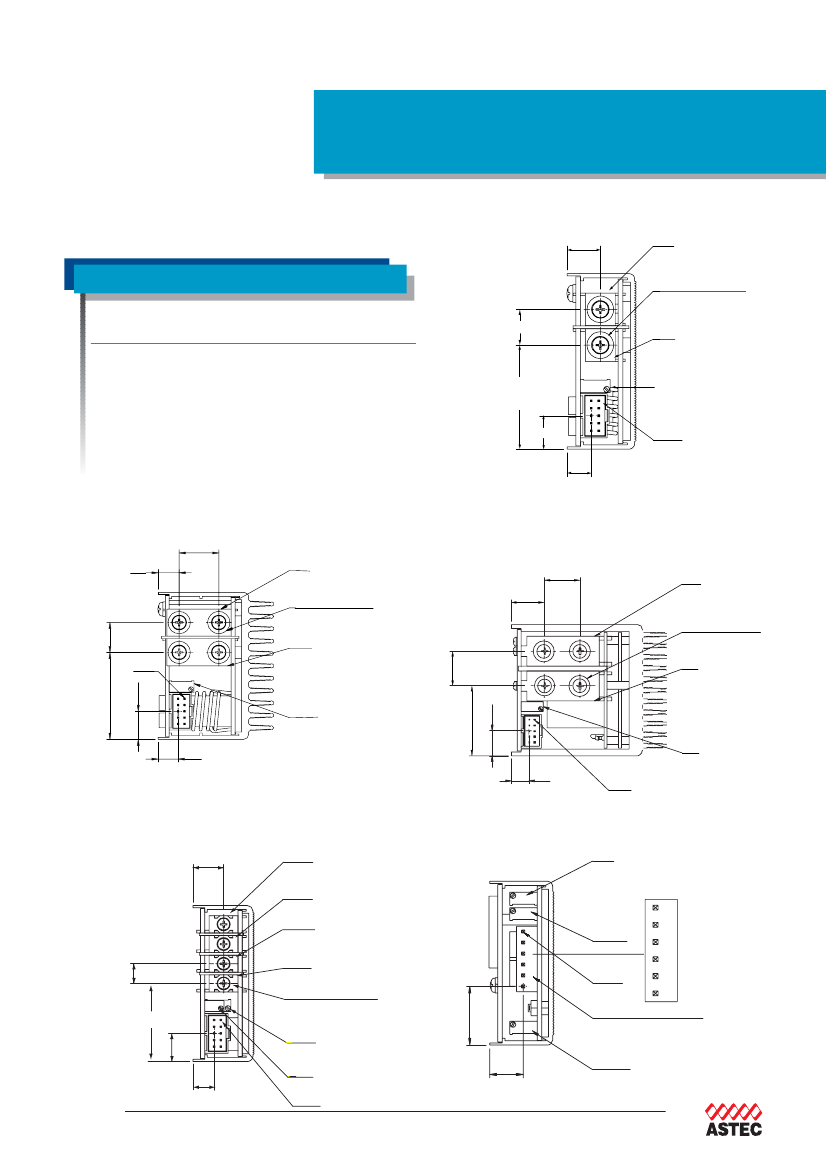

Drawings
MP MODULES
Single 210 Watt
.44 (11.2 )
(2X)
V+
DC-DC Converter Output Modules
Control Signal Information, J1 Control Connector
Pin No.
1
2
3
4
5
6
7
8
9
10
Function
+ Remote Sense
Remote Margin / V. Program
Margin High
- Remote Sense / Margin Low
Spare
Module, Isolated Inhibit
Module Inhibit return
Current Share (SWP)
+ Remote Sense V2
- Remote Sense V2
single or dual o/p main
single o/p
single o/p
single or dual o/p main
single or dual o/p
single or dual o/p
single or dual o/p main
dual o/p, single is spare
dual o/p, single is spare
M4X8 SCREWS (2X)
.48 (12.1)
V-
1.38
(35.1)
.44 (11.3)
.32
(8.1)
V ADJ
PIN 1
Single 360 Watt
.63 (16.0)
.33 (8.5)
.48 (12.1)
1.38 (35.1)
(2X)
(2X)
.44 (11.3)
V+
Single 600 Watt
M4X8 SCREWS (4X)
.59
(15.0)
.61 (15.6)
(2X)
1.24 (31.6) (2X)
.63
(16.0)
V+
M4X8 SCREWS (4X)
V-
PIN 1
V-
.44
(11.3)
V ADJ
.32 (8.1)
V ADJ
.32
(8.1)
PIN 1
Dual 144 Watt
.46 (11.7)
(4X)
V1 -
V2 +
V2 -
.30 (7.5)(3X)
M3X8 SCREWS (4X)
1.17 (29.7)
.42 (10.7)
.32
(8.1)
V2 ADJ
V1 ADJ
PIN 1
V1 +
Triple 36 Watt
V1 ADJ
.84
(21.3)
V1
+
V1
-
V2 ADJ
V2
+
V2
-
PIN 1
V3
+
V3
-
DC OUTPUT CONNECTION
.48
(12.1)
V3 ADJ
140
Technical Support: (888) 41-ASTEC or (407) 241-2752
Americas: (760) 930-4600
Europe (UK) 44 (1384) 842-211
Asia (HK) 852-2437-9662
京公网安备 11010802033920号
EEWORLD
