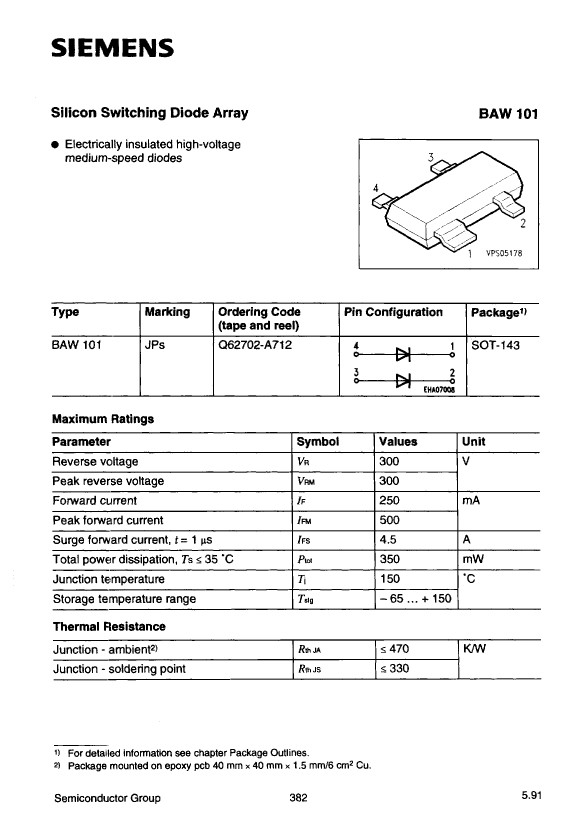

BAW101E6327 datasheet, PDF - EEWORLD Datasheet

BAW101E6327: DescriptionRectifier Diode, 2 Element, 0.25A, 300V V(RRM), Silicon, SOT-143, 4 PIN; CategoryDiscrete semiconductor diode; File Size56KB，3 Pages; ManufacturerSIEMENS; Websitehttp://www.infineon.com/

Download Datasheet Parametric Compare View All

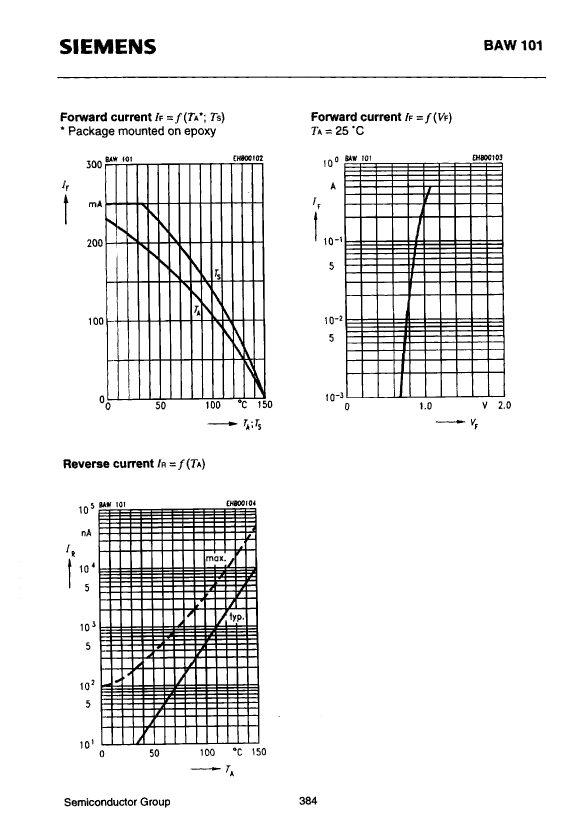

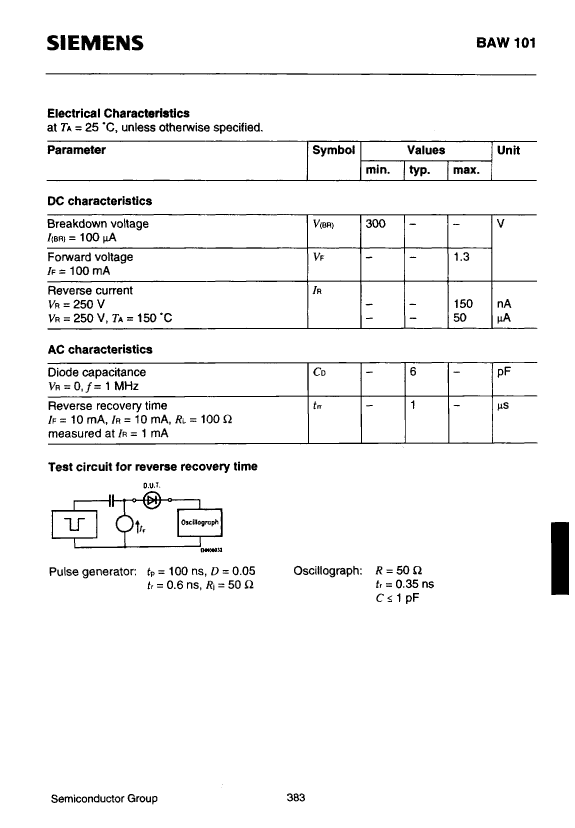

BAW101E6327 Overview

Rectifier Diode, 2 Element, 0.25A, 300V V(RRM), Silicon, SOT-143, 4 PIN

Parameter Name	Attribute value
Maker	SIEMENS
Parts packaging code	SOT-143
package instruction	R-PDSO-G4
Contacts	4
Reach Compliance Code	unknown
ECCN code	EAR99
Is Samacsys	N
Configuration	SEPARATE, 2 ELEMENTS
Diode component materials	SILICON
Diode type	RECTIFIER DIODE
Maximum forward voltage (VF)	1.3 V
JESD-30 code	R-PDSO-G4
Maximum non-repetitive peak forward current	4.5 A
Number of components	2
Number of terminals	4
Maximum operating temperature	150 °C
Maximum output current	0.25 A
Package body material	PLASTIC/EPOXY
Package shape	RECTANGULAR
Package form	SMALL OUTLINE
Maximum power dissipation	0.35 W
Certification status	Not Qualified
Maximum repetitive peak reverse voltage	300 V
Maximum reverse current	0.15 µA
Maximum reverse recovery time	1 µs
surface mount	YES
Terminal form	GULL WING
Terminal location	DUAL
Base Number Matches	1

	BAW101E6327	BAW101E6433
Description	Rectifier Diode, 2 Element, 0.25A, 300V V(RRM), Silicon, SOT-143, 4 PIN	Rectifier Diode, 2 Element, 0.25A, 40V V(RRM), Silicon
Maker	SIEMENS	SIEMENS
package instruction	R-PDSO-G4	R-PDSO-G4
Reach Compliance Code	unknown	unknown
ECCN code	EAR99	EAR99
Configuration	SEPARATE, 2 ELEMENTS	SEPARATE, 2 ELEMENTS
Diode component materials	SILICON	SILICON
Diode type	RECTIFIER DIODE	RECTIFIER DIODE
Maximum forward voltage (VF)	1.3 V	1.3 V
JESD-30 code	R-PDSO-G4	R-PDSO-G4
Maximum non-repetitive peak forward current	4.5 A	4.5 A
Number of components	2	2
Number of terminals	4	4
Maximum operating temperature	150 °C	150 °C
Maximum output current	0.25 A	0.25 A
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY
Package shape	RECTANGULAR	RECTANGULAR
Package form	SMALL OUTLINE	SMALL OUTLINE
Maximum power dissipation	0.35 W	0.35 W
Certification status	Not Qualified	Not Qualified
Maximum repetitive peak reverse voltage	300 V	40 V
Maximum reverse current	0.15 µA	0.15 µA
Maximum reverse recovery time	1 µs	1 µs
surface mount	YES	YES
Terminal form	GULL WING	GULL WING
Terminal location	DUAL	DUAL
