BFP183
NPN Silicon RF Transistor*
•
For low noise, high-gain broadband amplifiers at
collector currents from 2 mA to 30 mA
•
f
T
= 8 GHz,
F
= 0.9 dB at 900 MHz
•
Pb-free (RoHS compliant) package
1)
•
Qualified according AEC Q101
* Short term description
4
1
3
2
ESD
(Electrostatic
discharge)
sensitive device, observe handling precaution!
Type
BFP183
Maximum Ratings
Parameter
Marking
RHs
1=C
Pin Configuration
2=E
3=B
4=E
Symbol
V
CEO
V
CES
V
CBO
V
EBO
I
C
I
B
P
tot
T
j
T
A
T
stg
Symbol
R
thJS
Package
-
SOT143
Value
12
20
20
2
65
5
250
150
-65 ... 150
-65 ... 150
Value
≤
295
Unit
K/W
mW
°C
mA
Unit
V
-
Collector-emitter voltage
Collector-emitter voltage
Collector-base voltage
Emitter-base voltage
Collector current
Base current
Total power dissipation
2)
T
S
≤
76 °C
Junction temperature
Ambient temperature
Storage temperature
Thermal Resistance
Parameter
Junction - soldering point
3)
1
Pb-containing
2
T
3
For
package may be available upon special request
S
is measured on the collector lead at the soldering point to the pcb
calculation of
R
thJA
please refer to Application Note Thermal Resistance
2007-04-20
1
BFP183
Electrical Characteristics
at
T
A
= 25°C, unless otherwise specified
Symbol
Values
Parameter
min.
DC Characteristics
Collector-emitter breakdown voltage
I
C
= 1 mA,
I
B
= 0
Collector-emitter cutoff current
V
CE
= 20 V,
V
BE
= 0
Collector-base cutoff current
V
CB
= 10 V,
I
E
= 0
Emitter-base cutoff current
V
EB
= 1 V,
I
C
= 0
DC current gain-
I
C
= 15 mA,
V
CE
= 8 V, pulse measured
h
FE
70
100
140
I
EBO
-
-
1
I
CBO
-
-
100
I
CES
-
-
100
V
(BR)CEO
12
-
-
typ.
max.
Unit
V
µA
nA
µA
-
2007-04-20
2
BFP183
Electrical Characteristics
at
T
A
= 25°C, unless otherwise specified
Symbol
Values
Unit
Parameter
min.
typ. max.
AC Characteristics
(verified by random sampling)
Transition frequency
f
T
I
C
= 25 mA,
V
CE
= 8 V,
f
= 500 MHz
Collector-base capacitance
V
CB
= 10 V,
f
= 1 MHz,
V
BE
= 0 ,
emitter grounded
Collector emitter capacitance
V
CE
= 10 V,
f
= 1 MHz,
V
BE
= 0 ,
base grounded
Emitter-base capacitance
V
EB
= 0.5 V,
f
= 1 MHz,
V
CB
= 0 ,
collector grounded
Noise figure
I
C
= 5 mA,
V
CE
= 8 V,
Z
S
=
Z
Sopt
,
f
= 900 MHz
f
= 1.8 GHz
Power gain, maximum stable
1)
I
C
= 15 mA,
V
CE
= 8 V,
Z
S
=
Z
Sopt
,
Z
L
=
Z
Lopt
,
f
= 900 MHz
Power gain, maximum available
1)
I
C
= 15 mA,
V
CE
= 8 V,
Z
S
=
Z
Sopt
,
Z
L
=
Z
Lopt
,
f
= 1.8 GHz
Transducer gain
I
C
= 15 mA,
V
CE
= 8 V,
Z
S
=
Z
L
= 50
Ω
,
f
= 900 MHz
f
= 1.8 GHz
1
G
6
-
8
0.3
-
0.5
GHz
pF
C
cb
C
ce
-
0.27
-
C
eb
-
1.1
-
F
-
-
G
ms
-
0.9
1.4
22
-
-
-
dB
dB
G
ma
-
15.5
-
dB
|S
21e
|
2
-
-
17.5
11.5
-
-
dB
1/2
ma = |
S
21e /
S
12e| (k-(k²-1) ),
G
ms = |
S
21 /
S
12|
2007-04-20
3
BFP183
SPICE Parameter (Gummel-Poon Model, Berkley-SPICE 2G.6 Syntax):
Transistor Chip Data:
IS =
VAF =
NE =
VAR =
NC =
RBM =
CJE =
TF =
ITF =
VJC =
TR =
MJS =
XTI =
1.0345
14.772
1.2149
3.4276
0.85331
1.0112
23.077
22.746
1.8773
1.1967
1.0553
0
3
fA
V
-
V
-
Ω
fF
ps
mA
V
ns
-
-
BF =
IKF =
BR =
IKR =
RB =
RE =
VJE =
XTF =
PTF =
MJC =
CJS =
XTB =
FC =
115.98
0.14562
10.016
0.013483
2.5426
1.3435
1.0792
0.36823
0
0.3
0
0
0.54852
-
A
-
A
Ω
-
V
-
deg
-
fF
-
NF =
ISE =
NR =
ISC =
IRB =
RC =
MJE =
VTF =
CJC =
XCJC =
VJS =
EG =
TNOM
0.80799
16.818
0.99543
1.3559
0.43801
0.20486
0.45354
0.50905
460.11
0.053823
0.75
1.11
300
-
fA
-
fA
mA
Ω
-
V
fF
-
V
eV
K
All parameters are ready to use, no scalling is necessary. Extracted on behalf of Infineon Technologies AG by:
Institut für Mobil- und Satellitentechnik (IMST)
Package Equivalent Circuit:
L
BI
=
L
BO
=
L
EI
=
L
EO
=
L
CI
=
L
CO
=
C
BE
=
C
CB
=
C
CE
=
0.89
0.73
0.4
0.15
0
0.42
189
15
187
nH
nH
nH
nH
nH
nH
fF
fF
fF
Valid up to 6GHz
For examples and ready to use parameters
please contact your local Infineon Technologies
distributor or sales office to obtain a Infineon
Technologies CD-ROM or see Internet:
http://www.infineon.com
2007-04-20
4
BFP183

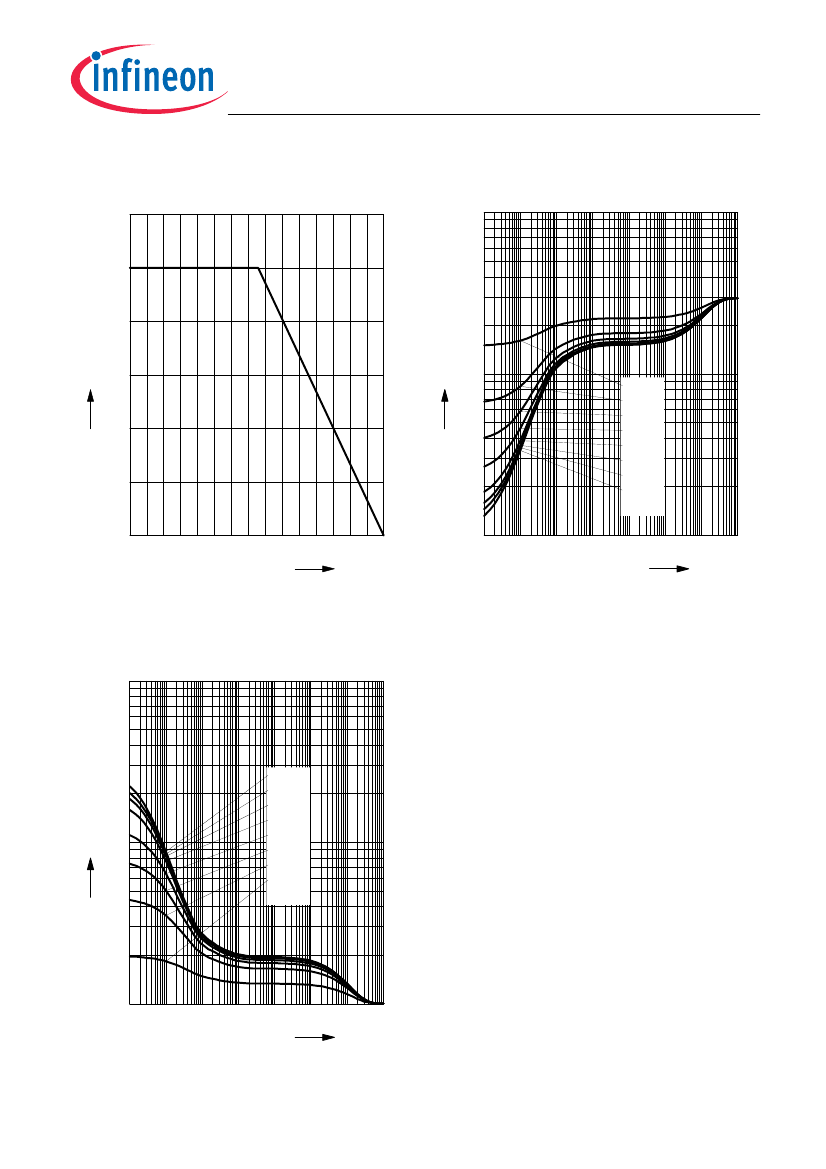

Total power dissipation
P
tot
=
ƒ(
T
S
)
Permissible Pulse Load
R
thJS
=
ƒ(
t
p
)
300
10
3
mW
K/W
P
tot
200
R
thJS
10
2
150
100
50
0.5
0.2
0.1
0.05
0.02
0.01
0.005
D=0
0
0
20
40
60
80
100
120
°C
150
10
1 -7
10
10
-6
10
-5
10
-4
10
-3
10
-2
s
10
0
T
S
t
p
Permissible Pulse Load
P
totmax
/
P
totDC
=
ƒ(
t
p
)
10
2
P
totmax
/P
totDC
-
10
1
D=0
0.005
0.01
0.02
0.05
0.1
0.2
0.5
10
0 -7
10
10
-6
10
-5
10
-4
10
-3
10
-2
s
10
0
t
p
2007-04-20
5
