3313J-GL5-503E datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Passive components> The resistor> 3313J-GL5-503E

3313J-GL5-503E: DescriptionTrimmer, Cermet, 0.125W, 50000ohm, 20% +/-Tol, -100,100ppm/Cel, 1214; CategoryPassive components The resistor; File Size392KB，2 Pages; ManufacturerBourns; Websitehttp://www.bourns.com; Environmental Compliance

Download Datasheet Parametric View All

3313J-GL5-503E Overview

Trimmer, Cermet, 0.125W, 50000ohm, 20% +/-Tol, -100,100ppm/Cel, 1214

3313J-GL5-503E Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	Bourns
package instruction	SMT, 1214
Reach Compliance Code	compliant
Is Samacsys	N
structure	Rectangular
Manufacturer's serial number	3313
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Package height	2.2 mm
Package length	3.2 mm
Package shape	RECTANGULAR PACKAGE
Package form	SMT
Package width	3.5 mm
method of packing	TR, 7 Inch
Rated power dissipation(P)	0.125 W
resistance	50000 Ω
Resistor type	TRIMMER
rotation angle	250 deg
series	3313
size code	1214
technology	CERMET
Temperature Coefficient	-100,100 ppm/°C
Tolerance	20%
Base Number Matches	1

Preview

Download Datasheet

View All

** *

HA Ro

LO HS

AV EN COM

AI FR P

LA EE LIA

BL M N

E OD T

Features

■

Surface Mount 3 mm Square

■

Reverse pin layout option (Model 3313X)

■

RoHS compliant* - see

processing

Single-Turn Cermet / Sealed

Compatible with surface mount

manufacturing processes

Rotor stop for “in-circuit” adjustment

100 cycle rotational and seal life

Plastic housing for RF applications

information

on RoHS compliant surface

mount trimmers

■

For trimmer applications/processing

guidelines,

click here

■

Halogen free models available**

3313 - 3 mm Trimpot

Trimming Potentiometer

Electrical Characteristics

Standard Resistance Range

......................10 ohms to 2 megohms

(see standard resistance table)

Resistance Tolerance ........... ±20 % std.

End Resistance ..... 1 % or 3 ohms max.

(whichever is greater)

Contact Resistance Variation

.................................... 3 % or 3 ohms

Adjustability

Voltage Divider ........................ ±0.1 %

Rheostat .................................. ±0.2 %

Resolution ................................... Inﬁnite

Insulation Resistance ............... 500 vdc.

100 megohms min.

Dielectric Strength

Sea Level................................ 500 vac

70,000 Feet ............................ 350 vac

Adjustment Angle .................. 220° nom.

Environmental Characteristics

Max. Soldering Exposure

............................... 260 °C/5 seconds

Power Rating (200 volts max.)

70 °C .................................. 0.125 watt

125 °C ....................................... 0 watt

Operating Temp. Range

............................... -55 °C to +125 °C

Temperature Coefﬁcient

..................

≤100

ohms ±150 ppm/°C;

................... >100 ohms ±100 ppm/°C

Seal Test ......................85 °C Fluorinert†

Humidity ...... MIL-STD 202, Method 106

(no vibration) TRS ±3 %;

IR 10 megohms

Vibration .....20 G TRS ±1 %; VRS ±1 %

Shock .......100 G TRS ±1 %; VRS ±1 %

Load Life...............................1000 hours

@ 70 °C Rated Power;TRS ± 3 %

Rotational Life ..... 100 cycles TRS ±3 %

Thermal Shock ..........................5 cycles

TRS ±2 %; VRS ±1 %

Physical Characteristics

Mechanical Angle ................. 250 ° nom.

Torque...............................50 g-cm max.

Stop Strength ..................200 g-cm min.

Pushover Strength (“S” Style only)

........ 1.6 Kilograms (3.5 lbs) minimum

Flammability ..........................U.L. 94V-0

Weight ......................... Approx. 0.01 oz.

Marking........................ Resistance code

and date code

Wiper ............... 50 % (Actual TR) ±10 %

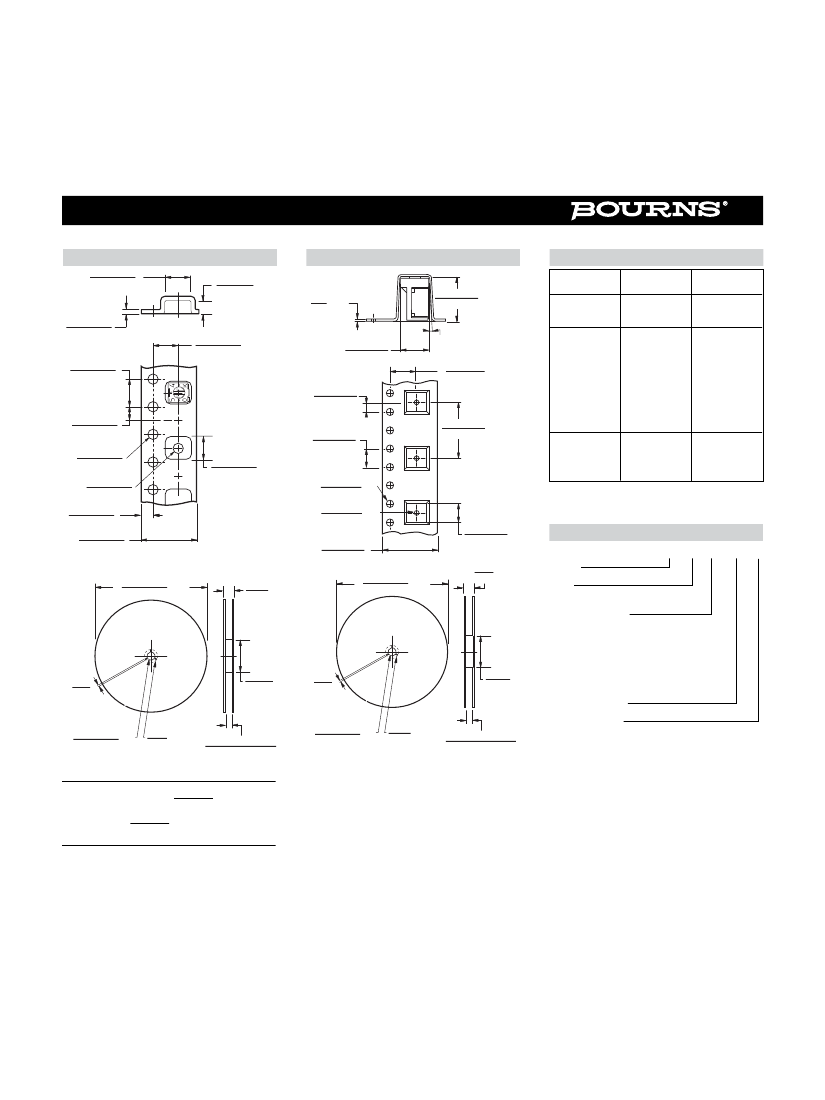

Standard Packaging

J, X Styles .............. 1000 pcs./7 ” reel

S Style ...................... 200 pcs./7 ” reel

Adjustment Tool..............................H-91

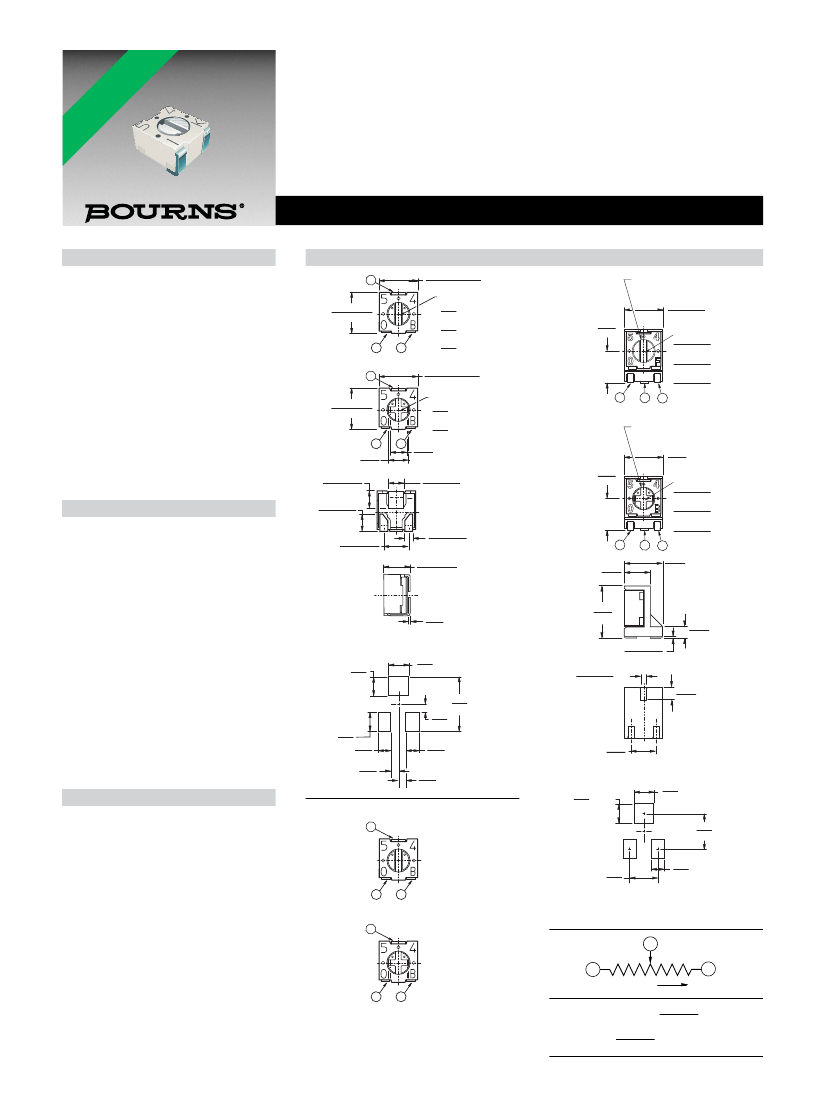

Product Dimensions

3313J-1

3.2 +0.4/-0.2

(.126 +.016/-.008)

ADJ. SLOT

0.52

WIDE

(.020)

1.93 LONG

(.076)

0.51

DEEP

(.020)

3.2 +0.4/-0.2

(.126 +.016/-.008)

3313S-1

3.5 ± 0.2

(.138 ± .008)

3.02

(.119)

Position Rotor As Shown

Within

±11°

Of Centerline

Of Terminal 2

3.61

.20

(.142

.008)

3313J-2

3.5 ± 0.2

(.138 ± .008)

ADJ. CROSS SLOT

0.45

WIDE

(.018)

0.51

DEEP

(.020)

3313S-2

ADJ. SLOT

.52

0.03

WIDE

(.020

.001)

X 1.93

0.03

LONG

(.076

.001)

X .51

0.06

DEEP

(.020

.002)

1.68

(.066)

1.47 ± 0.15

(.058 ± .006)

1.5 ± 0.15

(.059 ± .006)

2 PLCS

2.3 ± 0.2

(.091 ± .008)

1.42

(.056)

1.3 ± 0.1

(.051 ± .004)

3.02

(.119)

Position Rotor As Shown

Within

±11°

Of Centerline

Of Terminal 2

3.61

(.142)

ADJ. SLOT

.45

0.03

WIDE

(.018

.001)

X 1.93

0.03

LONG

(.076

.001)

X .51

0.06

DEEP

(.020

.002)

3.71

(.146)

0.66 ± 0.1

2 PLCS

(.026 ± .004)

2.2 ± 0.2

(.087 ± .008)

2.77

(.109)

0.15

(.006)

RECOMMENDED LAND PATTERN

1.6

(.063)

5.35

(.211)

1.30

(.051)

0.15

0.03

(.006

.001)

0.71

0.20

TYP

(.028

.008)

1.60

(.063) 1.1

(.043)

0.6

(.024)

0.65

(.026)

4.5

(.177)

1.15

TYP

(.045)

1.1

(.043)

0.6

(.024)

2.39

(.094)

RECOMMENDED LAND PATTERN

1.57

(.062)

3 PLCS

(.062)

3313X-1 (Reverse Pin Layout)

2.62

(.103)

2.39

(.094)

1.12

2 PLCS

(.044)

3313X-2 (Reverse Pin Layout)

CCW

WIPER

CLOCKWISE

(INCHES)

†“Fluorinert” is a registered trademark of 3M Co.

Speciﬁcations are subject to change without notice.

The device characteristics and parameters in this data sheet can and do vary in different applications and actual device performance may

vary over time.

Users should verify actual device performance in their speciﬁc applications.

* RoHS Directive 2002/95/EC Jan. 27, 2003 including annex and RoHS Recast 2011/65/EU June 8, 2011.

**Halogen free product is identiﬁed by a black housing color. Bourns follows the prevailing deﬁnition of “halogen free” in the industry.

Bourns considers a product to be “halogen free” if (a) the Bromine (Br) content is 900 ppm or less; (b) the Chlorine (Cl) content is

900 ppm or less; and (c) the total Bromine (Br) and Chlorine (Cl) content is 1500 ppm or less.

DIMENSIONS:

TOLERANCES: ±

0.25

(.010)

EXCEPT WHERE NOTED
