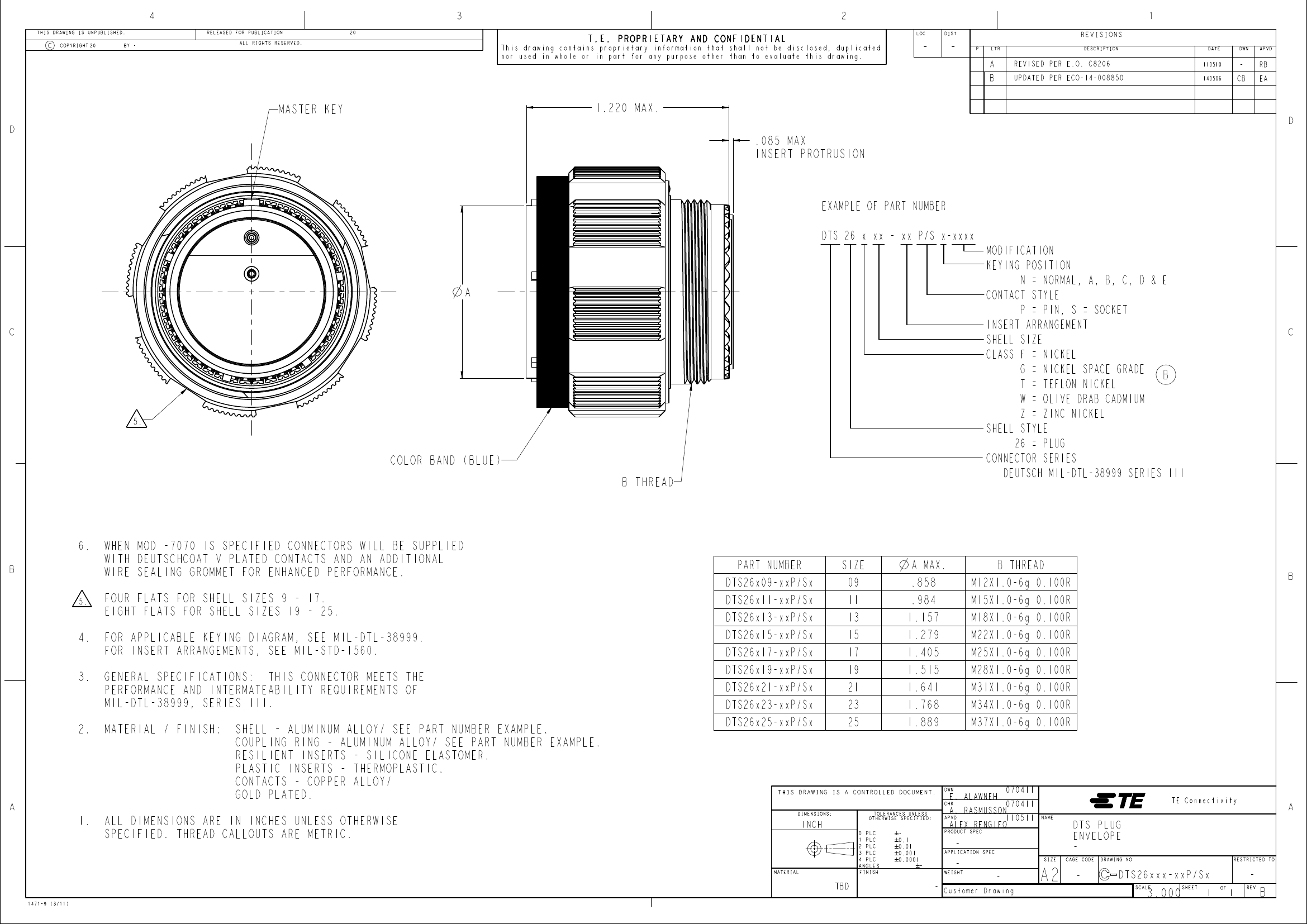

MASTER KEY
D
1.220 MAX.
.085 MAX
INSERT PROTRUSION
D
EXAMPLE OF PART NUMBER
DTS 26 x xx - xx P/S x-xxxx
MODIFICATION
KEYING POSITION
N = NORMAL, A, B, C, & E
D
CONTACT STYLE
P = PIN, S = SOCKET
INSERT ARRANGEMENT
SHELL SIZE
CLASS F = NICKEL
G = NICKEL SPACE GRADE
B
T = TEFLON NICKEL
W = OLIVE DRAB CADMIUM
Z = ZINC NICKEL
SHELL STYLE
26 = PLUG
CONNECTOR SERIES
DEUTSCH MIL-DTL-38999 SERIES III
C
C
5.
COLOR BAND (BLUE)
B THREAD
6.
B
5.
WHEN MOD -7070 IS SPECIFIED CONNECTORS WILL BE SUPPLIED
WITH DEUTSCHCOAT V PLATED CONTACTS AND AN ADDITIONAL
WIRE SEALING GROMMET FOR ENHANCED PERFORMANCE.
FOUR FLATS FOR SHELL SIZES 9 - 17.
EIGHT FLATS FOR SHELL SIZES 19 - 25.
FOR APPLICABLE KEYING DIAGRAM, SEE MIL-DTL-38999.
FOR INSERT ARRANGEMENTS, SEE MIL-STD-1560.
GENERAL SPECIFICATIONS: THIS CONNECTOR MEETS THE
PERFORMANCE AND INTERMATEABILITY REQUIREMENTS OF
MIL-DTL-38999, SERIES III.
MATERIAL / FINISH:
SHELL - ALUMINUM ALLOY/ SEE PART NUMBER EXAMPLE.
COUPLING RING - ALUMINUM ALLOY/ SEE PART NUMBER EXAMPLE.
RESILIENT INSERTS - SILICONE ELASTOMER.
PLASTIC INSERTS - THERMOPLASTIC.
CONTACTS - COPPER ALLOY/
GOLD PLATED.
DTS26x09-xxP/Sx
DTS26x11-xxP/Sx
DTS26x13-xxP/Sx
DTS26x15-xxP/Sx
DTS26x17-xxP/Sx
DTS26x19-xxP/Sx
DTS26x21-xxP/Sx
DTS26x23-xxP/Sx
DTS26x25-xxP/Sx
PART NUMBER
SIZE
09
11
13
15
17
19
21
23
25
.858
1.157
1.279
1.405
1.515
1.641
1.768
1.889
.984
M12X1.0-6g 0.100R
M15X1.0-6g 0.100R
M18X1.0-6g 0.100R
M22X1.0-6g 0.100R
M25X1.0-6g 0.100R
M28X1.0-6g 0.100R
M31X1.0-6g 0.100R
M34X1.0-6g 0.100R
M37X1.0-6g 0.100R
B THREAD
B
4.
3.
2.
THIS DRAWING IS A CONTROLLED DOCUMENT.
DIMENSIONS:
TOLERANCES UNLESS
OTHERWISE SPECIFIED:
DWN
CHK
A
1.
ALL DIMENSIONS ARE IN INCHES UNLESS OTHERWISE
SPECIFIED. THREAD CALLOUTS ARE METRIC.
INCH
MATERIAL
0 PLC
1 PLC
2 PLC
3 PLC
4 PLC
ANGLES
FINISH
-
0.1
0.01
0.001
0.0001
-
070411
A. RASMUSSON
APVD
110511
ALEX RENGIFO
PRODUCT SPEC
APPLICATION SPEC
E. ALAWNEH
070411
NAME
TE Connectivity
A
-
WEIGHT
-
TBD
1471-9 (3/11)
-
Customer Drawing
-
A2
SIZE
CAGE CODE
DTS PLUG
ENVELOPE
-
DRAWING NO
RESTRICTED TO
-
DTS26xxx-xxP/Sx
SCALE
3.000
SHEET
1
OF
1
REV
-
B
