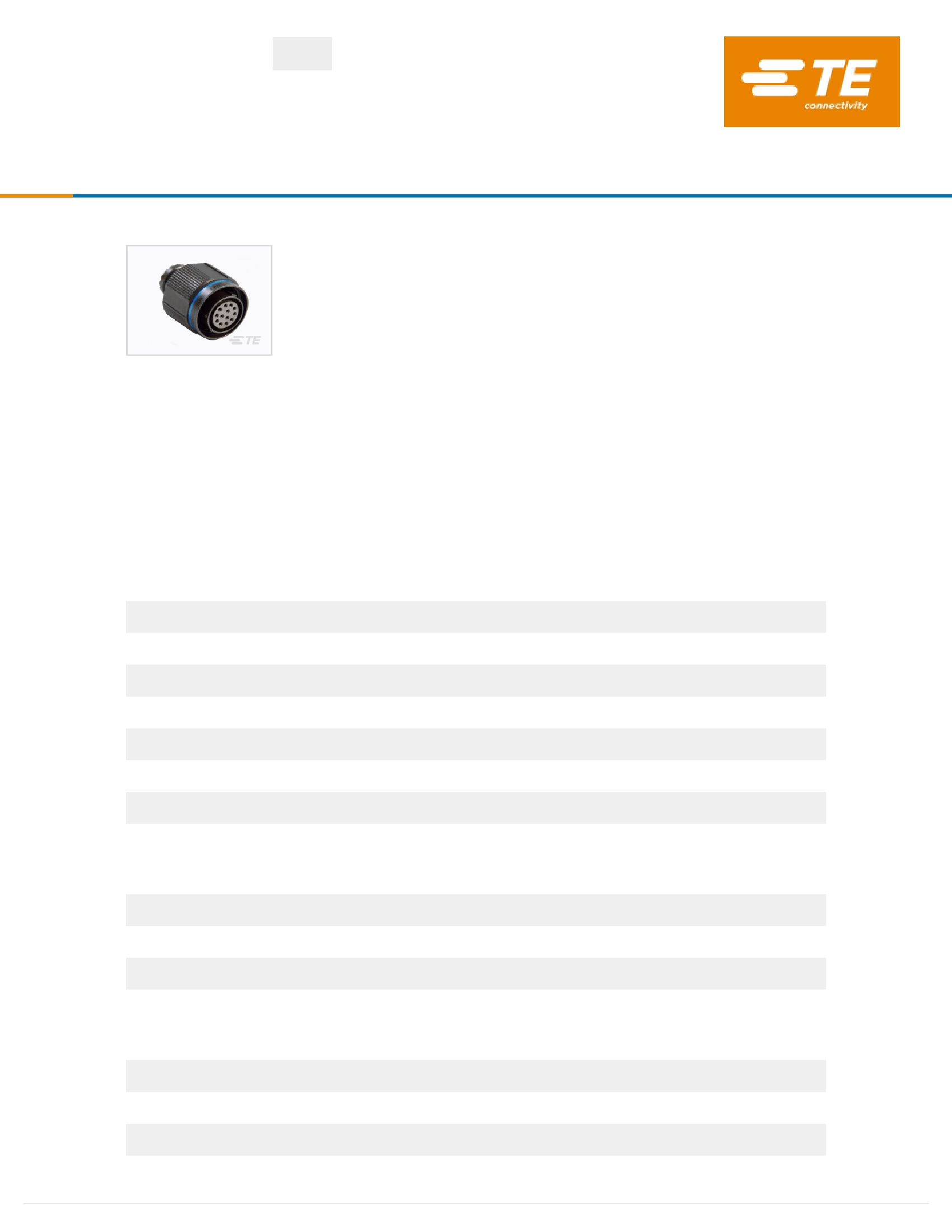

DTS26W09-35SN [V001]
PLUG ASSY
Mil-Spec: [D38999/26WA35SN]
DTS26W09-35SN [V001]
ACTIVE
DEUTSCH
|
DEUTSCH 38999, DEUTSCH 38999 Series III
TE Internal #: YDTS26W09-35SNV001
TE Internal Description: PLUG ASSY
Mil-Spec: [D38999/26WA35SN]
View on TE.com >
Connectors
>
Circular Connectors
>
Standard Circular Connectors
Product Type:
Connector
Connector System:
Cable-to-Panel
Number of Positions:
6
Sealable:
Yes
Connector & Contact Terminates To:
Wire & Cable
Features
Product Type Features
Product Type
Connector System
Sealable
Connector & Contact Terminates To
Shell Size
Shielded
Connector Style
Shell Type
Configuration Features
Number of Positions
Number of Power Positions
Number of Signal Positions
Preloaded
Body Features
Shell Plating Material
Shell Material
Insulation Material
Hermetically Sealed
For support call+1 800 522 6752
Connector
Cable-to-Panel
Yes
Wire & Cable
9
Yes
Plug
Straight Plug
6
0
6
No
Cadmium, O.D.
Aluminum 6061-T6
Hard Dielectric/Silicone
No
12/05/2019 01:48PM | Page 1
Contact Features
DTS26W09-35SN [V001]
PLUG ASSY
Mil-Spec: [D38999/26WA35SN]
Contact Features
Contact Current Rating (Max)
Reverse Gender
Contact Layout Arrangement
Contact Type
Mechanical Attachment
Connector Mounting Type
Polarization Code
Mating Alignment Type
Mating Retention
Housing Features
Alignment Keyed
Dimensions
Wire Size
Usage Conditions
Operating Temperature Range
Operation/Application
Circuit Application
Signal
-65 – 200 °C[-85 – 392 °F]
.08 – .33 mm²
Clocking
Panel
N
Keyed
With
5A
No
9 – 35
Socket
Product Compliance
For compliance documentation, visit the product page on TE.com>
EU RoHS Directive 2011/65/EU
EU ELV Directive 2000/53/EC
China RoHS 2 Directive MIIT Order No 32, 2016
EU REACH Regulation (EC) No. 1907/2006
Not Compliant
Not Compliant
Restricted Materials Above Threshold
Current ECHA Candidate List: JUL 2019
(201)
Candidate List Declared Against: JUN 2018
(191)
Cd (1.52% in Plating)
Current ECHA Candidate List: JUL 2019
(201)
Candidate List Declared Against: JUN 2018
(191)
Low Halogen - Br, Cl, F, I < 900 ppm per
homogenous material. Also BFR/CFR/PVC
Free
12/05/2019 01:48PM | Page 2
EU REACH Regulation (EC) No. 1907/2006
Halogen Content
For support call+1 800 522 6752
DTS26W09-35SN [V001]
PLUG ASSY
Mil-Spec: [D38999/26WA35SN]
Free
Solder Process Capability
Not reviewed for solder process capability
Product Compliance Disclaimer
This information is provided based on reasonable inquiry of our suppliers and represents our current actual knowledge
based on the information they provided. This information is subject to change. The part numbers that TE has identified as
EU RoHS compliant have a maximum concentration of 0.1% by weight in homogenous materials for lead, hexavalent
chromium, mercury, PBB, PBDE, DBP, BBP, DEHP, DIBP, and 0.01% for cadmium, or qualify for an exemption to these
limits as defined in the Annexes of Directive 2011/65/EU (RoHS2). Finished electrical and electronic equipment products
will be CE marked as required by Directive 2011/65/EU. Components may not be CE marked.Additionally, the part
numbers that TE has identified as EU ELV compliant have a maximum concentration of 0.1% by weight in homogenous
materials for lead, hexavalent chromium, and mercury, and 0.01% for cadmium, or qualify for an exemption to these limits
as defined in the Annexes of Directive 2000/53/EC (ELV). Regarding the REACH Regulations, TE’s information on SVHC in
articles for this part number is still based on the European Chemical Agency (ECHA) ‘Guidance on requirements for
substances in articles’(Version: 2, April 2011), applying the 0.1% weight on weight concentration threshold at the finished
product level. TE is aware of the European Court of Justice ruling of September 10th, 2015 also known as O5A (Once An
Article Always An Article) stating that, in case of ‘complex object’, the threshold for a SVHC must be applied to both the
product as a whole and simultaneously to each of the articles forming part of its composition. TE has evaluated this ruling
based on the new ECHA “Guidance on requirements for substances in articles” (June 2017, version 4.0) and will be
updating its statements accordingly.

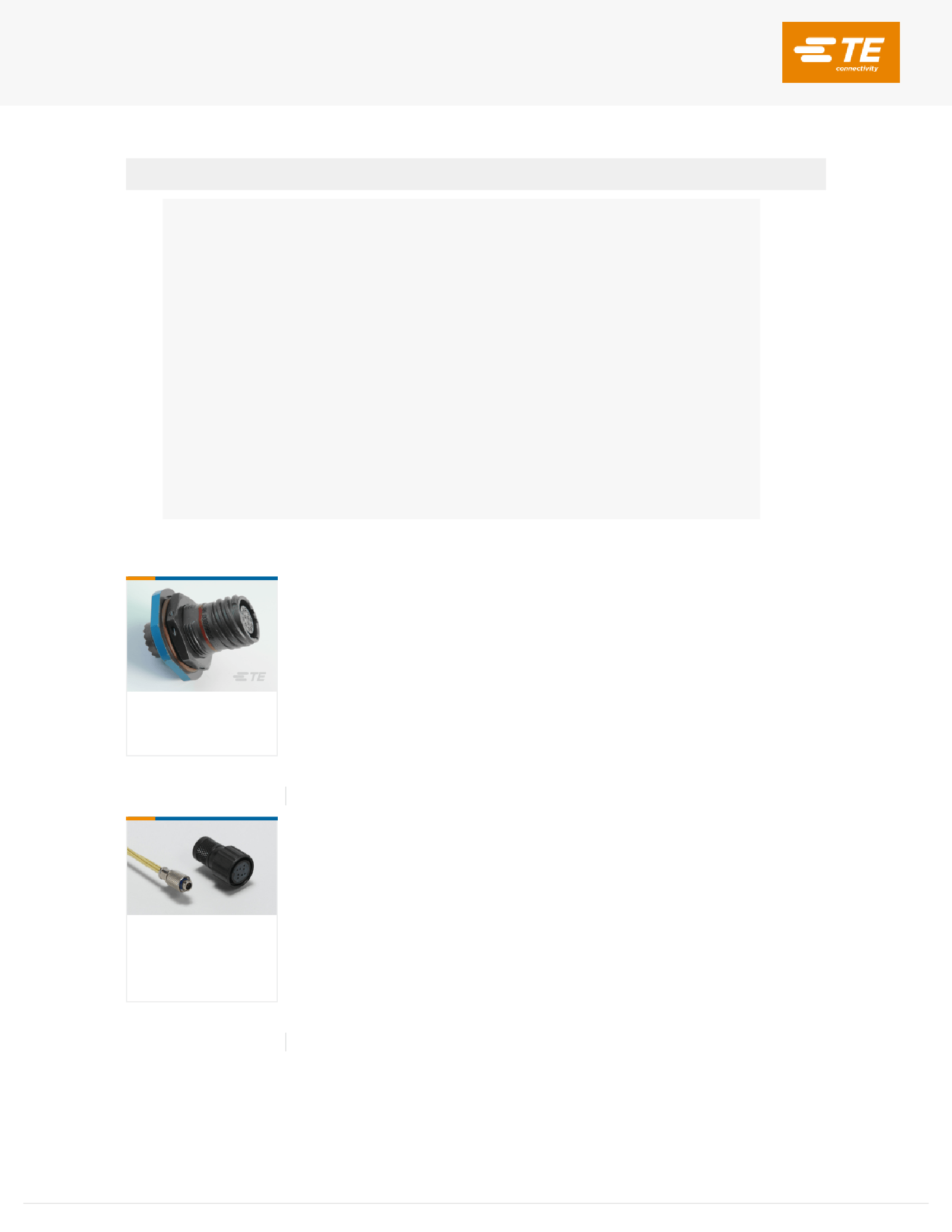

Compatible Parts
TE Model / Part #
DTS24W09-35PN
RECP ASSY
Also in the Series
DEUTSCH 38999
Standard Circular
Connectors(2419)
Also in the Series
DEUTSCH 38999 Series III
For support call+1 800 522 6752
12/05/2019 01:48PM | Page 3
DTS26W09-35SN [V001]
PLUG ASSY
Mil-Spec: [D38999/26WA35SN]
Standard Circular
Connectors(17415)

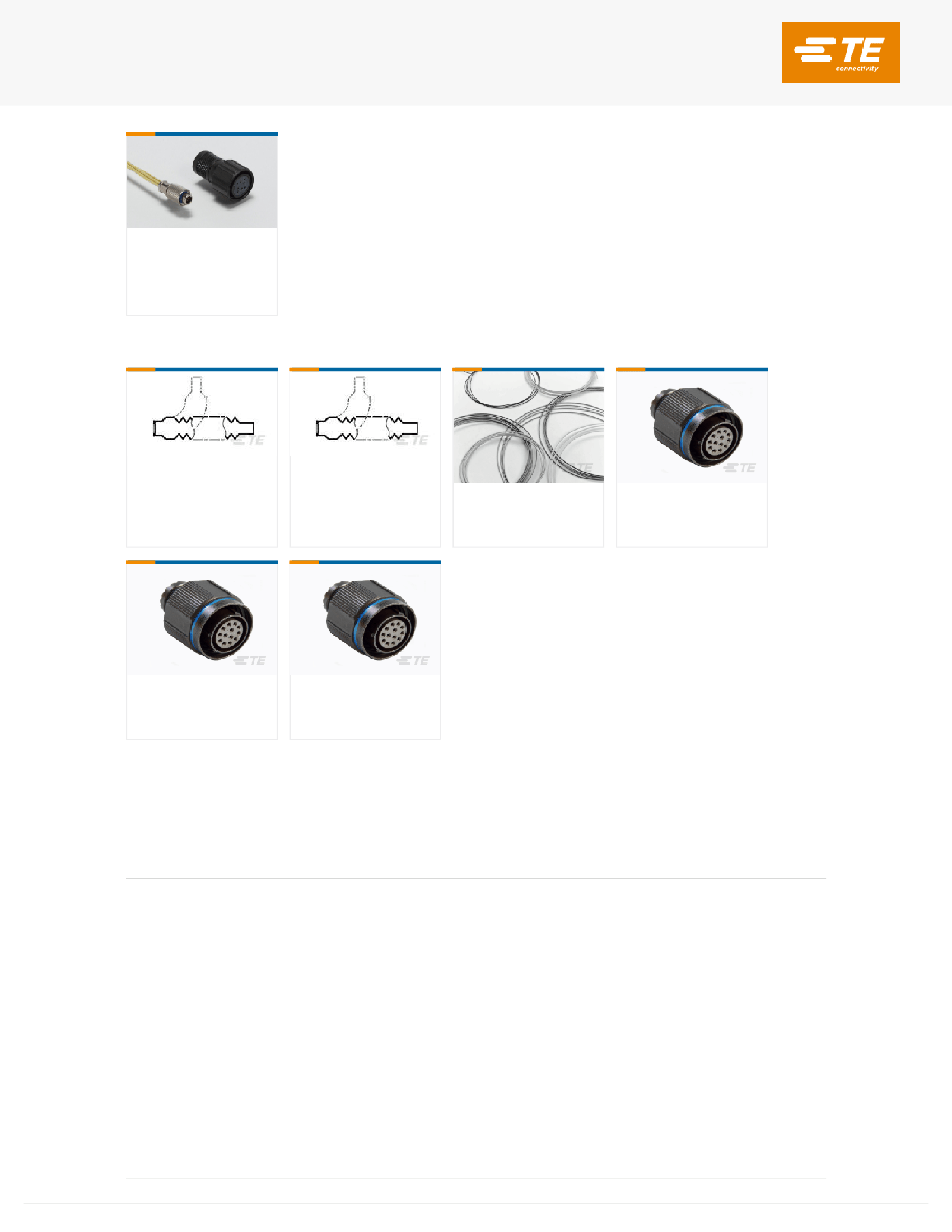

Customers Also Bought
TE Model / Part #806075-
000
202C621-71-0
TE Model / Part #806087-
000
202C611-71-0
TE Model / Part #864361-
000
44AM1141-20-MST4-
9CS2275
TE Model / Part #
YDTS26W15-35PNV001
PLUG ASSY
TE Model / Part #
YDTS26W15-35SNV001
PLUG ASSY
TE Model / Part #
YDTS26W09-35PNV001
PLUG ASSY
Documents
Product Drawings
PLUG ASSY
English
CAD Files
3D PDF
3D
Customer View Model
ENG_CVM_CVM_YDTS26W09-35SNV001_99.2d_dxf.zip
English
Customer View Model
ENG_CVM_CVM_YDTS26W09-35SNV001_99.3d_igs.zip
English
Customer View Model
ENG_CVM_CVM_YDTS26W09-35SNV001_99.3d_stp.zip
English
For support call+1 800 522 6752
Datasheets & Catalog Pages
12/05/2019 01:48PM | Page 4
DTS26W09-35SN [V001]
PLUG ASSY
Mil-Spec: [D38999/26WA35SN]
Datasheets & Catalog Pages
DEUTSCH MIL-DTL-38999 CIRCULAR CONNECTORS
English
Product Environmental Compliance
REACH Substance Communication Document
English
For support call+1 800 522 6752
12/05/2019 01:48PM | Page 5
