Part Number

Search

ADDAC85MIL-CBI-V/883B

Description
IC IC,D/A CONVERTER,SINGLE,12-BIT,BIPOLAR,DIP,24PIN, Digital to Analog Converter
CategoryAnalog mixed-signal IC    converter
File Size389KB,5 Pages
ManufacturerADI
Websitehttps://www.analog.com
Download Datasheet Parametric Compare View All

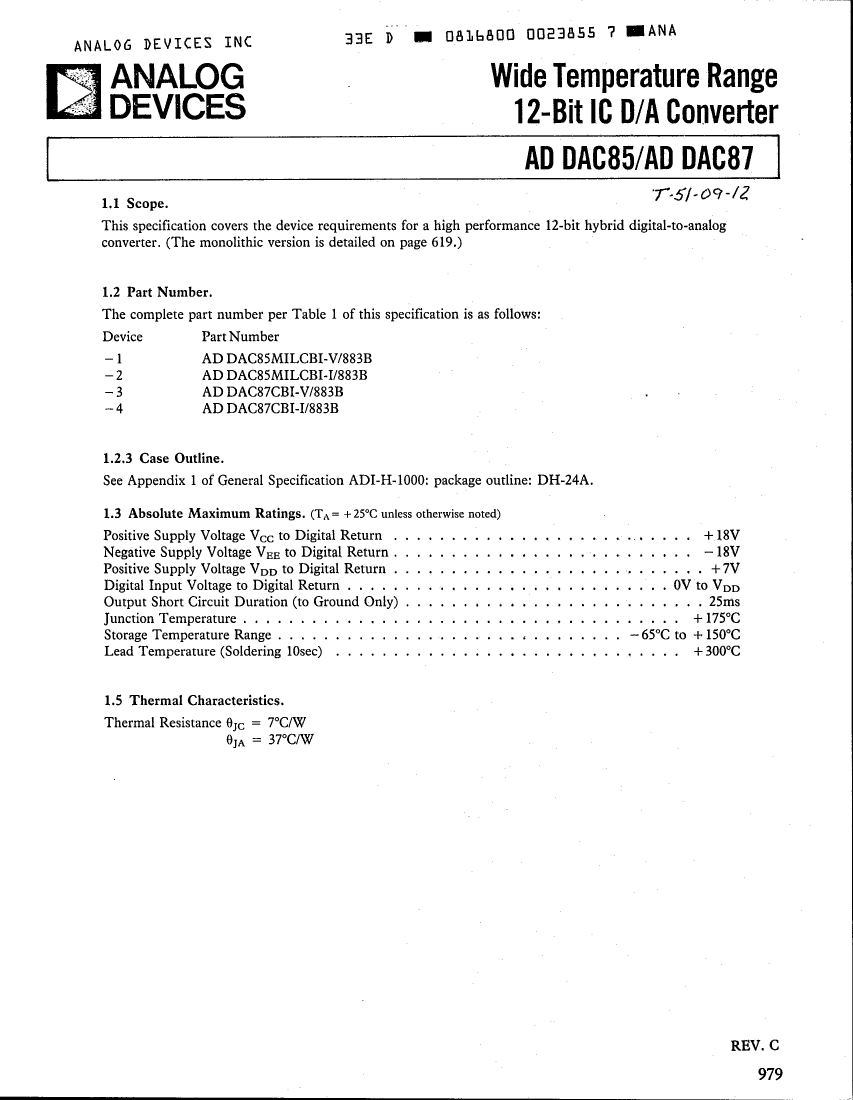

ADDAC85MIL-CBI-V/883B Overview

IC IC,D/A CONVERTER,SINGLE,12-BIT,BIPOLAR,DIP,24PIN, Digital to Analog Converter

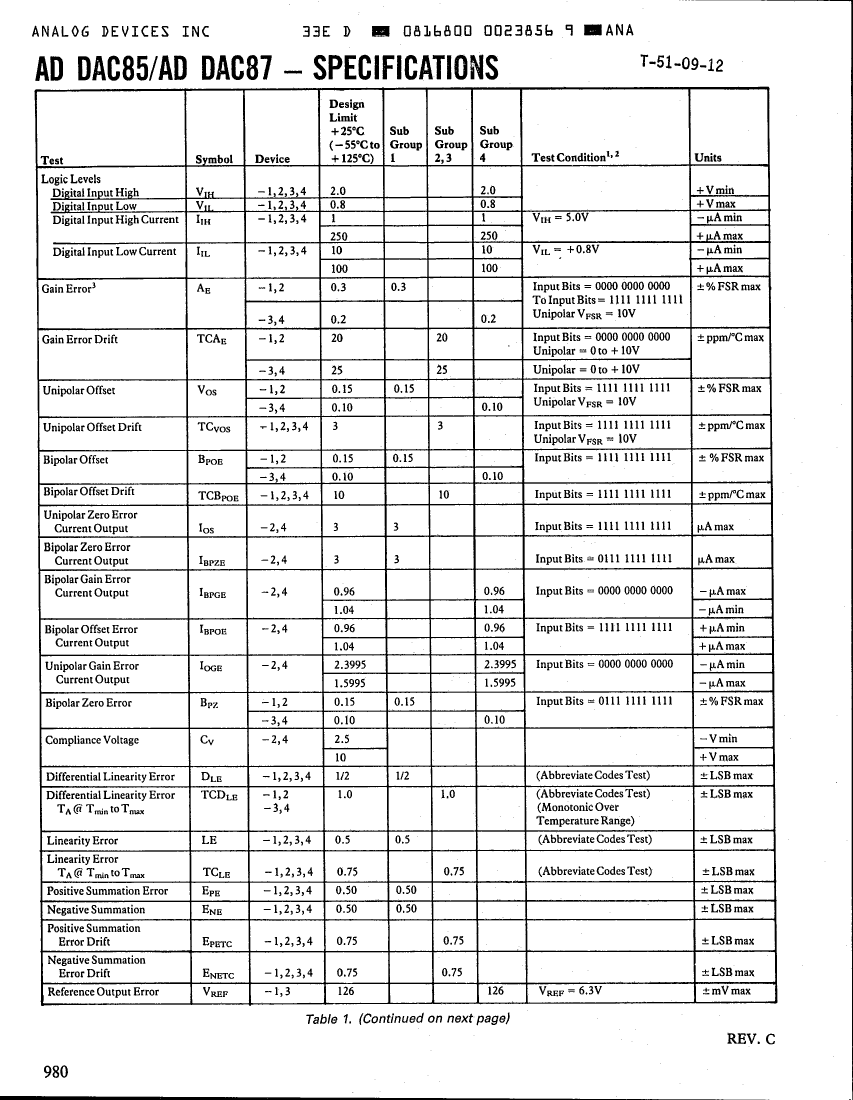

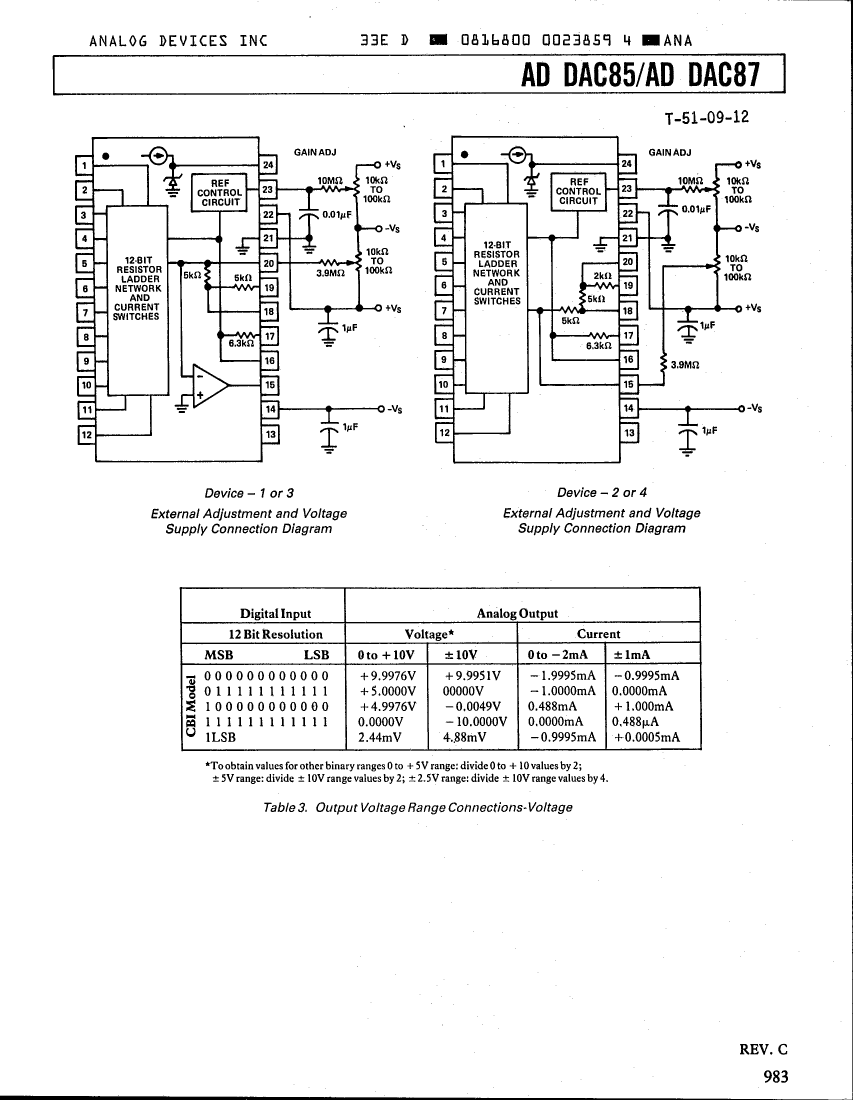

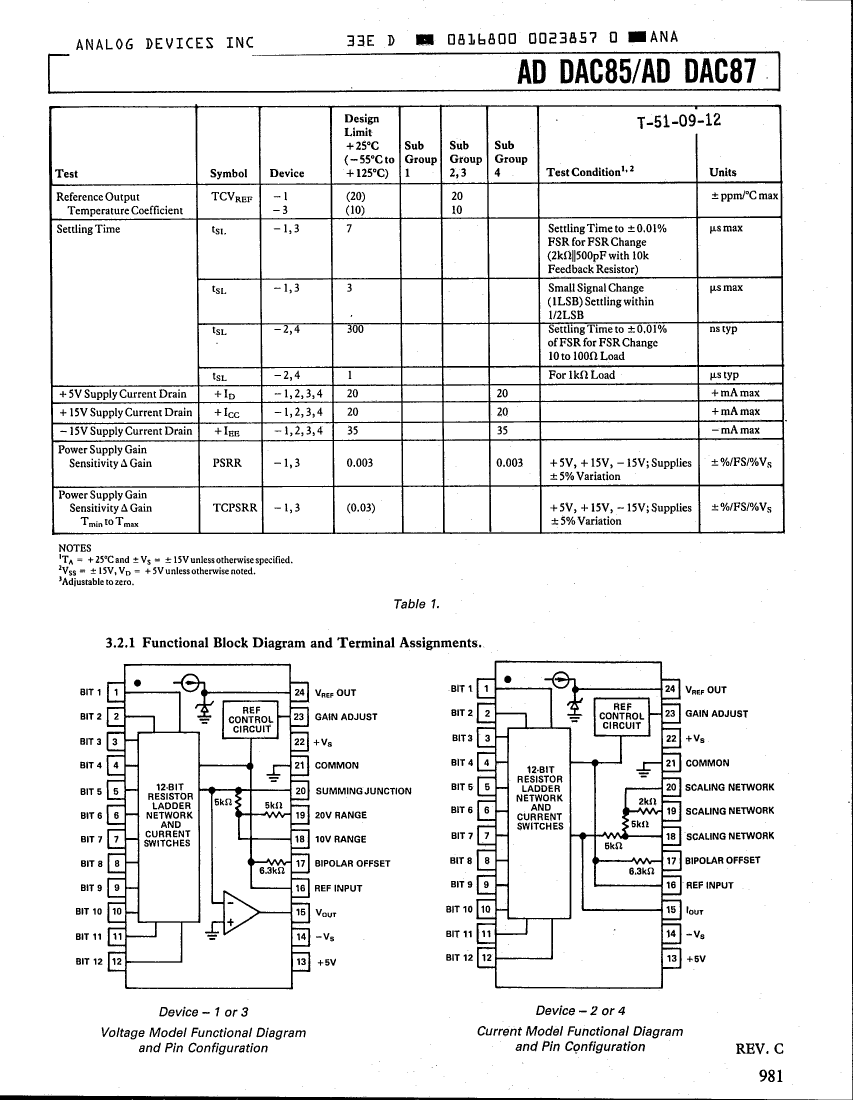

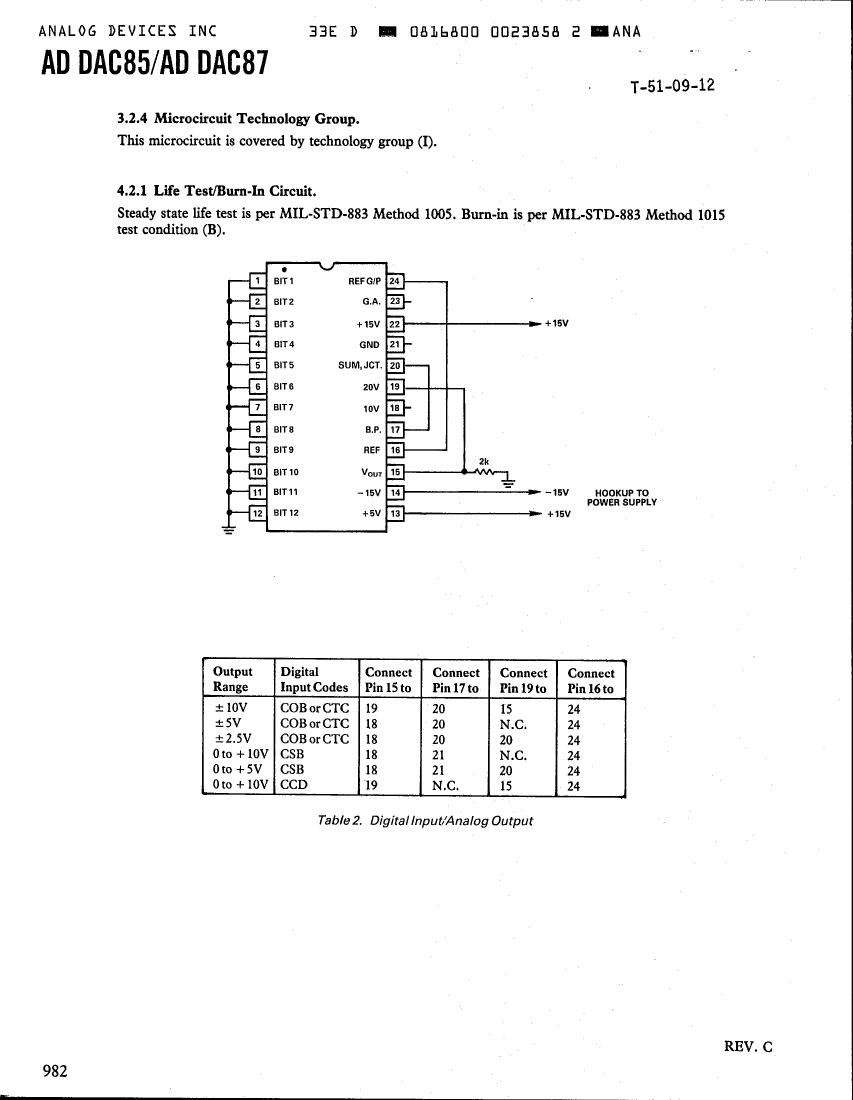

ADDAC85MIL-CBI-V/883B Parametric

Parameter NameAttribute value
Is it Rohs certified?incompatible
MakerADI
Parts packaging codeDIP
Contacts24
Reach Compliance Codenot_compliant
Is SamacsysN
Converter typeD/A CONVERTER
Enter bit codeCOMPLEMENTARY BINARY, COMPLEMENTARY OFFSET BINARY
JESD-30 codeR-XDIP-T24
JESD-609 codee0
Maximum linear error (EL)0.018%
Nominal negative supply voltage-15 V
Number of digits12
Number of functions1
Number of terminals24
Maximum operating temperature125 °C
Minimum operating temperature-55 °C
Package body materialCERAMIC
encapsulated codeDIP
Encapsulate equivalent codeDIP24,.6
Package shapeRECTANGULAR
Package formIN-LINE
power supply+-15 V
Certification statusNot Qualified
Filter level38535Q/M;38534H;883B
Maximum stabilization time7 µs
Nominal supply voltage15 V
surface mountNO
technologyBIPOLAR
Temperature levelMILITARY
Terminal surfaceTin/Lead (Sn/Pb)
Terminal formTHROUGH-HOLE
Terminal pitch2.54 mm
Terminal locationDUAL
Base Number Matches1

ADDAC85MIL-CBI-V/883B Related Products

ADDAC85MIL-CBI-V/883B 5962-01-164-8460 ADDAC85CCD-I/883B ADDAC80D-CBI-V/+
Description IC IC,D/A CONVERTER,SINGLE,12-BIT,BIPOLAR,DIP,24PIN, Digital to Analog Converter IC IC,D/A CONVERTER,SINGLE,12-BIT,BIPOLAR,DIP,24PIN, Digital to Analog Converter ADDAC85CCD-I/883B IC,D/A CONVERTER,SINGLE,12-BIT,BIPOLAR,DIP,24PIN
Is it Rohs certified? incompatible incompatible incompatible incompatible
Maker ADI ADI ADI ADI
Reach Compliance Code not_compliant unknown not_compliant unknown
Converter type D/A CONVERTER D/A CONVERTER D/A CONVERTER D/A CONVERTER
Enter bit code COMPLEMENTARY BINARY, COMPLEMENTARY OFFSET BINARY COMPLEMENTARY BINARY, COMPLEMENTARY OFFSET BINARY COMPLEMENTARY BINARY CODED DECIMAL COMPLEMENTARY BINARY, COMPLEMENTARY OFFSET BINARY
JESD-30 code R-XDIP-T24 R-XDIP-T24 R-XDIP-T24 R-XDIP-T24
Maximum linear error (EL) 0.018% 0.018% 0.012% 0.012%
Number of digits 12 12 12 12
Number of functions 1 1 1 1
Number of terminals 24 24 24 24
Maximum operating temperature 125 °C 125 °C 125 °C 70 °C
Minimum operating temperature -55 °C -55 °C -55 °C -
Package body material CERAMIC CERAMIC CERAMIC CERAMIC
encapsulated code DIP DIP DIP DIP
Encapsulate equivalent code DIP24,.6 DIP24,.6 DIP24,.6 DIP24,.6
Package shape RECTANGULAR RECTANGULAR RECTANGULAR RECTANGULAR
Package form IN-LINE IN-LINE IN-LINE IN-LINE
power supply +-15 V +-15 V 5,+-15 V +-12/+-15 V
surface mount NO NO NO NO
technology BIPOLAR BIPOLAR BIPOLAR BIPOLAR
Temperature level MILITARY MILITARY MILITARY COMMERCIAL
Terminal form THROUGH-HOLE THROUGH-HOLE THROUGH-HOLE THROUGH-HOLE
Terminal pitch 2.54 mm 2.54 mm 2.54 mm 2.54 mm
Terminal location DUAL DUAL DUAL DUAL
JESD-609 code e0 - e0 e0
Certification status Not Qualified Not Qualified Not Qualified -
Filter level 38535Q/M;38534H;883B 38535Q/M;38534H;883B 38535Q/M;38534H;883B -
Maximum stabilization time 7 µs 7 µs - 4 µs
Terminal surface Tin/Lead (Sn/Pb) - Tin/Lead (Sn/Pb) Tin/Lead (Sn/Pb)
Base Number Matches 1 1 1 -
