CAT64LC40SI-2.5 datasheet, PDF

EEWORLDEEWORLD

Datasheet

Datasheet> All Categories > storage> storage> CAT64LC40SI-2.5

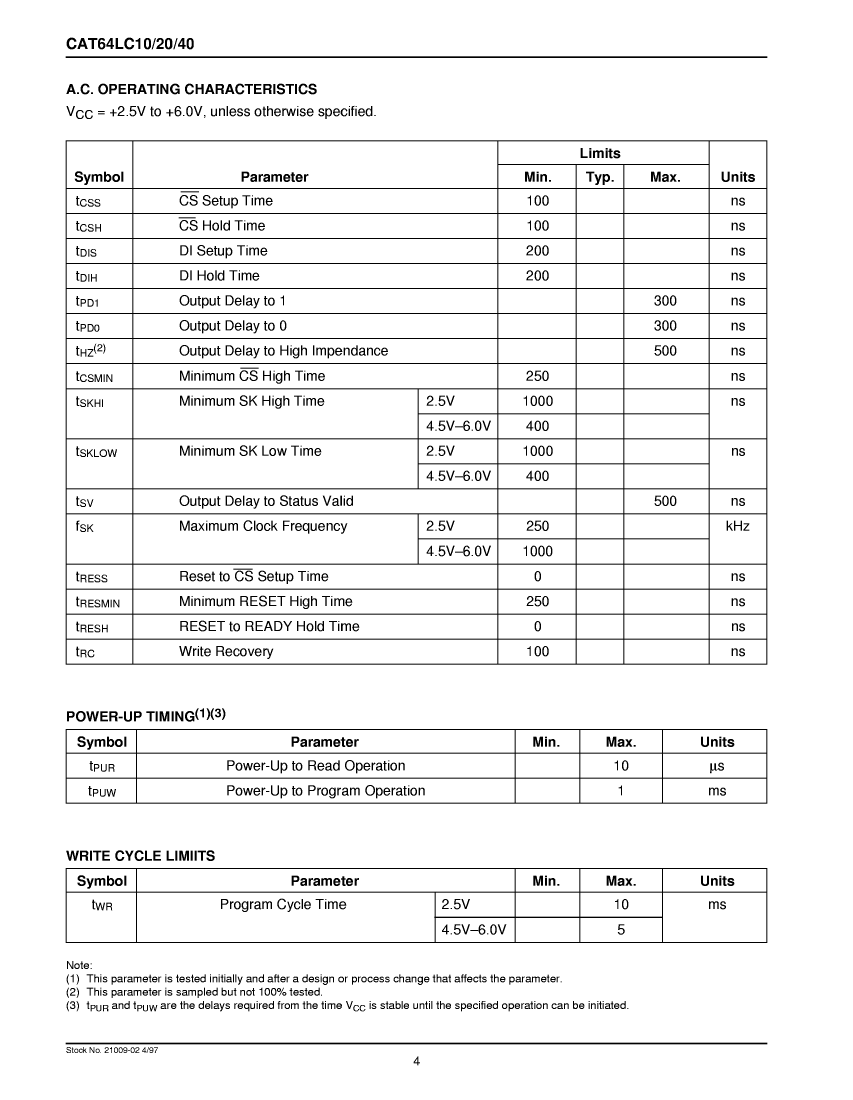

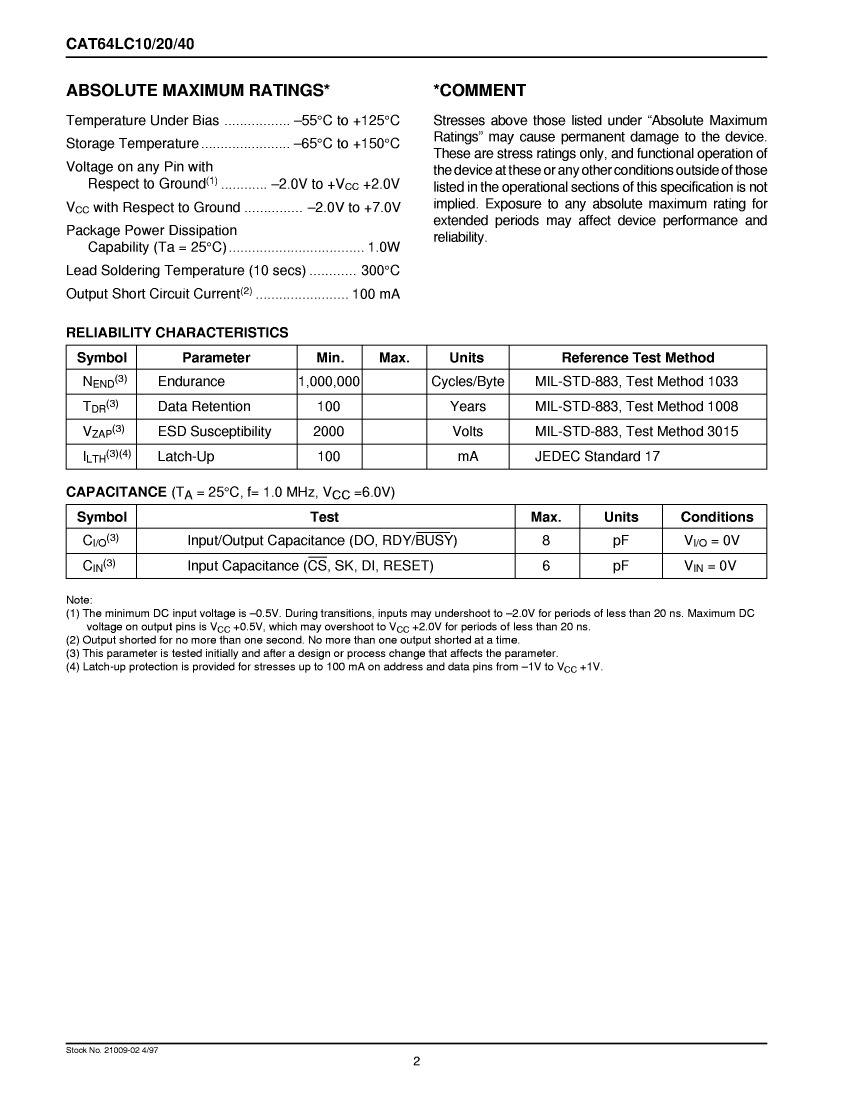

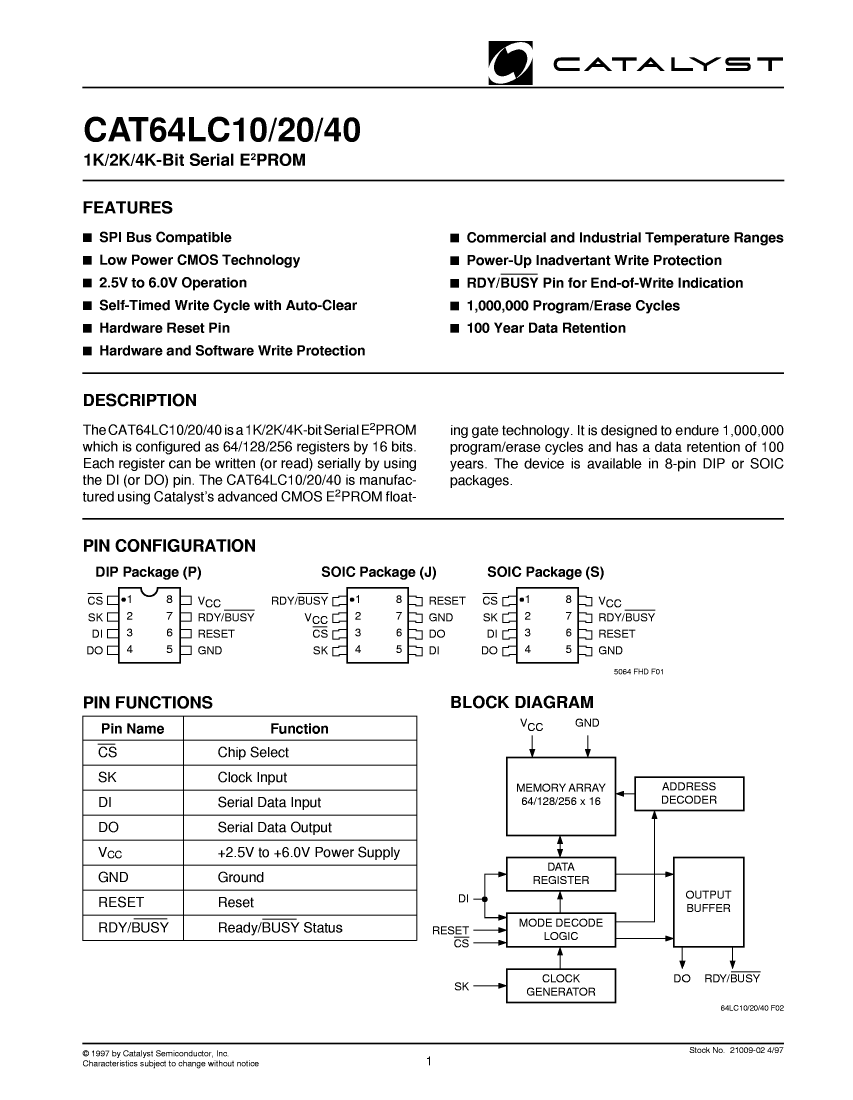

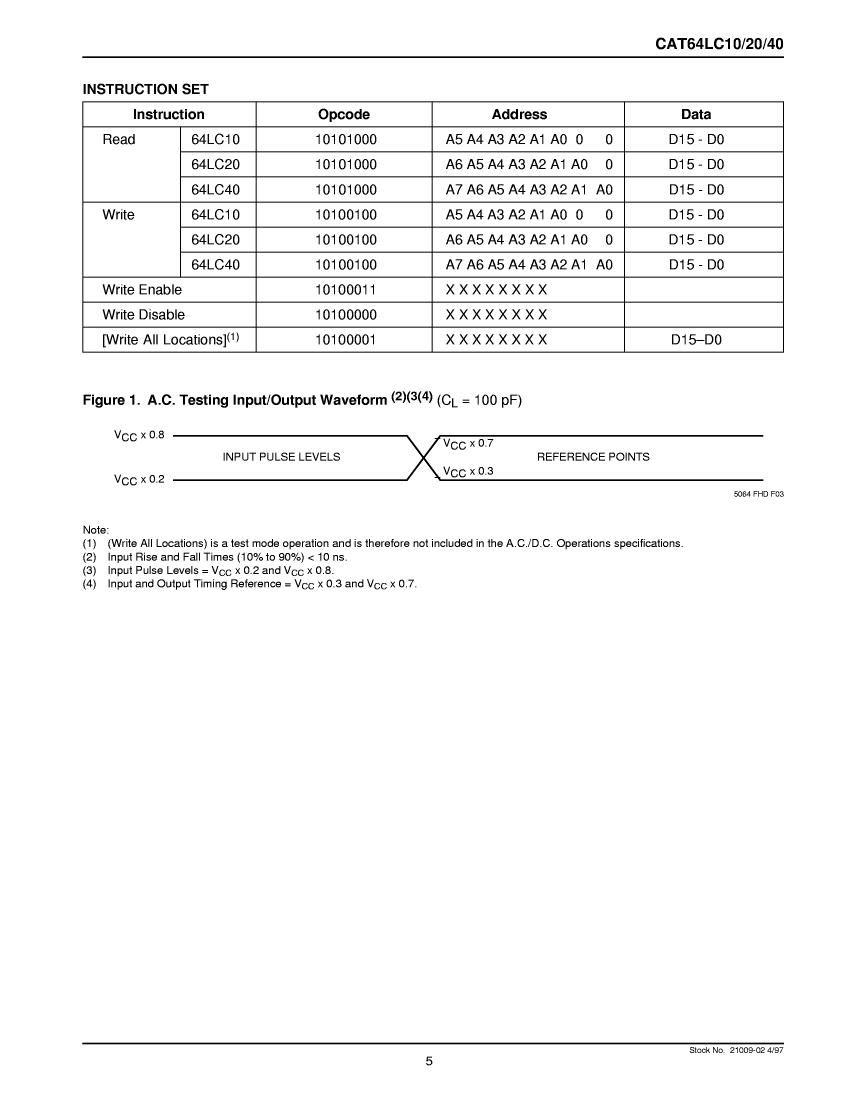

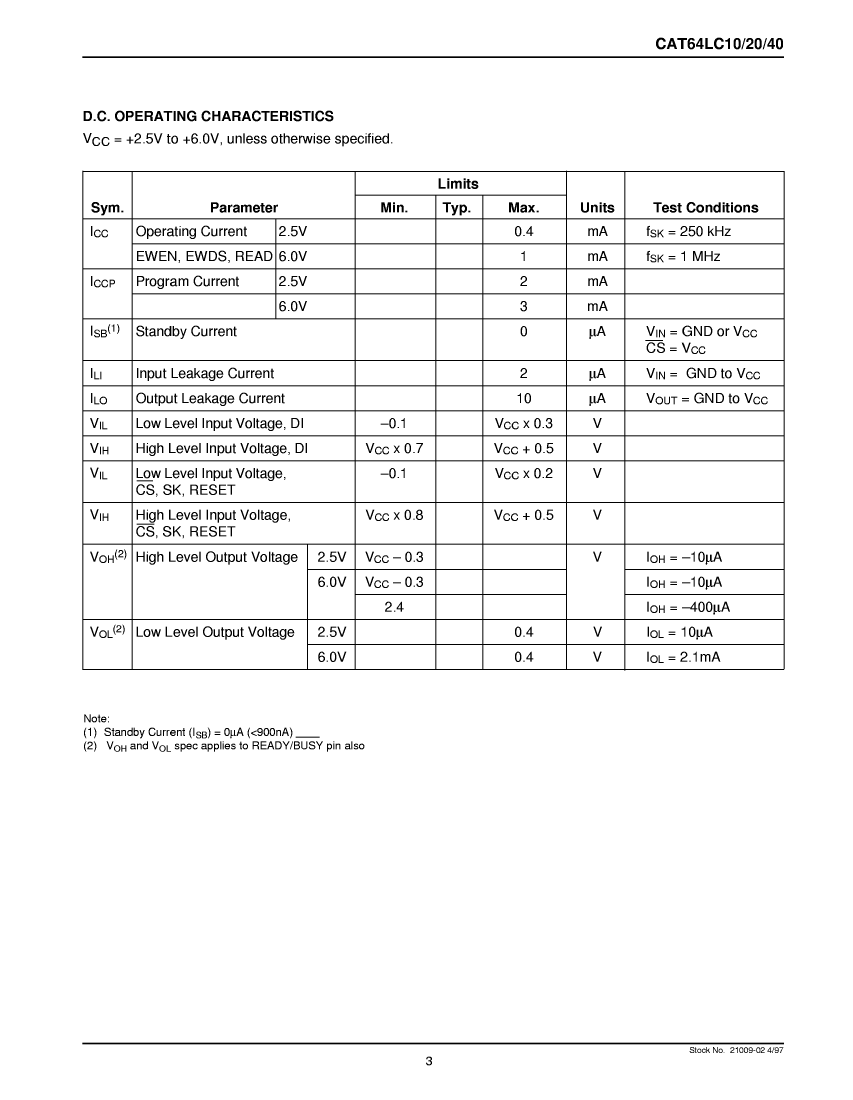

Preview

CAT64LC40SI-2.5: DescriptionEEPROM, 256X16, Serial, CMOS, PDSO8; Categorystorage storage; File Size465KB，9 Pages; ManufacturerCatalyst; Websitehttp://www.catalyst-semiconductor.com/

Download Datasheet Parametric Compare View All

CAT64LC40SI-2.5 Overview

EEPROM, 256X16, Serial, CMOS, PDSO8

CAT64LC40SI-2.5 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	Catalyst
package instruction	SOP, SOP8,.25
Reach Compliance Code	unknown
Is Samacsys	N
Data retention time - minimum	100
Durability	100000 Write/Erase Cycles
JESD-30 code	R-PDSO-G8
JESD-609 code	e0
memory density	4096 bit
Memory IC Type	EEPROM
memory width	16
Number of terminals	8
word count	256 words
character code	256
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
organize	256X16
Package body material	PLASTIC/EPOXY
encapsulated code	SOP
Encapsulate equivalent code	SOP8,.25
Package shape	RECTANGULAR
Package form	SMALL OUTLINE
Parallel/Serial	SERIAL
power supply	3/5 V
Certification status	Not Qualified
Serial bus type	SPI
Maximum standby current	9e-7 A
Maximum slew rate	0.003 mA
surface mount	YES
technology	CMOS
Temperature level	INDUSTRIAL
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	GULL WING
Terminal pitch	1.27 mm
Terminal location	DUAL
write protect	HARDWARE/SOFTWARE
Base Number Matches	1

Preview

Download Datasheet

View All

CAT64LC40SI-2.5 Related Products

	CAT64LC40SI-2.5	CAT64LC20J-2.5	CAT64LC40JI-2.5	CAT64LC20SI-2.5	CAT64LC20S-2.5	CAT64LC10S-2.5	CAT64LC10J-2.5
Description	EEPROM, 256X16, Serial, CMOS, PDSO8	EEPROM, 128X16, Serial, CMOS, PDSO8	EEPROM, 256X16, Serial, CMOS, PDSO8	EEPROM, 128X16, Serial, CMOS, PDSO8	EEPROM, 128X16, Serial, CMOS, PDSO8	EEPROM, 64X16, Serial, CMOS, PDSO8	EEPROM, 64X16, Serial, CMOS, PDSO8
Is it Rohs certified?	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible
package instruction	SOP, SOP8,.25	SOP, SOP8,.25	SOP, SOP8,.25	SOP, SOP8,.25	SOP, SOP8,.25	SOP, SOP8,.25	SOP, SOP8,.25
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown	unknown	unknown
Data retention time - minimum	100	100	100	100	100	100	100
Durability	100000 Write/Erase Cycles	100000 Write/Erase Cycles	100000 Write/Erase Cycles	100000 Write/Erase Cycles	100000 Write/Erase Cycles	100000 Write/Erase Cycles	100000 Write/Erase Cycles
JESD-30 code	R-PDSO-G8	R-PDSO-G8	R-PDSO-G8	R-PDSO-G8	R-PDSO-G8	R-PDSO-G8	R-PDSO-G8
JESD-609 code	e0	e0	e0	e0	e0	e0	e0
memory density	4096 bit	2048 bit	4096 bit	2048 bit	2048 bit	1024 bit	1024 bit
Memory IC Type	EEPROM	EEPROM	EEPROM	EEPROM	EEPROM	EEPROM	EEPROM
memory width	16	16	16	16	16	16	16
Number of terminals	8	8	8	8	8	8	8
word count	256 words	128 words	256 words	128 words	128 words	64 words	64 words
character code	256	128	256	128	128	64	64
Maximum operating temperature	85 °C	70 °C	85 °C	85 °C	70 °C	70 °C	70 °C
organize	256X16	128X16	256X16	128X16	128X16	64X16	64X16
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY
encapsulated code	SOP	SOP	SOP	SOP	SOP	SOP	SOP
Encapsulate equivalent code	SOP8,.25	SOP8,.25	SOP8,.25	SOP8,.25	SOP8,.25	SOP8,.25	SOP8,.25
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	SMALL OUTLINE	SMALL OUTLINE	SMALL OUTLINE	SMALL OUTLINE	SMALL OUTLINE	SMALL OUTLINE	SMALL OUTLINE
Parallel/Serial	SERIAL	SERIAL	SERIAL	SERIAL	SERIAL	SERIAL	SERIAL
power supply	3/5 V	3/5 V	3/5 V	3/5 V	3/5 V	3/5 V	3/5 V
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified
Serial bus type	SPI	SPI	SPI	SPI	SPI	SPI	SPI
Maximum standby current	9e-7 A	9e-7 A	9e-7 A	9e-7 A	9e-7 A	9e-7 A	9e-7 A
Maximum slew rate	0.003 mA	0.003 mA	0.003 mA	0.003 mA	0.003 mA	0.003 mA	0.003 mA
surface mount	YES	YES	YES	YES	YES	YES	YES
technology	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS
Temperature level	INDUSTRIAL	COMMERCIAL	INDUSTRIAL	INDUSTRIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL
Terminal surface	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)
Terminal form	GULL WING	GULL WING	GULL WING	GULL WING	GULL WING	GULL WING	GULL WING
Terminal pitch	1.27 mm	1.27 mm	1.27 mm	1.27 mm	1.27 mm	1.27 mm	1.27 mm
Terminal location	DUAL	DUAL	DUAL	DUAL	DUAL	DUAL	DUAL
write protect	HARDWARE/SOFTWARE	HARDWARE/SOFTWARE	HARDWARE/SOFTWARE	HARDWARE/SOFTWARE	HARDWARE/SOFTWARE	HARDWARE/SOFTWARE	HARDWARE/SOFTWARE
Base Number Matches	1	1	1	1	1	1	-
