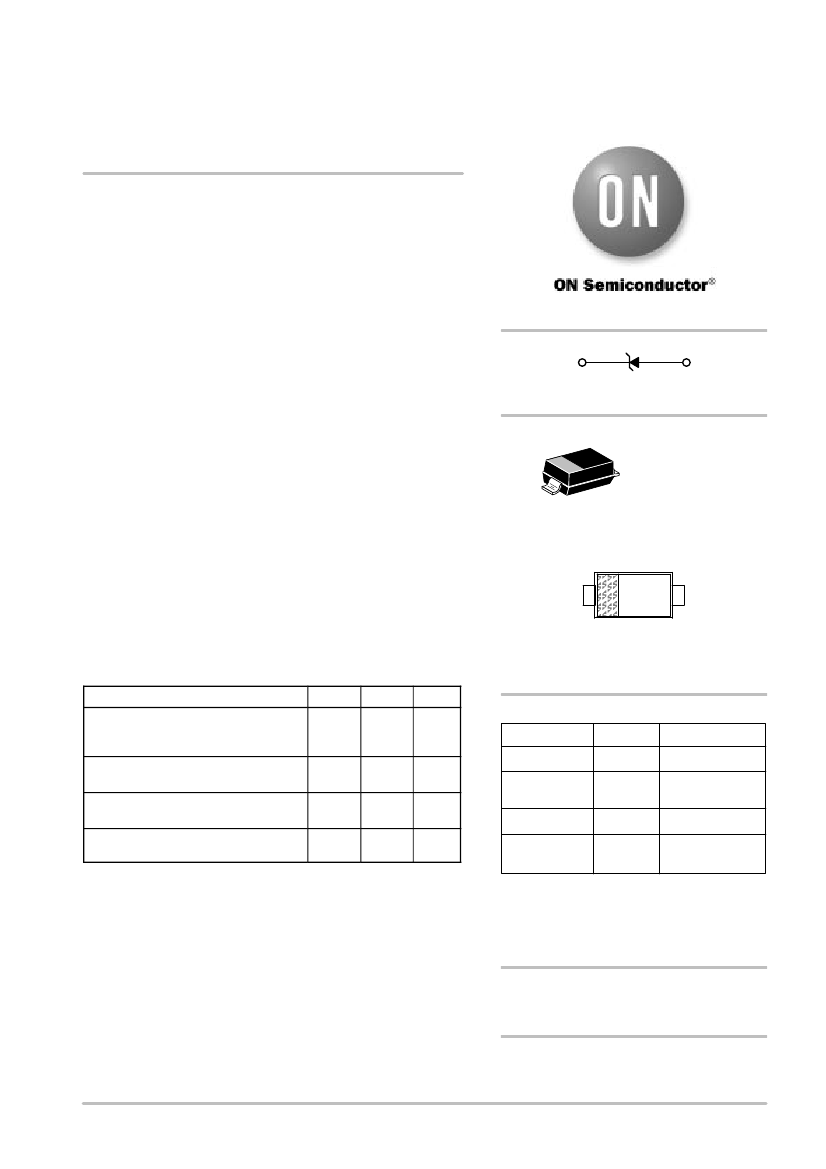

MMSZ5221BT1 Series
Preferred Device
Zener Voltage Regulators
500 mW SOD−123 Surface Mount
Three complete series of Zener diodes are offered in the convenient,
surface mount plastic SOD−123 package. These devices provide a
convenient alternative to the leadless 34−package style.
Features
http://onsemi.com
•
•
•
•
•
•
•
500 mW Rating on FR−4 or FR−5 Board
Wide Zener Reverse Voltage Range − 2.4 V to 110 V
Package Designed for Optimal Automated Board Assembly
Small Package Size for High Density Applications
General Purpose, Medium Current
ESD Rating of Class 3 (>16 kV) per Human Body Model
Pb−Free Packages are Available
1
Cathode
2
Anode
2
1
SOD−123
CASE 425
STYLE 1
Mechanical Characteristics
CASE:
Void-free, transfer-molded, thermosetting plastic case
FINISH:
Corrosion resistant finish, easily solderable
MAXIMUM CASE TEMPERATURE FOR SOLDERING PURPOSES:
MARKING DIAGRAM
260°C for 10 Seconds
POLARITY:
Cathode indicated by polarity band
FLAMMABILITY RATING:
UL 94 V−0
xx
M
MAXIMUM RATINGS
Rating
Total Power Dissipation on FR−5 Board,
(Note 1) @ T
L
= 75°C
Derated above 75°C
Thermal Resistance, (Note 2)
Junction−to−Ambient
Thermal Resistance, (Note 2)
Junction−to−Lead
Junction and Storage Temperature Range
Symbol
P
D
500
6.7
R
qJA
R
qJL
T
J
, T
stg
340
150
−55 to
+150
mW
mW/°C
°C/W
°C/W
MMSZ52xxBT3
°C
MMSZ52xxBT3G
Max
Unit
ORDERING INFORMATION
Device**
MMSZ52xxBT1
MMSZ52xxBT1G
Package
SOD−123
SOD−123
(Pb−Free)
SOD−123
SOD−123
(Pb−Free)
Shipping
†
3000/Tape & Reel
3000/Tape & Reel
10,000/Tape & Reel
10,000/Tape & Reel
Maximum ratings are those values beyond which device damage can occur.
Maximum ratings applied to the device are individual stress limit values (not
normal operating conditions) and are not valid simultaneously. If these limits
are exceeded, device functional operation is not implied, damage may occur
and reliability may be affected.
1. FR−5 = 3.5 X 1.5 inches, using the minimum recommended footprint.
2. Thermal Resistance measurement obtained via infrared Scan Method.
**The “T1” suffix refers to an 8 mm, 7 inch reel.
The “T3” suffix refers to an 8 mm, 13 inch reel.
†For information on tape and reel specifications,
including part orientation and tape sizes, please
refer to our Tape and Reel Packaging Specifications
Brochure, BRD8011/D.
DEVICE MARKING INFORMATION
See specific marking information in the device marking
column of the Electrical Characteristics table on page 3 of
this data sheet.
Devices listed in
bold, italic
are ON Semiconductor
Preferred
devices.
Preferred
devices are recommended
choices for future use and best overall value.
©
Semiconductor Components Industries, LLC, 2005
1
January, 2005 − Rev. 5
ÂÂ
ÂÂ
ÂÂ
xx M
= Specific Device Code
= Date Code
Publication Order Number:
MMSZ5221BT1/D
MMSZ5221BT1 Series
ELECTRICAL CHARACTERISTICS
(T
A
= 25°C unless otherwise noted, V
F
= 0.9 V Max. @ I
F
= 10 mA)
Zener Voltage
(Notes 3 and 4)
Device
Marking
V
Z
(Volts)
Min
Nom
Max
@ I
ZT
mA
Zener Impedance
(Note 5)
Z
ZT
@ I
ZT
W
Z
ZK
@ I
ZK
W
mA
Leakage Current
I
R
@ V
R
mA
Volts
Device
MMSZ5221BT1, G
MMSZ5222BT1
MMSZ5223BT1, G
MMSZ5224BT1
MMSZ5225BT1
MMSZ5226BT1, G
MMSZ5227BT1, G
MMSZ5228BT1, G
MMSZ5229BT1, G
MMSZ5230BT1, G
C1
C2
C3
C4
C5
D1
D2
D3
D4
D5
2.28
2.38
2.57
2.66
2.85
3.14
3.42
3.71
4.09
4.47
2.4
2.5
2.7
2.8
3.0
3.3
3.6
3.9
4.3
4.7
2.52
2.63
2.84
2.94
3.15
3.47
3.78
4.10
4.52
4.94
20
20
20
20
20
20
20
20
20
20
30
30
30
30
29
28
24
23
22
19
1200
1250
1300
1400
1600
1600
1700
1900
2000
1900
0.25
0.25
0.25
0.25
0.25
0.25
0.25
0.25
0.25
0.25
100
100
75
75
50
25
15
10
5
5
1
1
1
1
1
1
1
1
1
2
MMSZ5231BT1, G
MMSZ5232BT1, G
MMSZ5233BT1, G
MMSZ5234BT1, G
MMSZ5235BT1, G
MMSZ5236BT1, G
MMSZ5237BT1, G
MMSZ5238BT1
MMSZ5239BT1, G
MMSZ5240BT1, G
MMSZ5241BT1
MMSZ5242BT1, G
MMSZ5243BT1, G
MMSZ5244BT1, G
MMSZ5245BT1, G
E1
E2
E3
E4
E5
F1
F2
F3
F4
F5
H1
H2
H3
H4
H5
4.85
5.32
5.70
5.89
6.46
7.13
7.79
8.27
8.65
9.50
10.45
11.40
12.35
13.30
14.25
5.1
5.6
6.0
6.2
6.8
7.5
8.2
8.7
9.1
10
11
12
13
14
15
5.36
5.88
6.30
6.51
7.14
7.88
8.61
9.14
9.56
10.50
11.55
12.60
13.65
14.70
15.75
20
20
20
20
20
20
20
20
20
20
20
20
9.5
9.0
8.5
17
11
7
7
5
6
8
8
10
17
22
30
13
15
16
1600
1600
1600
1000
750
500
500
600
600
600
600
600
600
600
600
0.25
0.25
0.25
0.25
0.25
0.25
0.25
0.25
0.25
0.25
0.25
0.25
0.25
0.25
0.25
5
5
5
5
3
3
3
3
3
3
2
1
0.5
0.1
0.1
2
3
3.5
4
5
6
6.5
6.5
7
8
8.4
9.1
9.9
10
11
MMSZ5246BT1, G
MMSZ5247BT1, G
MMSZ5248BT1, G
MMSZ5250BT1, G
MMSZ5251BT1, G
MMSZ5252BT1, G
MMSZ5253BT1
MMSZ5254BT1, G
MMSZ5255BT1, G
MMSZ5256BT1, G
MMSZ5257BT1, G
MMSZ5258BT1, G
MMSZ5259BT1, G
MMSZ5260BT1, G
J1
J2
J3
J5
K1
K2
K3
K4
K5
M1
M2
M3
M4
M5
15.20
16.15
17.10
19.00
20.90
22.80
23.75
25.65
26.60
28.50
31.35
34.20
37.05
40.85
16
17
18
20
22
24
25
27
28
30
33
36
39
43
16.80
17.85
18.90
21.00
23.10
25.20
26.25
28.35
29.40
31.50
34.65
37.80
40.95
45.15
7.8
7.4
7.0
6.2
5.6
5.2
5.0
4.6
4.5
4.2
3.8
3.4
3.2
3.0
17
19
21
25
29
33
35
41
44
49
58
70
80
93
600
600
600
600
600
600
600
600
600
600
700
700
800
900
0.25
0.25
0.25
0.25
0.25
0.25
0.25
0.25
0.25
0.25
0.25
0.25
0.25
0.25
0.1
0.1
0.1
0.1
0.1
0.1
0.1
0.1
0.1
0.1
0.1
0.1
0.1
0.1
12
13
14
15
17
18
19
21
21
23
25
27
30
33
MMSZ5261BT1, G
MMSZ5262BT1
MMSZ5263BT1
MMSZ5264BT1
MMSZ5265BT1, G
MMSZ5266BT1, G
MMSZ5267BT1, G
MMSZ5268BT1, G
MMSZ5269BT1
MMSZ5270BT1, G
MMSZ5272BT1
N1
N2
N3
N4
N5
P1
P2
P3
P4
P5
R2
44.65
48.45
53.20
57.00
58.90
64.60
71.25
77.90
82.65
86.45
104.5
47
51
56
60
62
68
75
82
87
91
110
49.35
53.55
58.80
63.00
65.10
71.40
78.75
86.10
91.35
95.55
115.5
2.7
2.5
2.2
2.1
2.0
1.8
1.7
1.5
1.4
1.4
1.1
105
125
150
170
185
230
270
330
370
400
750
1000
1100
1300
1400
1400
1600
1700
2000
2200
2300
3000
0.25
0.25
0.25
0.25
0.25
0.25
0.25
0.25
0.25
0.25
0.25
0.1
0.1
0.1
0.1
0.1
0.1
0.1
0.1
0.1
0.1
0.1
36
39
43
46
47
52
56
62
68
69
84
3. The type numbers shown have a standard tolerance of
±5%
on the nominal Zener voltage.
4. Nominal Zener voltage is measured with the device junction in thermal equilibrium at T
L
= 30°C
$1°C.
5. Z
ZT
and Z
ZK
are measured by dividing the AC voltage drop across the device by the ac current applied.
The specified limits are for I
Z(AC)
= 0.1 I
Z(dc)
with the AC frequency = 1 KHz.
http://onsemi.com
3
MMSZ5221BT1 Series

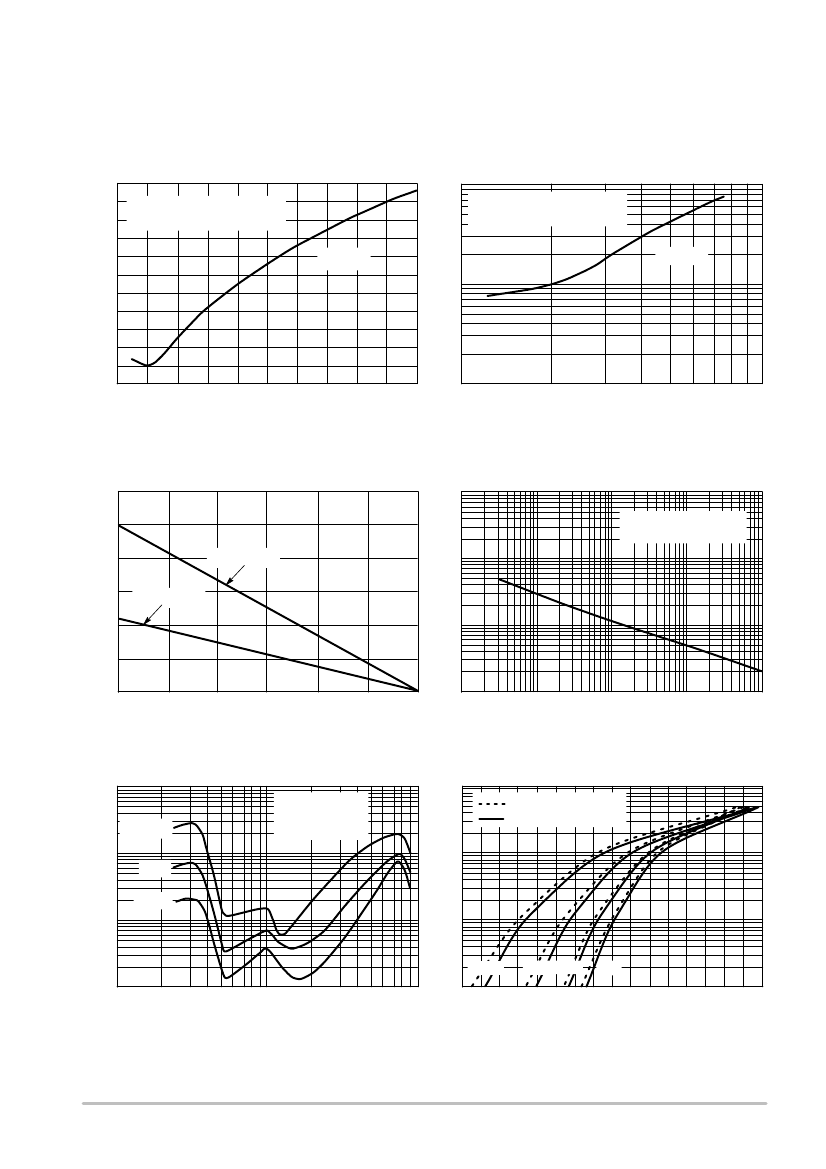

TYPICAL CHARACTERISTICS
q
VZ
, TEMPERATURE COEFFICIENT (mV/°C)
8
7
6
5
4
3
2
1
0
−1
−2
−3
V
Z
@ I
ZT
TYPICAL T
C
VALUES
FOR MMSZ5221BT1 SERIES
q
VZ
, TEMPERATURE COEFFICIENT (mV/°C)
100
TYPICAL T
C
VALUES
FOR MMSZ5221BT1 SERIES
V
Z
@ I
ZT
10
2
3
4
5
6
7
8
9
10
V
Z
, NOMINAL ZENER VOLTAGE (V)
11
12
1
10
V
Z
, NOMINAL ZENER VOLTAGE (V)
100
Figure 1. Temperature Coefficients
(Temperature Range − 55°C to +150°C)
Figure 2. Temperature Coefficients
(Temperature Range − 55°C to +150°C)
P
pk
, PEAK SURGE POWER (WATTS)
1.2
1.0
0.8
0.6
0.4
0.2
0
P
D
versus T
L
1000
RECTANGULAR
WAVEFORM, T
A
= 25°C
100
P
D
versus T
A
10
0
25
50
75
100
T, TEMPERATURE (°C)
125
150
1
0.1
1
10
100
PW, PULSE WIDTH (ms)
1000
Figure 3. Steady State Power Derating
Figure 4. Maximum Nonrepetitive Surge Power
1000
Z
ZT
, DYNAMIC IMPEDANCE (W)
T
J
= 25°C
I
Z(AC)
= 0.1 I
Z(DC)
f = 1 kHz
1000
I
F
, FORWARD CURRENT (mA)
75 V (MMSZ5267BT1)
91 V (MMSZ5270BT1)
I
Z
= 1 mA
100
5 mA
20 mA
10
100
10
150°C
1
1
1
10
V
Z
, NOMINAL ZENER VOLTAGE
100
0.4
0.5
75°C 25°C
0°C
1.1
1.2
0.6
0.7
0.8
0.9
1.0
V
F
, FORWARD VOLTAGE (V)
Figure 5. Effect of Zener Voltage on
Zener Impedance
Figure 6. Typical Forward Voltage
http://onsemi.com
4
