Superior Jitter Performance (less than 0.25 ps RMS,
12 kHz - 20 MHz)
APR from ±50 to ±300ppm over industrial temperature range
SAW replacement performance
Frequencies from 150 MHz to 1.4 GHz
QiK Chip™
Product Description
The M310x series of VCXO’s is designed with a hermetically sealed high precision AT cut quartz crystal,
combined with our QiK Chip
TM
technology. This combination provides an industry setting 0.35 ps RMS jitter
performance and excellent Phase Noise for your demanding circuit. The M310x is available in LVPECL, LVDS,
or CML output and can be built to a variety of power requirements, 3.3, 2.5, and 1.8V. Tight thermal stability
performance, broad frequency range, in a small 5x7 mm package, and the ability to build and provide product
in approximately 2 weeks, gives the designer a quick, solid foundation to build a solution with.
Product Applications
Telecommunications such as SONET / SDH /
DWDM / FEC / SERDES / OC-3 thru OC-192
Wireless base stations / WLAN / Gigabit Ethernet
xDSL, Network Communications
Avionic Flight Controls
Military Communications
Clock and Data Recovery
Low Jitter Clock Generation
Product Ordering Information
MtronPTI reserves the right to make changes to the product(s) and service(s) described herein without notice. No liability is assumed as a result of their use or application.
Please see www.mtronpti.com for our complete offering and detailed datasheets. Contact MtronPTI for your application specific requirements at 800.762.8800 toll free or 605.665.9321.
Revision: 11-5-10
M310x Series
5x7 mm, 3.3/2.5/1.8 Volt,
LVPECL/LVDS/CML, VCXO
Performance Characteristics
PARAMETER
Frequency Range
Operating Temperature
Storage Temperature
Frequency Stability
Aging
1st Year
Thereafter (per year)
Pullability/APR
Gain Transfer Function
Symbol
F
T
A
T
S
∆F/F
Min.
Typ.
Max.
50
1400
(See ordering information)
-55
+125
±25
-3
+3
-1
+1
(See ordering information)
90
135
180
0.18
0.90
1.62
0.25
1.25
2.25
0.30
1.65
3.0
1
5
10
500k
1M
1.71
1.8
1.89
2.375
2.5
2.625
3.135
3.3
3.465
125
50 Ohms to (Vcc –2) Vdc
100 Ohm differential load
Units
MHz
°C
ppm
ppm
ppm
ppm/V
ppm/V
ppm/V
V
V
V
%
KHz
Ohms
V
V
V
mA
Condition/Notes
See Note 1
Control Voltage
Vc
Electrical Specifications
Linearity
Modulation Bandwidth
Input Impedance
Supply Voltage
fm
Zin
Vcc
See Note 2
For
±50
ppm APR
For
±100
ppm APR
For
±200
ppm APR
@ 1.8V Vcc
@ 2.5V Vcc
@ 3.3V Vcc
Positive Monotonic
-3 dB bandwidth
@ DC
LVDS/CML
Input Current
Load
Icc
Symmetry (Duty Cycle)
Output Skew
45
20
15
20
350
0.95
1.2
Vcc -
1.02
55
%
ps
ps
ps
mV
Vpp
V
V
Differential Voltage
Common Mode
Output Voltage
Logic “1” Level
Logic “0” Level
Rise/Fall Time
Enable Function
Vod
Vod
Vcm
Voh
Vol
Tr/Tf
250
0.7
450
1.20
LVPECL/LVDS/CML
See Note 3
LVPECL Waveform
LVDS/CML Waveform
LVPECL: Vdd-1.3 V
LVDS: 1.25 V
LVPECL
CML
LVDS
LVDS
CML
LVDS
LVPECL
LVPECL
@ 20/80% LVPECL, LVDS, CML
Output Option G
Output Option M
Start up Time
Phase Jitter
@ 622.08 MHz
Environmental
Vcc -1.63
V
0.23
0.35
ns
80% Vcc min or N/C: Output active
0.5V max: Output disables to high-Z
0.5V max or N/C: Output active
80% Vcc min: Output disables to high-Z
10
ms
0.25
ps RMS
φJ
Integrated 12 kHz – 20 MHz
Mechanical Shock
Vibration
Max Soldering Conditions
Hermeticity
Solderability
Per MIL-STD-202, Method 213, Condition C
Per MIL-STD-202, Method 201 & 204
See solder profile, Figure 1
Per MIL-STD-202, Method 112 (1 x 10
-8
atm cc/s of helium)
Per MIL-STD-883, Method 203
Note 1: Contact factory for standard frequency availability over 945 MHz.
Note 2: APR specification is inclusive of initial tolerance, deviation over temperature, shock, vibration, supply voltage, and aging
for one year at 50°C mean ambient temperature.
Note 3: See Load Circuit Diagram in this Datasheet. Consult factory with nonstandard output load requirements.
MtronPTI reserves the right to make changes to the product(s) and service(s) described herein without notice. No liability is assumed as a result of their use or application.
Please see www.mtronpti.com for our complete offering and detailed datasheets. Contact MtronPTI for your application specific requirements at 800.762.8800 toll free or 605.665.9321.
2
M310x Series
Phase Noise Plot
5x7 mm, 3.3/2.5/1.8 Volt,
LVPECL/LVDS/CML, VCXO
Output Waveform
Output Waveform: LVDS/CML/PECL
MtronPTI reserves the right to make changes to the product(s) and service(s) described herein without notice. No liability is assumed as a result of their use or application.
Please see www.mtronpti.com for our complete offering and detailed datasheets. Contact MtronPTI for your application specific requirements at 800.762.8800 toll free or 605.665.9321.
3
M310x Series
5x7 mm, 3.3/2.5/1.8 Volt,
LVPECL/LVDS/CML, VCXO

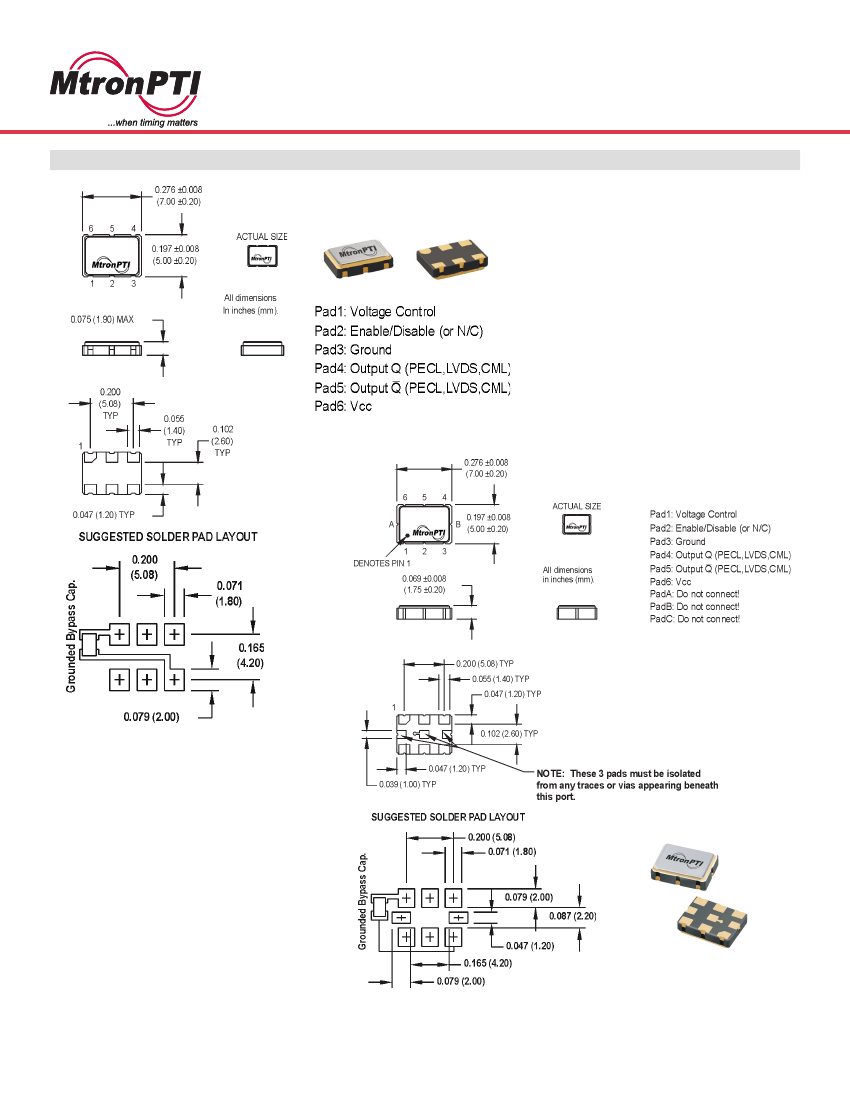

Product Dimension & Pinout Information
6 Pad Standard Option
9 Pad Option
MtronPTI reserves the right to make changes to the product(s) and service(s) described herein without notice. No liability is assumed as a result of their use or application.
Please see www.mtronpti.com for our complete offering and detailed datasheets. Contact MtronPTI for your application specific requirements at 800.762.8800 toll free or 605.665.9321.
4
M310x Series
5x7 mm, 3.3/2.5/1.8 Volt,
LVPECL/LVDS/CML, VCXO
Handling Information
Although protection circuitry has been designed into the M310x oscillator, proper precautions should be taken to
avoid exposure to electrostatic discharge (ESD) during handling and mounting. MtronPTI utilizes a human-body
model (HBM) and a charged-device model (CDM) for ESD-susceptibility testing and protection design evaluation.
ESD voltage thresholds are dependent on the circuit parameters used to define the mode. Although no industry-
wide standard has been adopted for the CDM, a standard HBM (resistance = 1500
Ω,
capacitance = 100 pF) is
widely used and therefore can be used for comparison purposes. The HBM ESD threshold presented here was
obtained using these circuit parameters.
Quality Parameters
Part Marking Guide
Line 1: Model Number
Line 2: Frequency
Line 3: Date Code
Line 4: Pin 1 Indicator / MtronPTI
MtronPTI reserves the right to make changes to the product(s) and service(s) described herein without notice. No liability is assumed as a result of their use or application.
Please see www.mtronpti.com for our complete offering and detailed datasheets. Contact MtronPTI for your application specific requirements at 800.762.8800 toll free or 605.665.9321.
