Superior Jitter Performance (comparable to SAW based)
Frequencies from 150 MHz to 1.4 GHz
Designed for a short 2 week cycle time
Phase Lock Loop Applications:
Telecommunications such as SONET / SDH / DWDM / FEC /
SERDES / OC-3 thru OC-192
Wireless base stations / WLAN / Gigabit Ethernet
Avionic flight controls and military communications
Corporate Headquarters
100 Douglas Avenue
PO Box 630
Yankton, SD 57078-0630
1-800-762-8800
www.mtronpti.com
MtronPTI
PECL/LVDS/CML Voltage Controlled Crystal Oscillator – 3.3/.5/1.8 Volt – 5x7/9x14 mm
M30x Series
Product Features:
Product Specifications
•
Superior
Jitter Performance
comparable to SAW-based VCSO products (0.50 pS typical at 6.08 MHz)
•
Frequencies
from 150.0000MHz to 1.4000GHz
•
APR
(Absolute Pull Range) of
±50
or
±100ppm
over industrial temperature range
•
Crystal resonator based product offering
far better Stability
than SAW
•
Designed for
Short Cycle Time
manufacturing ( weeks or less)
•
0.01 µF bypass capacitor from Vcc to ground built into
9x14 packages
Description:
The M320x series voltage controlled crystal oscillators are designed specifically for high performance PLL applications.
The M30x is available in PECL, LVDS, and CML output while featuring MtronPTI’s
QiK Chip
TM
Technology offering
significantly reduced cycle time.
Applications:
•
•
•
•
Telecommunications such as SONET / SDH / DWDM / FEC / SERDES / OC-3 thru OC-19
Wireless base stations / WLAN / Gigabit Ethernet
Avionic flight controls and communications
Test Equipment and Instrumentation
Ordering Information:

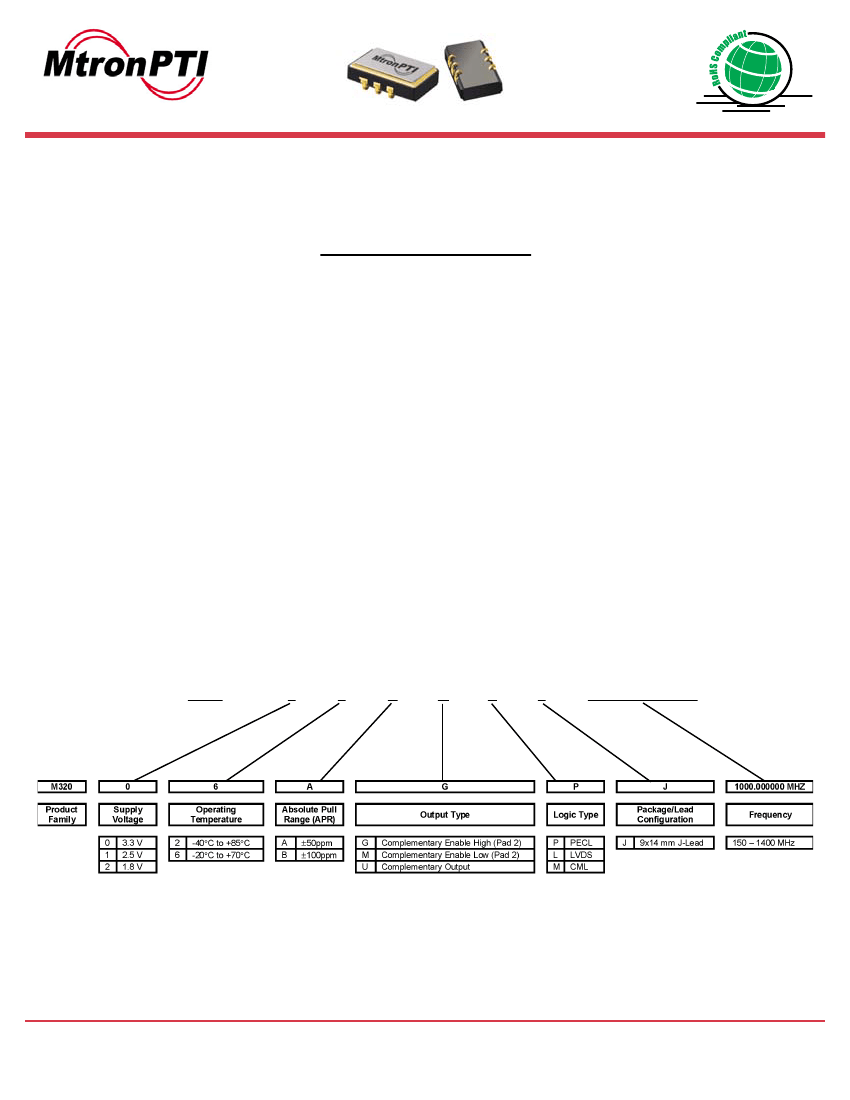

Part Number Example:
M30
0
6
A
G
P
J
1000.000000MHz
Part Number Example: M3006ABPJ – 1000.000000 MHz
MtronPTI reserves the right to make changes to the product(s) and service(s) described herein without notice. No liability is assumed as a result of their use or application.
Please see
www.mtronpti.com
for our complete offering and detailed datasheets. Contact us for your application specific requirements: MtronPTI
1-800-762-8800.
M30x Series
PECL/LVDS/CML Voltage Controlled Crystal Oscillator – 3.3/2.5/1.8 Volt – 9x14 mm
Applications Note:
The MtronPTI M320x series of voltage controlled cystal oscillators, featuring
QiK Chip
TM
technology, provides for extremely low
jitter of 0.50 ps RMS, typical at 622.08 MHz. For applications requiring low jitter, frequencies from 150 MHz to 1.4 GHz are avail-
able. LVPECL, LVDS, or CML compatible outputs, as well as operating voltage of 1.8 V, 2.5 V, and 3.3 V are also options on the
M310x.
The M320x is available with a standard APR of ± 50 ppm and ± 100 ppm, over the industrial operating temperature range of
-40°C to +85°C. The M320x achieves this level of performance by utilizing an AT-cut crystal. An enable/disable function is also
an available option on the M320x. An internal 0.01 µF by-pass capacitor also assures optimum noise suppression on the supply
voltage pad.
The superior integrated jitter performance of 0.50 pS RMS, typical at 622.08 MHz, makes the M320x suitable for 10 Gig-E, broad-
band networks, network switches, SONET, SDH, SERDES, DWDM, FEC, WLAN, and OC-3 thru OC-192 systems. The M320x
is available in a six-J-lead, 9x14 mm, ceramic, surface mount package, that is RoHS and +260°C reflow compatible (see page
4, J package drawing). Figures 1 and 2 below show load termination conditions for LVPECL and LVDS. The M320x oscillators
are backward compatible to many of the existing products in the industry from Vectron, Epson, and others.
For superior performance in a high frequency clock oscillator, the M310x is a logical choice for designers. The unique design
architecture allows the M320x fast turn around on engineering design samples, as well as production quantities in 2 weeks or
less.
Figure 1. 3.3V LVPECL Load Circuit
Figure . LVDS Load Circuit
MtronPTI reserves the right to make changes to the product(s) and service(s) described herein without notice. No liability is assumed as a result of their use or application.
Please see
www.mtronpti.com
for our complete offering and detailed datasheets. Contact us for your application specific requirements: MtronPTI
1-800-762-8800.
3
M310x
M30x Series
PECL/LVDS/CML Voltage Controlled Crystal Oscillator – 3.3/2.5/1.8 Volt – 9x14 mm mm
5x7/9x14

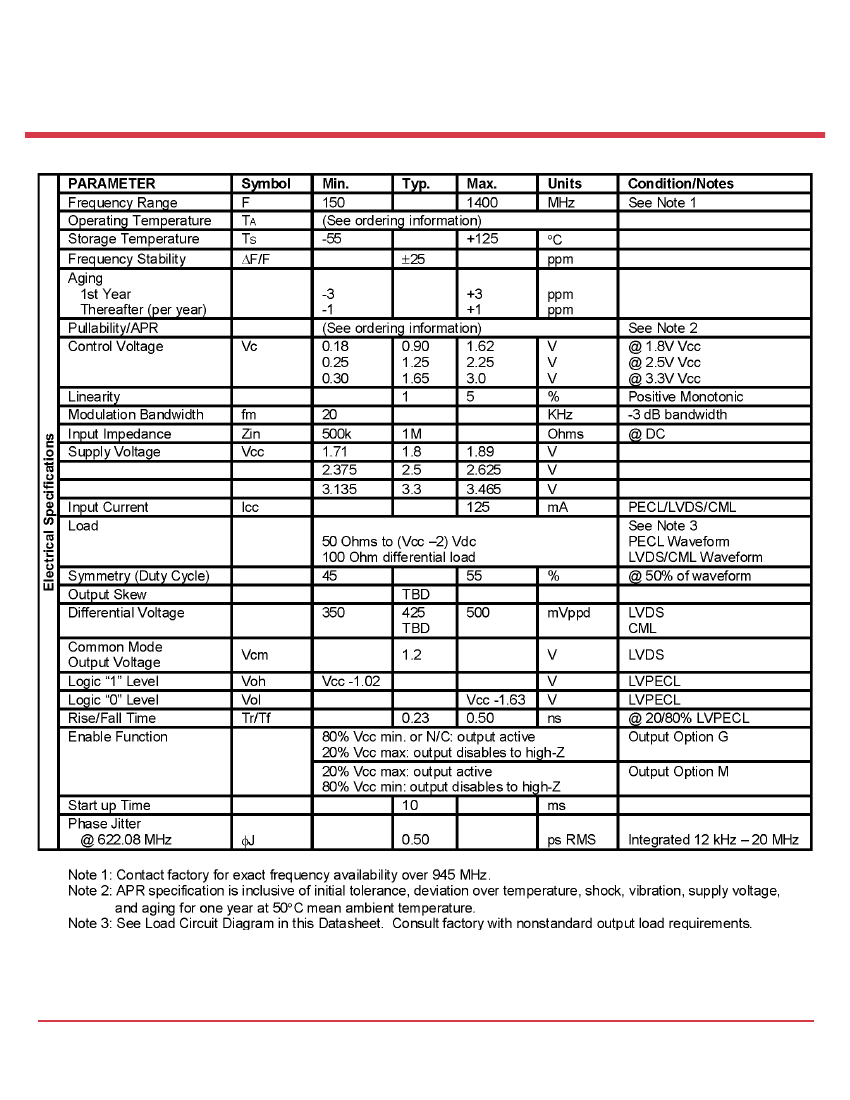

Performance Characteristics:
MtronPTI reserves the right to make changes to the product(s) and service(s) described herein without notice. No liability is assumed as a result of their use or application.
Please see
www.mtronpti.com
for our complete offering and detailed datasheets. Contact us for your application specific requirements: MtronPTI
1-800-762-8800.
4
M310x
M30x Series
PECL/LVDS/CML Voltage Controlled Crystal Oscillator – 3.3/2.5/1.8 Volt – 9x14 mm mm
5x7/9x14

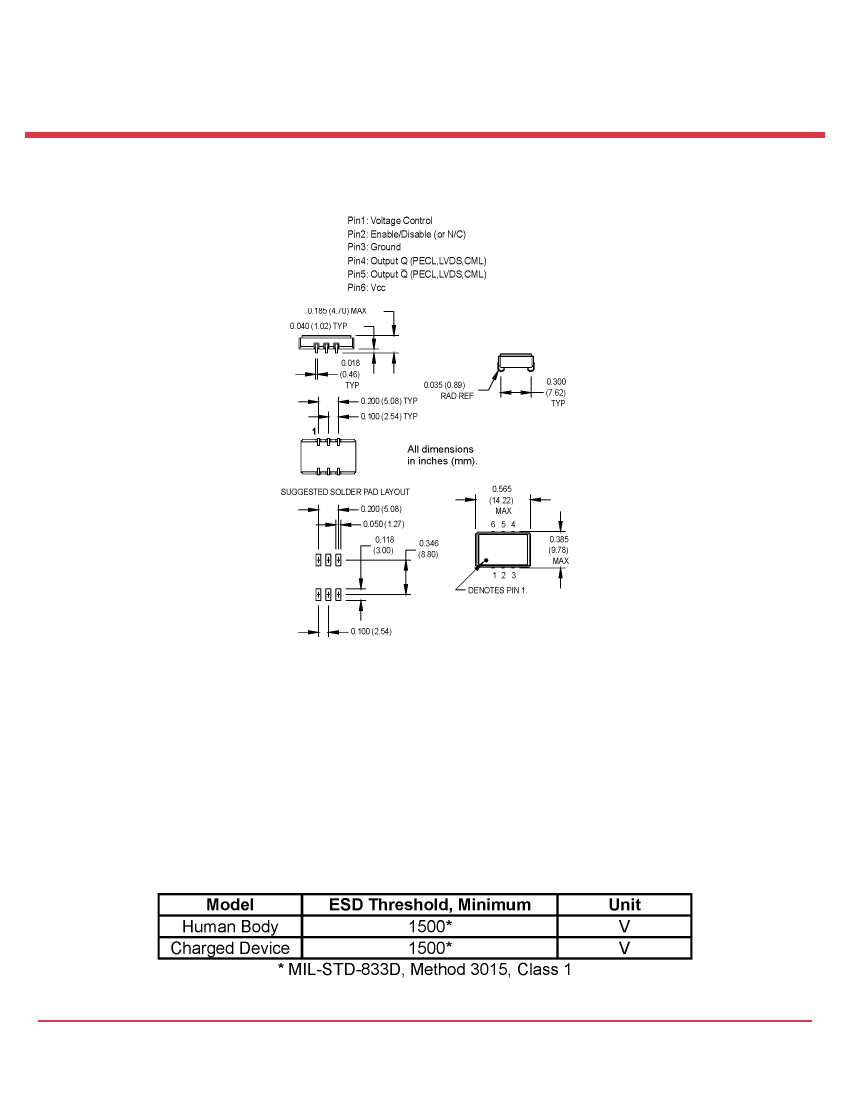

Product Dimensions & Pinout Information:
Handling Information:
Although protection circuitry has been designed into the M320 VCXO, proper precautions should be taken to avoid
exposure to electrostatic discharge (ESD) during handling and mounting. MtronPTI utilizes a human-body model
(HBM) and a charged-device model (CDM) for ESD-susceptibility testing and protection design evaluation. ESD
voltage thresholds are dependent on the circuit parameters used to define the mode. Although no industry-wide
standard has been adopted for the CDM, a standard HBM (resistance = 1500, capacitance = 100 pF) is widely used
and therefore can be used for comparison purposes. The HBM ESD threshold presented here was obtained using
these circuit parameters.
