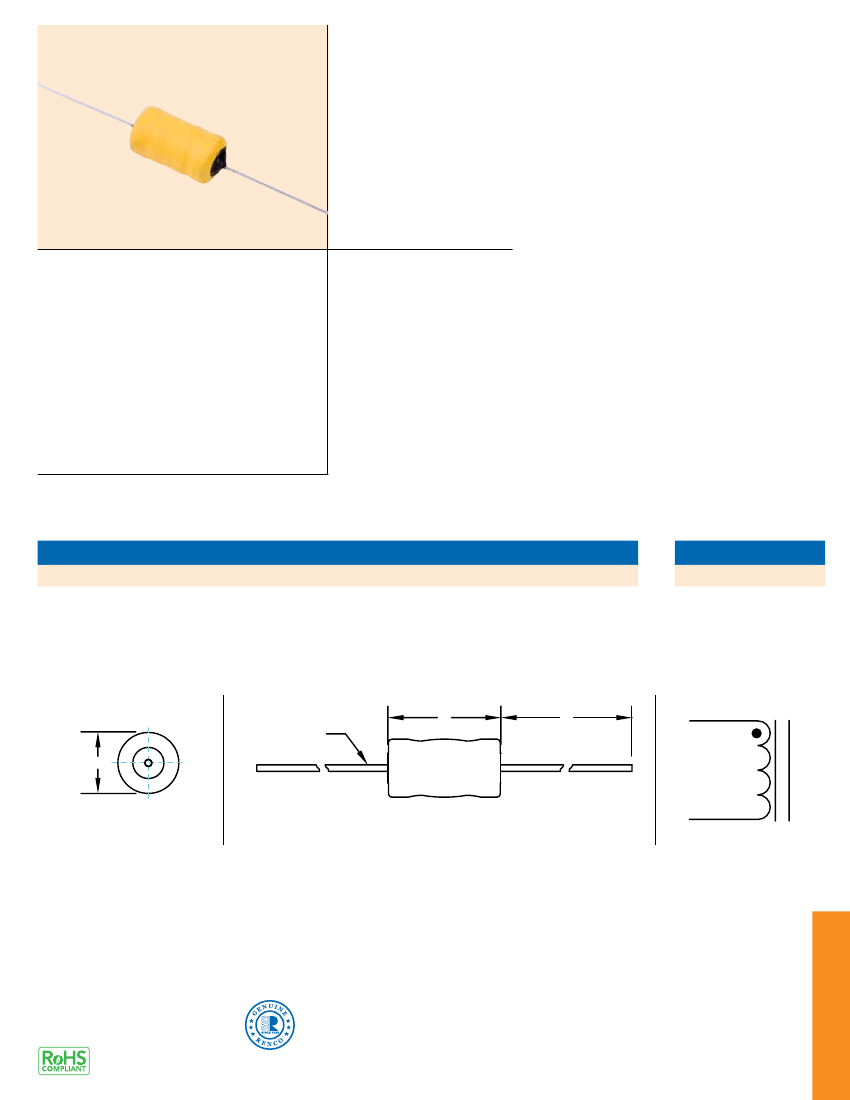

RL-5900
HIGH VOLTAGE POWER
LINE INDUCTOR
DESCRIPTION
• High Voltage
• Power Line Inductors
FEATURES & APPLICATIONS
• 49 standard values to choose from
• Inductance range from 10 µH to 100 mH with saturation
currents available from 0.095 A to 9.6 A
• Ideal for high voltage applications up to 3,000 VAC
• Typical applications include: surge suppression, power
amplifiers, power supplies, SCR and TRIAC controls, smoothing
choke and line filters
ENVIRONMENTAL DATA
•
•
Storage temperature range:
-55°C to +130°C
Operating temperature range:
-40°C to +130°C
PACKAGING INFORMATION
• Packaging information: pg. 495
Verify operation with sample in actual circuit. Order samples at www.rencousa.com.
MECHANICAL DIMENSIONS
U.S. Standard (mm)
PART NUMBER
RL-5900
A (MAX.)
0.550 (13.97)
B (MAX.)
1.000 (25.40)
C (MIN.)
1.000 (25.40)
PART WEIGHT
13.0g (0.46oz)
FRONT VIEW
SIDE VIEW
(2X)
B
C
ST
SCHEMATIC
PIN DIMENSION
0.032 (8.13) (2PL)
A
FN
RENCO ELECTRONICS INC.
595 International Place, Rockledge, FL 32955-4200 USA • www.rencousa.com • ISO 9001 Certified
Toll Free Engineering Hot Line: 800.645.5828 • P: 321.637.1000 • F: 321.637.1600
INDUCTORS
RL-5900
Renco
Part No.
RL-5900
RL-5900-10
RL-5900-12
RL-5900-15
RL-5900-18
RL-5900-22
RL-5900-27
RL-5900-33
RL-5900-39
RL-5900-47
RL-5900-56
RL-5900-68
RL-5900-82
RL-5900-100
RL-5900-120
RL-5900-150
RL-5900-180
RL-5900-220
RL-5900-270
RL-5900-330
RL-5900-390
RL-5900-470
RL-5900-560
RL-5900-680
RL-5900-820
RL-5900-1000
RL-5900-1200
RL-5900-1500
RL-5900-1800
RL-5900-2200
RL-5900-2700
RL-5900-3300
RL-5900-3900
RL-5900-4700
RL-5900-5600
RL-5900-6800
Inductance
(µH)
10.0
12.0
15.0
18.0
22.0
27.0
33.0
39.0
47.0
56.0
68.0
82.0
100.0
120.0
150.0
180.0
220.0
270.0
330.0
390.0
470.0
560.0
680.0
820.0
1000.0
1200.0
1500.0
1800.0
2200.0
2700.0
3300.0
3900.0
4700.0
5600.0
6800.0
DCR
Max.
(Ohms)
0.014
0.016
0.017
0.020
0.022
0.024
0.027
0.029
0.032
0.046
0.055
0.072
0.085
0.100
0.110
0.130
0.170
0.225
0.240
0.285
0.375
0.480
0.570
0.640
0.840
1.000
1.170
1.450
1.700
2.300
3.150
3.800
4.100
5.000
5.700
Isat
(A)
9.600
8.600
7.700
7.200
6.400
5.800
5.300
5.200
4.400
4.100
3.800
3.400
3.000
2.800
2.500
2.300
2.100
1.900
1.700
1.400
1.200
1.500
1.100
1.000
0.910
0.840
0.760
0.730
0.680
0.560
0.530
0.510
0.470
0.440
0.410
Irms
(A)
4.700
4.700
4.700
4.700
4.700
4.700
4.700
4.700
4.700
3.800
3.800
3.000
2.300
2.300
2.300
2.300
2.000
1.400
1.400
1.400
1.200
0.900
0.900
0.900
0.750
0.750
0.750
0.590
0.590
0.450
0.350
0.350
0.350
0.270
0.270
Renco
Part No.
RL-5900
RL-5900-8200
RL-5900-10000
RL-5900-12000
RL-5900-15000
RL-5900-18000
RL-5900-22000
RL-5900-27000
RL-5900-33000
RL-5900-39000
RL-5900-47000
RL-5900-56000
RL-5900-68000
RL-5900-82000
RL-5900-100,000
Inductance
(µH)
8200.0
10000.0
12000.0
15000.0
18000.0
22000.0
27000.0
33000.0
39000.0
47000.0
56000.0
68000.0
82000.0
100000.0
DCR
Max.
(Ohms)
7.75
8.80
10.30
13.45
15.10
20.00
26.50
30.00
44.00
48.00
53.00
60.00
67.00
90.00
Isat
(A)
0.370
0.340
0.320
0.250
0.230
0.210
0.185
0.175
0.160
0.148
0.135
0.125
0.110
0.095
Irms
(A)
0.200
0.200
0.200
0.160
0.160
0.120
0.095
0.095
0.070
0.070
0.070
0.070
0.070
0.060
NOTES:
1. INDUCTANCE ±10% TESTED AT 10 kHz, 0.1 Vrms
2. Isat - DC CURRENT THAT WILL CAUSE INDUCTANCE
TO DROP BY 5%
3. Irms - CURRENT THAT CAUSES THE TEMPERATURE TO
RISE APPROX. 40ºC ABOVE AMBIENT OF 25ºC
4. ELECTRICAL SPECIFICATIONS MEASURED AT 25ºC
5. OPTIONAL 5% TOLERANCE
6. CLASS B 130°C RATED
7. NONSTANDARD VALUES AVAILABLE
8. COIL FINISHED WITH POLYOLEFIN SLEEVING
INDUCTORS
RENCO ELECTRONICS INC.
595 International Place, Rockledge, FL 32955-4200 USA • www.rencousa.com • ISO 9001 Certified
Toll Free
Engineering Hot Line: 800.645.5828 • P: 321.637.1000 • F: 321.637.1600
