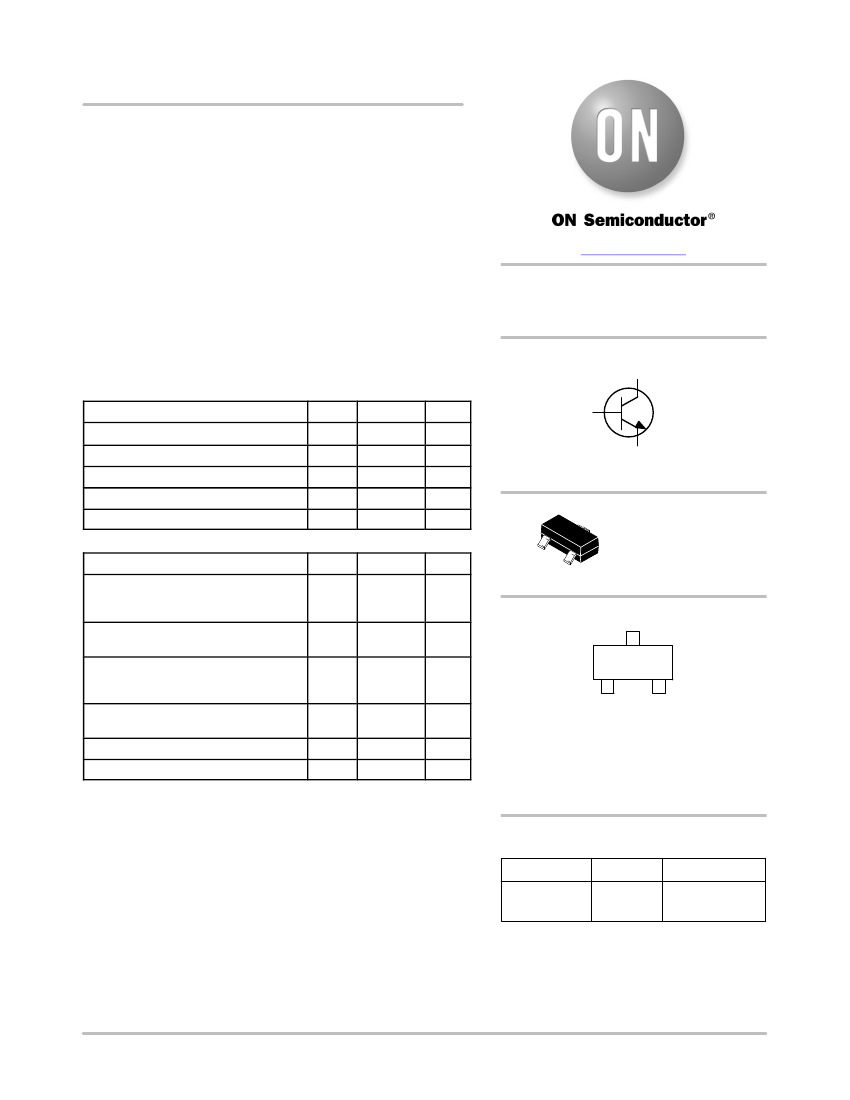

MMBT489LT1G
High Current Surface Mount
NPN Silicon Switching
Transistor for Load
Management in
Portable Applications
Features
www.onsemi.com
•
These Devices are Pb−Free, Halogen Free/BFR Free and are RoHS
Compliant
30 VOLTS, 2.0 AMPERES
NPN TRANSISTOR
COLLECTOR
3
MAXIMUM RATINGS
(T
A
= 25°C)
Rating
Collector-Emitter Voltage
Collector-Base Voltage
Emitter-Base Voltage
Collector Current − Continuous
Collector Current − Peak
Symbol
V
CEO
V
CBO
V
EBO
I
C
I
CM
Max
30
50
5.0
1.0
2.0
Unit
Vdc
Vdc
Vdc
A
A
1
2
310
2.5
R
qJA
P
D
710
5.7
R
qJA
P
Dsingle
T
J
, T
stg
176
575
−55 to +150
mW
mW/°C
°C/W
mW
°C
1
N3 = Specific Device Code
M = Date Code*
G
= Pb−Free Package
(Note: Microdot may be in either location)
*Date Code orientation and/or overbar may
vary depending upon manufacturing location.
403
mW
mW/°C
°C/W
N3 M
G
G
3
SOT−23 (TO−236)
CASE 318
STYLE 6
2
EMITTER
1
BASE
THERMAL CHARACTERISTICS
Characteristic
Total Device Dissipation (Note 1)
@T
A
= 25°C
Derate above 25°C
Thermal Resistance, Junction−to−Ambient
(Note 1)
Total Device Dissipation (Note 2)
@T
A
= 25°C
Derate above 25°C
Thermal Resistance, Junction−to−Ambient
(Note 2)
Total Device Dissipation (Single Pulse < 10 s)
Junction and Storage Temperature Range
Symbol
P
D
Max
Unit
MARKING DIAGRAM
Stresses exceeding those listed in the Maximum Ratings table may damage the
device. If any of these limits are exceeded, device functionality should not be
assumed, damage may occur and reliability may be affected.
1. FR− 4 @ Minimum Pad
2. FR− 4 @ 1.0 X 1.0 inch Pad
ORDERING INFORMATION
Device
MMBT489LT1G
Package
SOT−23
(Pb−Free)
Shipping
†
3000/Tape & Reel
†For information on tape and reel specifications,
including part orientation and tape sizes, please
refer to our Tape and Reel Packaging Specifications
Brochure, BRD8011/D.
©
Semiconductor Components Industries, LLC, 2001
1
October, 2016 − Rev. 6
Publication Order Number:
MMBT489LT1/D
MMBT489LT1G
ELECTRICAL CHARACTERISTICS
(T
A
= 25°C unless otherwise noted)
Characteristic
OFF CHARACTERISTICS
Collector −Emitter Breakdown Voltage
(I
C
= 10 mAdc, I
B
= 0)
Collector− Base Breakdown Voltage
(I
C
= 0.1 mAdc, I
E
= 0)
Emitter −Base Breakdown Voltage
(I
E
= 0.1 mAdc, I
C
= 0)
Collector Cutoff Current
(V
CB
= 30 Vdc, I
E
= 0)
Collector−Emitter Cutoff Current
(V
CES
= 30 Vdc)
Emitter Cutoff Current
(V
EB
= 4.0 Vdc)
ON CHARACTERISTICS
DC Current Gain (Note 3)
(I
C
= 50 mA, V
CE
= 5.0 V)
(I
C
= 0.5 A, V
CE
= 5.0 V)
(I
C
= 1.0 A, V
CE
= 5.0 V)
Collector −Emitter Saturation Voltage (Note 3)
(I
C
= 1.0 A, I
B
= 100 mA)
(I
C
= 0.5 A, I
B
= 50 mA)
(I
C
= 0.1 A, I
B
= 1.0 mA)
Base −Emitter Saturation Voltage (Note 3)
(I
C
= 1.0 A, I
B
= 0.1 A)
Base −Emitter Turn−on Voltage (Note 3)
(I
C
= 1.0 mA, V
CE
= 2.0 V)
Cutoff Frequency
(I
C
= 100 mA, V
CE
= 5.0 V, f = 100 MHz
Output Capacitance
(f = 1.0 MHz)
h
FE
300
300
200
V
CE(sat)
−
−
−
V
BE(sat)
−
V
BE(on)
−
f
T
100
C
obo
−
15
−
pF
1.1
MHz
1.1
V
0.200
0.125
0.075
V
−
900
−
V
V
(BR)CEO
30
V
(BR)CBO
50
V
(BR)EBO
5.0
I
CBO
−
I
CES
−
I
EBO
−
0.1
0.1
mAdc
0.1
mAdc
−
mAdc
−
Vdc
−
Vdc
Vdc
Symbol
Min
Max
Unit
Product parametric performance is indicated in the Electrical Characteristics for the listed test conditions, unless otherwise noted. Product
performance may not be indicated by the Electrical Characteristics if operated under different conditions.
3. Pulsed Condition: Pulse Width = 300
msec,
Duty Cycle
≤
2%
1.0
0.9
0.8
0.7
V
CE
(V)
0.6
0.5
0.4
0.3
0.2
0.1
0
I
C
= 500 mA
I
C
= 100 mA
0.001
0.01
I
b
(A)
0.1
0.2
I
C
= 1 A
V
CE
(V)
I
C
= 2 A
1.0
0.9
0.8
0.7
0.6
0.5
0.4
0.3
0.2
0.1
0
0.001
0.01
I
c
(A)
0.1
1
2
I
c
/I
b
= 100
I
c
/I
b
= 10

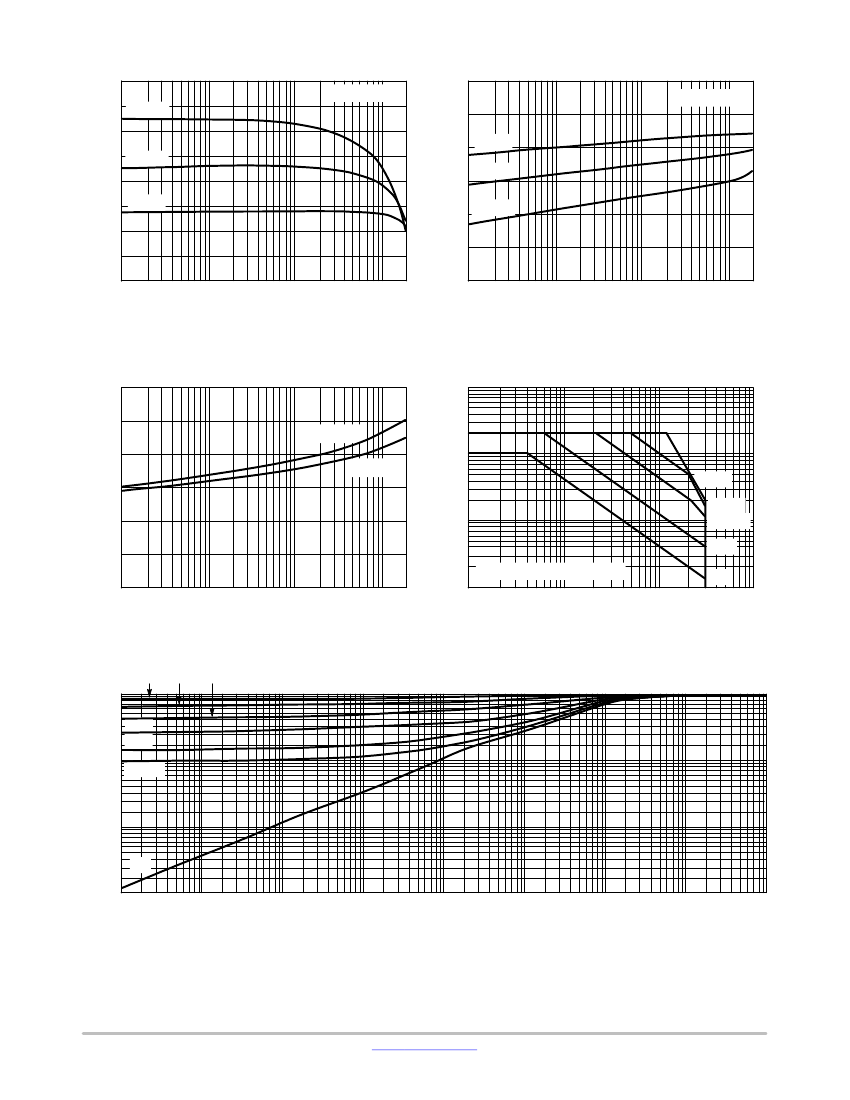

Figure 1. V
CE
versus I
b
Figure 2. V
CE
versus I
c
www.onsemi.com
2
MMBT489LT1G
PACKAGE DIMENSIONS
SOT−23 (TO−236)
CASE 318−08
ISSUE AR
D
0.25
3
E
1
2
HE
L
3X
b
T
NOTES:
1. DIMENSIONING AND TOLERANCING PER ASME Y14.5M, 1994.
2. CONTROLLING DIMENSION: MILLIMETERS.
3. MAXIMUM LEAD THICKNESS INCLUDES LEAD FINISH.
MINIMUM LEAD THICKNESS IS THE MINIMUM THICKNESS OF
THE BASE MATERIAL.
4. DIMENSIONS D AND E DO NOT INCLUDE MOLD FLASH,
PROTRUSIONS, OR GATE BURRS.
DIM
A
A1
b
c
D
E
e
L
L1
H
E
T
MIN
0.89
0.01
0.37
0.08
2.80
1.20
1.78
0.30
0.35
2.10
0
°
MILLIMETERS
NOM
MAX
1.00
1.11
0.06
0.10
0.44
0.50
0.14
0.20
2.90
3.04
1.30
1.40
1.90
2.04
0.43
0.55
0.54
0.69
2.40
2.64
−−−
10
°
MIN
0.035
0.000
0.015
0.003
0.110
0.047
0.070
0.012
0.014
0.083
0
°
INCHES
NOM
0.039
0.002
0.017
0.006
0.114
0.051
0.075
0.017
0.021
0.094
−−−
MAX
0.044
0.004
0.020
0.008
0.120
0.055
0.080
0.022
0.027
0.104
10
°
e
TOP VIEW
L1
VIEW C
A
A1
SIDE VIEW
SEE VIEW C
c
END VIEW
STYLE 6:
PIN 1. BASE
2. EMITTER
3. COLLECTOR
RECOMMENDED
SOLDERING FOOTPRINT*
2.90
3X
0.90
3X
0.80
0.95
PITCH
DIMENSIONS: MILLIMETERS
*For additional information on our Pb−Free strategy and soldering
details, please download the ON Semiconductor Soldering and
Mounting Techniques Reference Manual, SOLDERRM/D.
ON Semiconductor and
are trademarks of Semiconductor Components Industries, LLC dba ON Semiconductor or its subsidiaries in the United States and/or other countries.
ON Semiconductor owns the rights to a number of patents, trademarks, copyrights, trade secrets, and other intellectual property. A listing of ON Semiconductor’s product/patent coverage
may be accessed at
www.onsemi.com/site/pdf/Patent−Marking.pdf.
ON Semiconductor reserves the right to make changes without further notice to any products herein.
ON Semiconductor makes no warranty, representation or guarantee regarding the suitability of its products for any particular purpose, nor does ON Semiconductor assume any liability
arising out of the application or use of any product or circuit, and specifically disclaims any and all liability, including without limitation special, consequential or incidental damages. Buyer
is responsible for its products and applications using ON Semiconductor products, including compliance with all laws, regulations and safety requirements or standards, regardless of
any support or applications information provided by ON Semiconductor. “Typical” parameters which may be provided in ON Semiconductor data sheets and/or specifications can and
do vary in different applications and actual performance may vary over time. All operating parameters, including “Typicals” must be validated for each customer application by customer’s
technical experts. ON Semiconductor does not convey any license under its patent rights nor the rights of others. ON Semiconductor products are not designed, intended, or authorized
for use as a critical component in life support systems or any FDA Class 3 medical devices or medical devices with a same or similar classification in a foreign jurisdiction or any devices
intended for implantation in the human body. Should Buyer purchase or use ON Semiconductor products for any such unintended or unauthorized application, Buyer shall indemnify and
hold ON Semiconductor and its officers, employees, subsidiaries, affiliates, and distributors harmless against all claims, costs, damages, and expenses, and reasonable attorney fees
arising out of, directly or indirectly, any claim of personal injury or death associated with such unintended or unauthorized use, even if such claim alleges that ON Semiconductor was
negligent regarding the design or manufacture of the part. ON Semiconductor is an Equal Opportunity/Affirmative Action Employer. This literature is subject to all applicable copyright
laws and is not for resale in any manner.
PUBLICATION ORDERING INFORMATION
LITERATURE FULFILLMENT:
Literature Distribution Center for ON Semiconductor
19521 E. 32nd Pkwy, Aurora, Colorado 80011 USA
Phone:
303−675−2175 or 800−344−3860 Toll Free USA/Canada
Fax:
303−675−2176 or 800−344−3867 Toll Free USA/Canada
Email:
orderlit@onsemi.com
N. American Technical Support:
800−282−9855 Toll Free
USA/Canada
Europe, Middle East and Africa Technical Support:
Phone: 421 33 790 2910
Japan Customer Focus Center
Phone: 81−3−5817−1050
ON Semiconductor Website: www.onsemi.com
Order Literature:
http://www.onsemi.com/orderlit
For additional information, please contact your local
Sales Representative
◊
www.onsemi.com
4
MMBT489LT1/D
