2SA1770 datasheet, PDF - EEWORLD Datasheet

2SA1770: DescriptionSmall Signal Bipolar Transistor, 1.5A I(C), 160V V(BR)CEO, 1-Element, PNP, Silicon, NMP, 3 PIN; CategoryDiscrete semiconductor The transistor; File Size117KB，4 Pages; ManufacturerSANYO; Websitehttp://www.semic.sanyo.co.jp/english/index-e.html

Download Datasheet Parametric Compare View All

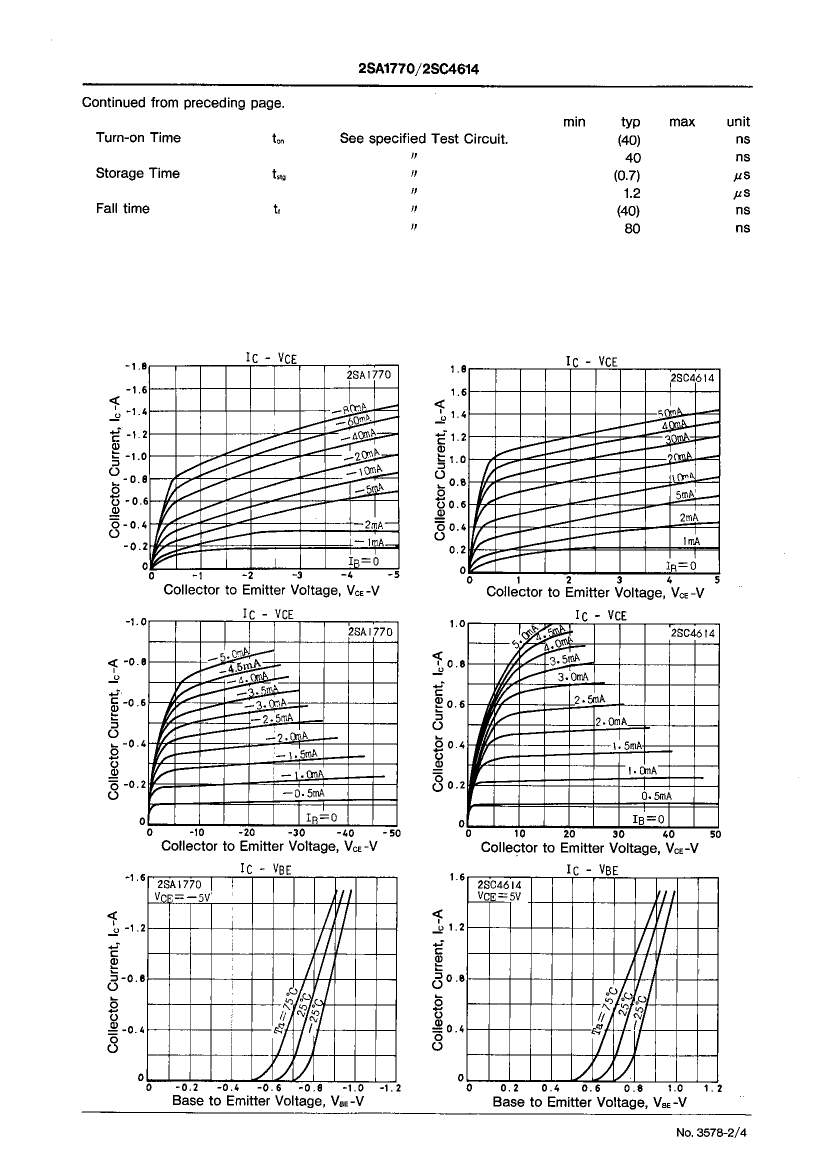

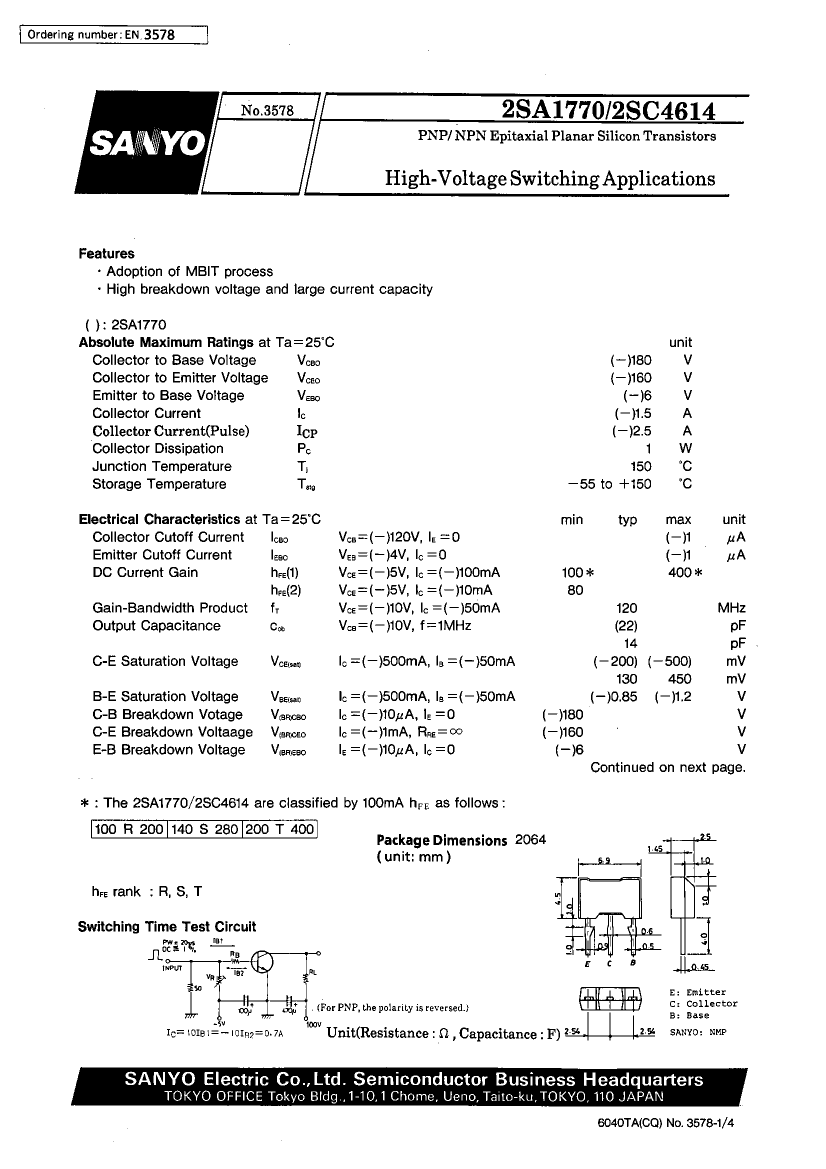

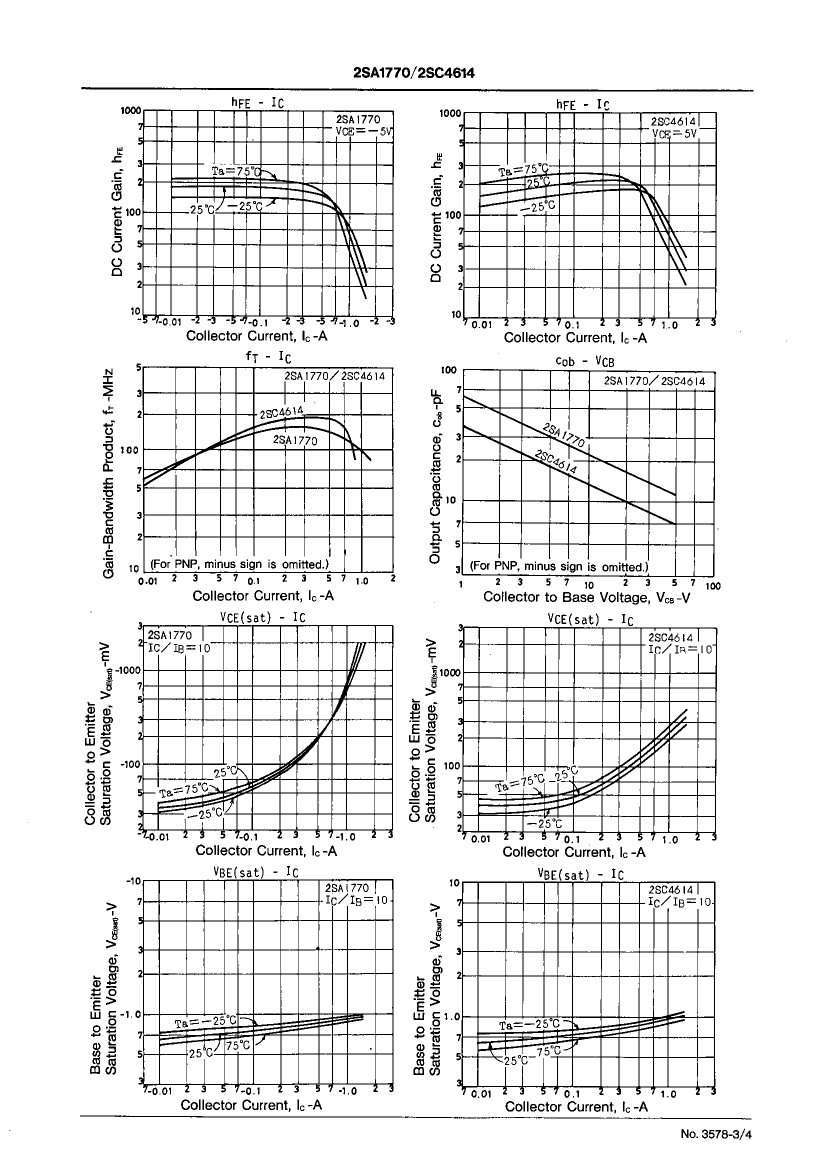

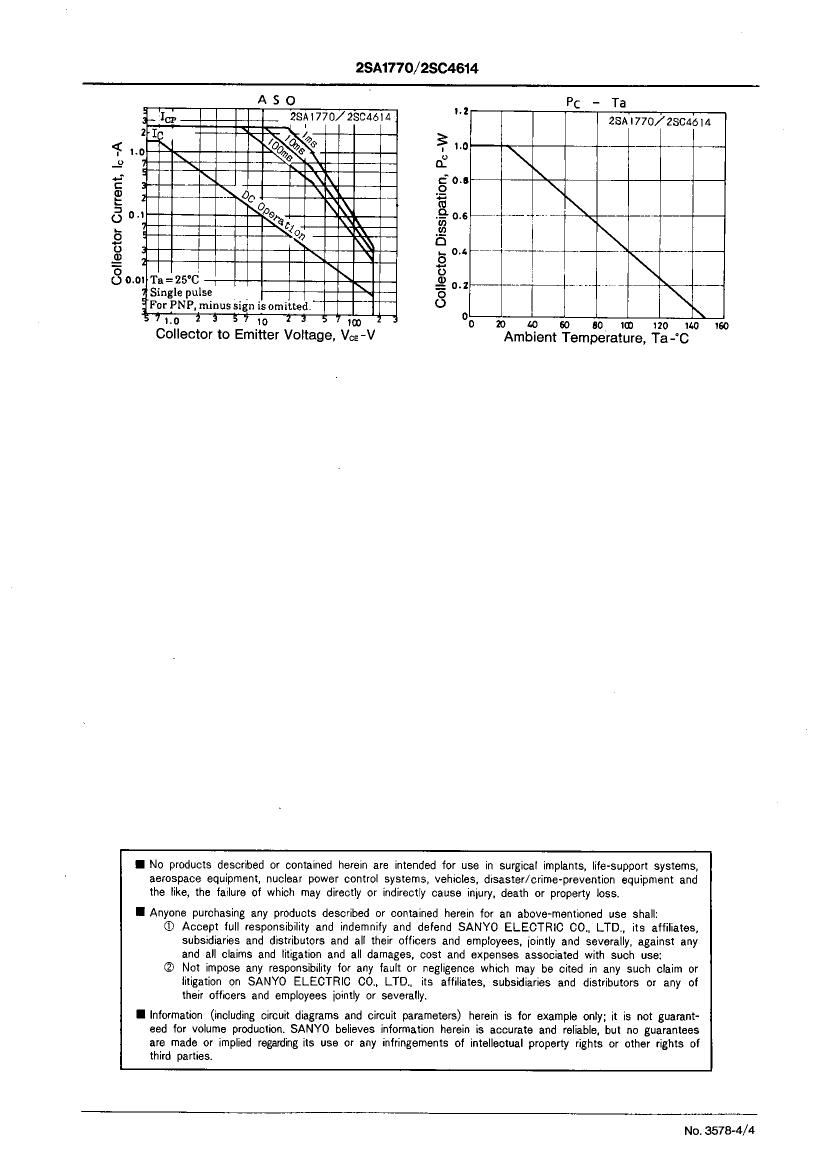

2SA1770 Overview

Small Signal Bipolar Transistor, 1.5A I(C), 160V V(BR)CEO, 1-Element, PNP, Silicon, NMP, 3 PIN

Parameter Name	Attribute value
Objectid	1484020439
package instruction	IN-LINE, R-PSIP-T3
Contacts	3
Reach Compliance Code	unknown
ECCN code	EAR99
Maximum collector current (IC)	1.5 A
Collector-emitter maximum voltage	160 V
Configuration	SINGLE
Minimum DC current gain (hFE)	100
JESD-30 code	R-PSIP-T3
Number of components	1
Number of terminals	3
Maximum operating temperature	150 °C
Package body material	PLASTIC/EPOXY
Package shape	RECTANGULAR
Package form	IN-LINE
Polarity/channel type	PNP
Maximum power dissipation(Abs)	1 W
Certification status	Not Qualified
surface mount	NO
Terminal form	THROUGH-HOLE
Terminal location	SINGLE
transistor applications	SWITCHING
Transistor component materials	SILICON
Nominal transition frequency (fT)	120 MHz
VCEsat-Max	0.5 V

	2SA1770	2SC4614
Description	Small Signal Bipolar Transistor, 1.5A I(C), 160V V(BR)CEO, 1-Element, PNP, Silicon, NMP, 3 PIN	Small Signal Bipolar Transistor, 1.5A I(C), 160V V(BR)CEO, 1-Element, NPN, Silicon, NMP, 3 PIN
Objectid	1484020439	1484020496
package instruction	IN-LINE, R-PSIP-T3	IN-LINE, R-PSIP-T3
Contacts	3	3
Reach Compliance Code	unknown	unknown
ECCN code	EAR99	EAR99
Maximum collector current (IC)	1.5 A	1.5 A
Collector-emitter maximum voltage	160 V	160 V
Configuration	SINGLE	SINGLE
Minimum DC current gain (hFE)	100	100
JESD-30 code	R-PSIP-T3	R-PSIP-T3
Number of components	1	1
Number of terminals	3	3
Maximum operating temperature	150 °C	150 °C
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY
Package shape	RECTANGULAR	RECTANGULAR
Package form	IN-LINE	IN-LINE
Polarity/channel type	PNP	NPN
Maximum power dissipation(Abs)	1 W	1 W
Certification status	Not Qualified	Not Qualified
surface mount	NO	NO
Terminal form	THROUGH-HOLE	THROUGH-HOLE
Terminal location	SINGLE	SINGLE
transistor applications	SWITCHING	SWITCHING
Transistor component materials	SILICON	SILICON
Nominal transition frequency (fT)	120 MHz	120 MHz
VCEsat-Max	0.5 V	0.45 V
