2SA1772 datasheet, PDF - EEWORLD Datasheet

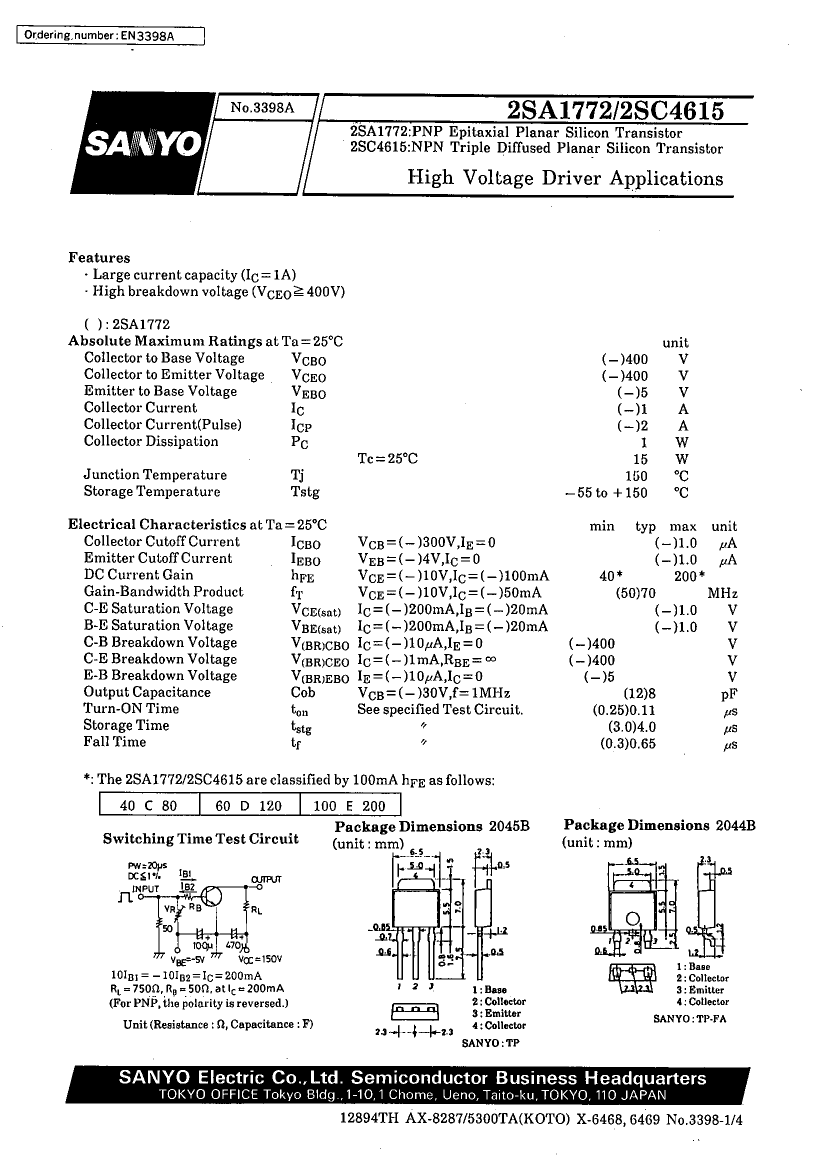

2SA1772: DescriptionPower Bipolar Transistor, 1A I(C), 400V V(BR)CEO, 1-Element, PNP, Silicon, TO-251, Plastic/Epoxy, 3 Pin; CategoryDiscrete semiconductor The transistor; File Size127KB，4 Pages; ManufacturerSANYO; Websitehttp://www.semic.sanyo.co.jp/english/index-e.html

Download Datasheet Parametric Compare View All

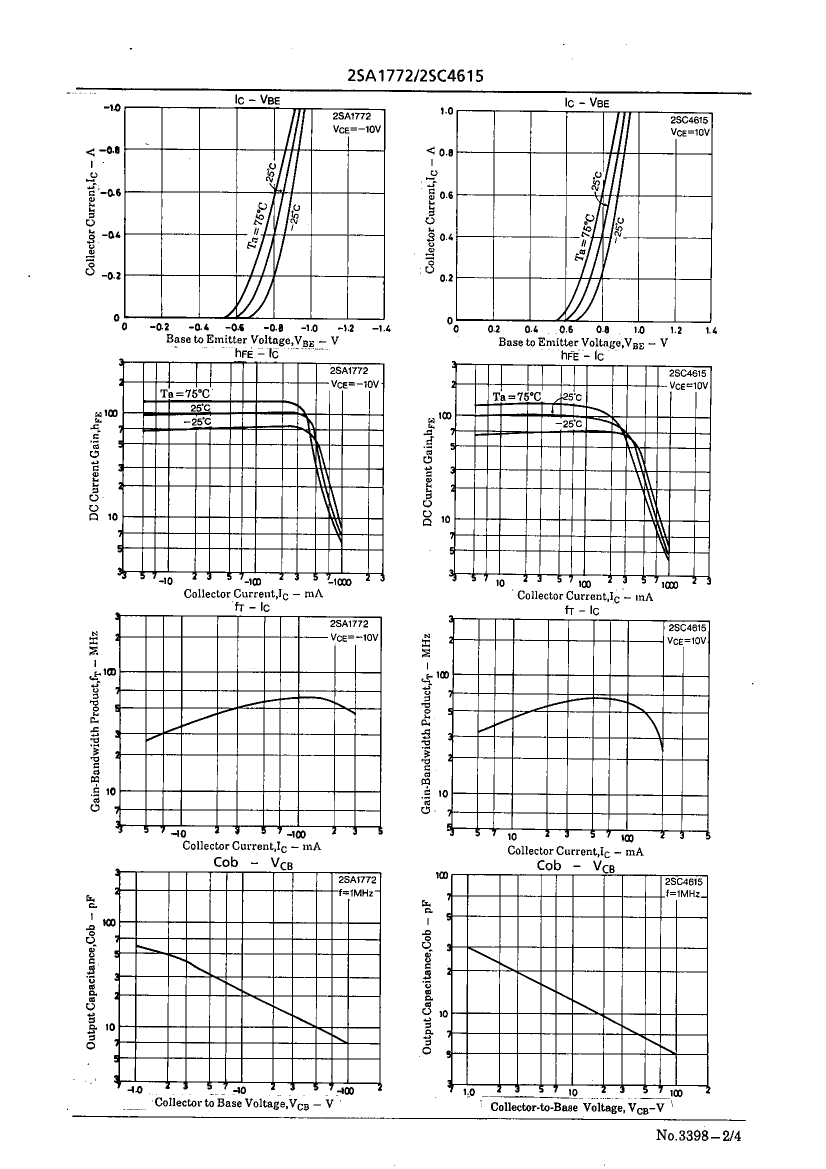

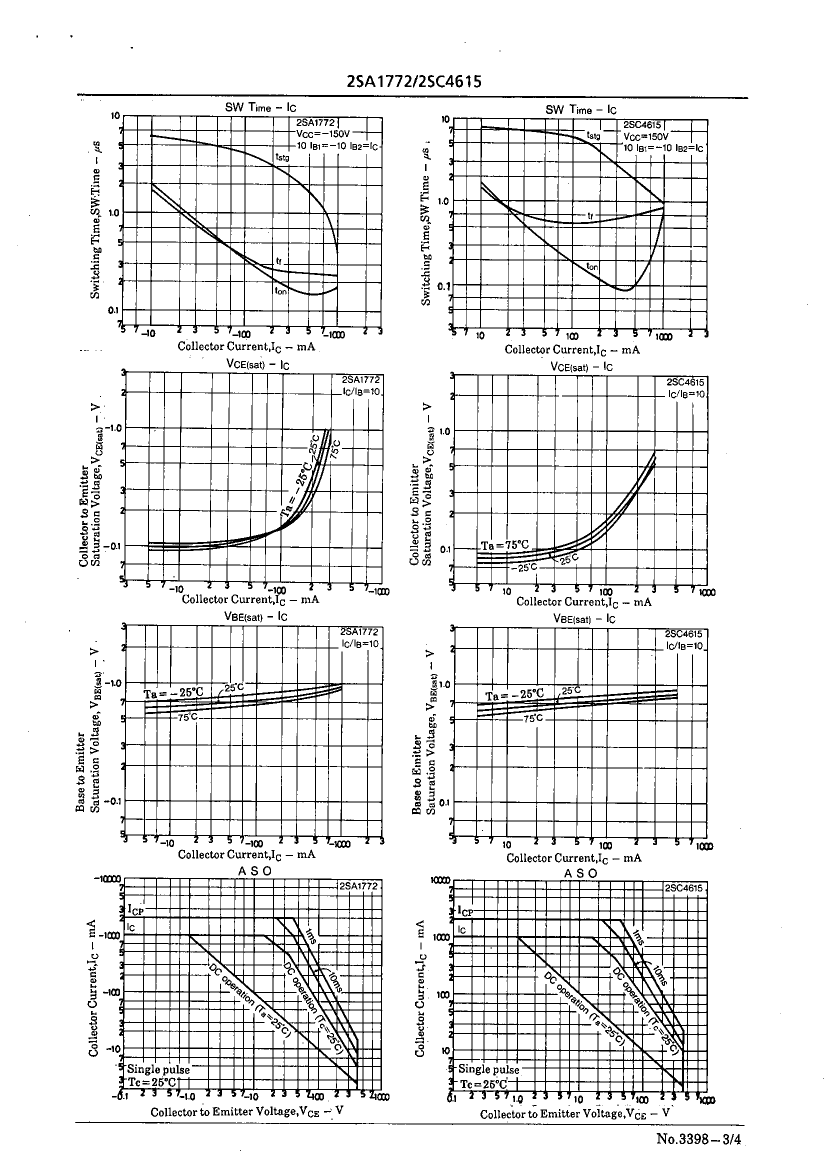

2SA1772 Overview

Power Bipolar Transistor, 1A I(C), 400V V(BR)CEO, 1-Element, PNP, Silicon, TO-251, Plastic/Epoxy, 3 Pin

Parameter Name	Attribute value
Objectid	1417096864
package instruction	IN-LINE, R-PSIP-T3
Reach Compliance Code	unknown
ECCN code	EAR99
Shell connection	COLLECTOR
Maximum collector current (IC)	1 A
Collector-emitter maximum voltage	400 V
Configuration	SINGLE
Minimum DC current gain (hFE)	40
JEDEC-95 code	TO-251
JESD-30 code	R-PSIP-T3
Number of components	1
Number of terminals	3
Package body material	PLASTIC/EPOXY
Package shape	RECTANGULAR
Package form	IN-LINE
Polarity/channel type	PNP

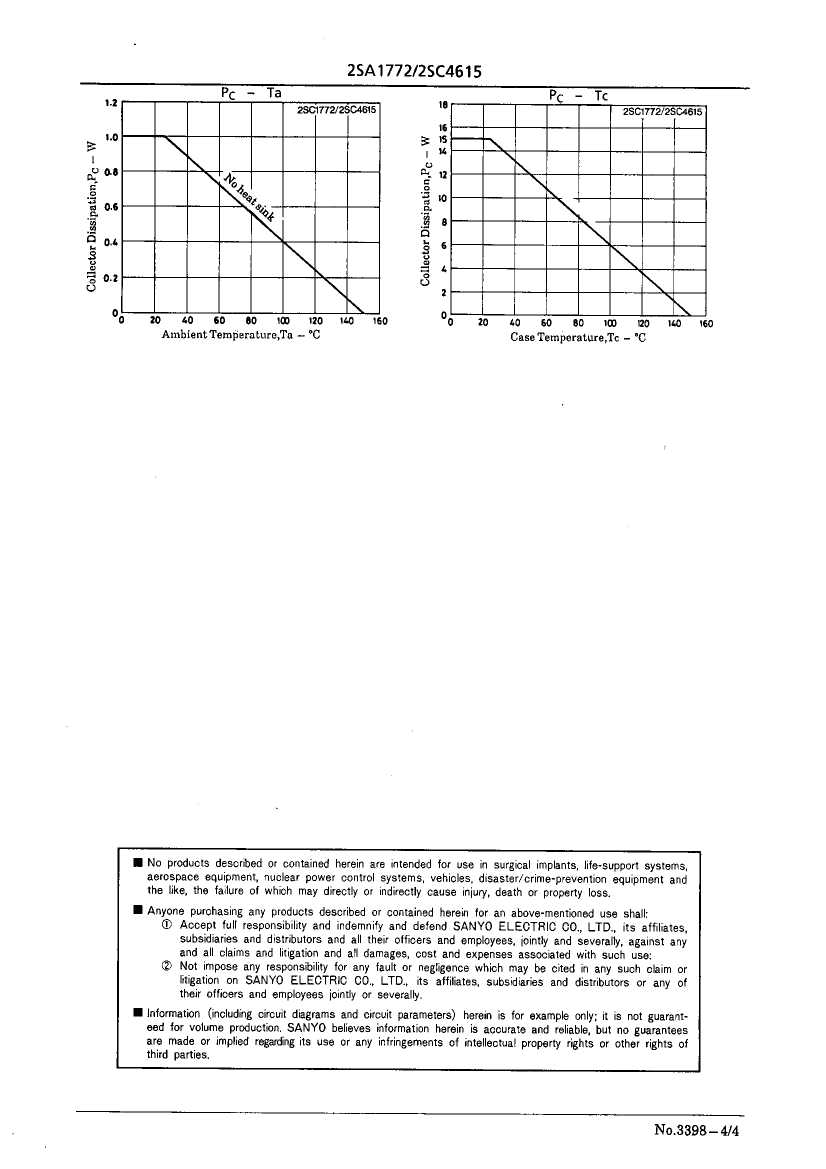

Maximum power consumption environment	15 W
Maximum power dissipation(Abs)	15 W
Certification status	Not Qualified
surface mount	NO
Terminal form	THROUGH-HOLE
Terminal location	SINGLE
transistor applications	SWITCHING
Transistor component materials	SILICON
VCEsat-Max	1 V

	2SA1772	2SC4615
Description	Power Bipolar Transistor, 1A I(C), 400V V(BR)CEO, 1-Element, PNP, Silicon, TO-251, Plastic/Epoxy, 3 Pin	High Voltage Driver Applications
package instruction	IN-LINE, R-PSIP-T3	IN-LINE, R-PSIP-T3
Reach Compliance Code	unknown	unknow
ECCN code	EAR99	EAR99
Shell connection	COLLECTOR	COLLECTOR
Maximum collector current (IC)	1 A	1 A
Collector-emitter maximum voltage	400 V	400 V
Configuration	SINGLE	SINGLE
Minimum DC current gain (hFE)	40	40
JEDEC-95 code	TO-251	TO-251
JESD-30 code	R-PSIP-T3	R-PSIP-T3
Number of components	1	1
Number of terminals	3	3
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY
Package shape	RECTANGULAR	RECTANGULAR
Package form	IN-LINE	IN-LINE
Polarity/channel type	PNP	NPN
Maximum power consumption environment	15 W	15 W
Maximum power dissipation(Abs)	15 W	15 W
Certification status	Not Qualified	Not Qualified
surface mount	NO	NO
Terminal form	THROUGH-HOLE	THROUGH-HOLE
Terminal location	SINGLE	SINGLE
transistor applications	SWITCHING	SWITCHING
Transistor component materials	SILICON	SILICON
VCEsat-Max	1 V	1 V
