CZA04S04100050LEA datasheet, PDF

CZA04S04100050LEA: DescriptionRF/Microwave Attenuator, 0 MHz - 3000 MHz RF/MICROWAVE FIXED ATTENUATOR; CategoryWireless rf/communication Radio frequency and microwave; File Size546KB，2 Pages; ManufacturerVishay; Websitehttp://www.vishay.com; Environmental Compliance

Download Datasheet Parametric View All

CZA04S04100050LEA Overview

RF/Microwave Attenuator, 0 MHz - 3000 MHz RF/MICROWAVE FIXED ATTENUATOR

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	Vishay
Reach Compliance Code	unknown
Is Samacsys	N
Nominal attenuation	10 dB
Characteristic impedance	50 Ω
structure	COMPONENT
Maximum input power (CW)	16.02 dBm
JESD-609 code	e3
Maximum operating frequency	3000 MHz
Minimum operating frequency
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
RF/Microwave Device Types	FIXED ATTENUATOR
Terminal surface	Matte Tin (Sn) - with Nickel (Ni) barrier
Maximum voltage standing wave ratio	1.2
Base Number Matches	1

RESISTIVE PRODUCTS

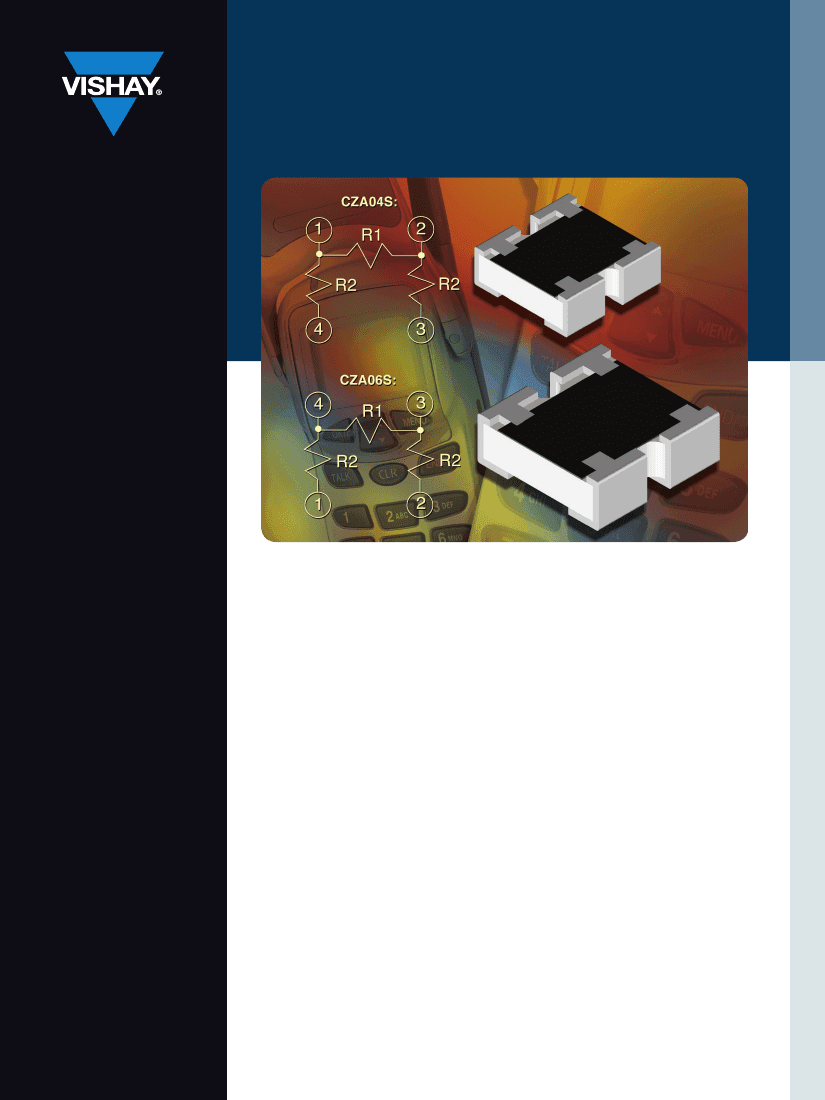

SURFACE-MOUNT CHIP ATTENUATOR

CZ A

PRODUCT SHEET

Surface-Mount Chip Resistor Attenuator

KEY BENEFITS

• Single component reduces board space and component count

• Tolerance matching and temperature tracking superior to

individual components

•

Speciﬁc impedance and attenuation in an unbalanced

π-type conﬁguration

• Frequency range to 3 GHz DC

APPLICATIONS

• RF signal attenuation

• Cell phones

• Mobile and hand-held equipment

• Power “step-down” applications

w w w. v i s h a y. c o m

Datasheet is available on our web site at www.vishay.com

for CZA - http://www.vishay.com/doc?31061
