S80C186EA-25 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The embedded processor and controller> Microcontrollers and processors> S80C186EA-25

S80C186EA-25: DescriptionMicroprocessor, 16-Bit, 25MHz, CMOS, PQFP80, QFP-80; CategoryThe embedded processor and controller Microcontrollers and processors; File Size9MB，51 Pages; ManufacturerRochester Electronics; Websitehttps://www.rocelec.com/

Download Datasheet Parametric Compare View All

S80C186EA-25 Overview

Microprocessor, 16-Bit, 25MHz, CMOS, PQFP80, QFP-80

S80C186EA-25 Parametric

Parameter Name	Attribute value
Maker	Rochester Electronics
package instruction	QFP-80
Reach Compliance Code	unknown
Is Samacsys	N
Address bus width	20
bit size	16
boundary scan	NO
maximum clock frequency	50 MHz
External data bus width	16
Format	FIXED POINT
Integrated cache	NO
JESD-30 code	R-PQFP-G80
length	20 mm
low power mode	YES
Number of terminals	80
Maximum operating temperature	70 °C
Minimum operating temperature
Package body material	PLASTIC/EPOXY
encapsulated code	QFP
Package shape	RECTANGULAR
Package form	FLATPACK
Maximum seat height	3.15 mm
speed	25 MHz
Maximum supply voltage	5.5 V
Minimum supply voltage	4.5 V
Nominal supply voltage	5 V
surface mount	YES
technology	CMOS
Temperature level	COMMERCIAL
Terminal form	GULL WING
Terminal pitch	0.8 mm
Terminal location	QUAD
width	14 mm
uPs/uCs/peripheral integrated circuit type	MICROPROCESSOR
Base Number Matches	1

Preview

Download Datasheet

View All

REI Datasheet

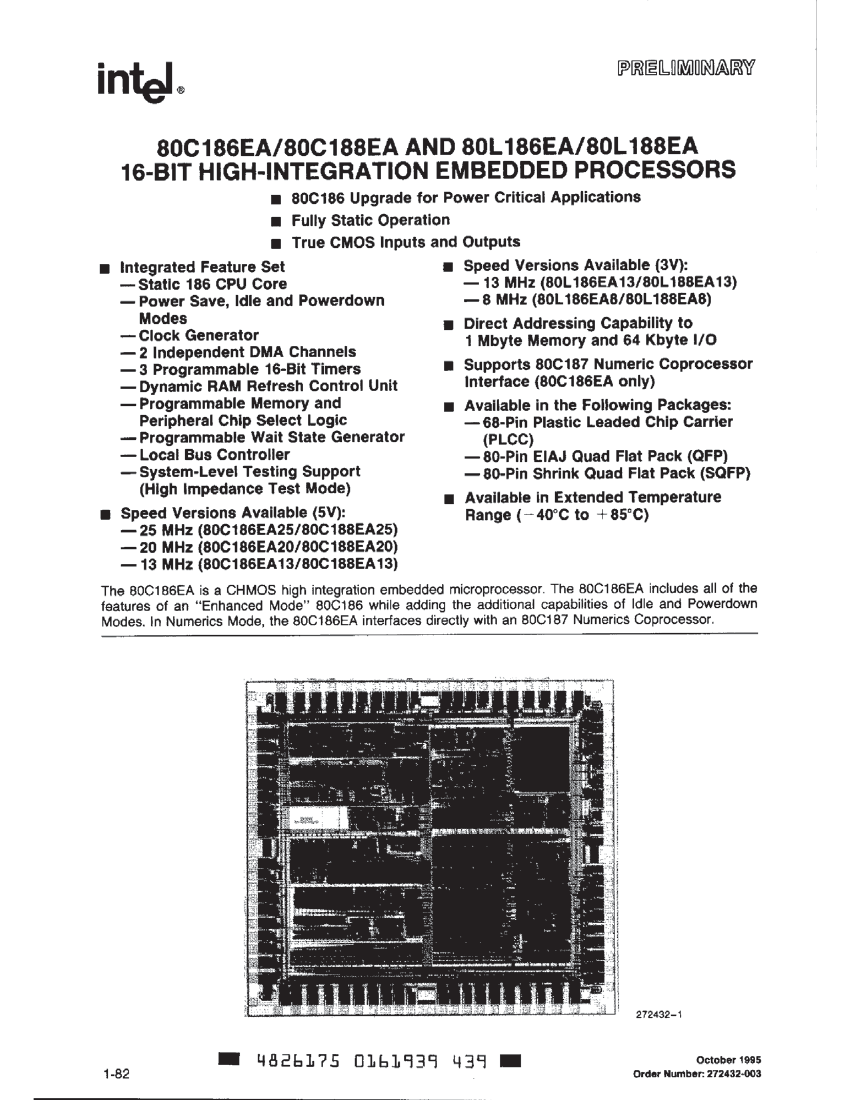

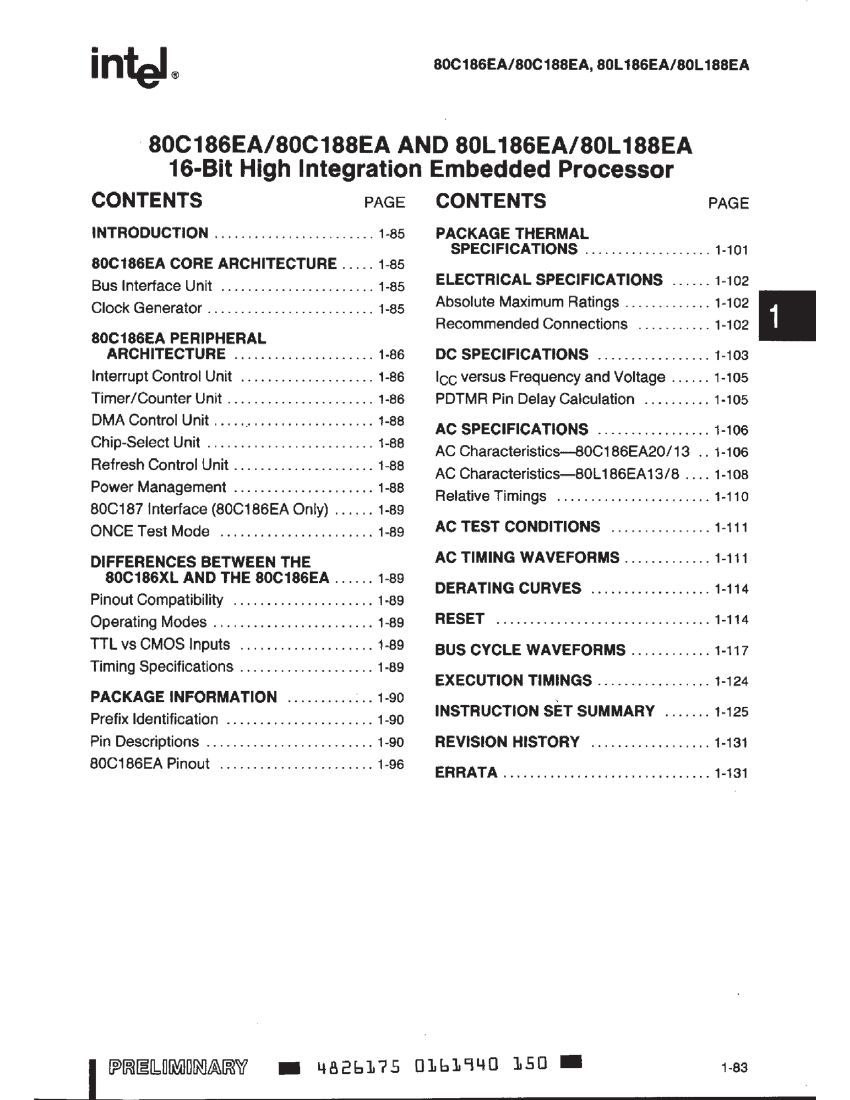

80C186EA, 80C188EA, 80L186EA, 80L188EA

16-Bit High-Integration Embedded Processors

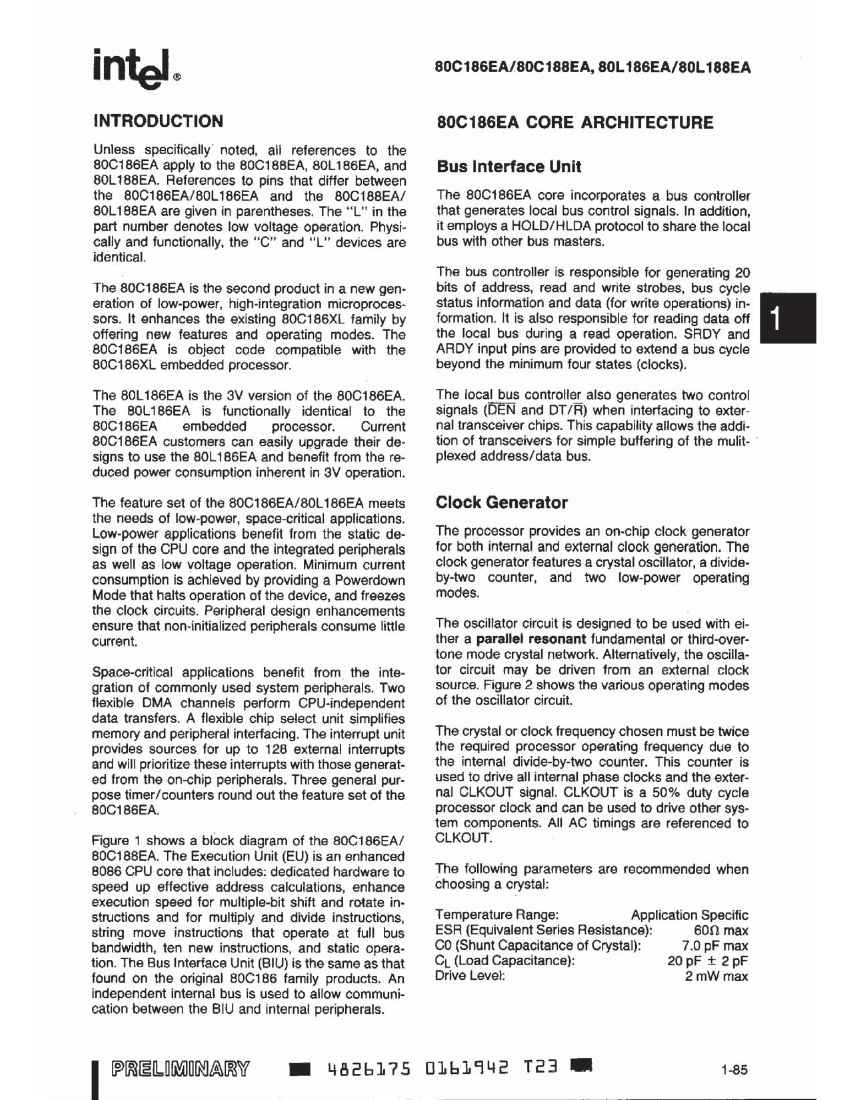

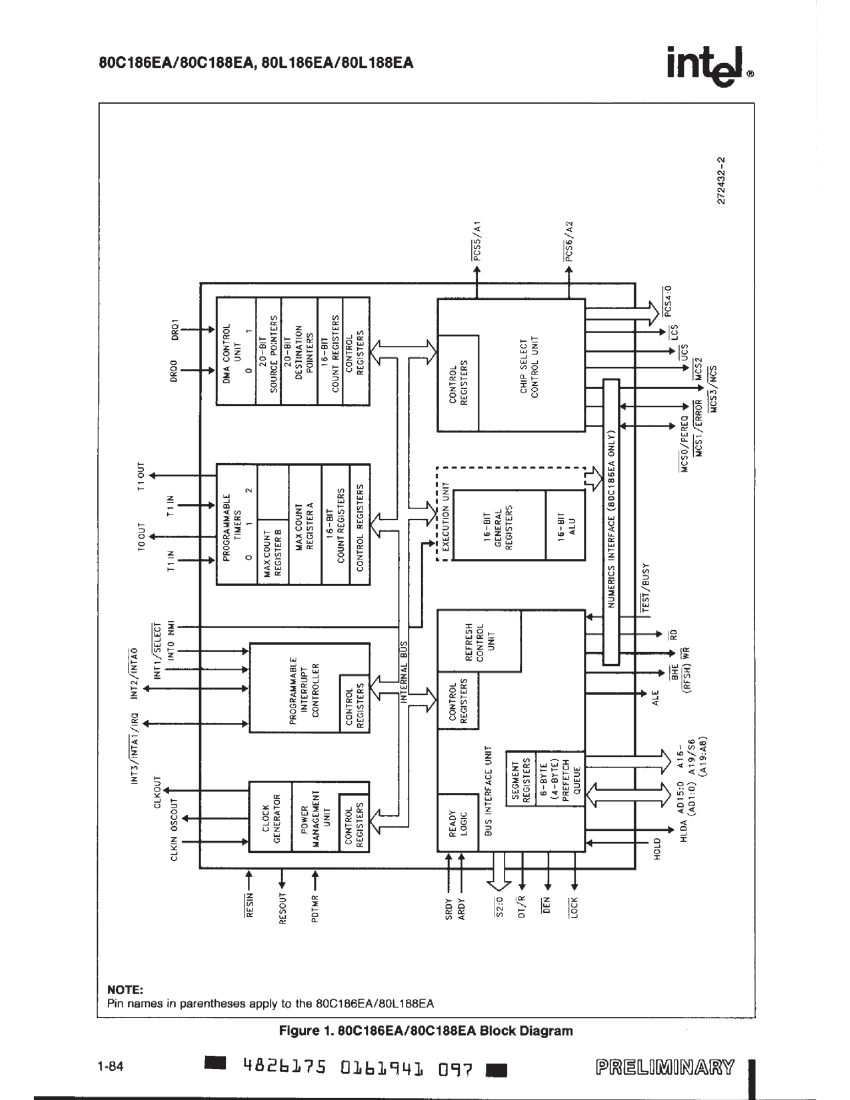

The 80C186EA is a CHMOS high integration embedded microprocessor. The 80C186EA includes all of the

features of an “Enhanced Mode” 80C186 while adding the additional capabilities of Idle and Powerdown

Modes. In Numerics Mode, the 80C186EA interfaces directly with an 80C187 Numerics Coprocessor.

The feature set of the 80C186EA/80L186EA meets the needs of low-power, space-critical applications. Low-

power applications benefit from the static design of the CPU core and the integrated peripherals as well as

low voltage operation. Minimum current consumption as achieved by providing a Powerdown Mode that halts

operation of the device, and freezes the clock circuits. Peripheral design enhancements ensure that non-

initialized peripherals consume little current.

Rochester Electronics

Manufactured Components

Rochester branded components are

manufactured using either die/wafers

purchased from the original suppliers

or Rochester wafers recreated from the

original IP. All recreations are done with

the approval of the OCM.

Parts are tested using original factory

test programs or Rochester developed

test solutions to guarantee product

meets or exceeds the OCM data sheet.

Quality Overview

•

ISO-9001

• AS9120 certification

• Qualified Manufacturers List (QML) MIL-PRF-38535

•

Class Q Military

•

Class V Space Level

• Qualified Suppliers List of Distributors (QSLD)

• Rochester is a critical supplier to DLA and

meets all industry and DLA standards.

Rochester Electronics, LLC is committed to supplying

products that satisfy customer expectations for

quality and are equal to those originally supplied by

industry manufacturers.

The original manufacturer’s datasheet accompanying this document reflects the performance

and specifications of the Rochester manufactured version of this device. Rochester Electronics

guarantees the performance of its semiconductor products to the original OEM specifications.

‘Typical’ values are for reference purposes only. Certain minimum or maximum ratings may be

based on product characterization, design, simulation, or sample testing.

To learn more, please visit

www.rocelec.com

S80C186EA-25 Related Products

	S80C186EA-25	N80C186EA-20	TN80C186EA-13	S80C186EA-20	TS80C186EA-20	SB80C186EA-20	TS80C186EA-13
Description	Microprocessor, 16-Bit, 25MHz, CMOS, PQFP80, QFP-80	Microprocessor, 16-Bit, 20MHz, CMOS, PQCC68, PLASTIC, LCC-68	Microprocessor, 16-Bit, 13MHz, CMOS, PQCC68, PLASTIC, LCC-68	Microprocessor, 16-Bit, 20MHz, CMOS, PQFP80, QFP-80	Microprocessor, 16-Bit, 20MHz, CMOS, PQFP80, QFP-80	Microprocessor, 16-Bit, 20MHz, CMOS, PQFP80, QFP-80	Microprocessor, 16-Bit, 13MHz, CMOS, PQFP80, QFP-80
Maker	Rochester Electronics	Rochester Electronics	Rochester Electronics	Rochester Electronics	Rochester Electronics	Rochester Electronics	Rochester Electronics
package instruction	QFP-80	QCCJ,	QCCJ,	QFP-80	QFP-80	QFP,	QFP,
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown	unknown	unknown
Address bus width	20	20	20	20	20	20	20
bit size	16	16	16	16	16	16	16
boundary scan	NO	NO	NO	NO	NO	NO	NO
maximum clock frequency	50 MHz	40 MHz	26 MHz	40 MHz	40 MHz	40 MHz	26 MHz
External data bus width	16	16	16	16	16	16	16
Format	FIXED POINT	FIXED POINT	FIXED POINT	FIXED POINT	FIXED POINT	FIXED POINT	FIXED POINT
Integrated cache	NO	NO	NO	NO	NO	NO	NO
JESD-30 code	R-PQFP-G80	S-PQCC-J68	S-PQCC-J68	R-PQFP-G80	R-PQFP-G80	R-PQFP-G80	R-PQFP-G80
length	20 mm	24.2 mm	24.2 mm	20 mm	20 mm	20 mm	20 mm
low power mode	YES	YES	YES	YES	YES	YES	YES
Number of terminals	80	68	68	80	80	80	80
Maximum operating temperature	70 °C	70 °C	85 °C	70 °C	85 °C	85 °C	85 °C
Minimum operating temperature	-	-	-40 °C	-	-40 °C	-40 °C	-40 °C
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY
encapsulated code	QFP	QCCJ	QCCJ	QFP	QFP	QFP	QFP
Package shape	RECTANGULAR	SQUARE	SQUARE	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	FLATPACK	CHIP CARRIER	CHIP CARRIER	FLATPACK	FLATPACK	FLATPACK	FLATPACK
Maximum seat height	3.15 mm	4.83 mm	4.83 mm	3.15 mm	3.15 mm	3.15 mm	3.15 mm
speed	25 MHz	20 MHz	13 MHz	20 MHz	20 MHz	20 MHz	13 MHz
Maximum supply voltage	5.5 V	5.5 V	5.5 V	5.5 V	5.5 V	5.5 V	5.5 V
Minimum supply voltage	4.5 V	4.5 V	4.5 V	4.5 V	4.5 V	4.5 V	4.5 V
Nominal supply voltage	5 V	5 V	5 V	5 V	5 V	5 V	5 V
surface mount	YES	YES	YES	YES	YES	YES	YES
technology	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS
Temperature level	COMMERCIAL	COMMERCIAL	INDUSTRIAL	COMMERCIAL	INDUSTRIAL	INDUSTRIAL	INDUSTRIAL
Terminal form	GULL WING	J BEND	J BEND	GULL WING	GULL WING	GULL WING	GULL WING
Terminal pitch	0.8 mm	1.27 mm	1.27 mm	0.8 mm	0.8 mm	0.8 mm	0.8 mm
Terminal location	QUAD	QUAD	QUAD	QUAD	QUAD	QUAD	QUAD
width	14 mm	24.2 mm	24.2 mm	14 mm	14 mm	14 mm	14 mm
uPs/uCs/peripheral integrated circuit type	MICROPROCESSOR	MICROPROCESSOR	MICROPROCESSOR	MICROPROCESSOR	MICROPROCESSOR	MICROPROCESSOR	MICROPROCESSOR
Base Number Matches	1	1	1	1	1	-	-
