IS80C31-20W datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The embedded processor and controller> Microcontrollers and processors> IS80C31-20W

IS80C31-20W: DescriptionMicrocontroller, 8-Bit, MROM, 8051 CPU, 20MHz, CMOS, PDIP40, 0.600 INCH, PLASTIC, DIP-40; CategoryThe embedded processor and controller Microcontrollers and processors; File Size2MB，42 Pages; ManufacturerIntegrated Silicon Solution ( ISSI )

Download Datasheet Parametric Compare View All

IS80C31-20W Overview

Microcontroller, 8-Bit, MROM, 8051 CPU, 20MHz, CMOS, PDIP40, 0.600 INCH, PLASTIC, DIP-40

IS80C31-20W Parametric

Parameter Name	Attribute value
Is it lead-free?	Contains lead
Is it Rohs certified?	incompatible
Maker	Integrated Silicon Solution ( ISSI )
Parts packaging code	DIP
package instruction	0.600 INCH, PLASTIC, DIP-40
Contacts	40
Reach Compliance Code	compliant
Is Samacsys	N
Has ADC	NO
Address bus width	16
bit size	8
CPU series	8051
maximum clock frequency	20 MHz
DAC channel	NO
DMA channel	NO
External data bus width	8
JESD-30 code	R-PDIP-T40
JESD-609 code	e0
length	52.07 mm
Number of I/O lines	32
Number of terminals	40
Maximum operating temperature	70 °C
Minimum operating temperature
PWM channel	NO
Package body material	PLASTIC/EPOXY
encapsulated code	DIP
Encapsulate equivalent code	DIP40,.6
Package shape	RECTANGULAR
Package form	IN-LINE
Peak Reflow Temperature (Celsius)	NOT SPECIFIED
power supply	5 V
Certification status	Not Qualified
RAM (bytes)	128
rom(word)	0
ROM programmability	MROM
Maximum seat height	5.08 mm
speed	20 MHz
Maximum slew rate	32 mA
Maximum supply voltage	5.5 V
Minimum supply voltage	4.5 V
Nominal supply voltage	5 V
surface mount	NO
technology	CMOS
Temperature level	COMMERCIAL
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	THROUGH-HOLE
Terminal pitch	2.54 mm
Terminal location	DUAL
Maximum time at peak reflow temperature	NOT SPECIFIED
width	15.24 mm
uPs/uCs/peripheral integrated circuit type	MICROCONTROLLER
Base Number Matches	1

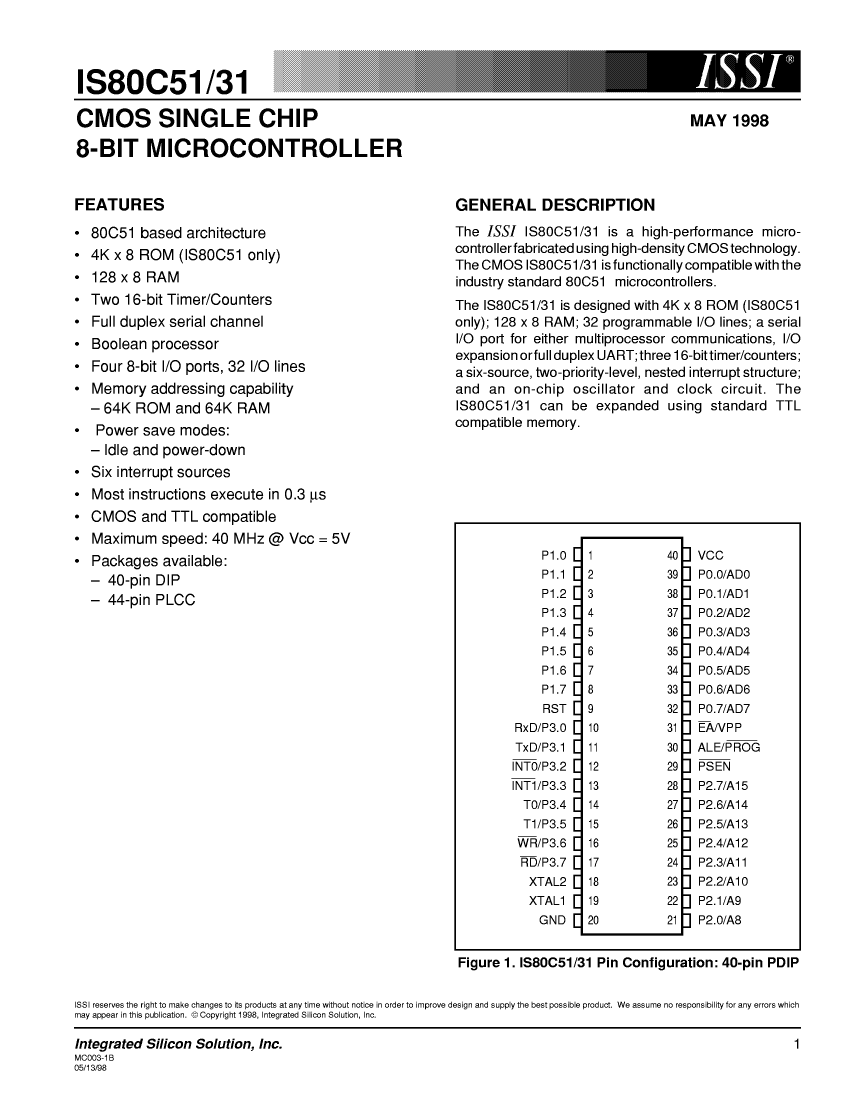

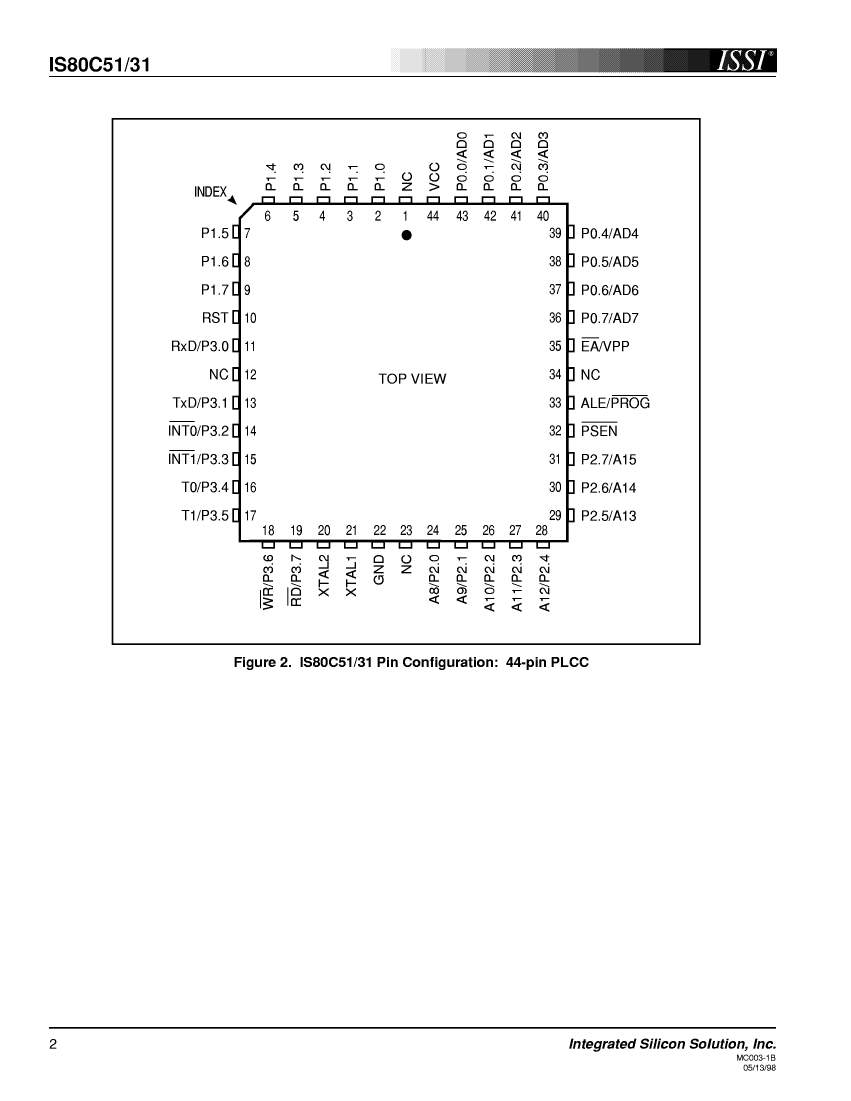

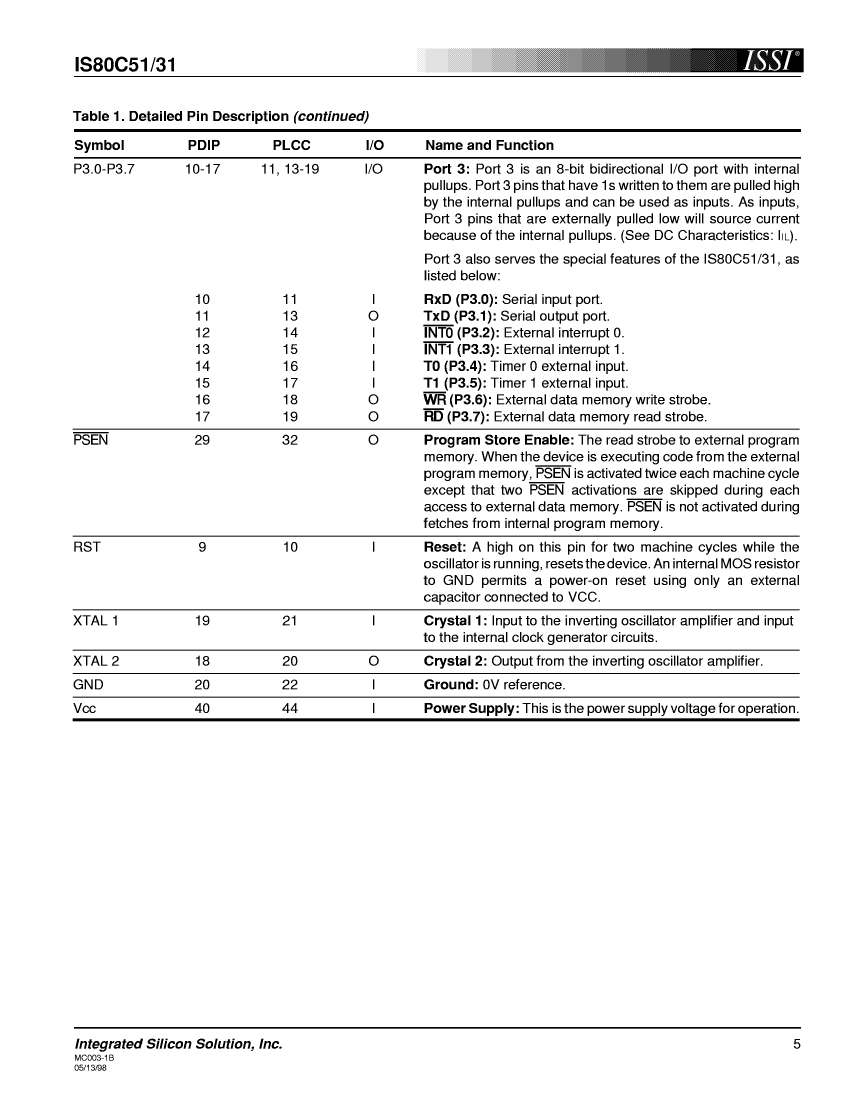

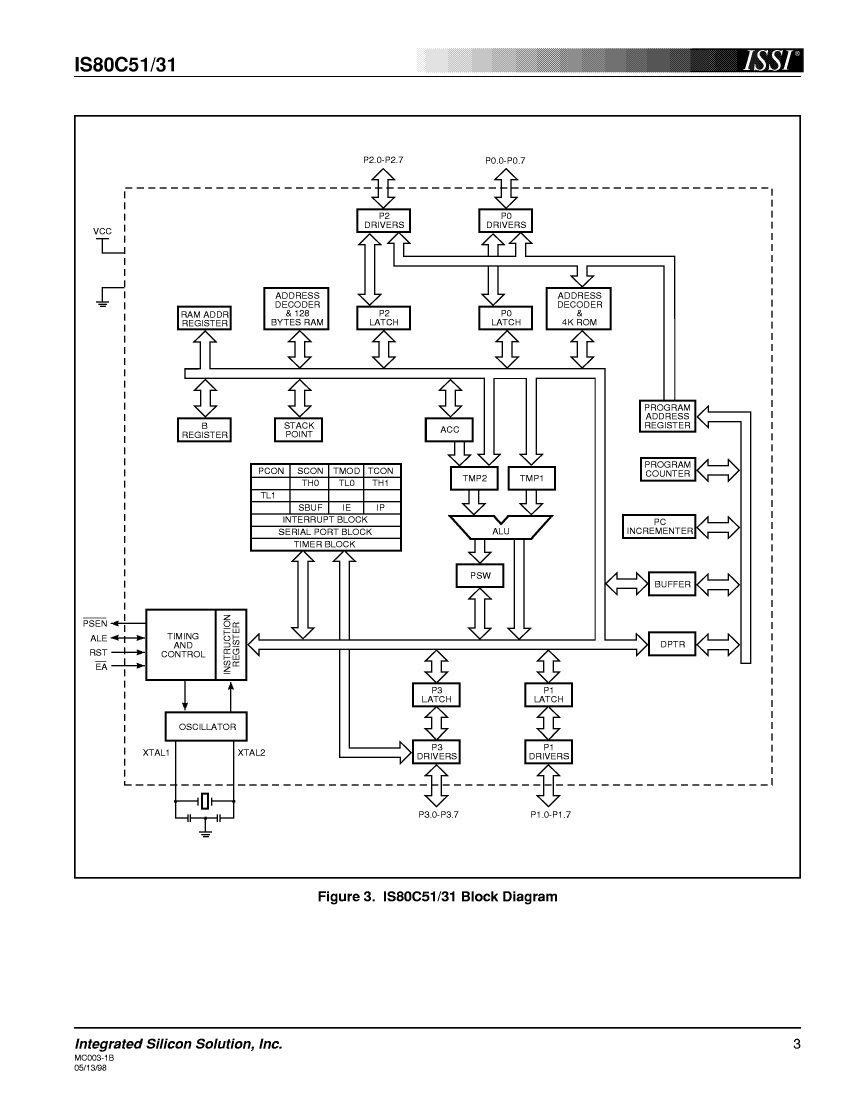

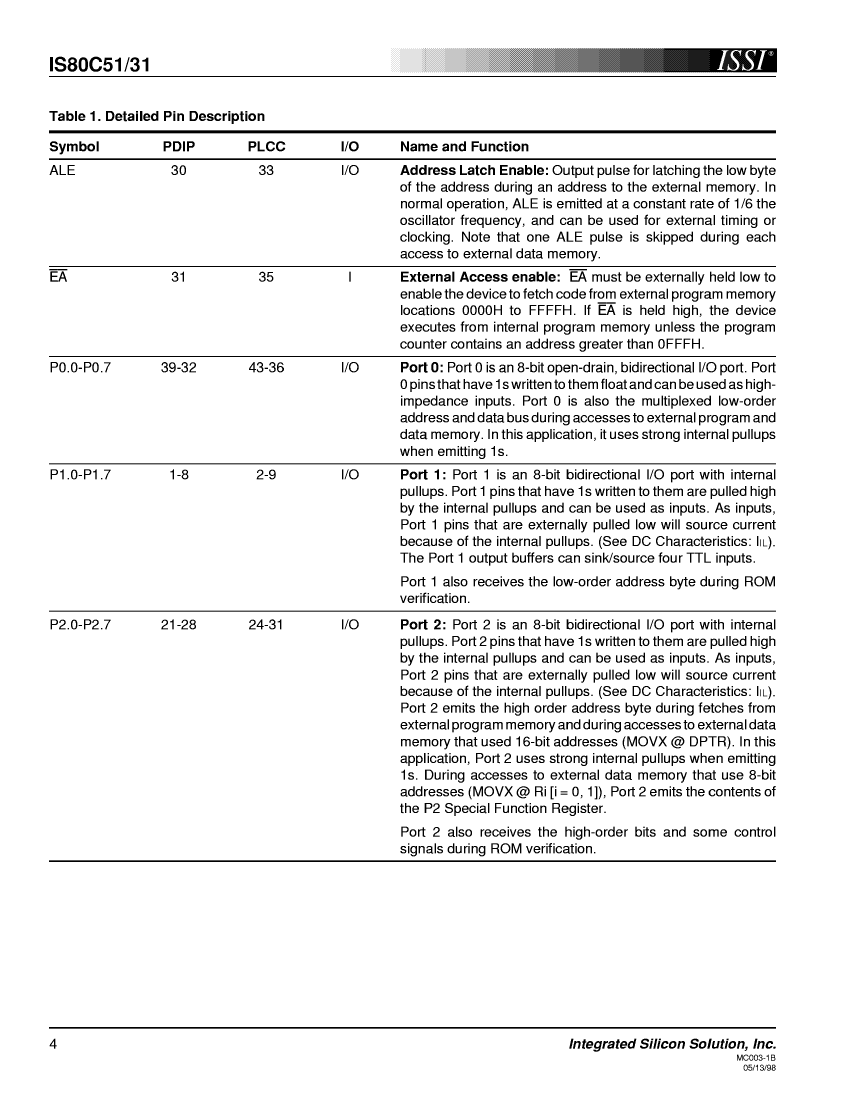

Preview

Download Datasheet

View All

IS80C31-20W Related Products

	IS80C31-20W	IS80C31-20PL	IS80C51-20W	IS80C51-20PL
Description	Microcontroller, 8-Bit, MROM, 8051 CPU, 20MHz, CMOS, PDIP40, 0.600 INCH, PLASTIC, DIP-40	Microcontroller, 8-Bit, MROM, 8051 CPU, 20MHz, CMOS, PQCC44, PLASTIC, LCC-44	Microcontroller, 8-Bit, MROM, 8051 CPU, 20MHz, CMOS, PDIP40, 0.600 INCH, PLASTIC, DIP-40	Microcontroller, 8-Bit, MROM, 8051 CPU, 20MHz, CMOS, PQCC44, PLASTIC, LCC-44
Is it lead-free?	Contains lead	Contains lead	Contains lead	Contains lead
Is it Rohs certified?	incompatible	incompatible	incompatible	incompatible
Parts packaging code	DIP	LCC	DIP	LCC
package instruction	0.600 INCH, PLASTIC, DIP-40	PLASTIC, LCC-44	0.600 INCH, PLASTIC, DIP-40	PLASTIC, LCC-44
Contacts	40	44	40	44
Reach Compliance Code	compliant	compliant	compliant	compliant
Has ADC	NO	NO	NO	NO
Address bus width	16	16	16	16
bit size	8	8	8	8
CPU series	8051	8051	8051	8051
maximum clock frequency	20 MHz	20 MHz	20 MHz	20 MHz
DAC channel	NO	NO	NO	NO
DMA channel	NO	NO	NO	NO
External data bus width	8	8	8	8
JESD-30 code	R-PDIP-T40	S-PQCC-J44	R-PDIP-T40	S-PQCC-J44
JESD-609 code	e0	e0	e0	e0
length	52.07 mm	16.5862 mm	52.07 mm	16.5862 mm
Number of I/O lines	32	32	32	32
Number of terminals	40	44	40	44
Maximum operating temperature	70 °C	70 °C	70 °C	70 °C
PWM channel	NO	NO	NO	NO
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY
encapsulated code	DIP	QCCJ	DIP	QCCJ
Encapsulate equivalent code	DIP40,.6	LDCC44,.7SQ	DIP40,.6	LDCC44,.7SQ
Package shape	RECTANGULAR	SQUARE	RECTANGULAR	SQUARE
Package form	IN-LINE	CHIP CARRIER	IN-LINE	CHIP CARRIER
Peak Reflow Temperature (Celsius)	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED
power supply	5 V	5 V	5 V	5 V
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified
RAM (bytes)	128	128	128	128
ROM programmability	MROM	MROM	MROM	MROM
Maximum seat height	5.08 mm	4.57 mm	5.08 mm	4.57 mm
speed	20 MHz	20 MHz	20 MHz	20 MHz
Maximum slew rate	32 mA	32 mA	32 mA	32 mA
Maximum supply voltage	5.5 V	5.5 V	5.5 V	5.5 V
Minimum supply voltage	4.5 V	4.5 V	4.5 V	4.5 V
Nominal supply voltage	5 V	5 V	5 V	5 V
surface mount	NO	YES	NO	YES
technology	CMOS	CMOS	CMOS	CMOS
Temperature level	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL
Terminal surface	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)
Terminal form	THROUGH-HOLE	J BEND	THROUGH-HOLE	J BEND
Terminal pitch	2.54 mm	1.27 mm	2.54 mm	1.27 mm
Terminal location	DUAL	QUAD	DUAL	QUAD
Maximum time at peak reflow temperature	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED
width	15.24 mm	16.5862 mm	15.24 mm	16.5862 mm
uPs/uCs/peripheral integrated circuit type	MICROCONTROLLER	MICROCONTROLLER	MICROCONTROLLER	MICROCONTROLLER
Maker	Integrated Silicon Solution ( ISSI )	Integrated Silicon Solution ( ISSI )	-	Integrated Silicon Solution ( ISSI )
Base Number Matches	1	1	1	-
