2SA1805 datasheet, PDF - EEWORLD Datasheet

2SA1805: DescriptionTRANSISTOR (POWER AMPLIFIER APPLICATIONS); CategoryDiscrete semiconductor The transistor; File Size147KB，2 Pages; ManufacturerToshiba Semiconductor; Websitehttp://toshiba-semicon-storage.com/

Download Datasheet Parametric View All

2SA1805 Overview

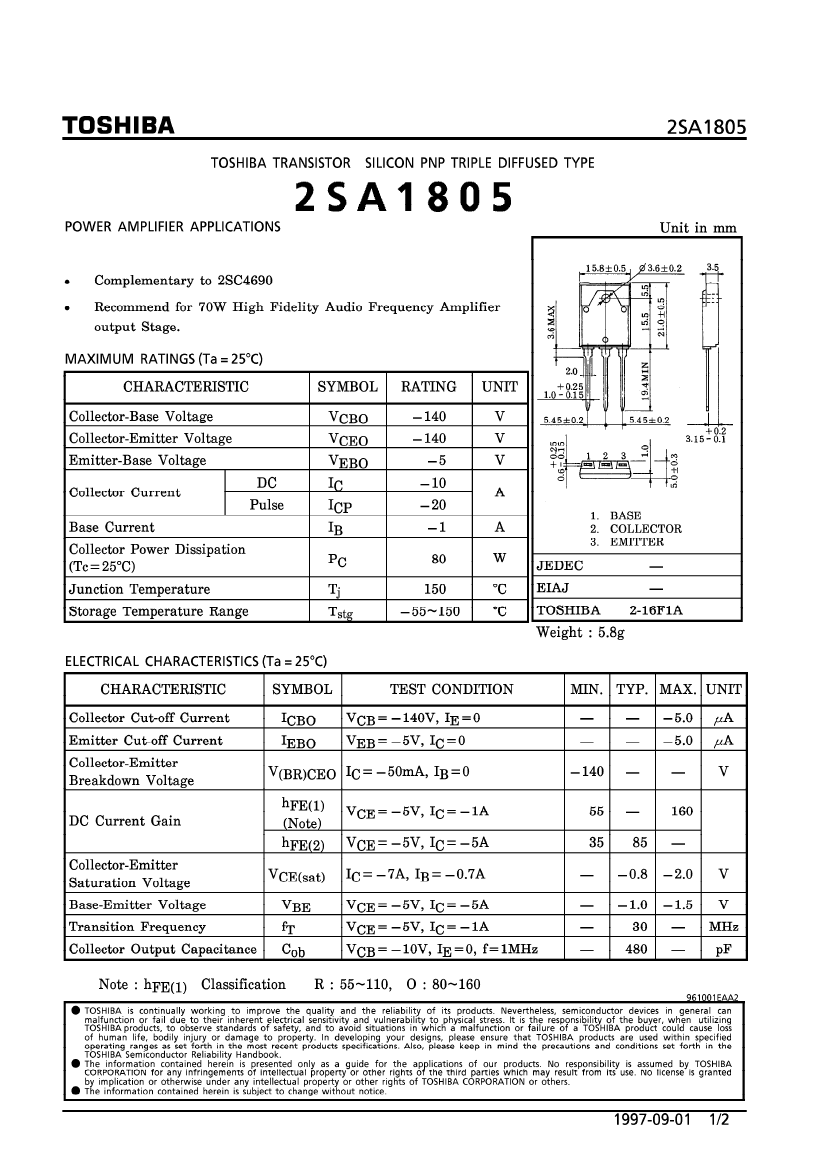

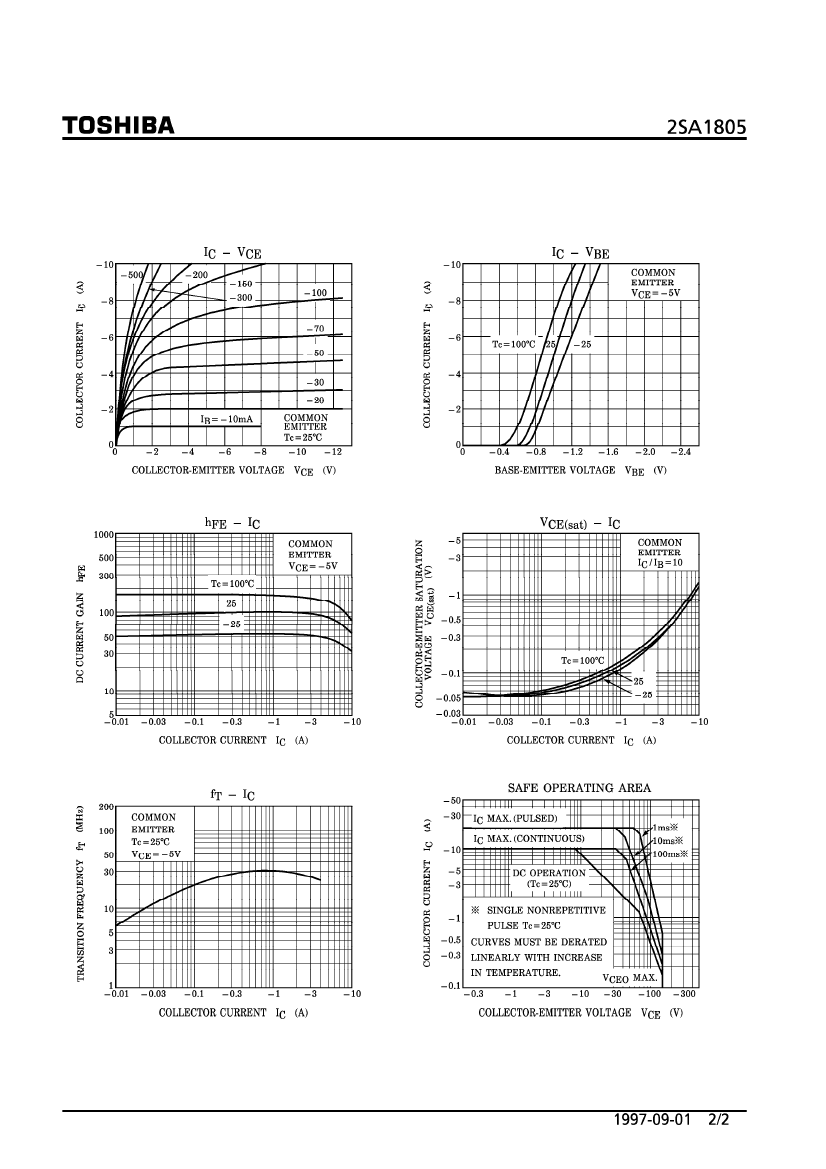

TRANSISTOR (POWER AMPLIFIER APPLICATIONS)

Parameter Name	Attribute value
Is it lead-free?	Contains lead
Is it Rohs certified?	incompatible
package instruction	LEAD FREE, 2-16F1A, 3 PIN
Contacts	3
Reach Compliance Code	unknow
Maximum collector current (IC)	10 A
Collector-emitter maximum voltage	140 V
Configuration	SINGLE
Minimum DC current gain (hFE)	35
JESD-30 code	R-PSFM-T3
Number of components	1
Number of terminals	3
Package body material	PLASTIC/EPOXY
Package shape	RECTANGULAR
Package form	FLANGE MOUNT
Peak Reflow Temperature (Celsius)	240
Polarity/channel type	PNP
Certification status	Not Qualified
surface mount	NO
Terminal form	THROUGH-HOLE
Terminal location	SINGLE
Maximum time at peak reflow temperature	NOT SPECIFIED
transistor applications	AMPLIFIER
Transistor component materials	SILICON
Nominal transition frequency (fT)	30 MHz
Base Number Matches	1
