M50-04-30-434S datasheet, PDF - EEWORLD Datasheet

M50-04-30-434S: DescriptionCircular DIN Connector, 4 Contact(s), Female, Board Mount, Printed Wiring Pin Terminal, Socket; CategoryThe connector The connector; File Size89KB，4 Pages; ManufacturerMitsumi Electric Co., Ltd.

Download Datasheet Parametric View All

M50-04-30-434S Overview

Circular DIN Connector, 4 Contact(s), Female, Board Mount, Printed Wiring Pin Terminal, Socket

Parameter Name	Attribute value
Maker	Mitsumi Electric Co., Ltd.
Reach Compliance Code	unknown
Is Samacsys	N
Body/casing type	SOCKET
Connector type	CIRCULAR DIN CONNECTOR
Contact point gender	FEMALE
DIN compliance	NO
Electromagnetic interference shielding	YES
IEC compliance	NO
MIL compliance	NO
Manufacturer's serial number	CSK-M50
Installation method	RIGHT ANGLE
Installation type	BOARD
Options	GENERAL PURPOSE
Termination type	PRINTED WIRING PIN
Total number of contacts	4
Base Number Matches	1

MITSUMI

Mini Circular Connectors

CSK-M50 Series

Connectors

FEATURES

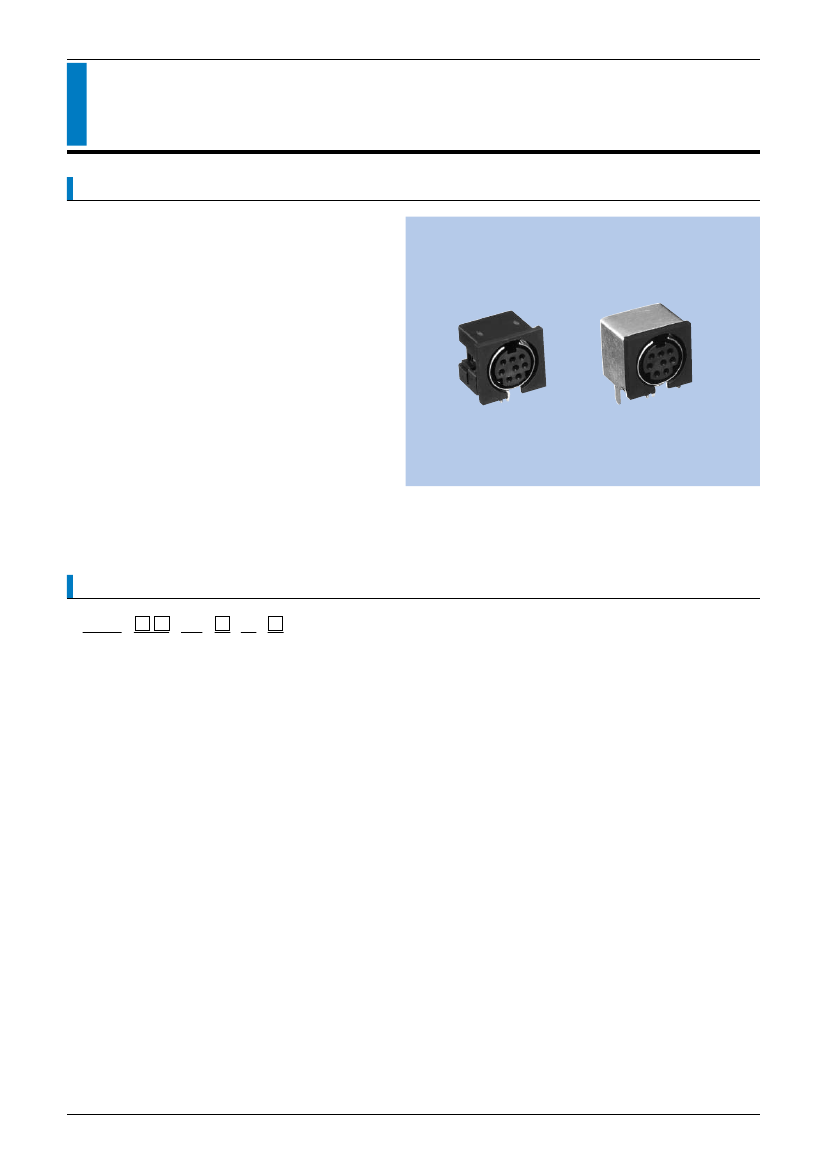

CSK-M50 series Mini-circular connectors are

miniature version of standard circular DIN

connectors and are used for interface connector

of various OA equipment (P.C., Word Processor

etc.), Game machines and AV equipment. CSK-

M50 series is P.C. board dip solder socket. 6 size

(4 pins to 9 pins) are available in both all plastic

type and EMI shielded type (patent pending).

HOW TO ORDER

M50-

-30-

1 Series No.

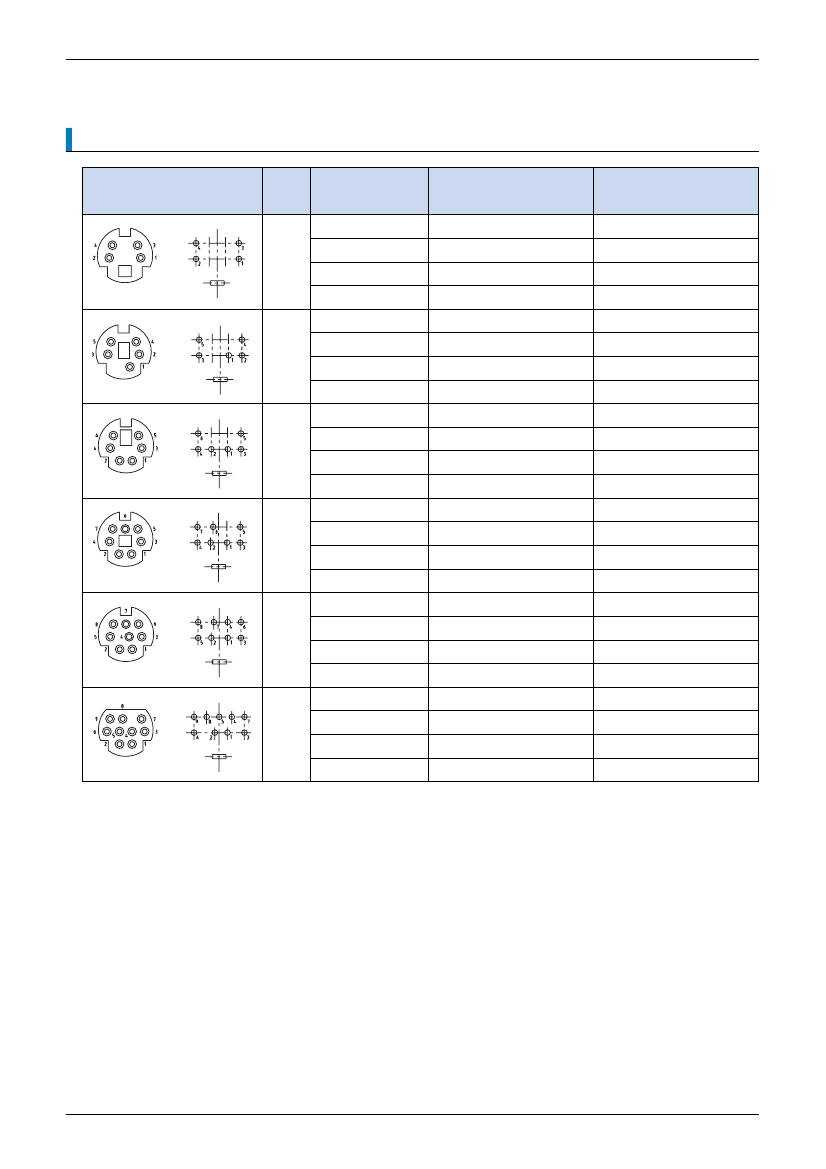

2 No. of contacts (04~09 : 4~9pins)

3 Housing material

30 : PBT resin

4 Shielded cover

1 : without

4 : with

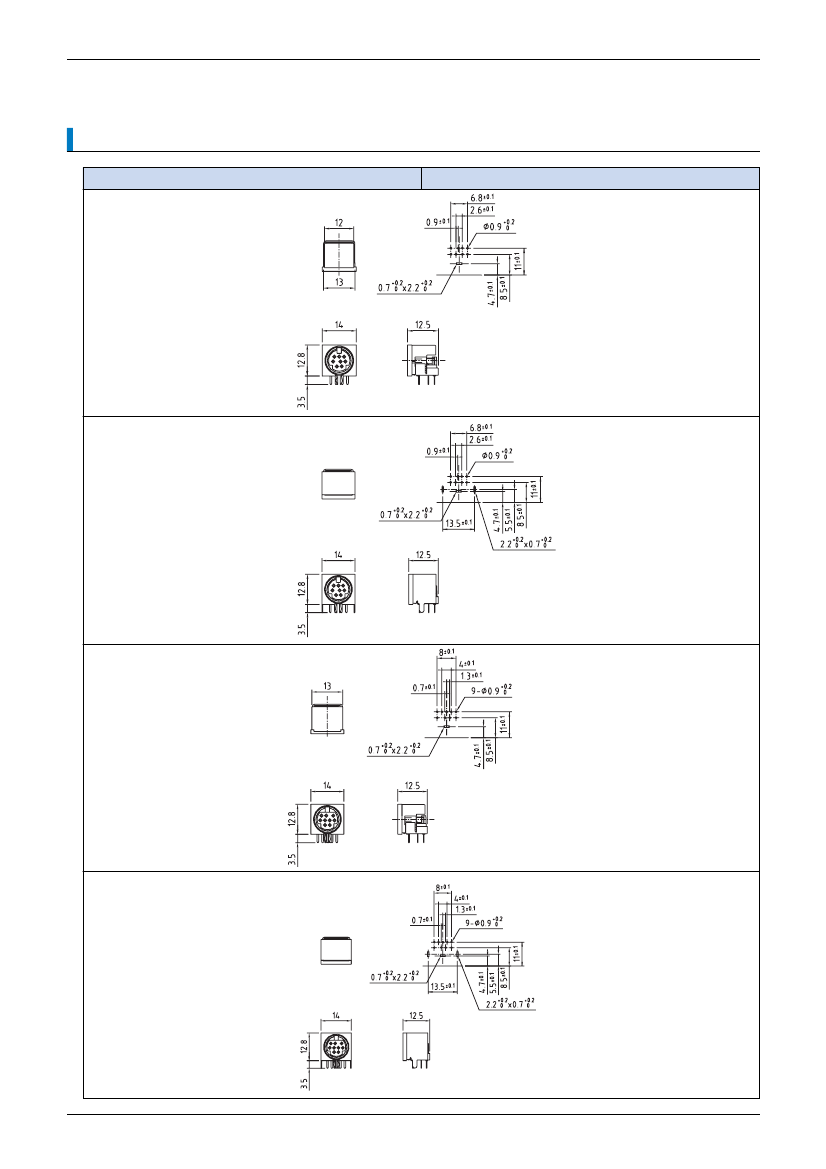

5 Contact dimensions

3 : Angle dip

6 Contact finish

1 : Silver plating

4 : Tin plating

5 : Gold/Solder selective plating
