2SA1813 datasheet, PDF - EEWORLD Datasheet

2SA1813: DescriptionSmall Signal Bipolar Transistor, 0.15A I(C), 25V V(BR)CEO, 1-Element, PNP, Silicon, MCP, 3 PIN; CategoryDiscrete semiconductor The transistor; File Size83KB，3 Pages; ManufacturerSANYO; Websitehttp://www.semic.sanyo.co.jp/english/index-e.html

Download Datasheet Parametric View All

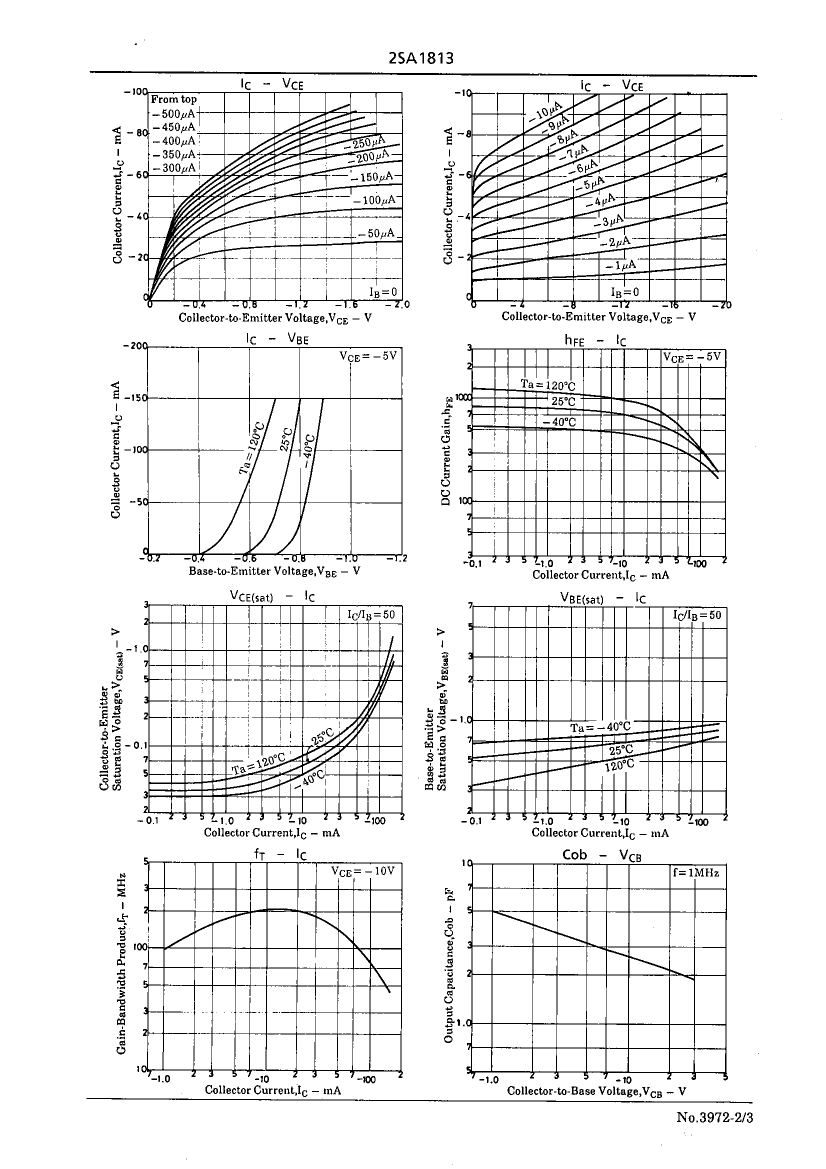

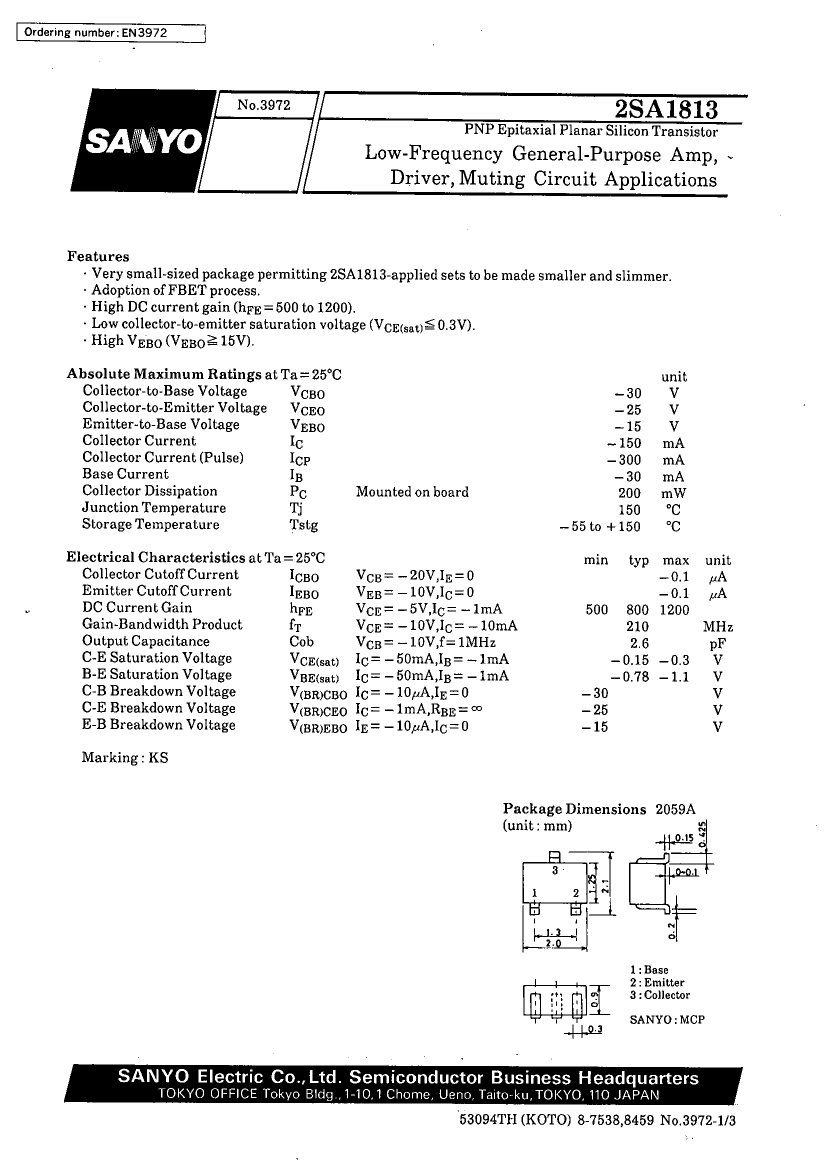

2SA1813 Overview

Small Signal Bipolar Transistor, 0.15A I(C), 25V V(BR)CEO, 1-Element, PNP, Silicon, MCP, 3 PIN

Parameter Name	Attribute value
Objectid	1482884683
package instruction	SMALL OUTLINE, R-PDSO-G3
Contacts	3
Reach Compliance Code	unknown
ECCN code	EAR99
Maximum collector current (IC)	0.15 A
Collector-emitter maximum voltage	25 V
Configuration	SINGLE
Minimum DC current gain (hFE)	500
JESD-30 code	R-PDSO-G3
Number of components	1
Number of terminals	3
Maximum operating temperature	150 °C
Package body material	PLASTIC/EPOXY
Package shape	RECTANGULAR
Package form	SMALL OUTLINE
Polarity/channel type	PNP

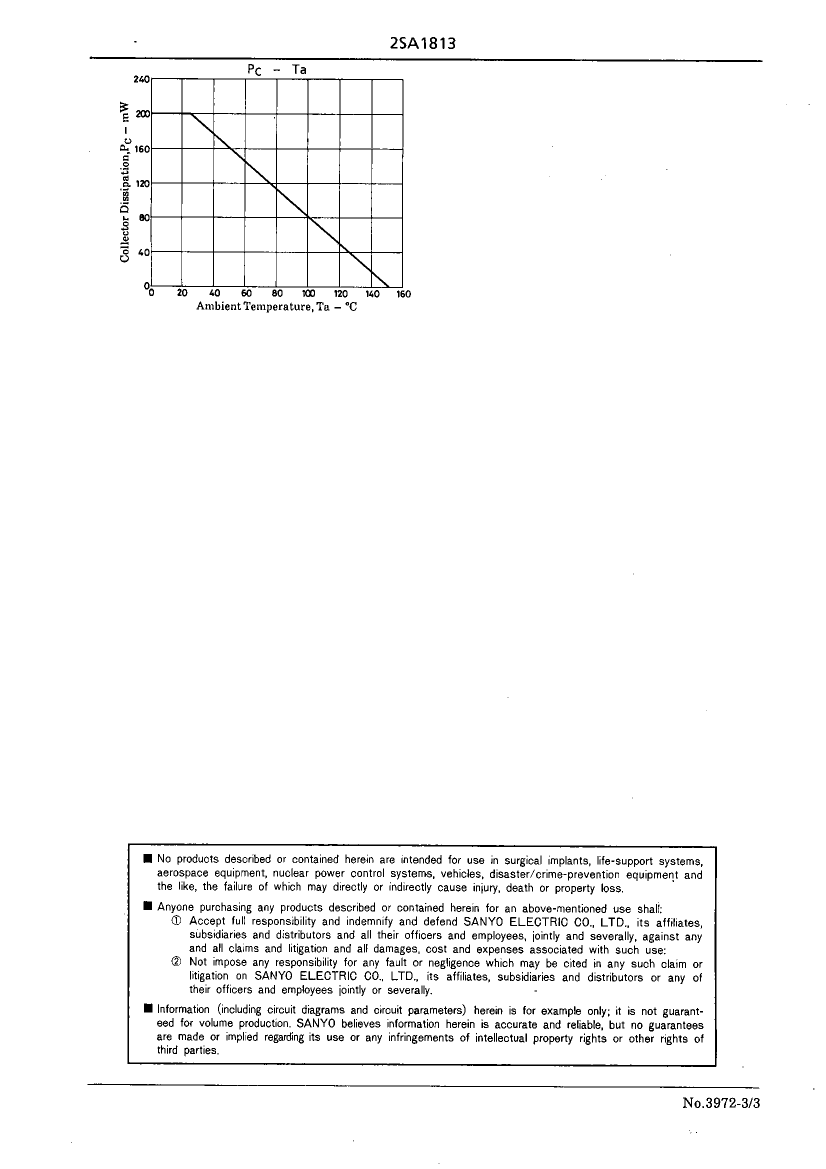

Maximum power consumption environment	0.2 W
Maximum power dissipation(Abs)	0.15 W
Certification status	Not Qualified
surface mount	YES
Terminal form	GULL WING
Terminal location	DUAL
transistor applications	SWITCHING
Transistor component materials	SILICON
Nominal transition frequency (fT)	210 MHz
VCEsat-Max	0.3 V
