MM3083E Overview

150mA CMOS Regulator

Preview

Download Datasheet

View All

MITSUMI

USB Series "Mini-AB" Connectors

CAM-E43ASF · E43ADF · E43SDF

Connectors

FEATURES

1. Ultra-small size realized for 5 pins.

Volume as compared to conventional Mitsumi

product : 1/5

Coupling projection area ratio : 1/4

2. It is the most suitable for connection with PC

peripheral equipment with slim PCs, PDAs,

mobile phones and so on.

3. Utilizes a sequential function that slides power

supply and signal contact connection timing.

4. Couple/decouple reliability ensured for 5,000

times.

5. Weight : 0.6g

6. Supports USB 2.0 (on-the-Go).

(DIP with Shield)

CAM-E43SDF

(DIP type)

(SMT type)

CAM-E43ASF

CAM-E43ADF

HOW TO ORDER

1. CAM-E43ASF

2. CAM-E43ADF

3. CAM-E43SDF

E43ASF-005-7013A

1 Series No. (E43ASF)

2 No. of contacts (005 : 5pins)

3 Running No. assigned by us

E43ADF-005-9024A

1 Series No. (E43ADF)

2 No. of contacts (005 : 5pins)

3 Running No. assigned by us

E43SDF-005-8555A

1 Series No. (E43SDF)

2 No. of contacts (005 : 5pins)

3 Running No. assigned by us

SPECIFICATIONS

ELECTRICAL CHARACTERISTICS

Rated Voltage

Rated Current

Withstanding Voltage

Insulation Resistance

Contact Resistance

MECHANICAL CHARACTERISTICS

Life (Matching Cycle)

Total Insertion Force

Total Withdrawal Force

5,000 times

35N (3.57kgf) max.

Beginning 7N (0.71kgf) min.

After 5,000 times 3N (0.31kgf) min.

AC 5V (rms)

1.0A

AC 100V (rms) 1minute

100MΩ min. (AC500V)

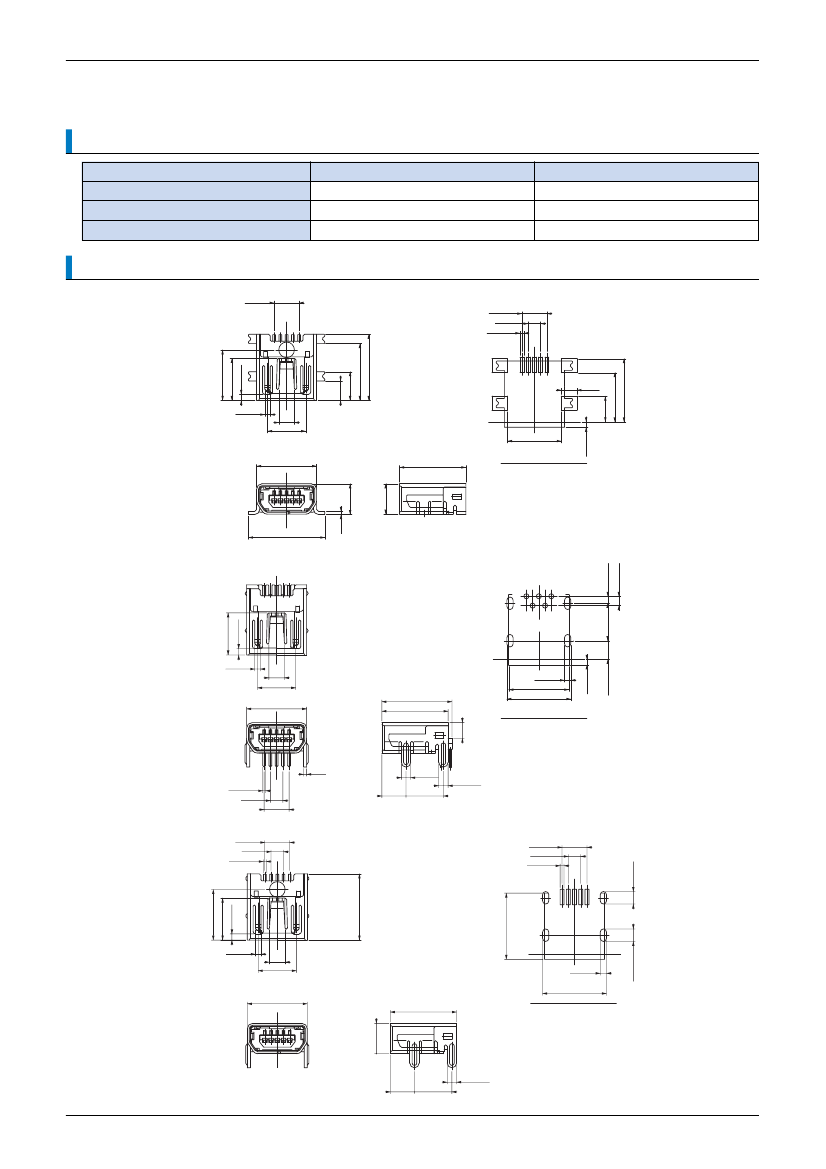

50mΩ max.
