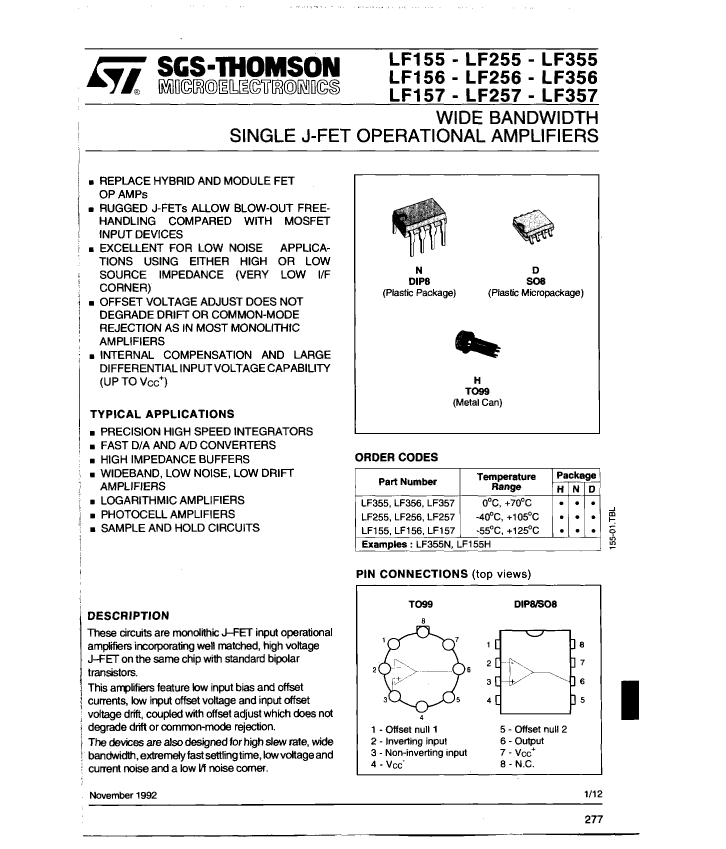

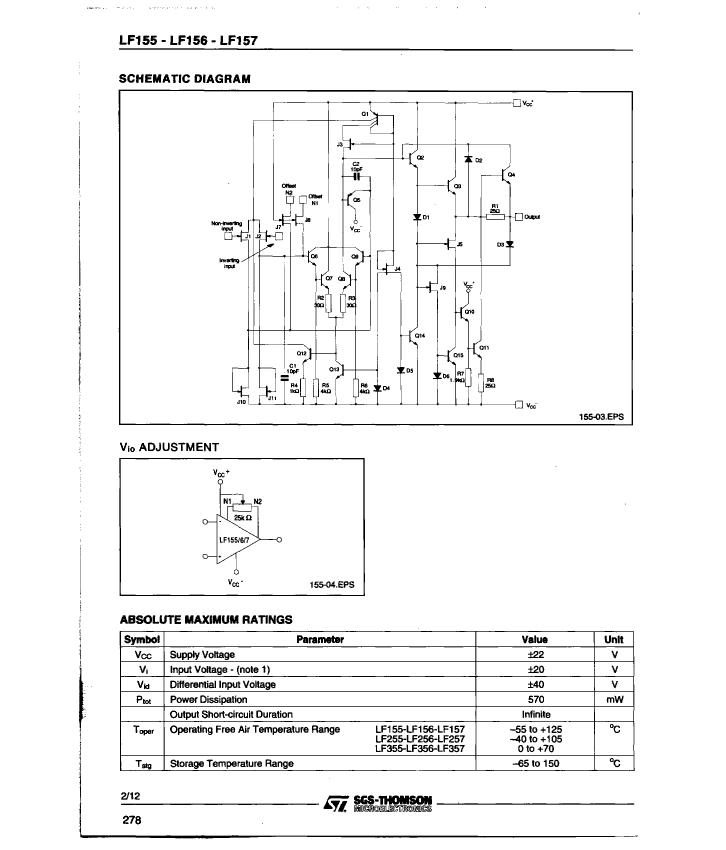

Basic information of LF355H amplifier:
LF355H is an OPERATIONAL AMPLIFIER. Commonly used packaging methods are TO-99, 8 PIN
LF355H amplifier core information:
The minimum operating temperature of LF355H is and the maximum operating temperature is 70 °C. Its peak reflow temperature is NOT SPECIFIED Its maximum bias current at 25°C is: 0.0002 µA Its maximum average bias current is 0.008 µA
How to simply check the efficiency of an amplifier? Looking at its slew rate, the nominal slew rate of LF355H is 5 V/us. The maximum slew rate of the LF355H given by the manufacturer is 4 mA. Its minimum voltage gain is 15000. When the op amp is used in closed loop, at a certain closed-loop gain (usually 1 or 2, 10, etc.), the frequency when the LF355H gain becomes 0.707 times the low-frequency gain is 2500 kHz.
The nominal supply voltage of LF355H is 15 V, and its corresponding nominal negative supply voltage is -15 V. The power supply range is: +-15 V. The input offset voltage of the LF355H is 13000 µV (input offset voltage: the compensation voltage added between the two input terminals to make the output terminal of the operational amplifier 0V (or close to 0V).)
Related dimensions of LF355H:
LF355H has 8 terminals. Its terminal position type is: BOTTOM. Total pins: 8
LF355H amplifier additional information:
LF355H adopts the VOLTAGE-FEEDBACK architecture. It belongs to the low-bias class of amplifiers. It does not belong to the low offset class of amplifiers. The frequency compensation status of LF355H is: YES. Its temperature grade is: COMMERCIAL.
LF355H is not Rohs certified. The corresponding JESD-30 code is: O-MBCY-W8. The corresponding JESD-609 code is: e0. The materials used in the LF355H package are mostly METAL. And its package shape is ROUND.
The LF355H package pin format is: CYLINDRICAL. Its terminal form is: WIRE.
Basic information of LF355H amplifier:
LF355H is an OPERATIONAL AMPLIFIER. Commonly used packaging methods are TO-99, 8 PIN
LF355H amplifier core information:
The minimum operating temperature of LF355H is and the maximum operating temperature is 70 °C. Its peak reflow temperature is NOT SPECIFIED Its maximum bias current at 25°C is: 0.0002 µA Its maximum average bias current is 0.008 µA
How to simply check the efficiency of an amplifier? Looking at its slew rate, the nominal slew rate of LF355H is 5 V/us. The maximum slew rate of the LF355H given by the manufacturer is 4 mA. Its minimum voltage gain is 15000. When the op amp is used in closed loop, at a certain closed-loop gain (usually 1 or 2, 10, etc.), the frequency when the LF355H gain becomes 0.707 times the low-frequency gain is 2500 kHz.
The nominal supply voltage of LF355H is 15 V, and its corresponding nominal negative supply voltage is -15 V. The power supply range is: +-15 V. The input offset voltage of the LF355H is 13000 µV (input offset voltage: the compensation voltage added between the two input terminals to make the output terminal of the operational amplifier 0V (or close to 0V).)
Related dimensions of LF355H:
LF355H has 8 terminals. Its terminal position type is: BOTTOM. Total pins: 8
LF355H amplifier additional information:
LF355H adopts the VOLTAGE-FEEDBACK architecture. It belongs to the low-bias class of amplifiers. It does not belong to the low offset class of amplifiers. The frequency compensation status of LF355H is: YES. Its temperature grade is: COMMERCIAL.
LF355H is not Rohs certified. The corresponding JESD-30 code is: O-MBCY-W8. The corresponding JESD-609 code is: e0. The materials used in the LF355H package are mostly METAL. And its package shape is ROUND.
The LF355H package pin format is: CYLINDRICAL. Its terminal form is: WIRE.

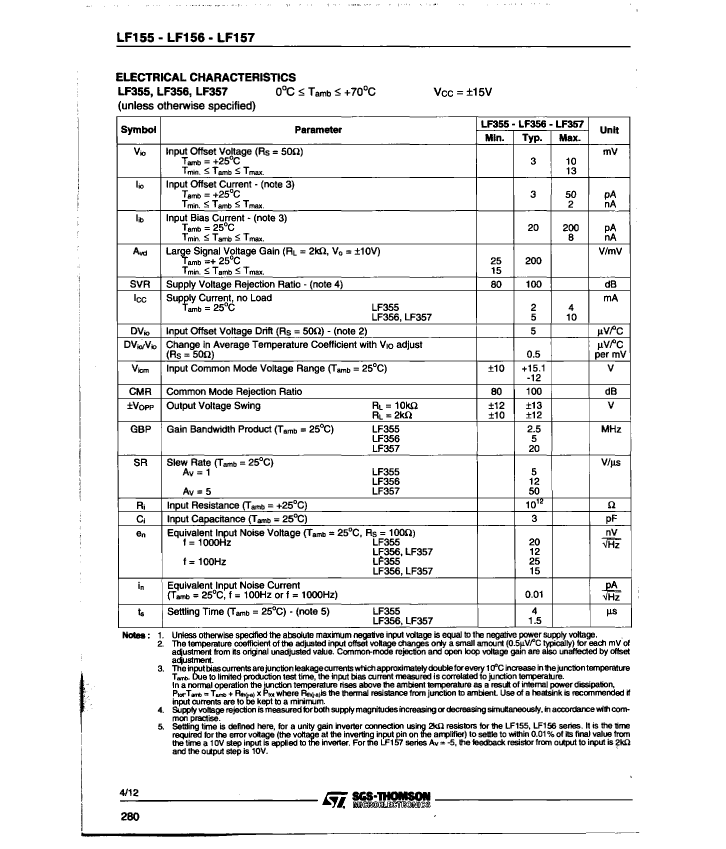

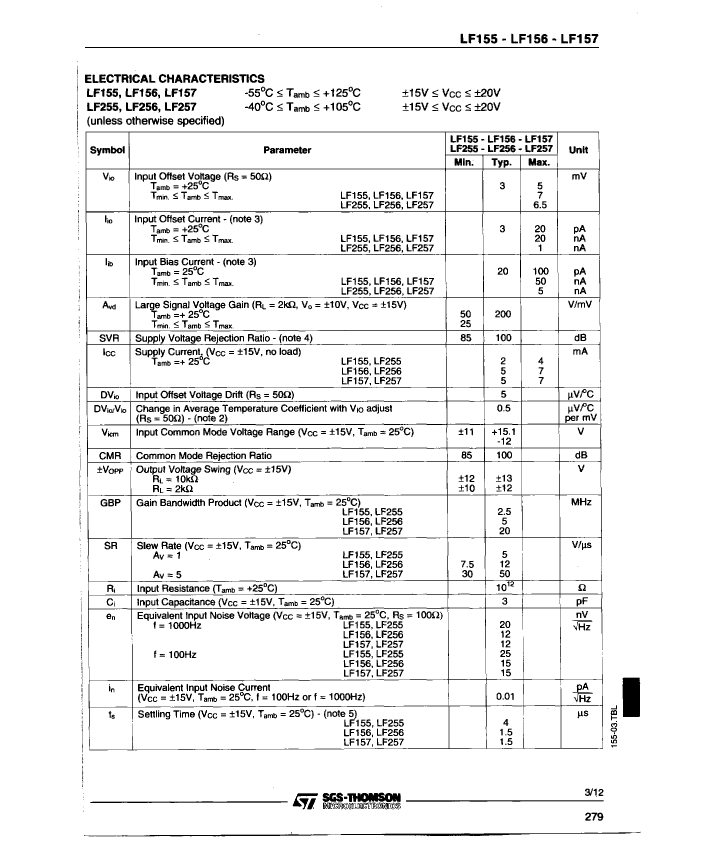

| Parameter Name | Attribute value |
| Is it Rohs certified? | incompatible |
| Maker | STMicroelectronics |
| Parts packaging code | TO-99 |
| package instruction | TO-99, 8 PIN |
| Contacts | 8 |
| Reach Compliance Code | not_compliant |
| ECCN code | EAR99 |
| Is Samacsys | N |
| Amplifier type | OPERATIONAL AMPLIFIER |
| Architecture | VOLTAGE-FEEDBACK |
| Maximum average bias current (IIB) | 0.008 µA |
| Maximum bias current (IIB) at 25C | 0.0002 µA |
| Nominal Common Mode Rejection Ratio | 100 dB |
| frequency compensation | YES |
| Maximum input offset voltage | 13000 µV |
| JESD-30 code | O-MBCY-W8 |
| JESD-609 code | e0 |
| low-bias | YES |
| low-dissonance | NO |
| Nominal Negative Supply Voltage (Vsup) | -15 V |
| Number of functions | 1 |
| Number of terminals | 8 |
| Maximum operating temperature | 70 °C |
| Minimum operating temperature | |
| Package body material | METAL |
| Encapsulate equivalent code | CAN8,.2 |
| Package shape | ROUND |
| Package form | CYLINDRICAL |
| Peak Reflow Temperature (Celsius) | NOT SPECIFIED |
| power supply | +-15 V |
| Certification status | Not Qualified |
| Nominal slew rate | 5 V/us |
| Maximum slew rate | 4 mA |
| Supply voltage upper limit | 18 V |
| Nominal supply voltage (Vsup) | 15 V |
| surface mount | NO |
| technology | BIPOLAR |
| Temperature level | COMMERCIAL |
| Terminal surface | Tin/Lead (Sn/Pb) |
| Terminal form | WIRE |
| Terminal location | BOTTOM |
| Maximum time at peak reflow temperature | NOT SPECIFIED |
| Nominal Uniform Gain Bandwidth | 2500 kHz |
| Minimum voltage gain | 15000 |
| Base Number Matches | 1 |
| LF355H | LF255H | LF356H | LF256H | LF357H | LF257H | |
|---|---|---|---|---|---|---|
| Description | OP-AMP, 13000uV OFFSET-MAX, 2.5MHz BAND WIDTH, MBCY8, TO-99, 8 PIN | OP-AMP, 6500uV OFFSET-MAX, 2.5MHz BAND WIDTH, MBCY8, TO-99, 8 PIN | OP-AMP, 13000uV OFFSET-MAX, 5MHz BAND WIDTH, MBCY8, TO-99, 8 PIN | OP-AMP, 6500uV OFFSET-MAX, 5MHz BAND WIDTH, MBCY8, TO-99, 8 PIN | OP-AMP, 13000uV OFFSET-MAX, 20MHz BAND WIDTH, MBCY8, TO-99, 8 PIN | OP-AMP, 6500uV OFFSET-MAX, 20MHz BAND WIDTH, MBCY8, TO-99, 8 PIN |
| Is it Rohs certified? | incompatible | incompatible | incompatible | incompatible | incompatible | incompatible |
| Parts packaging code | TO-99 | TO-99 | TO-99 | TO-99 | TO-99 | TO-99 |
| package instruction | TO-99, 8 PIN | TO-99, 8 PIN | TO-99, 8 PIN | , CAN8,.2 | , CAN8,.2 | , CAN8,.2 |
| Contacts | 8 | 8 | 8 | 8 | 8 | 8 |
| Reach Compliance Code | not_compliant | not_compliant | not_compliant | not_compliant | not_compliant | not_compliant |
| ECCN code | EAR99 | EAR99 | EAR99 | EAR99 | EAR99 | EAR99 |
| Amplifier type | OPERATIONAL AMPLIFIER | OPERATIONAL AMPLIFIER | OPERATIONAL AMPLIFIER | OPERATIONAL AMPLIFIER | OPERATIONAL AMPLIFIER | OPERATIONAL AMPLIFIER |
| Architecture | VOLTAGE-FEEDBACK | VOLTAGE-FEEDBACK | VOLTAGE-FEEDBACK | VOLTAGE-FEEDBACK | VOLTAGE-FEEDBACK | VOLTAGE-FEEDBACK |
| Maximum average bias current (IIB) | 0.008 µA | 0.005 µA | 0.008 µA | 0.005 µA | 0.008 µA | 0.005 µA |
| Maximum bias current (IIB) at 25C | 0.0002 µA | 0.0001 µA | 0.0002 µA | 0.0001 µA | 0.0002 µA | 0.0001 µA |
| Nominal Common Mode Rejection Ratio | 100 dB | 100 dB | 100 dB | 100 dB | 100 dB | 100 dB |
| frequency compensation | YES | YES | YES | YES | YES (AVCL>=5) | YES (AVCL>=5) |
| Maximum input offset voltage | 13000 µV | 6500 µV | 13000 µV | 6500 µV | 13000 µV | 6500 µV |
| JESD-30 code | O-MBCY-W8 | O-MBCY-W8 | O-MBCY-W8 | O-MBCY-W8 | O-MBCY-W8 | O-MBCY-W8 |
| JESD-609 code | e0 | e0 | e0 | e0 | e0 | e0 |
| low-bias | YES | YES | YES | YES | YES | YES |
| low-dissonance | NO | NO | NO | NO | NO | NO |
| Nominal Negative Supply Voltage (Vsup) | -15 V | -20 V | -15 V | -20 V | -15 V | -20 V |
| Number of functions | 1 | 1 | 1 | 1 | 1 | 1 |
| Number of terminals | 8 | 8 | 8 | 8 | 8 | 8 |
| Maximum operating temperature | 70 °C | 105 °C | 70 °C | 105 °C | 70 °C | 105 °C |
| Package body material | METAL | METAL | METAL | METAL | METAL | METAL |
| Encapsulate equivalent code | CAN8,.2 | CAN8,.2 | CAN8,.2 | CAN8,.2 | CAN8,.2 | CAN8,.2 |
| Package shape | ROUND | ROUND | ROUND | ROUND | ROUND | ROUND |
| Package form | CYLINDRICAL | CYLINDRICAL | CYLINDRICAL | CYLINDRICAL | CYLINDRICAL | CYLINDRICAL |
| Peak Reflow Temperature (Celsius) | NOT SPECIFIED | NOT SPECIFIED | NOT SPECIFIED | NOT SPECIFIED | NOT SPECIFIED | NOT SPECIFIED |
| power supply | +-15 V | +-15/+-20 V | +-15 V | +-15/+-20 V | +-15 V | +-15/+-20 V |
| Certification status | Not Qualified | Not Qualified | Not Qualified | Not Qualified | Not Qualified | Not Qualified |
| Nominal slew rate | 5 V/us | 5 V/us | 12 V/us | 12 V/us | 50 V/us | 50 V/us |
| Maximum slew rate | 4 mA | 4 mA | 10 mA | 7 mA | 10 mA | 7 mA |
| Supply voltage upper limit | 18 V | 22 V | 18 V | 22 V | 18 V | 22 V |
| Nominal supply voltage (Vsup) | 15 V | 20 V | 15 V | 20 V | 15 V | 20 V |
| surface mount | NO | NO | NO | NO | NO | NO |
| technology | BIPOLAR | BIPOLAR | BIPOLAR | BIPOLAR | BIPOLAR | BIPOLAR |
| Temperature level | COMMERCIAL | INDUSTRIAL | COMMERCIAL | INDUSTRIAL | COMMERCIAL | INDUSTRIAL |
| Terminal surface | Tin/Lead (Sn/Pb) | Tin/Lead (Sn/Pb) | Tin/Lead (Sn/Pb) | Tin/Lead (Sn/Pb) | Tin/Lead (Sn/Pb) | Tin/Lead (Sn/Pb) |
| Terminal form | WIRE | WIRE | WIRE | WIRE | WIRE | WIRE |
| Terminal location | BOTTOM | BOTTOM | BOTTOM | BOTTOM | BOTTOM | BOTTOM |
| Maximum time at peak reflow temperature | NOT SPECIFIED | NOT SPECIFIED | NOT SPECIFIED | NOT SPECIFIED | NOT SPECIFIED | NOT SPECIFIED |
| Nominal Uniform Gain Bandwidth | 2500 kHz | 2500 kHz | 5000 kHz | 5000 kHz | 20000 kHz | 20000 kHz |
| Minimum voltage gain | 15000 | 25000 | 15000 | 25000 | 15000 | 25000 |
| Maker | STMicroelectronics | STMicroelectronics | - | STMicroelectronics | STMicroelectronics | STMicroelectronics |
| Is it lead-free? | - | - | Contains lead | Contains lead | Contains lead | Contains lead |
