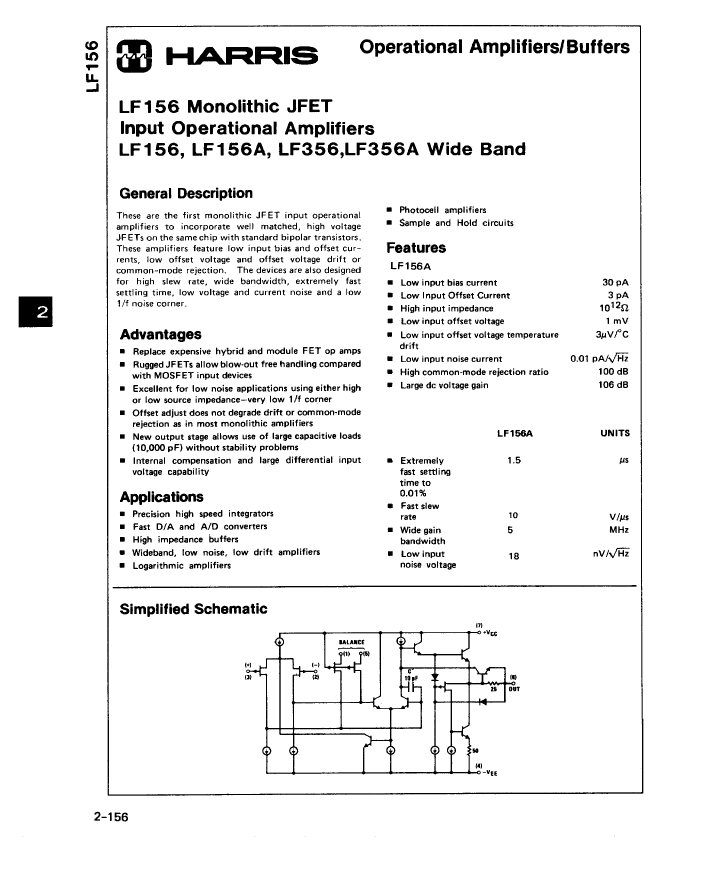

Basic information of LF156H amplifier:
LF156H is an OPERATIONAL AMPLIFIER.
LF156H amplifier core information:

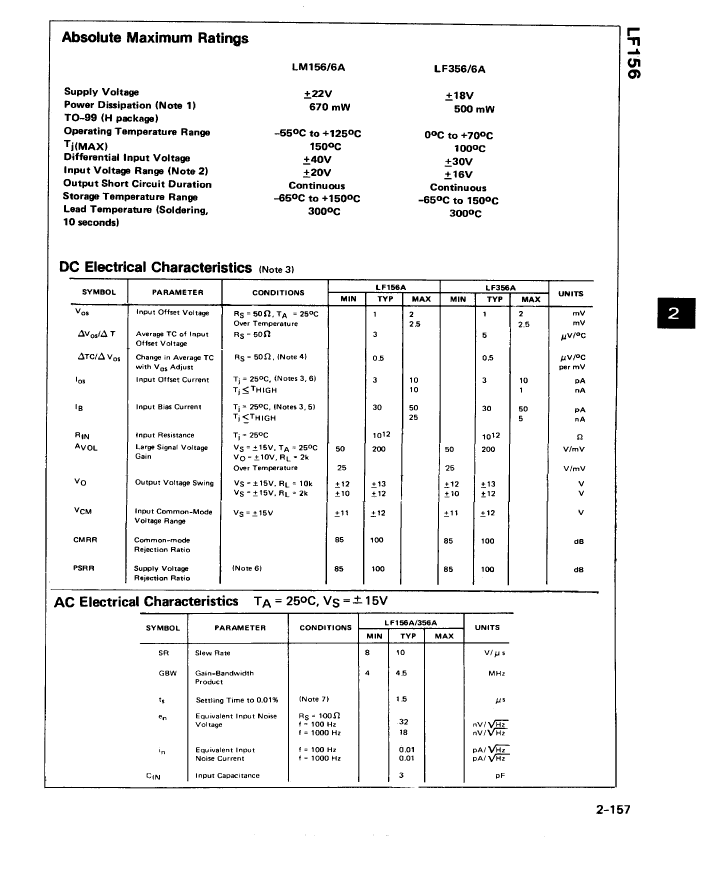

The minimum operating temperature of LF156H is -55 °C and the maximum operating temperature is 125 °C.
The power supply range is: +-15/+-20 V. The input offset voltage of the LF156H is 7000 µV (input offset voltage: the compensation voltage added between the two input terminals to make the output terminal of the operational amplifier 0V (or close to 0V).)
Related dimensions of LF156H:
LF156H has 8 terminals. Its terminal position type is: BOTTOM.
LF156H amplifier additional information:
LF156H adopts the VOLTAGE-FEEDBACK architecture. It belongs to the low-bias class of amplifiers. It does not belong to the low offset class of amplifiers. The frequency compensation status of LF156H is: YES. Its temperature grade is: MILITARY.
LF156H is not Rohs certified. The corresponding JESD-30 code is: O-MBCY-W8. The corresponding JESD-609 code is: e0. The materials used in the LF156H package are mostly METAL. And its package shape is ROUND.
The LF156H package pin format is: CYLINDRICAL. Its terminal form is: WIRE.
Basic information of LF156H amplifier:
LF156H is an OPERATIONAL AMPLIFIER.
LF156H amplifier core information:
The minimum operating temperature of LF156H is -55 °C and the maximum operating temperature is 125 °C.
The power supply range is: +-15/+-20 V. The input offset voltage of the LF156H is 7000 µV (input offset voltage: the compensation voltage added between the two input terminals to make the output terminal of the operational amplifier 0V (or close to 0V).)
Related dimensions of LF156H:
LF156H has 8 terminals. Its terminal position type is: BOTTOM.
LF156H amplifier additional information:
LF156H adopts the VOLTAGE-FEEDBACK architecture. It belongs to the low-bias class of amplifiers. It does not belong to the low offset class of amplifiers. The frequency compensation status of LF156H is: YES. Its temperature grade is: MILITARY.
LF156H is not Rohs certified. The corresponding JESD-30 code is: O-MBCY-W8. The corresponding JESD-609 code is: e0. The materials used in the LF156H package are mostly METAL. And its package shape is ROUND.
The LF156H package pin format is: CYLINDRICAL. Its terminal form is: WIRE.

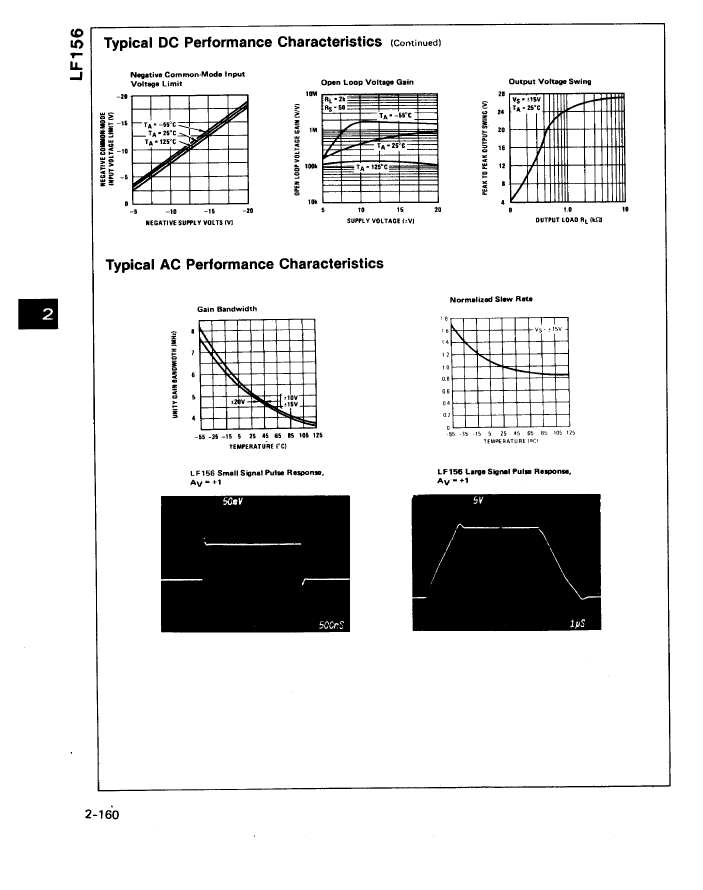

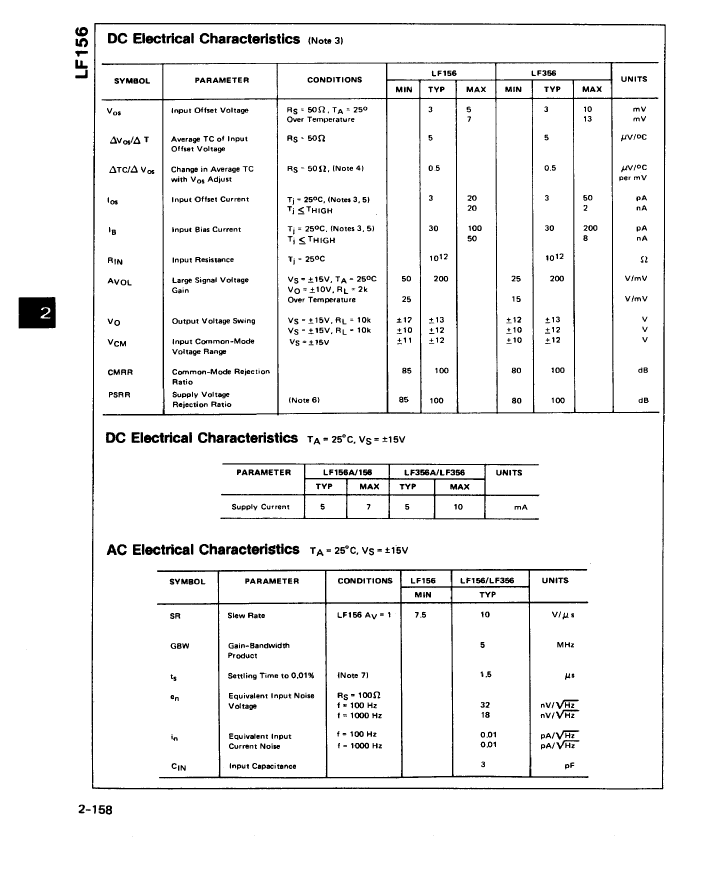

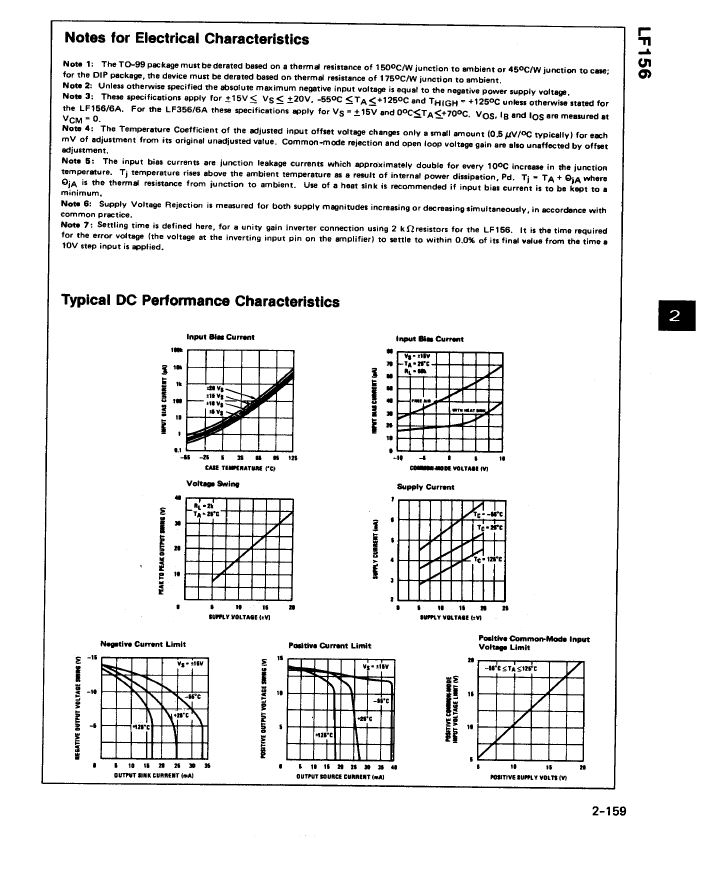

| Parameter Name | Attribute value |
| Is it Rohs certified? | incompatible |
| Maker | Harris |
| Reach Compliance Code | unknown |
| Is Samacsys | N |
| Amplifier type | OPERATIONAL AMPLIFIER |
| Architecture | VOLTAGE-FEEDBACK |
| frequency compensation | YES |
| Maximum input offset voltage | 7000 µV |
| JESD-30 code | O-MBCY-W8 |
| JESD-609 code | e0 |
| low-bias | YES |
| low-dissonance | NO |
| Number of functions | 1 |
| Number of terminals | 8 |
| Maximum operating temperature | 125 °C |
| Minimum operating temperature | -55 °C |
| Package body material | METAL |
| Encapsulate equivalent code | CAN8,.2 |
| Package shape | ROUND |
| Package form | CYLINDRICAL |
| power supply | +-15/+-20 V |
| Certification status | Not Qualified |
| Temperature level | MILITARY |
| Terminal surface | Tin/Lead (Sn/Pb) |
| Terminal form | WIRE |
| Terminal location | BOTTOM |
| Base Number Matches | 1 |
| LF156H | LF156AH | LF356H | LF356N | LF356AH | |
|---|---|---|---|---|---|
| Description | Operational Amplifier, 1 Func, 7000uV Offset-Max, MBCY8 | Operational Amplifier, 1 Func, 2500uV Offset-Max, MBCY8 | Operational Amplifier, 1 Func, 13000uV Offset-Max, MBCY8 | Operational Amplifier, 1 Func, 13000uV Offset-Max, PDIP8 | Operational Amplifier, 1 Func, 2500uV Offset-Max, MBCY8 |
| Is it Rohs certified? | incompatible | incompatible | incompatible | incompatible | incompatible |
| Reach Compliance Code | unknown | unknown | unknown | unknown | unknown |
| Amplifier type | OPERATIONAL AMPLIFIER | OPERATIONAL AMPLIFIER | OPERATIONAL AMPLIFIER | OPERATIONAL AMPLIFIER | OPERATIONAL AMPLIFIER |
| Architecture | VOLTAGE-FEEDBACK | VOLTAGE-FEEDBACK | VOLTAGE-FEEDBACK | VOLTAGE-FEEDBACK | VOLTAGE-FEEDBACK |
| frequency compensation | YES | YES | YES | YES | YES |
| Maximum input offset voltage | 7000 µV | 2500 µV | 13000 µV | 13000 µV | 2500 µV |
| JESD-30 code | O-MBCY-W8 | O-MBCY-W8 | O-MBCY-W8 | R-PDIP-T8 | O-MBCY-W8 |
| JESD-609 code | e0 | e0 | e0 | e0 | e0 |
| low-bias | YES | YES | YES | YES | YES |
| low-dissonance | NO | NO | NO | NO | NO |
| Number of functions | 1 | 1 | 1 | 1 | 1 |
| Number of terminals | 8 | 8 | 8 | 8 | 8 |
| Maximum operating temperature | 125 °C | 125 °C | 70 °C | 70 °C | 70 °C |
| Package body material | METAL | METAL | METAL | PLASTIC/EPOXY | METAL |
| Encapsulate equivalent code | CAN8,.2 | CAN8,.2 | CAN8,.2 | DIP8,.3 | CAN8,.2 |
| Package shape | ROUND | ROUND | ROUND | RECTANGULAR | ROUND |
| Package form | CYLINDRICAL | CYLINDRICAL | CYLINDRICAL | IN-LINE | CYLINDRICAL |
| power supply | +-15/+-20 V | +-15/+-20 V | +-15/+-20 V | +-15/+-20 V | +-15/+-20 V |
| Certification status | Not Qualified | Not Qualified | Not Qualified | Not Qualified | Not Qualified |
| Temperature level | MILITARY | MILITARY | COMMERCIAL | COMMERCIAL | COMMERCIAL |
| Terminal surface | Tin/Lead (Sn/Pb) | Tin/Lead (Sn/Pb) | Tin/Lead (Sn/Pb) | Tin/Lead (Sn/Pb) | Tin/Lead (Sn/Pb) |
| Terminal form | WIRE | WIRE | WIRE | THROUGH-HOLE | WIRE |
| Terminal location | BOTTOM | BOTTOM | BOTTOM | DUAL | BOTTOM |
| Maker | Harris | - | - | Harris | Harris |
| Base Number Matches | 1 | 1 | 1 | - | - |
