HB56AW232D-7B datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > storage> storage> HB56AW232D-7B

HB56AW232D-7B: DescriptionFast Page DRAM Module, 2MX32, 70ns, MOS, DIMM-72; Categorystorage storage; File Size265KB，12 Pages; ManufacturerHitachi （Renesas ）; Websitehttp://www.renesas.com/eng/

Download Datasheet Parametric Compare View All

HB56AW232D-7B Overview

Fast Page DRAM Module, 2MX32, 70ns, MOS, DIMM-72

HB56AW232D-7B Parametric

Parameter Name	Attribute value
Maker	Hitachi （Renesas ）
Parts packaging code	DIMM
package instruction	,
Contacts	72
Reach Compliance Code	unknown
ECCN code	EAR99
Is Samacsys	N
access mode	FAST PAGE
Maximum access time	70 ns
Other features	RAS ONLY/CAS BEFORE RAS/HIDDEN REFRESH
Spare memory width	16
JESD-30 code	R-XDMA-N72
memory density	67108864 bit
Memory IC Type	FAST PAGE DRAM MODULE
memory width	32
Number of functions	1
Number of ports	1
Number of terminals	72
word count	2097152 words
character code	2000000
Operating mode	ASYNCHRONOUS
Maximum operating temperature	70 °C
Minimum operating temperature
organize	2MX32
Output characteristics	3-STATE
Package body material	UNSPECIFIED
Package shape	RECTANGULAR
Package form	MICROELECTRONIC ASSEMBLY
Certification status	Not Qualified
refresh cycle	2048
Maximum supply voltage (Vsup)	3.6 V
Minimum supply voltage (Vsup)	3 V
Nominal supply voltage (Vsup)	3.3 V
surface mount	NO
technology	MOS
Temperature level	COMMERCIAL
Terminal form	NO LEAD
Terminal location	DUAL
Base Number Matches	1

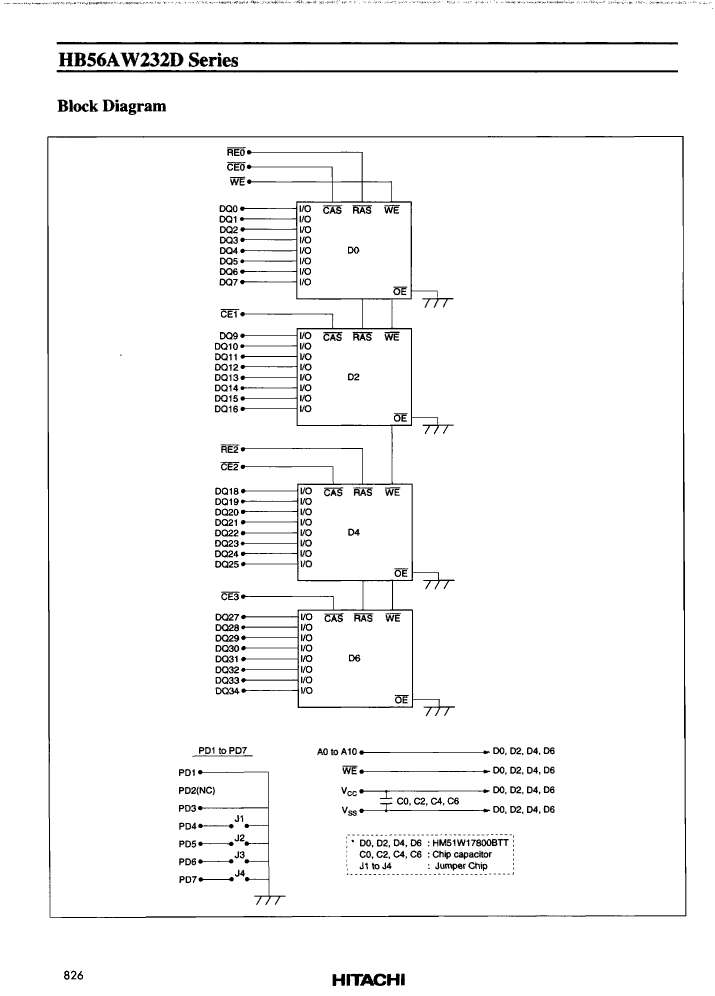

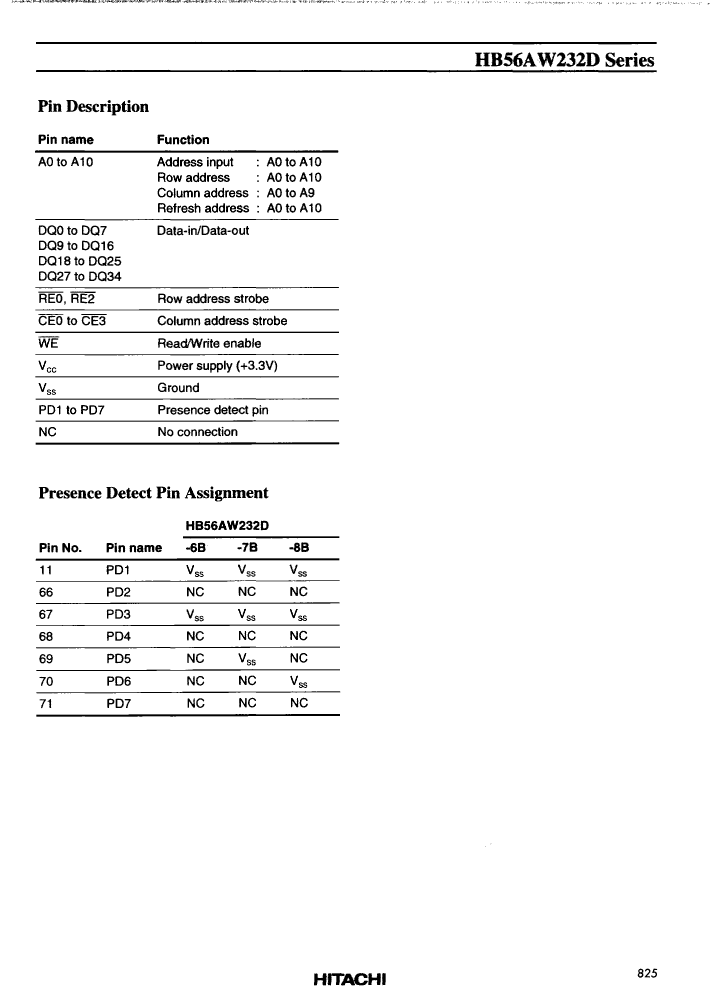

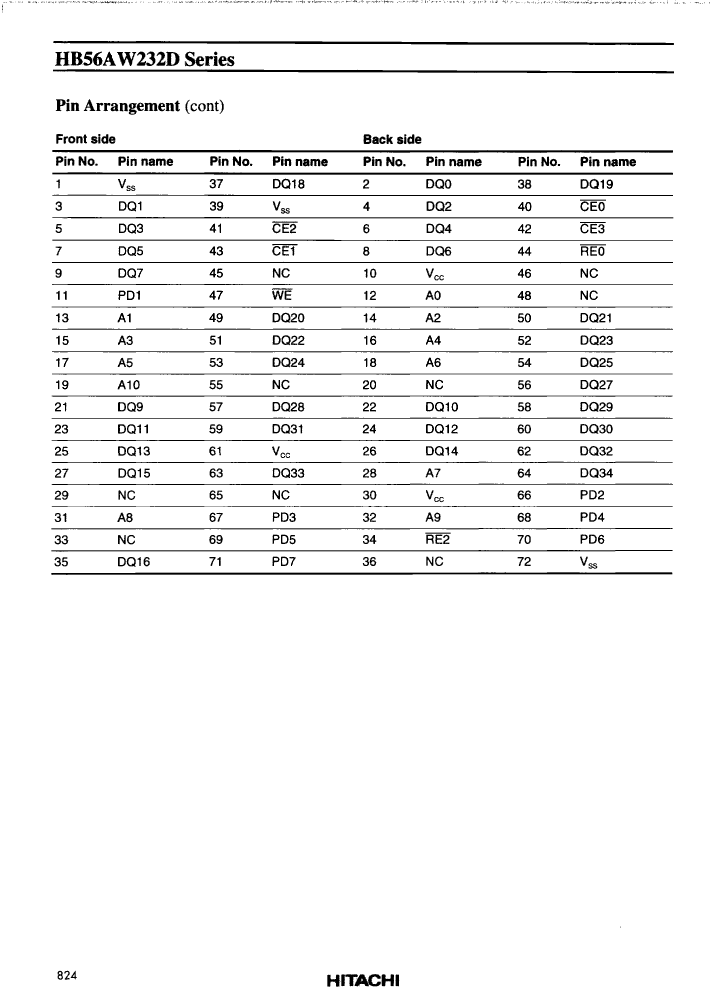

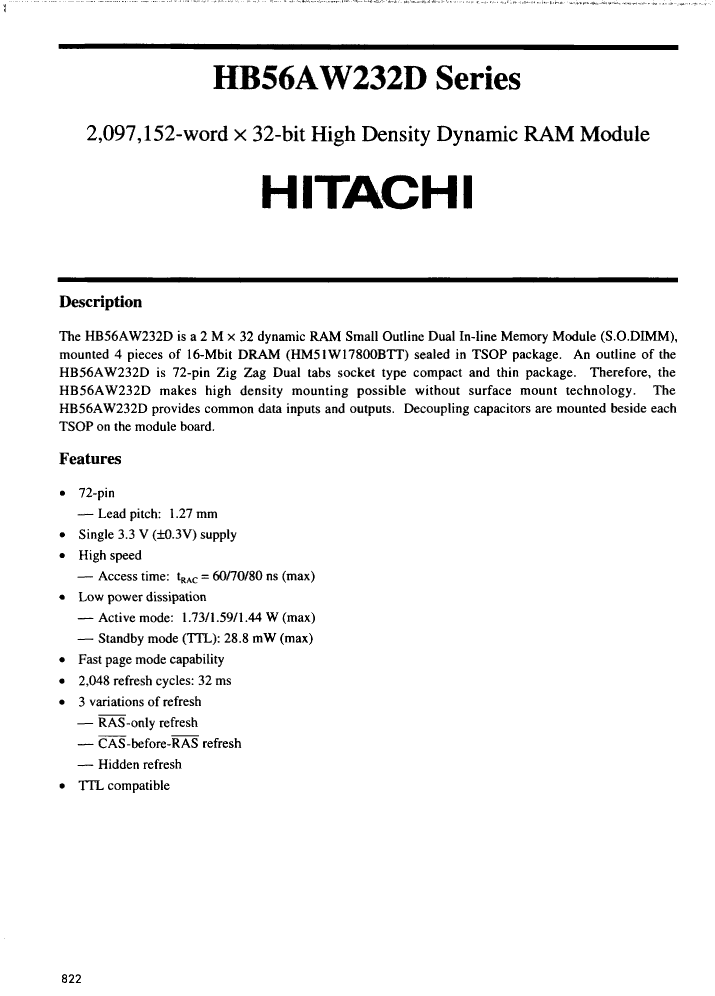

Preview

Download Datasheet

View All

HB56AW232D-7B Related Products

	HB56AW232D-7B	HB56AW232D-6B	HB56AW232D-8B
Description	Fast Page DRAM Module, 2MX32, 70ns, MOS, DIMM-72	Fast Page DRAM Module, 2MX32, 60ns, MOS, DIMM-72	Fast Page DRAM Module, 2MX32, 80ns, MOS, DIMM-72
Maker	Hitachi （Renesas ）	Hitachi （Renesas ）	Hitachi （Renesas ）
Parts packaging code	DIMM	DIMM	DIMM
Contacts	72	72	72
Reach Compliance Code	unknown	unknown	unknown
ECCN code	EAR99	EAR99	EAR99
access mode	FAST PAGE	FAST PAGE	FAST PAGE
Maximum access time	70 ns	60 ns	80 ns
Other features	RAS ONLY/CAS BEFORE RAS/HIDDEN REFRESH	RAS ONLY/CAS BEFORE RAS/HIDDEN REFRESH	RAS ONLY/CAS BEFORE RAS/HIDDEN REFRESH
Spare memory width	16	16	16
JESD-30 code	R-XDMA-N72	R-XDMA-N72	R-XDMA-N72
memory density	67108864 bit	67108864 bit	67108864 bit
Memory IC Type	FAST PAGE DRAM MODULE	FAST PAGE DRAM MODULE	FAST PAGE DRAM MODULE
memory width	32	32	32
Number of functions	1	1	1
Number of ports	1	1	1
Number of terminals	72	72	72
word count	2097152 words	2097152 words	2097152 words
character code	2000000	2000000	2000000
Operating mode	ASYNCHRONOUS	ASYNCHRONOUS	ASYNCHRONOUS
Maximum operating temperature	70 °C	70 °C	70 °C
organize	2MX32	2MX32	2MX32
Output characteristics	3-STATE	3-STATE	3-STATE
Package body material	UNSPECIFIED	UNSPECIFIED	UNSPECIFIED
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	MICROELECTRONIC ASSEMBLY	MICROELECTRONIC ASSEMBLY	MICROELECTRONIC ASSEMBLY
Certification status	Not Qualified	Not Qualified	Not Qualified
refresh cycle	2048	2048	2048
Maximum supply voltage (Vsup)	3.6 V	3.6 V	3.6 V
Minimum supply voltage (Vsup)	3 V	3 V	3 V
Nominal supply voltage (Vsup)	3.3 V	3.3 V	3.3 V
surface mount	NO	NO	NO
technology	MOS	MOS	MOS
Temperature level	COMMERCIAL	COMMERCIAL	COMMERCIAL
Terminal form	NO LEAD	NO LEAD	NO LEAD
Terminal location	DUAL	DUAL	DUAL
Is Samacsys	N	N	-
Base Number Matches	1	1	-
