52480-09610: DescriptionBoard Euro Connector, 96 Contact(s), 3 Row(s), Female, Straight, Solder Terminal, LEAD FREE; CategoryThe connector The connector; File Size280KB，4 Pages; ManufacturerMolex; Websitehttps://www.molex.com/molex/home

Download Datasheet Parametric Compare View All

52480-09610 Overview

Board Euro Connector, 96 Contact(s), 3 Row(s), Female, Straight, Solder Terminal, LEAD FREE

52480-09610 Parametric

Parameter Name	Attribute value
Maker	Molex
package instruction	LEAD FREE
Reach Compliance Code	unknown
ECCN code	EAR99
Is Samacsys	N
Connector type	BOARD EURO CONNECTOR
Contact to complete cooperation	GOLD (4) OVER NICKEL
Contact completed and terminated	TIN (39) OVER NICKEL
Contact point gender	FEMALE
DIN compliance	NO
Filter function	NO
IEC compliance	NO
JESD-609 code	e3
MIL compliance	NO
Manufacturer's serial number	52480
Mixed contacts	NO
Installation method	STRAIGHT
Installation type	BOARD
Number of rows loaded	3
Options	GENERAL PURPOSE
Terminal pitch	2.54 mm
Termination type	SOLDER
Total number of contacts	96
UL Flammability Code	94V-0
Base Number Matches	1

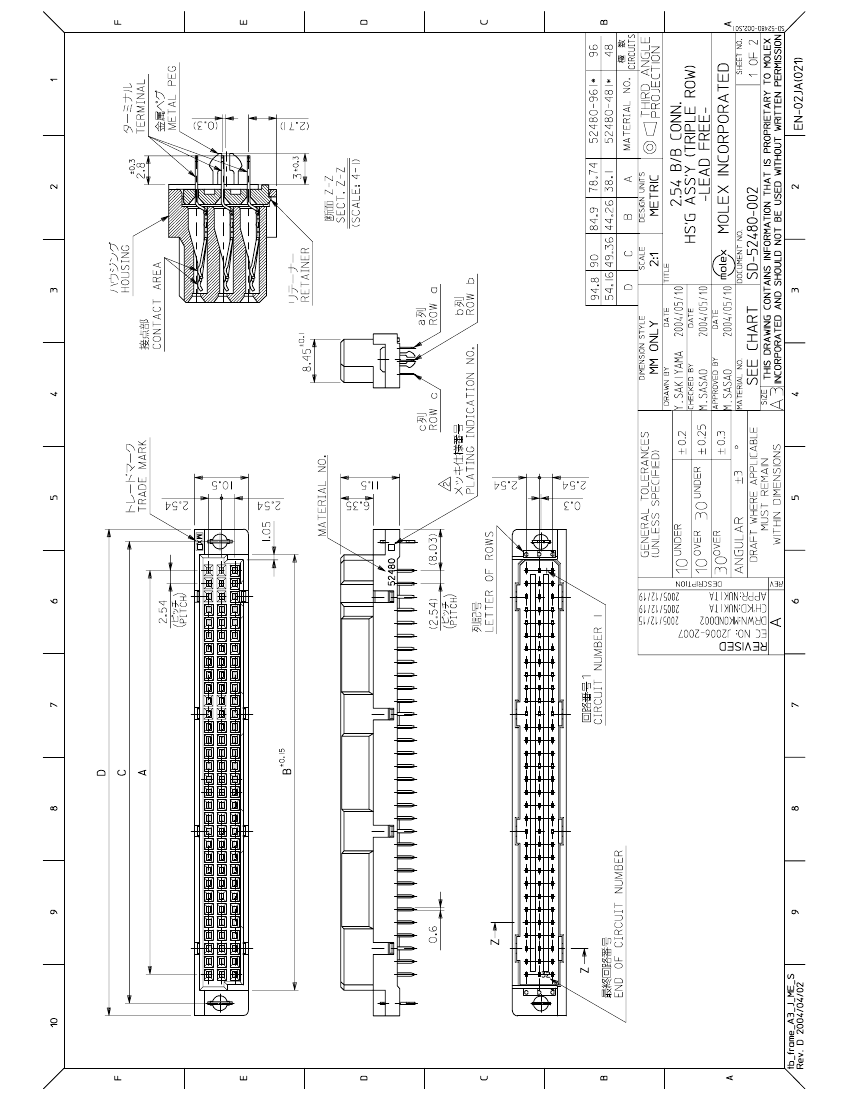

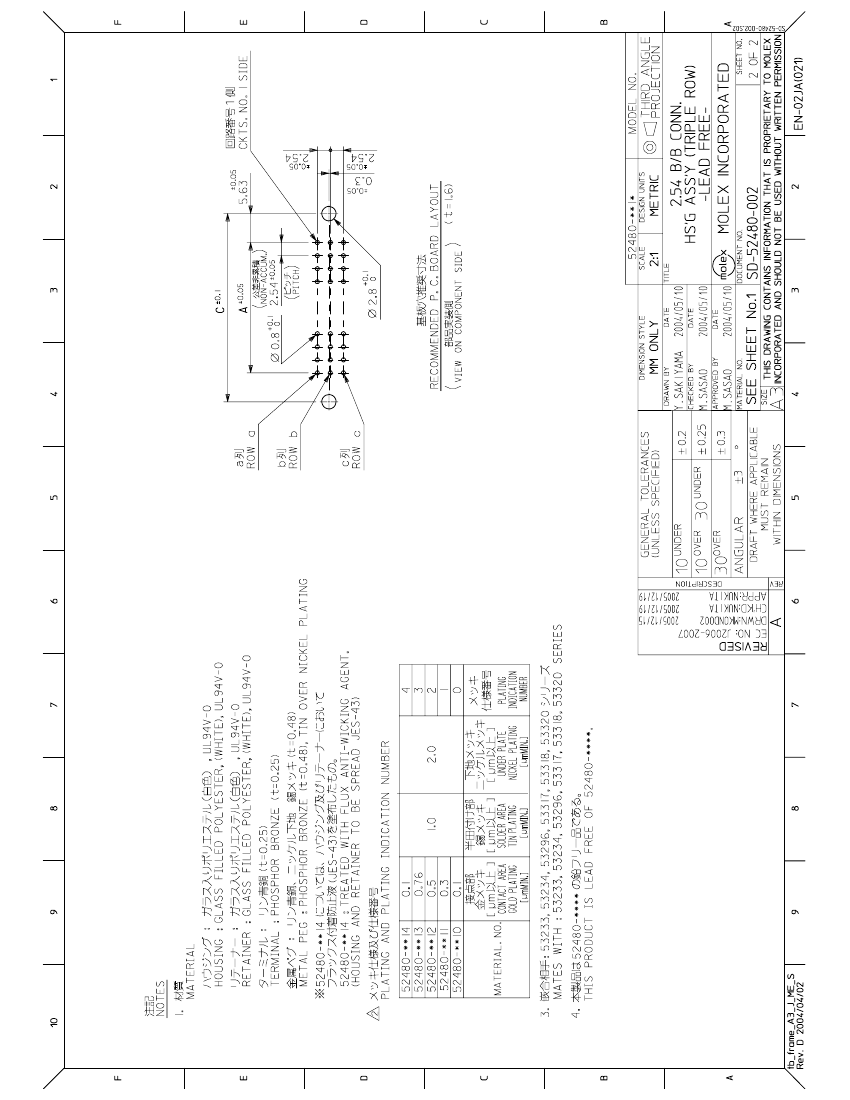

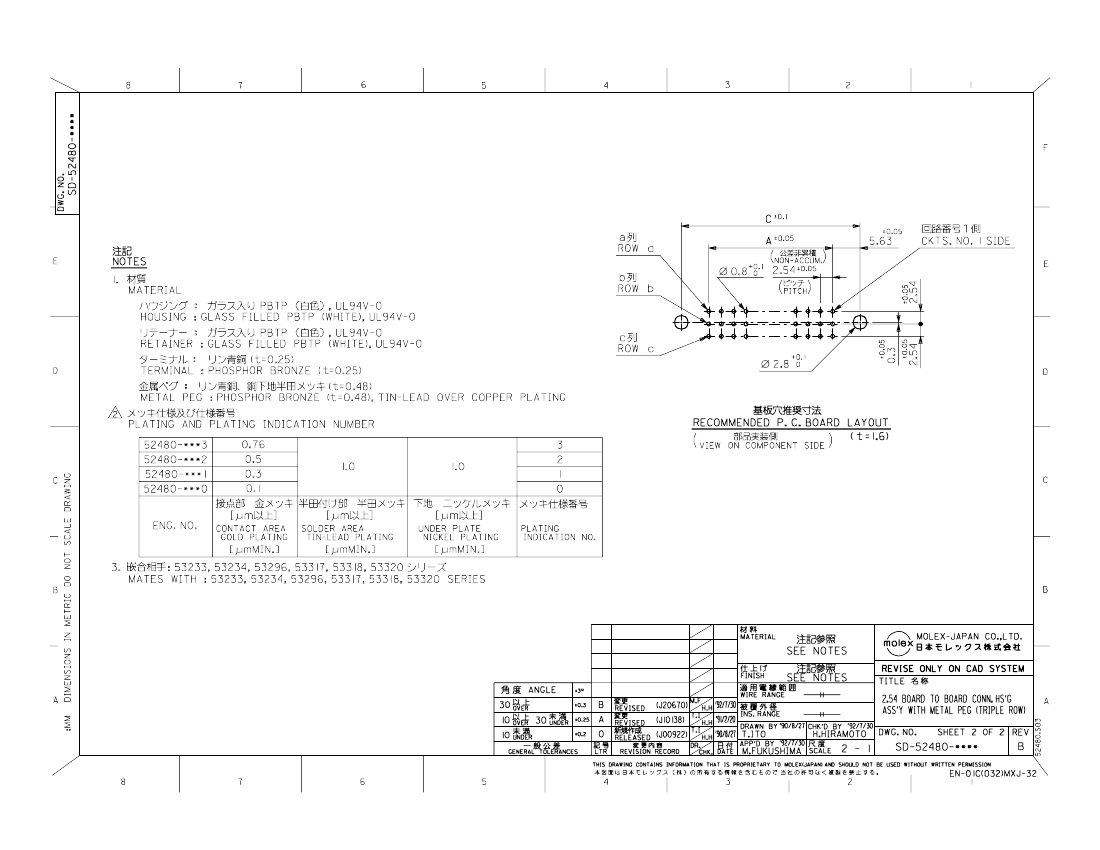

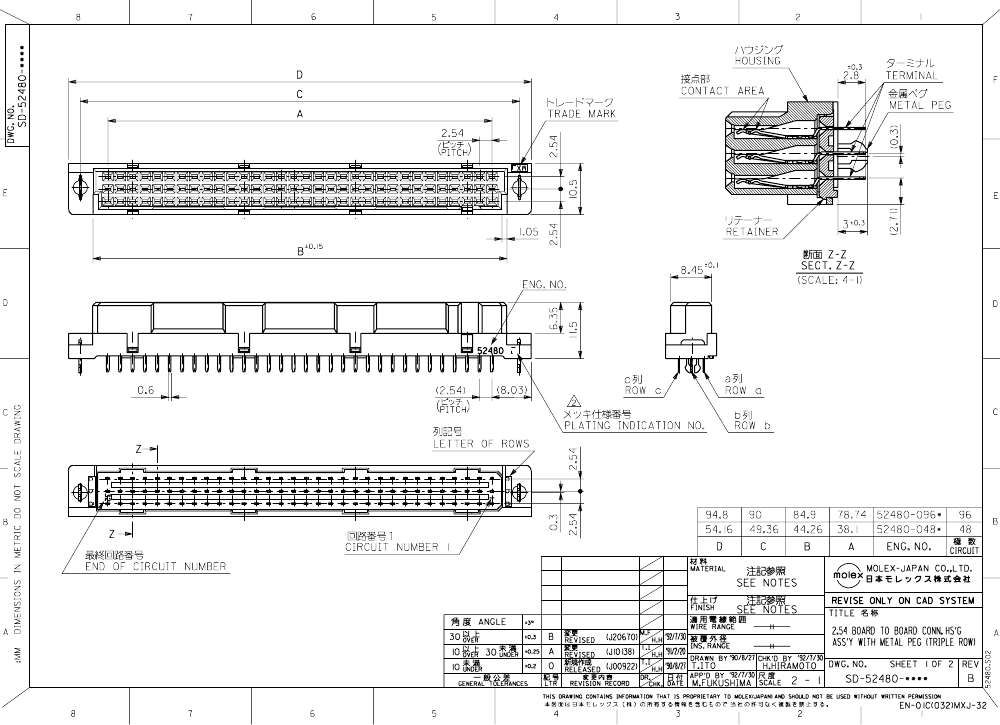

Preview

Download Datasheet

View All

52480-09610 Related Products

	52480-09610	52480-09614	52480-09613	52480-09611	52480-04812	52480-04810	52480-04813	52480-04811	52480-04814	52480-09612
Description	Board Euro Connector, 96 Contact(s), 3 Row(s), Female, Straight, Solder Terminal, LEAD FREE	Board Euro Connector, 96 Contact(s), 3 Row(s), Female, Straight, Solder Terminal, LEAD FREE	Board Euro Connector, 96 Contact(s), 3 Row(s), Female, Straight, Solder Terminal, LEAD FREE	Board Euro Connector, 96 Contact(s), 3 Row(s), Female, Straight, Solder Terminal, LEAD FREE	Board Euro Connector, 48 Contact(s), 3 Row(s), Female, Straight, Solder Terminal, LEAD FREE	Board Euro Connector, 48 Contact(s), 3 Row(s), Female, Straight, Solder Terminal, LEAD FREE	Board Euro Connector, 48 Contact(s), 3 Row(s), Female, Straight, Solder Terminal, LEAD FREE	Board Euro Connector, 48 Contact(s), 3 Row(s), Female, Straight, Solder Terminal, LEAD FREE	Board Euro Connector, 48 Contact(s), 3 Row(s), Female, Straight, Solder Terminal, LEAD FREE	Board Euro Connector, 96 Contact(s), 3 Row(s), Female, Straight, Solder Terminal, LEAD FREE
Maker	Molex	Molex	Molex	Molex	Molex	Molex	Molex	Molex	Molex	Molex
package instruction	LEAD FREE	LEAD FREE	LEAD FREE	LEAD FREE	LEAD FREE	LEAD FREE	LEAD FREE	LEAD FREE	LEAD FREE	LEAD FREE
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown	unknown	unknown	unknown	unknown	unknown
Connector type	BOARD EURO CONNECTOR	BOARD EURO CONNECTOR	BOARD EURO CONNECTOR	BOARD EURO CONNECTOR	BOARD EURO CONNECTOR	BOARD EURO CONNECTOR	BOARD EURO CONNECTOR	BOARD EURO CONNECTOR	BOARD EURO CONNECTOR	BOARD EURO CONNECTOR
Contact to complete cooperation	GOLD (4) OVER NICKEL	GOLD (4) OVER NICKEL	GOLD (30) OVER NICKEL	GOLD (12) OVER NICKEL	GOLD (20) OVER NICKEL	GOLD (4) OVER NICKEL	GOLD (30) OVER NICKEL	GOLD (12) OVER NICKEL	GOLD (4) OVER NICKEL	GOLD (20) OVER NICKEL
Contact completed and terminated	TIN (39) OVER NICKEL	TIN (39) OVER NICKEL	TIN (39) OVER NICKEL	TIN (39) OVER NICKEL	TIN (39) OVER NICKEL	TIN (39) OVER NICKEL	TIN (39) OVER NICKEL	TIN (39) OVER NICKEL	TIN (39) OVER NICKEL	TIN (39) OVER NICKEL
Contact point gender	FEMALE	FEMALE	FEMALE	FEMALE	FEMALE	FEMALE	FEMALE	FEMALE	FEMALE	FEMALE
DIN compliance	NO	NO	NO	NO	NO	NO	NO	NO	NO	NO
Filter function	NO	NO	NO	NO	NO	NO	NO	NO	NO	NO
IEC compliance	NO	NO	NO	NO	NO	NO	NO	NO	NO	NO
JESD-609 code	e3	e3	e3	e3	e3	e3	e3	e3	e3	e3
MIL compliance	NO	NO	NO	NO	NO	NO	NO	NO	NO	NO
Manufacturer's serial number	52480	52480	52480	52480	52480	52480	52480	52480	52480	52480
Mixed contacts	NO	NO	NO	NO	NO	NO	NO	NO	NO	NO
Installation method	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT
Installation type	BOARD	BOARD	BOARD	BOARD	BOARD	BOARD	BOARD	BOARD	BOARD	BOARD
Number of rows loaded	3	3	3	3	3	3	3	3	3	3
Options	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE
Terminal pitch	2.54 mm	2.54 mm	2.54 mm	2.54 mm	2.54 mm	2.54 mm	2.54 mm	2.54 mm	2.54 mm	2.54 mm
Termination type	SOLDER	SOLDER	SOLDER	SOLDER	SOLDER	SOLDER	SOLDER	SOLDER	SOLDER	SOLDER
Total number of contacts	96	96	96	96	48	48	48	48	48	96
UL Flammability Code	94V-0	94V-0	94V-0	94V-0	94V-0	94V-0	94V-0	94V-0	94V-0	94V-0
