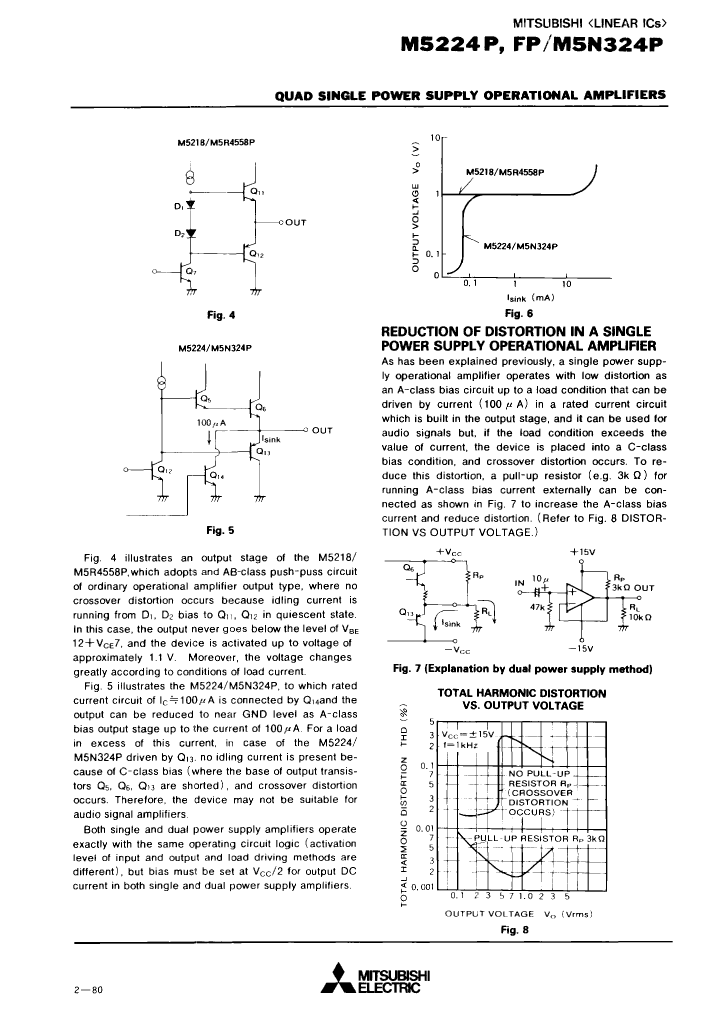

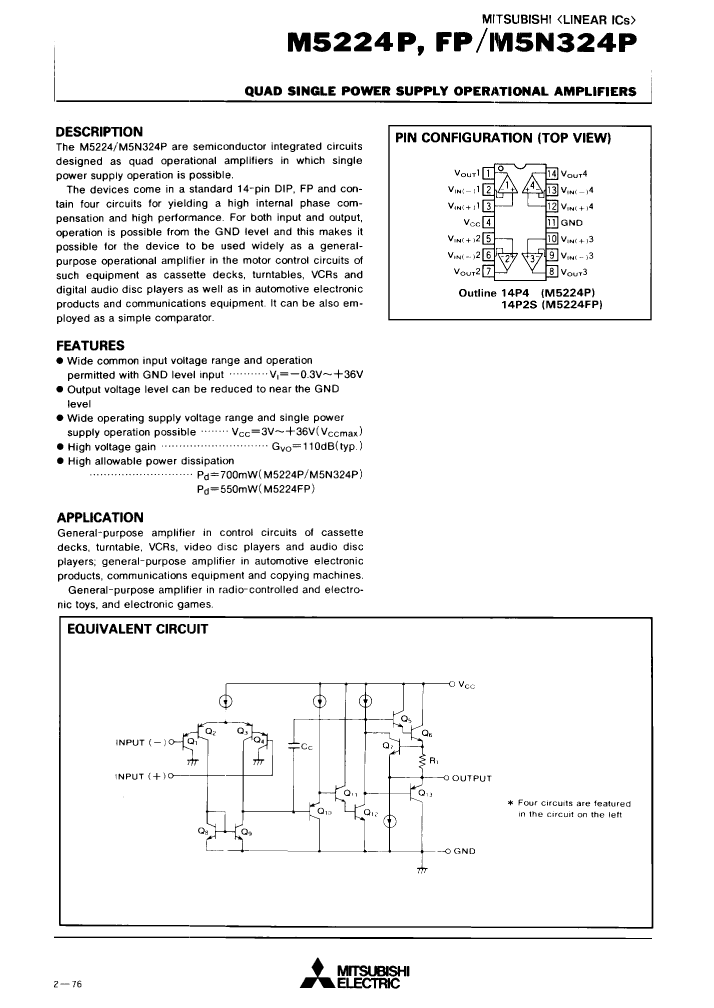

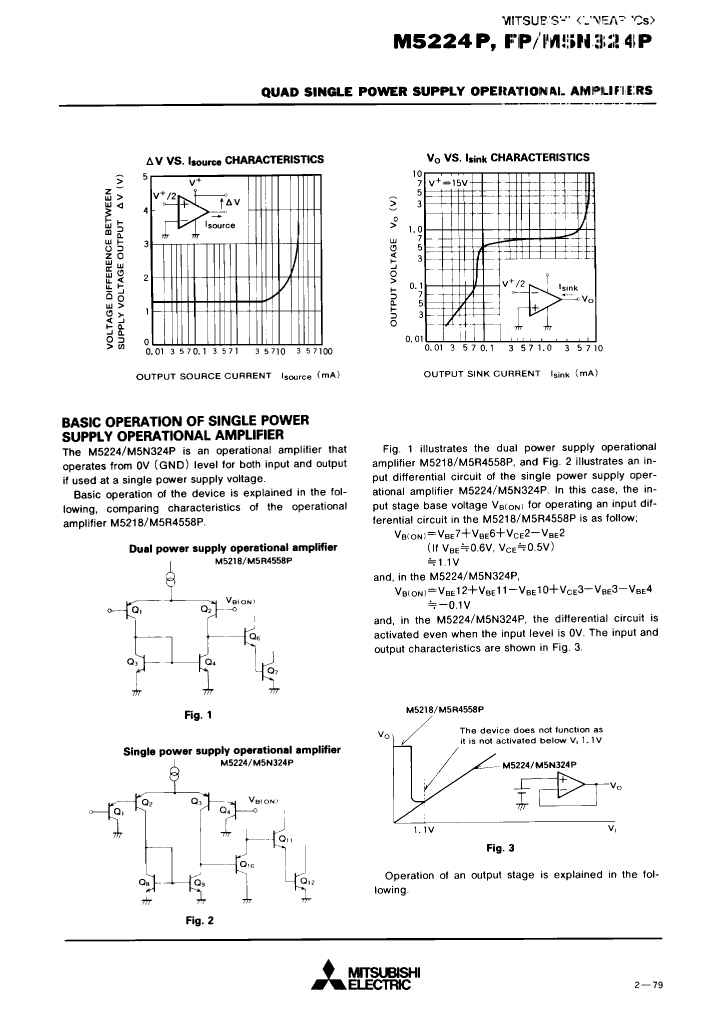

Basic information of M5N324P amplifier:
M5N324P is an OPERATIONAL AMPLIFIER. Commonly used packaging methods are DIP, DIP14,.3

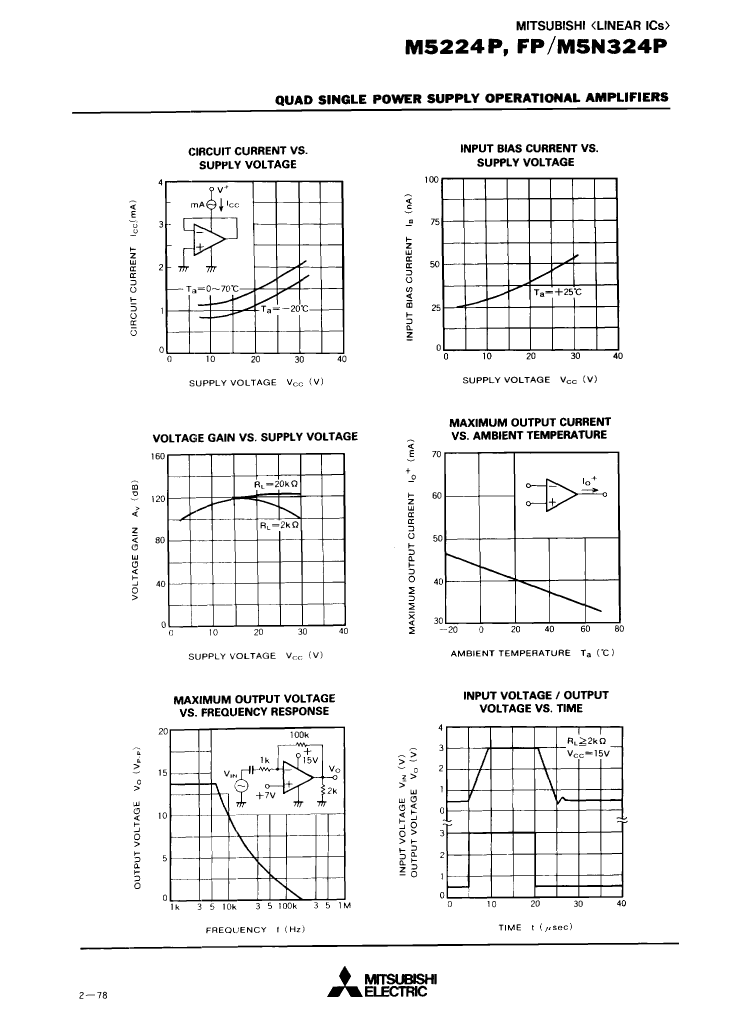

M5N324P amplifier core information:
The minimum operating temperature of the M5N324P is -20 °C and the maximum operating temperature is 75 °C. Its peak reflow temperature is NOT SPECIFIED Its maximum bias current at 25°C is: 0.25 µA Its maximum average bias current is 0.25 µA
The maximum slew rate of the M5N324P given by the manufacturer is 1.5 mA. Its minimum voltage gain is 25000.
The nominal supply voltage of the M5N324P is 15 V. The input offset voltage of the M5N324P is 7000 µV (input offset voltage: the compensation voltage added between the two input terminals to make the output terminal of the operational amplifier 0V (or close to 0V).)
Related dimensions of M5N324P:
M5N324P has 14 terminals. Its terminal position type is: DUAL. Terminal pitch is 2.54 mm. Total pins: 14
M5N324P amplifier additional information:
M5N324P adopts VOLTAGE-FEEDBACK architecture. It does not belong to the low offset class of amplifiers. The frequency compensation status of M5N324P is: YES. Its temperature grade is: COMMERCIAL EXTENDED. The M5N324P is not Rohs certified.
The corresponding JESD-30 code is: R-PDIP-T14. The corresponding JESD-609 code is: e0. The packaging code of M5N324P is: DIP. M5N324P packaging materials are mostly PLASTIC/EPOXY. The package shape is RECTANGULAR.
The M5N324P package pin format is: IN-LINE. Its terminal form is: THROUGH-HOLE.
Basic information of M5N324P amplifier:
M5N324P is an OPERATIONAL AMPLIFIER. Commonly used packaging methods are DIP, DIP14,.3
M5N324P amplifier core information:
The minimum operating temperature of the M5N324P is -20 °C and the maximum operating temperature is 75 °C. Its peak reflow temperature is NOT SPECIFIED Its maximum bias current at 25°C is: 0.25 µA Its maximum average bias current is 0.25 µA
The maximum slew rate of the M5N324P given by the manufacturer is 1.5 mA. Its minimum voltage gain is 25000.
The nominal supply voltage of the M5N324P is 15 V. The input offset voltage of the M5N324P is 7000 µV (input offset voltage: the compensation voltage added between the two input terminals to make the output terminal of the operational amplifier 0V (or close to 0V).)
Related dimensions of M5N324P:
M5N324P has 14 terminals. Its terminal position type is: DUAL. Terminal pitch is 2.54 mm. Total pins: 14
M5N324P amplifier additional information:
M5N324P adopts VOLTAGE-FEEDBACK architecture. It does not belong to the low offset class of amplifiers. The frequency compensation status of M5N324P is: YES. Its temperature grade is: COMMERCIAL EXTENDED. The M5N324P is not Rohs certified.
The corresponding JESD-30 code is: R-PDIP-T14. The corresponding JESD-609 code is: e0. The packaging code of M5N324P is: DIP. M5N324P packaging materials are mostly PLASTIC/EPOXY. The package shape is RECTANGULAR.
The M5N324P package pin format is: IN-LINE. Its terminal form is: THROUGH-HOLE.

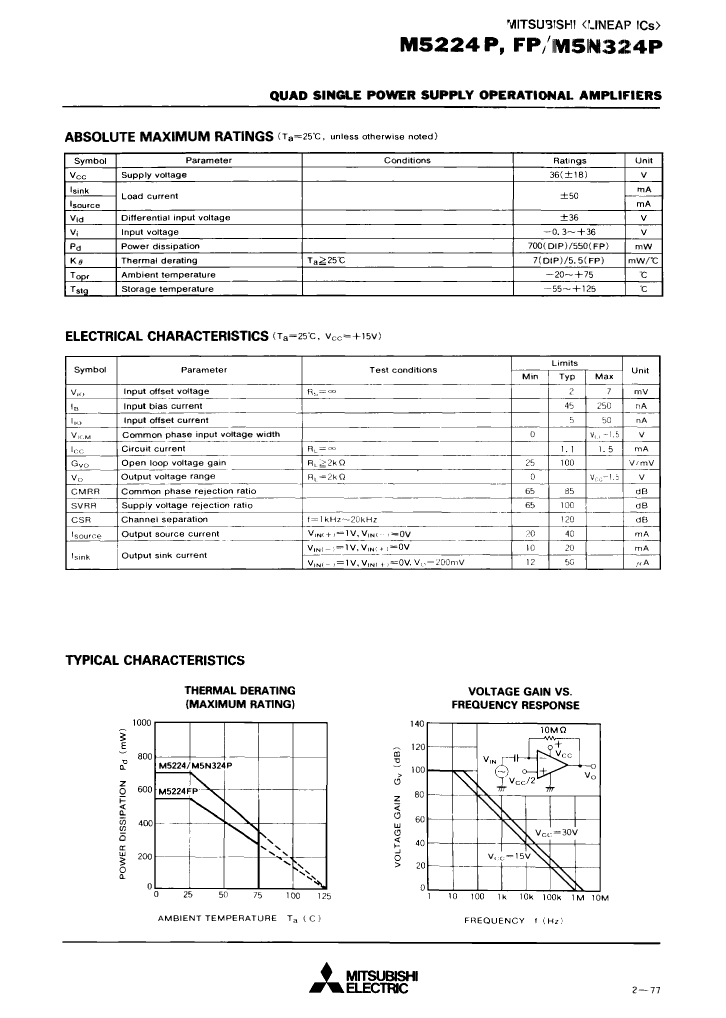

| Parameter Name | Attribute value |
| Is it Rohs certified? | incompatible |
| Maker | Mitsubishi |
| Parts packaging code | DIP |
| package instruction | DIP, DIP14,.3 |
| Contacts | 14 |
| Reach Compliance Code | unknown |
| ECCN code | EAR99 |
| Is Samacsys | N |
| Amplifier type | OPERATIONAL AMPLIFIER |
| Architecture | VOLTAGE-FEEDBACK |
| Maximum average bias current (IIB) | 0.25 µA |
| Maximum bias current (IIB) at 25C | 0.25 µA |
| Minimum Common Mode Rejection Ratio | 65 dB |
| Nominal Common Mode Rejection Ratio | 85 dB |
| frequency compensation | YES |
| Maximum input offset voltage | 7000 µV |
| JESD-30 code | R-PDIP-T14 |
| JESD-609 code | e0 |
| low-dissonance | NO |
| Negative supply voltage upper limit | -18 V |
| Number of functions | 4 |
| Number of terminals | 14 |
| Maximum operating temperature | 75 °C |
| Minimum operating temperature | -20 °C |
| Package body material | PLASTIC/EPOXY |
| encapsulated code | DIP |
| Encapsulate equivalent code | DIP14,.3 |
| Package shape | RECTANGULAR |
| Package form | IN-LINE |
| Peak Reflow Temperature (Celsius) | NOT SPECIFIED |
| power supply | 15/+-15 V |
| Certification status | Not Qualified |
| Maximum slew rate | 1.5 mA |
| Supply voltage upper limit | 18 V |
| Nominal supply voltage (Vsup) | 15 V |
| surface mount | NO |
| technology | BIPOLAR |
| Temperature level | COMMERCIAL EXTENDED |
| Terminal surface | Tin/Lead (Sn/Pb) |
| Terminal form | THROUGH-HOLE |
| Terminal pitch | 2.54 mm |
| Terminal location | DUAL |
| Maximum time at peak reflow temperature | NOT SPECIFIED |
| Minimum voltage gain | 25000 |
| Base Number Matches | 1 |
