CCRT-53S6D-R datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Mechanical and electronic products> relay> CCRT-53S6D-R

CCRT-53S6D-R: DescriptionRF Coaxial Relay; CategoryMechanical and electronic products relay; File Size1MB，2 Pages; ManufacturerTeledyne Technologies Incorporated; Websitehttp://www.teledyne.com/

Download Datasheet Parametric View All

CCRT-53S6D-R Overview

RF Coaxial Relay

CCRT-53S6D-R Parametric

Parameter Name	Attribute value
Maker	Teledyne Technologies Incorporated
Reach Compliance Code	compliant
ECCN code	EAR99
Is Samacsys	N
Relay type	RF COAXIAL RELAY
Base Number Matches	1

Preview

Download Datasheet

View All

Commercial

CCRT-53

Latching

Internal Terminations

DC-26.5GHz SPDT Switch

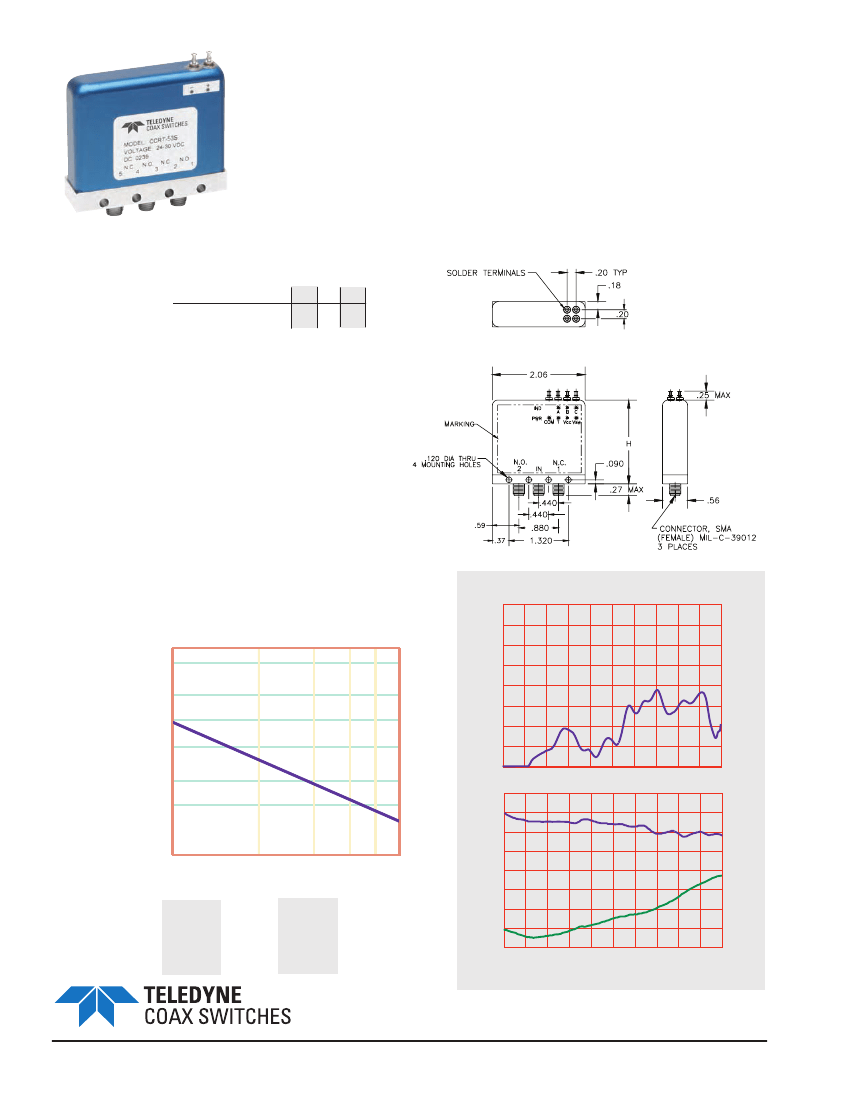

The CCRT-53 Switch is an internally terminated, broadband, SPDT, electromechanical coaxial

switch designed to switch a microwave signal from a common input to either of two outputs. The

characteristic impedance is 50 Ohms. Internal terminations provide an impedance match for the

unselected port. The switches are small with the minimum spacing that is compatible with SMA

connectors.

Specifications

RF Contacts:

Actuator

Break before make

Voltage (VDC) 20

Current (mA)

Switching Time:

Terminations:

Connectors:

Weight:

Temperature Range:

Shock:

10 msec max

The CCRT-53 is available with either a failsafe or latching actuator.

420 350 200

H = 1.75 MAX. STD MODEL

H = 1.86 MAX. TTL MODEL

50 Ohm 2 Watts CW max

SMA (f)

2.65 oz. max

-40

C to +65

C (Operating)

MIL-STD-202 Method 213, Condition D

(500G Non Operating)

MIL-STD-202 Method 214, Condition D

(10G RMS Non Operating)

Moisture Seal Available

Million

Cycles

Vibration:

Humidity:

Typical

Contact Life:

DC to 6 GHz: 0.05 dB

Insertion Loss Repeatability (1 Million Cycles):

Return Loss

Typical Performance

DC to 20 GHz: 0.1 dB

RF Power Handling (Non-terminated)

3000

800

400

200

Sta

nda

rd S

Power CW (Watts)

nne

cto

0.01

0.0

Frequency GHz

26.5

0.1

0.4

1.0

4.0

Frequency GHz

26.5

IL dB

Specifications

VSWR (max)

Insertion Loss (max)

Isolation (min)

DC-6 GHz 6-12 GHz 12-18 GHz 18-26.5GHz

1.25:1

0.20 dB

70.0 dB

1.40:1

0.40 dB

60.0 dB

1.50:1

0.50 dB

60.0 dB

1.80:1

0.7 dB

50.0 dB

0.01

Frequency GHz

26.5

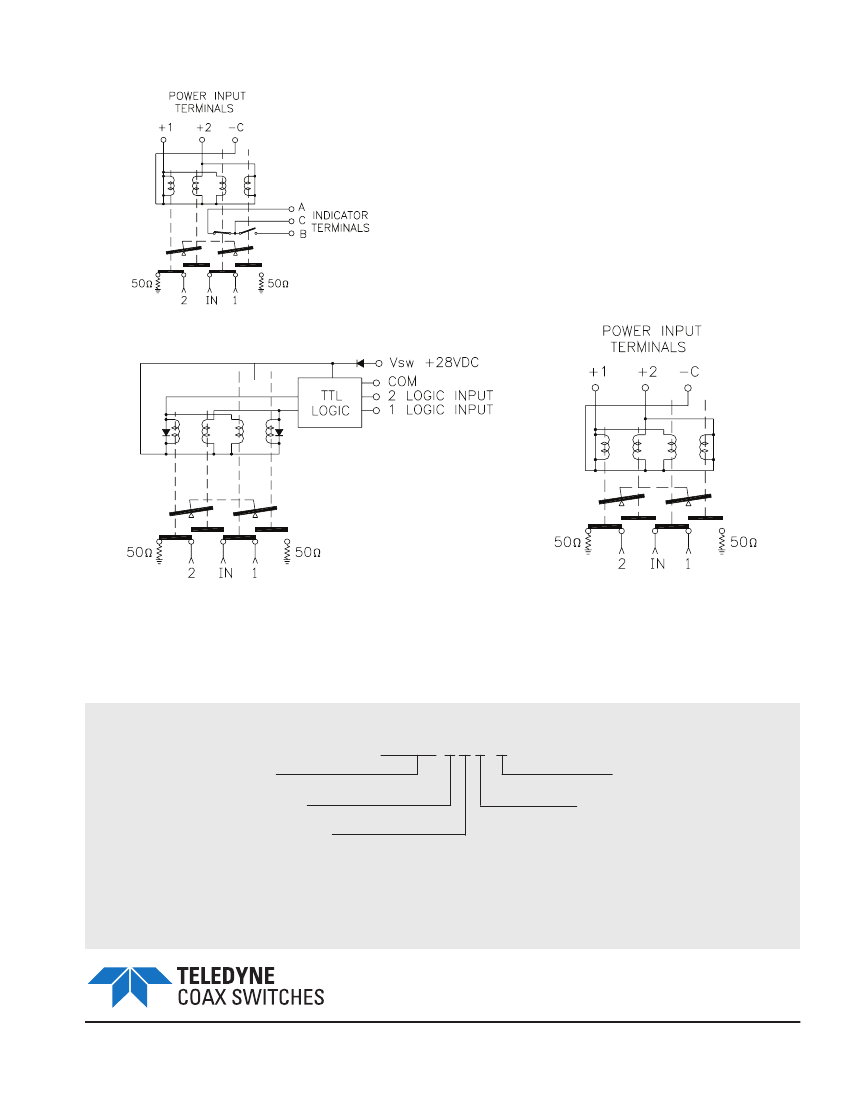

Specifications subject to change without notice.

www.teledynecoax.com

email: coax@teledyne.com

Tel: (800) 351-7368

10/2007

Isolation dB
