F6854DM datasheet, PDF - EEWORLD Datasheet

F6854DM: DescriptionSerial I/O Controller, 1 Channel(s), MOS, CDIP28, CERAMIC, DIP-28; CategoryThe embedded processor and controller Microcontrollers and processors; File Size1018KB，24 Pages; ManufacturerFairchild; Websitehttp://www.fairchildsemi.com/

Download Datasheet Parametric View All

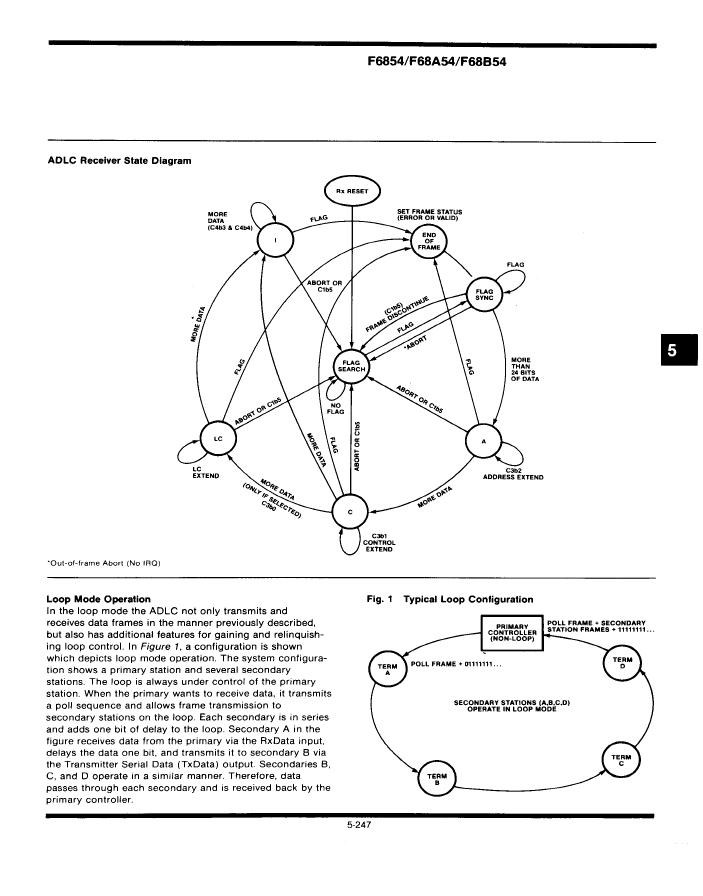

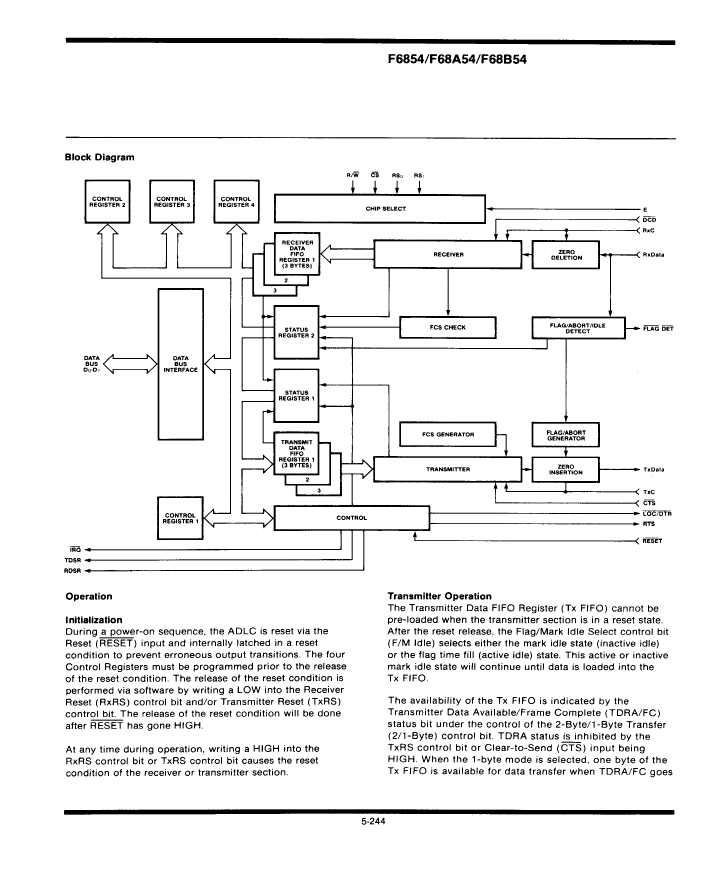

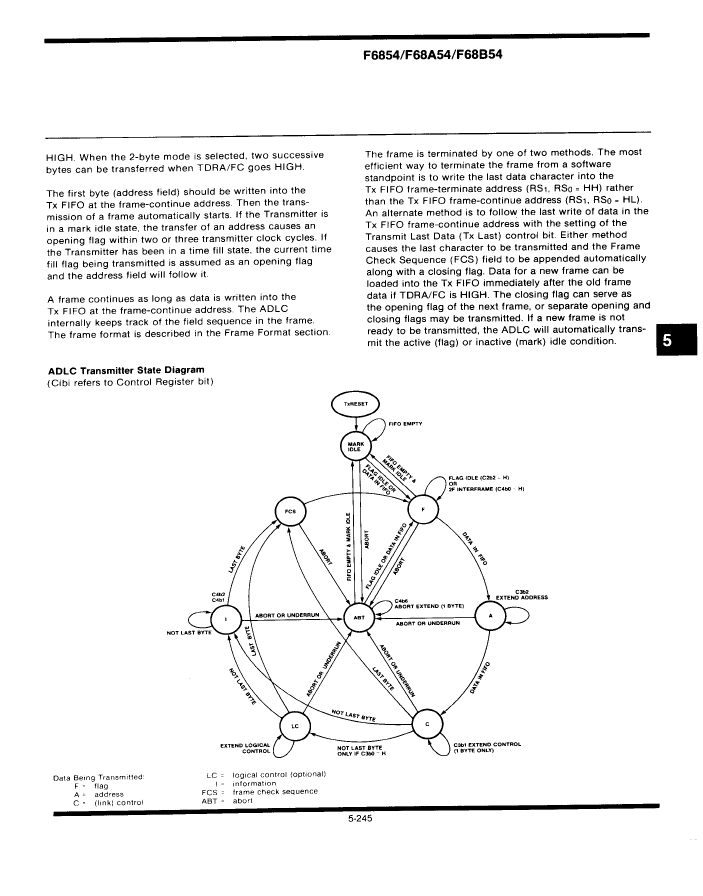

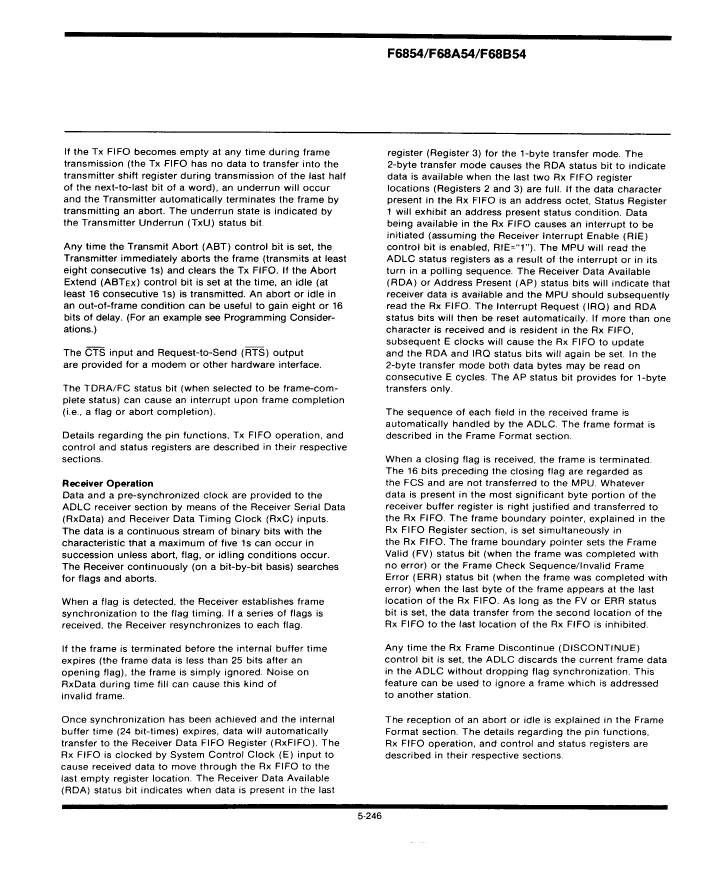

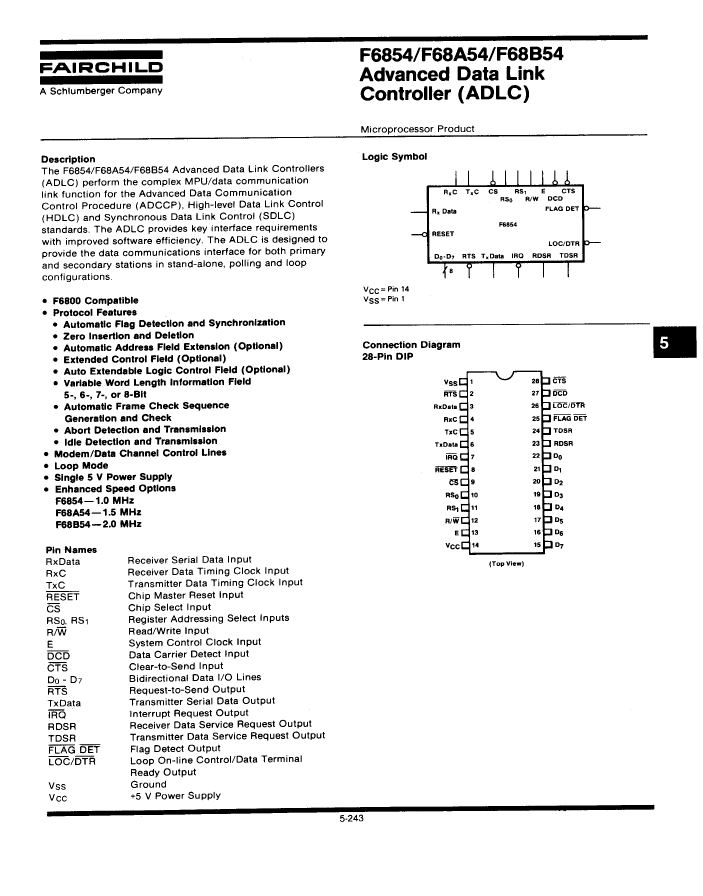

F6854DM Overview

Serial I/O Controller, 1 Channel(s), MOS, CDIP28, CERAMIC, DIP-28

Parameter Name	Attribute value
Maker	Fairchild
Parts packaging code	DIP
package instruction	DIP,
Contacts	28
Reach Compliance Code	unknown
Is Samacsys	N
Address bus width	2
boundary scan	NO
Bus compatibility	F6800
maximum clock frequency	1 MHz
letter of agreement	SYNC, HDLC; SYNC, SDLC; ADCCP
Data encoding/decoding methods	NRZ; NRZI
External data bus width	8
JESD-30 code	R-GDIP-T28
length	37.085 mm
low power mode	NO
Number of DMA channels
Number of I/O lines
Number of serial I/Os	1
Number of terminals	28
On-chip data RAM width
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Package body material	CERAMIC, GLASS-SEALED
encapsulated code	DIP
Package shape	RECTANGULAR
Package form	IN-LINE
Certification status	Not Qualified
RAM (number of words)	0
Maximum seat height	6.43 mm
Maximum supply voltage	5.25 V
Minimum supply voltage	4.75 V
Nominal supply voltage	5 V
surface mount	NO
technology	MOS
Temperature level	MILITARY
Terminal form	THROUGH-HOLE
Terminal pitch	2.54 mm
Terminal location	DUAL
width	15.24 mm
uPs/uCs/peripheral integrated circuit type	SERIAL IO/COMMUNICATION CONTROLLER, SERIAL
Base Number Matches	1
