BYW29F-50 datasheet, PDF - EEWORLD Datasheet

EEWORLDEEWORLD

Datasheet

Datasheet> All Categories > Discrete semiconductor> diode> BYW29F-50

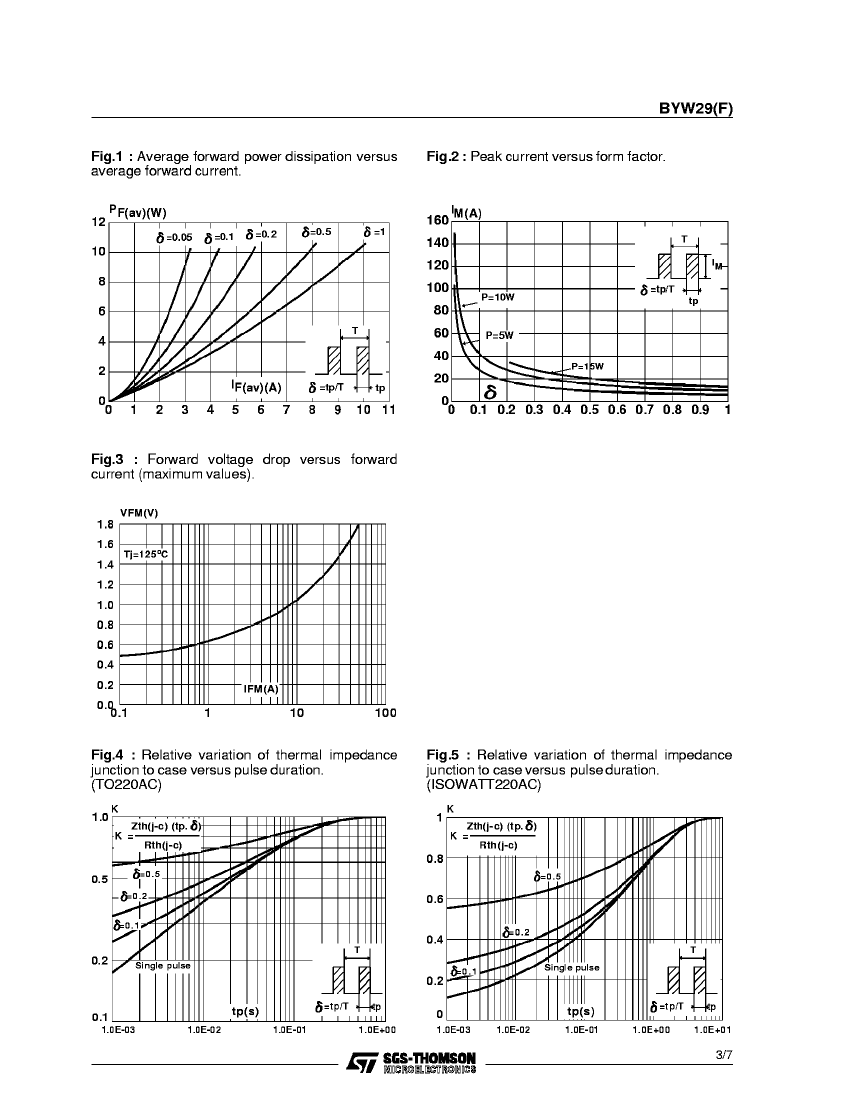

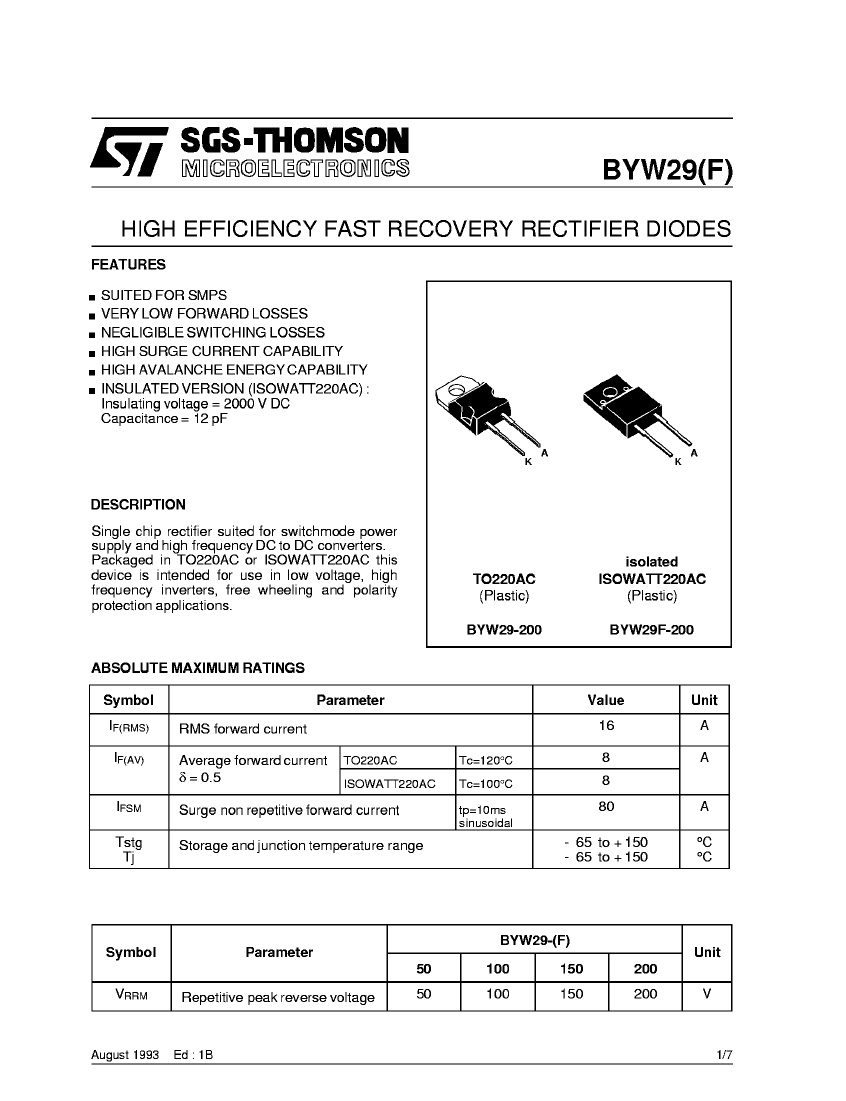

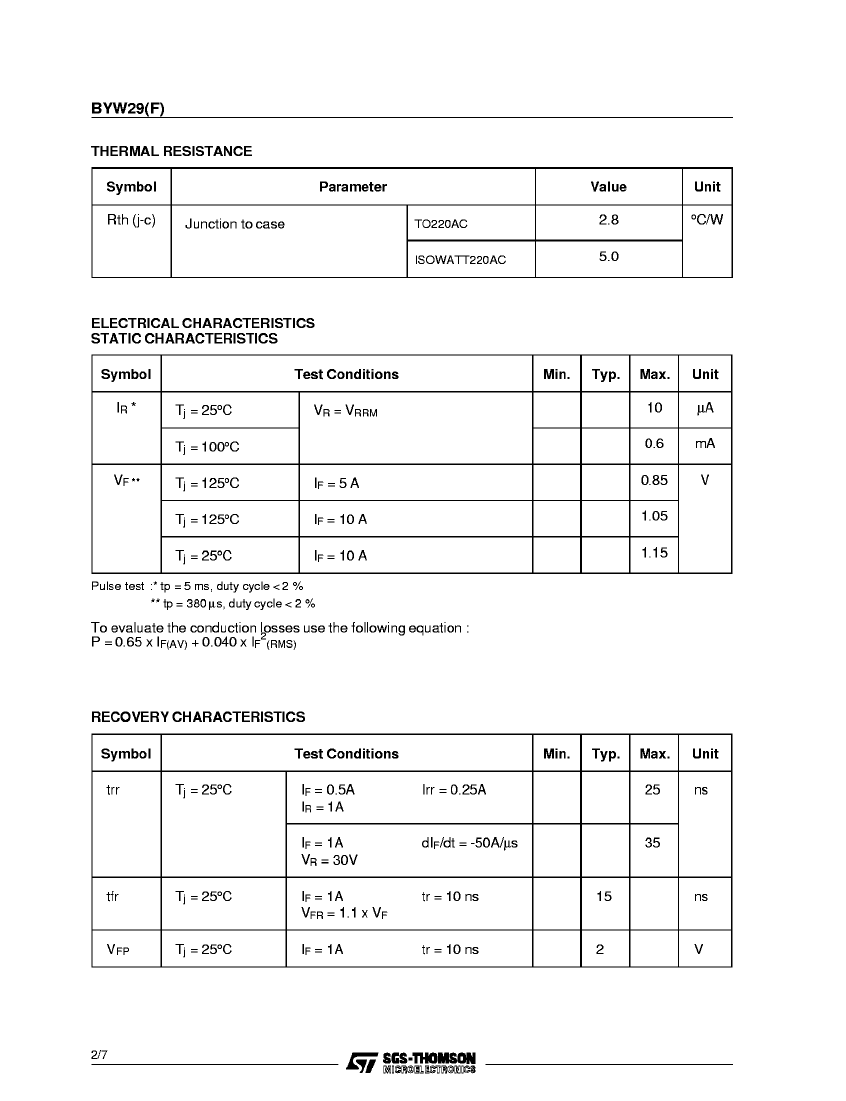

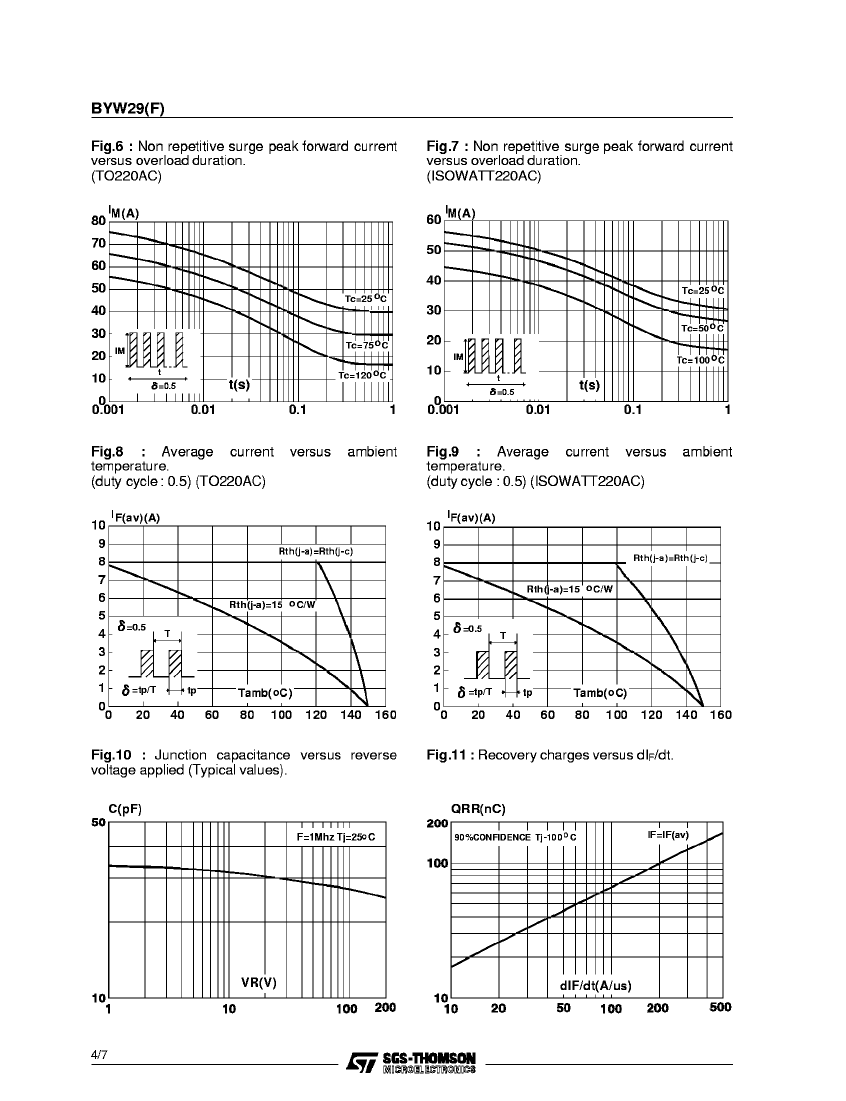

Preview

BYW29F-50: Description8A, 50V, SILICON, RECTIFIER DIODE, PLASTIC, ISOWATT220AC, 2 PIN; CategoryDiscrete semiconductor diode; File Size125KB，7 Pages; ManufacturerSTMicroelectronics; Websitehttp://www.st.com/; Environmental Compliance

Download Datasheet Parametric Compare View All

BYW29F-50 Overview

8A, 50V, SILICON, RECTIFIER DIODE, PLASTIC, ISOWATT220AC, 2 PIN

BYW29F-50 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	STMicroelectronics
package instruction	PLASTIC, ISOWATT220AC, 2 PIN
Contacts	2
Reach Compliance Code	compliant
ECCN code	EAR99
Is Samacsys	N
Other features	HIGH SURGE CAPABILITY, FREE WHEELING DIODE
application	EFFICIENCY
Shell connection	ISOLATED
Configuration	SINGLE
Diode component materials	SILICON
Diode type	RECTIFIER DIODE
Maximum forward voltage (VF)	1.3 V
JESD-30 code	R-PSFM-T2
JESD-609 code	e3
Maximum non-repetitive peak forward current	80 A
Number of components	1
Phase	1
Number of terminals	2
Maximum operating temperature	150 °C
Maximum output current	8 A
Package body material	PLASTIC/EPOXY
Package shape	RECTANGULAR
Package form	FLANGE MOUNT
Certification status	Not Qualified
Maximum repetitive peak reverse voltage	50 V
Maximum reverse recovery time	0.035 µs
surface mount	NO
technology	AVALANCHE
Terminal surface	Matte Tin (Sn)
Terminal form	THROUGH-HOLE
Terminal location	SINGLE
Base Number Matches	1

Preview

Download Datasheet

View All

BYW29F-50 Related Products

	BYW29F-50	BYW29-50	BYW29F-100	BYW29F-150
Description	8A, 50V, SILICON, RECTIFIER DIODE, PLASTIC, ISOWATT220AC, 2 PIN	8A, 50V, SILICON, RECTIFIER DIODE, PLASTIC PACKAGE-2	8A, 100V, SILICON, RECTIFIER DIODE, PLASTIC, ISOWATT220AC, 2 PIN	8A, 150V, SILICON, RECTIFIER DIODE, PLASTIC, ISOWATT220AC, 2 PIN
Is it Rohs certified?	conform to	incompatible	conform to	conform to
Maker	STMicroelectronics	STMicroelectronics	STMicroelectronics	STMicroelectronics
package instruction	PLASTIC, ISOWATT220AC, 2 PIN	PLASTIC PACKAGE-2	PLASTIC, ISOWATT220AC, 2 PIN	PLASTIC, ISOWATT220AC, 2 PIN
Contacts	2	2	2	2
Reach Compliance Code	compliant	not_compliant	compliant	compliant
ECCN code	EAR99	EAR99	EAR99	EAR99
Other features	HIGH SURGE CAPABILITY, FREE WHEELING DIODE	HIGH SURGE CAPABILITY, FREE WHEELING DIODE	HIGH SURGE CAPABILITY, FREE WHEELING DIODE	HIGH SURGE CAPABILITY, FREE WHEELING DIODE
application	EFFICIENCY	EFFICIENCY	EFFICIENCY	EFFICIENCY
Configuration	SINGLE	SINGLE	SINGLE	SINGLE
Diode component materials	SILICON	SILICON	SILICON	SILICON
Diode type	RECTIFIER DIODE	RECTIFIER DIODE	RECTIFIER DIODE	RECTIFIER DIODE
Maximum forward voltage (VF)	1.3 V	1.3 V	1.3 V	1.3 V
JESD-30 code	R-PSFM-T2	R-PSFM-T2	R-PSFM-T2	R-PSFM-T2
JESD-609 code	e3	e0	e3	e3
Maximum non-repetitive peak forward current	80 A	80 A	80 A	80 A
Number of components	1	1	1	1
Phase	1	1	1	1
Number of terminals	2	2	2	2
Maximum operating temperature	150 °C	150 °C	150 °C	150 °C
Maximum output current	8 A	8 A	8 A	8 A
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	FLANGE MOUNT	FLANGE MOUNT	FLANGE MOUNT	FLANGE MOUNT
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified
Maximum repetitive peak reverse voltage	50 V	50 V	100 V	150 V
Maximum reverse recovery time	0.035 µs	0.035 µs	0.035 µs	0.035 µs
surface mount	NO	NO	NO	NO
technology	AVALANCHE	AVALANCHE	AVALANCHE	AVALANCHE
Terminal surface	Matte Tin (Sn)	Tin/Lead (Sn/Pb)	Matte Tin (Sn)	Matte Tin (Sn)
Terminal form	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE
Terminal location	SINGLE	SINGLE	SINGLE	SINGLE
Base Number Matches	1	1	1	1
Is Samacsys	N	-	N	N
Shell connection	ISOLATED	-	ISOLATED	ISOLATED
