BYW29F-50 datasheet, PDF - EEWORLD Datasheet

EEWORLDEEWORLD

Datasheet

Datasheet> All Categories > Discrete semiconductor> diode> BYW29F-50

Preview

BYW29F-50: DescriptionRectifier Diode, 1 Phase, 1 Element, 8A, 50V V(RRM), Silicon,; CategoryDiscrete semiconductor diode; File Size249KB，9 Pages; ManufacturerYAGEO; Websitehttp://www.yageo.com/

Download Datasheet Parametric Compare View All

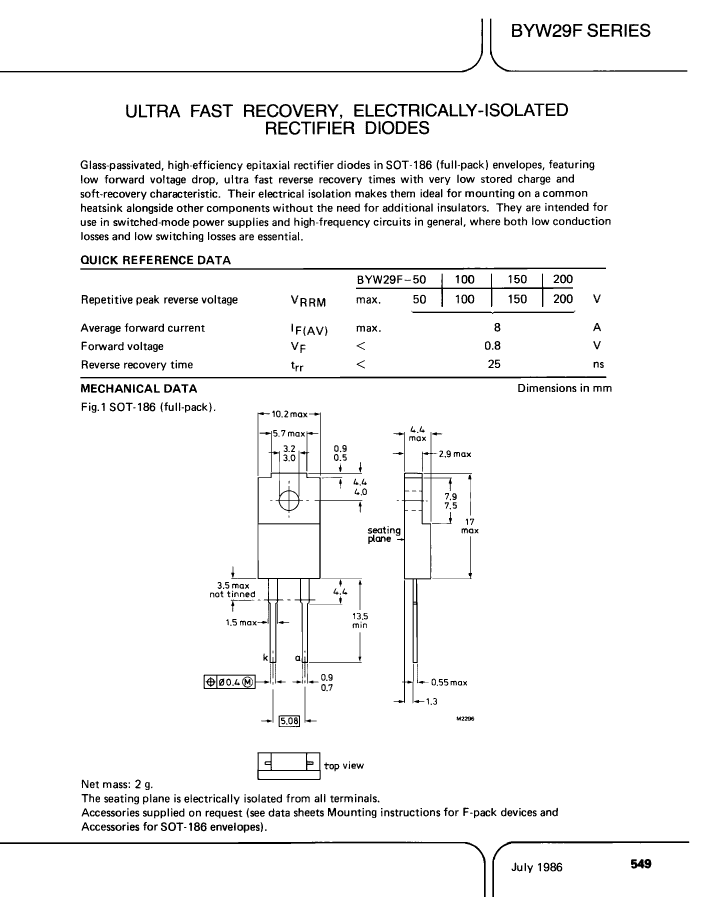

BYW29F-50 Overview

Rectifier Diode, 1 Phase, 1 Element, 8A, 50V V(RRM), Silicon,

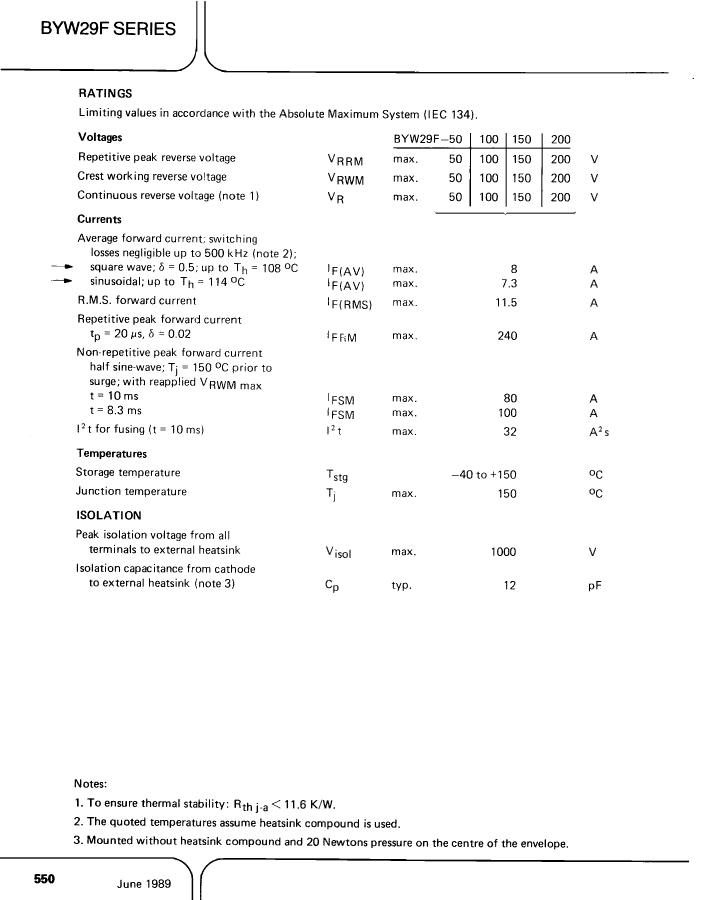

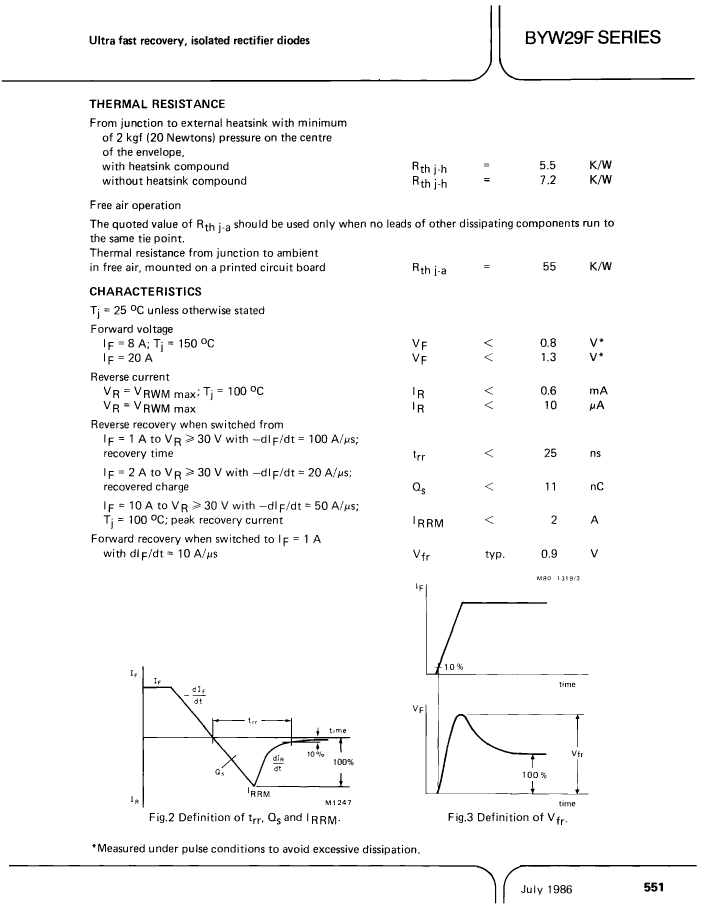

BYW29F-50 Parametric

Parameter Name	Attribute value
Maker	YAGEO
package instruction	R-PSFM-T2
Reach Compliance Code	unknown
ECCN code	EAR99
Is Samacsys	N
application	ULTRA FAST SOFT RECOVERY
Shell connection	ISOLATED
Configuration	SINGLE
Diode component materials	SILICON
Diode type	RECTIFIER DIODE
Maximum forward voltage (VF)	1.3 V
JESD-30 code	R-PSFM-T2
Maximum non-repetitive peak forward current	100 A
Number of components	1
Phase	1
Number of terminals	2
Maximum operating temperature	150 °C
Maximum output current	8 A
Package body material	PLASTIC/EPOXY
Package shape	RECTANGULAR
Package form	FLANGE MOUNT
Certification status	Not Qualified
Maximum repetitive peak reverse voltage	50 V
Maximum reverse current	10 µA
Maximum reverse recovery time	0.025 µs
surface mount	NO
Terminal form	THROUGH-HOLE
Terminal location	SINGLE
Base Number Matches	1

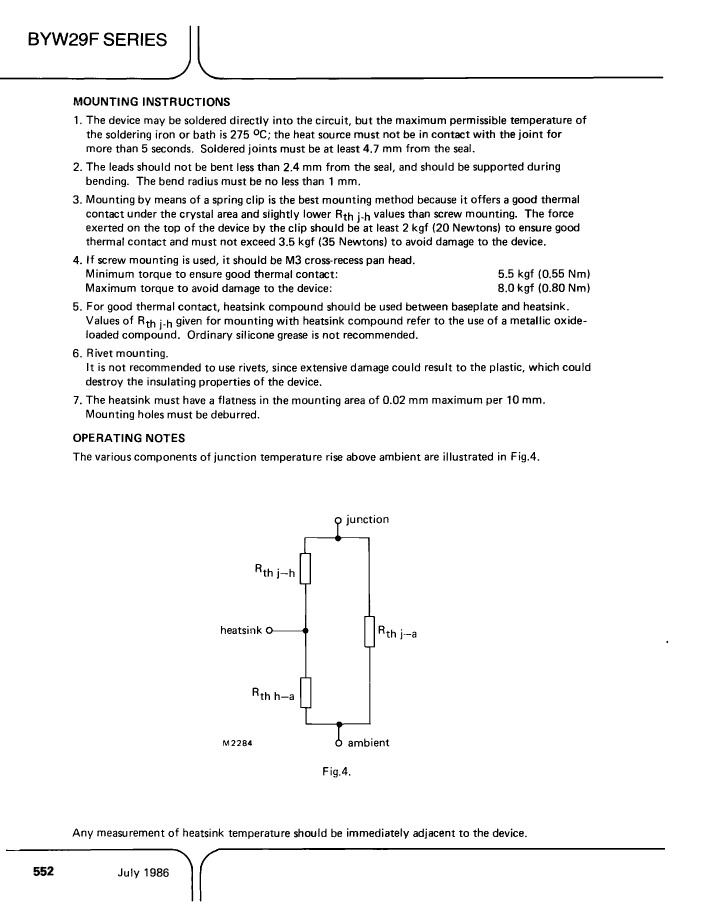

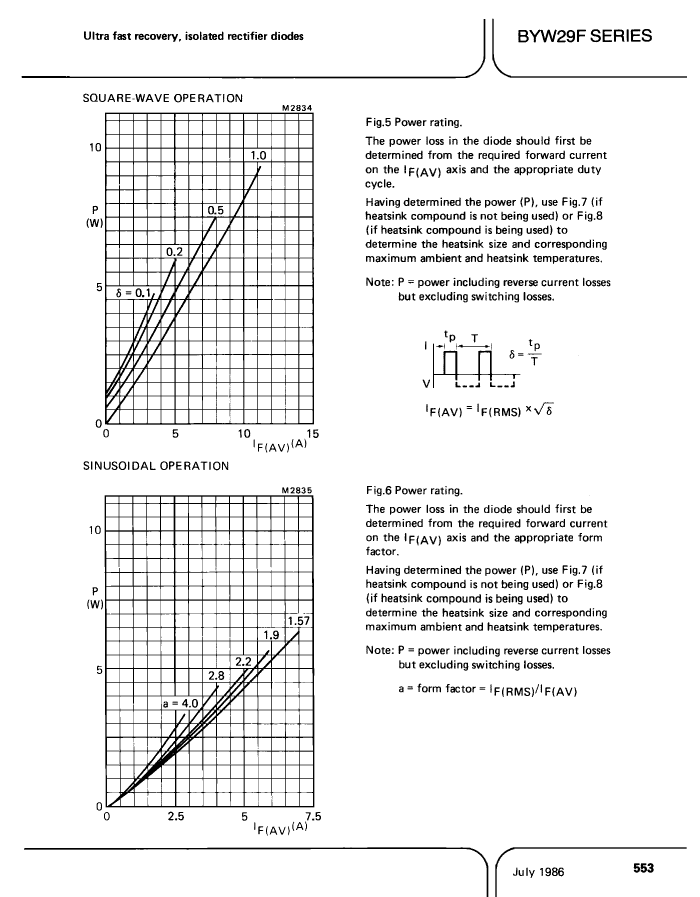

Preview

Download Datasheet

View All

BYW29F-50 Related Products

	BYW29F-50	BYW29F-100	BYW29F-150	BYW29F-200
Description	Rectifier Diode, 1 Phase, 1 Element, 8A, 50V V(RRM), Silicon,	Rectifier Diode, 1 Phase, 1 Element, 8A, 100V V(RRM), Silicon,	Rectifier Diode, 1 Phase, 1 Element, 8A, 150V V(RRM), Silicon	Rectifier Diode, 1 Phase, 1 Element, 8A, 200V V(RRM), Silicon
Maker	YAGEO	YAGEO	YAGEO	YAGEO
package instruction	R-PSFM-T2	R-PSFM-T2	R-PSFM-T2	R-PSFM-T2
Reach Compliance Code	unknown	unknown	unknown	unknown
Is Samacsys	N	N	N	N
application	ULTRA FAST SOFT RECOVERY	ULTRA FAST SOFT RECOVERY	ULTRA FAST SOFT RECOVERY	ULTRA FAST SOFT RECOVERY
Shell connection	ISOLATED	ISOLATED	ISOLATED	ISOLATED
Configuration	SINGLE	SINGLE	SINGLE	SINGLE
Diode component materials	SILICON	SILICON	SILICON	SILICON
Diode type	RECTIFIER DIODE	RECTIFIER DIODE	RECTIFIER DIODE	RECTIFIER DIODE
Maximum forward voltage (VF)	1.3 V	1.3 V	1.3 V	1.3 V
JESD-30 code	R-PSFM-T2	R-PSFM-T2	R-PSFM-T2	R-PSFM-T2
Maximum non-repetitive peak forward current	100 A	100 A	100 A	100 A
Number of components	1	1	1	1
Phase	1	1	1	1
Number of terminals	2	2	2	2
Maximum operating temperature	150 °C	150 °C	150 °C	150 °C
Maximum output current	8 A	8 A	8 A	8 A
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	FLANGE MOUNT	FLANGE MOUNT	FLANGE MOUNT	FLANGE MOUNT
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified
Maximum repetitive peak reverse voltage	50 V	100 V	150 V	200 V
Maximum reverse current	10 µA	10 µA	10 µA	10 µA
Maximum reverse recovery time	0.025 µs	0.025 µs	0.025 µs	0.025 µs
surface mount	NO	NO	NO	NO
Terminal form	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE
Terminal location	SINGLE	SINGLE	SINGLE	SINGLE
Base Number Matches	1	1	1	1
