N45G1480BACC: DescriptionSine Output Oscillator, 100MHz Nom,; CategoryPassive components oscillator; File Size217KB，2 Pages; ManufacturerBliley Technologies Inc

Download Datasheet Parametric View All

N45G1480BACC Overview

Sine Output Oscillator, 100MHz Nom,

N45G1480BACC Parametric

Parameter Name	Attribute value
Maker	Bliley Technologies Inc
Reach Compliance Code	unknown
Is Samacsys	N
Ageing	1.25 PPM/20 YEAR
Frequency Adjustment - Mechanical	NO
frequency stability	0.15%
Frequency Stability - Voltage	3 ppm
input power	1 W
Installation features	THROUGH HOLE MOUNT
offset frequency	1 kHz
Nominal operating frequency	100 MHz
Maximum operating temperature	70 °C
Minimum operating temperature
Oscillator type	SINE
Oven power supply voltage	12V
phase noise	-155 dBc/Hz

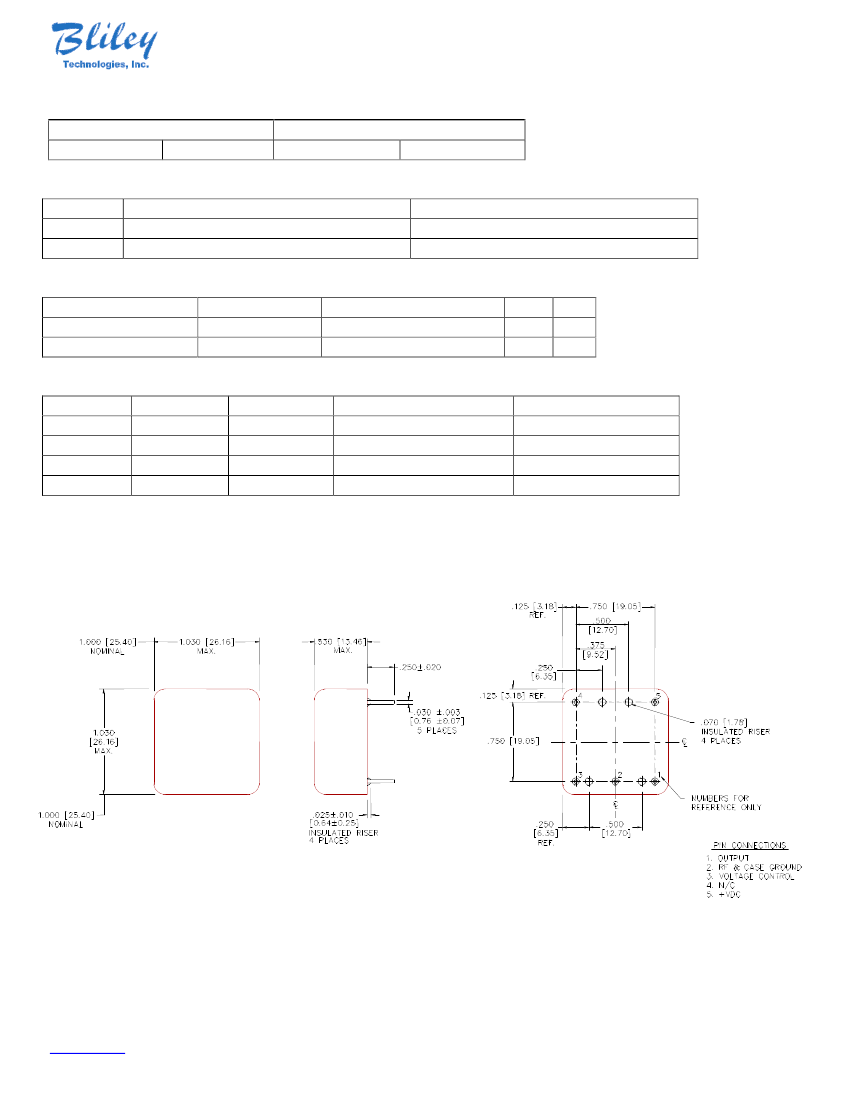

physical size	26.16mm x 26.16mm x 13.46mm
Maximum supply voltage	12.6 V
Minimum supply voltage	11.4 V
Nominal supply voltage	12 V
surface mount	NO
Preheating power	4.8 W
Base Number Matches	1

Preview

Download Datasheet

View All

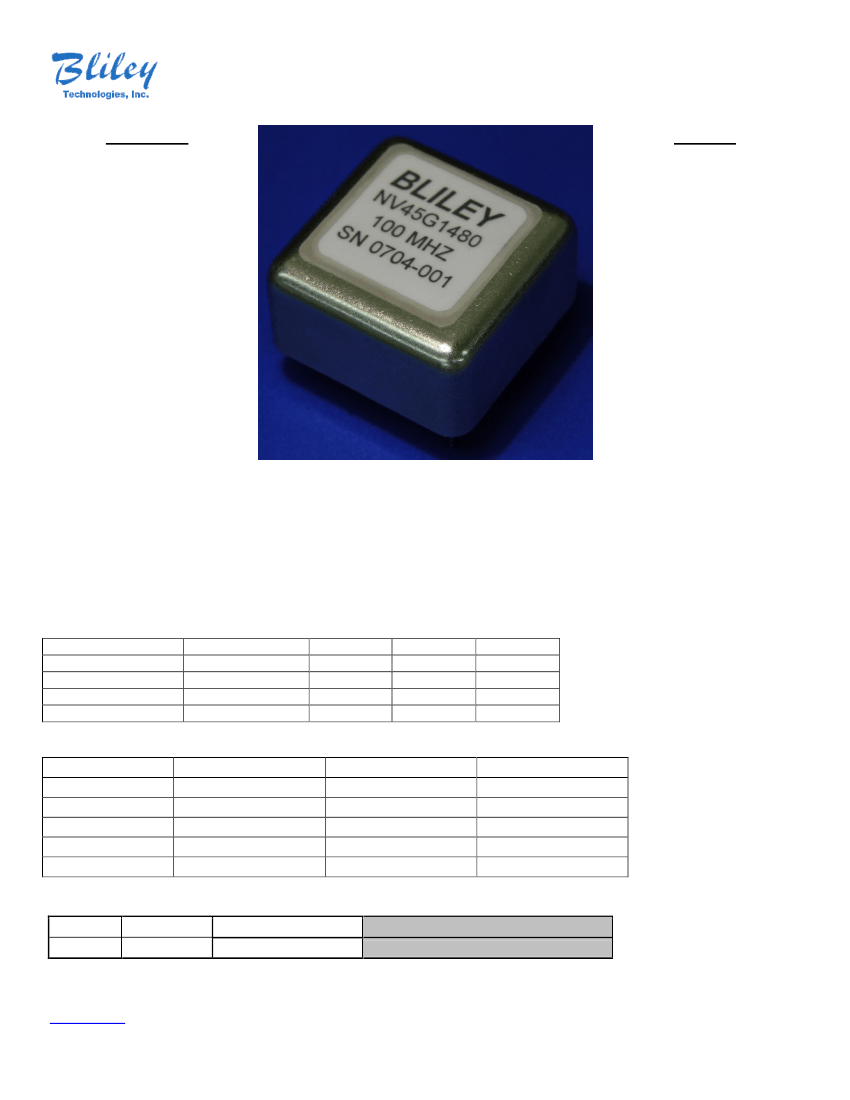

Low Noise. OCXO

Description:

The NV45G1480

Ovenized Crystal

Oscillator is a 100MHz

product specifically

targeted to applications

requiring superior noise

performance out to a

100KHz offset. It is ideal

for phase-locked

microwave signal sources

such as DRO’s, low noise

test equipment,

microwave com. systems,

and Radar applications.

NV45G1480

•

Features:

Tight Stabilities

+/- 50 ppb over temp.

High power output of 15

dBm available

Low profile package 0.53

inches max.

Excellent long-term

aging

Low power consumption

1 Watt typical at 25C

Operating Frequency:

100 MHz

Output Waveform:

Sinewave:

10 dBm typical

Harmonics: -30dBc max.

Spurious:

-75dBc max.

Temp. range

0C to 70C ( option A )

-20C to 70C ( B )

-40C to 70C ( C )

-40C to 85C ( D )

15dBm max.

Frequency Stability Versus Temperature:

F vs. T ( Option A )

+/- 50 ppb

N/A

F vs. T ( B )

+/- 100 ppb

N/A

F vs. T ( C )

+/- 150 ppb

+/- 150 ppb/

N/A

F vs T ( D )

+/- 200 ppb

+/- 200 ppb/

+/- 200 ppb

Phase Noise ( Options are worst case performance or better )

Offset Frequency Option A ( dBc/Hz ) Option B ( dBc/Hz ) Option C ( dBc/Hz )

10

-100

-95

-90

100

-130

-125

-120

1000

-155

-152

10000

-165

-162

-160

100000

-168

-165

-162

Aging

Frequency Timeframe

All

For 20 Years

Aging

+/- 1.25 ppm

Product Code

N/A

www.bliley.com

2545 West Grandview Blvd Erie, PA. 16506

Page 1 of 2

Tel

(814) 838-3571

Rev 1.4
