D25XB40 ........ D25XB100
25 Amp. Glass Passivated Single Phase In Line Bridge Rectifier
Voltage
400 V to 1000 V
Current
25 A
IN LINE BIG
FEATURES
UL recognition file number
E320541
Ideal for printed circuit board
High case dielectric strength of 2000 Vrms
High surge current capability
Solder dip 260ºC, 10s
Component in accordance to RoHS 2011/65/EU
and WEEE 2002/96/EC
~
~
~
~
MECHANICAL DATA
Case
:
IN LINE BIG. Epoxy meets UL 94V-0 flammability rating.
Polarity
:
As marked on body
Mounting
Torque
:
5.5cm-kg (5 in.- Ibs.)
Terminals
:
Matte tin plated leads, solderable per
MIL-STD-750 Method 2026, J-STD-002 and JESD22-B102.
Consumer grade, meets JESD 201 class 1A whisker test
TYPICAL APPLICATIONS
Used in ac-to-dc bridge full wave rectification for monitor,
TV, printer, switching mode power supply, adapter, audio
equipment, and home appliances applications.
Maximum Ratings and Electrical Characteristics at 25 ºC
D25XB40
D25XB60
D25XB60
600
420
D25XB80
D25XB80
800
560
(Note 1)
(Note 2)
D25XB100
D25XB100
1000
700
Marking Code
V
RRM
V
RMS
I
F(AV)
I
FSM
V
DIS
I
2
t
T
j
T
stg
Peak recurrent reverse voltage (V)
Maximum RMS Voltage (V)
Max. Average forward current
Peak forward surge current 10ms single half
sine-wave superimposed on rated load
(
Jedec Method
)
Dielectric strength (terminals to case, AC 1 min.)
Current squared time (rating for fusing)
(1ms.<t<10ms. Tc = 25º C)
Operating temperature range
Storage temperature range
D25XB40
400
280
25 A at Tc: 100 °C
3.2 A at 25 °C
300 A
2000 V
373 A
2
sec
-55 to +150 °C
-55 to +150 °C
Electrical Characteristics at Tamb = 25 °C
V
F
I
R
R
th (j-c)
R
th (j-a)
Max. forward voltage drop per diode at I
F
= 25 A
Max. instantaneous reverse current at V
RRM
Typical Thermal Resistance
Junction-case
Junction-Ambient
1.10 V
5 µA
1.0 °C/W
22 °C/W
(Note 1)
(Note 2)
Notes: 1. Unit case mounted on aluminum plate heatsink
2. Units mounted on P.C.B. without heatsink
www.fagorelectronica.com
Document Name: d25xb
Revision: 3
Version: Apr-16
Page Number: 1/4
D25XB40 ........ D25XB100
25 Amp. Glass Passivated Single Phase In Line Bridge Rectifier
Ratings and Characteristics
(Ta 25 ºC unless otherwise noted)

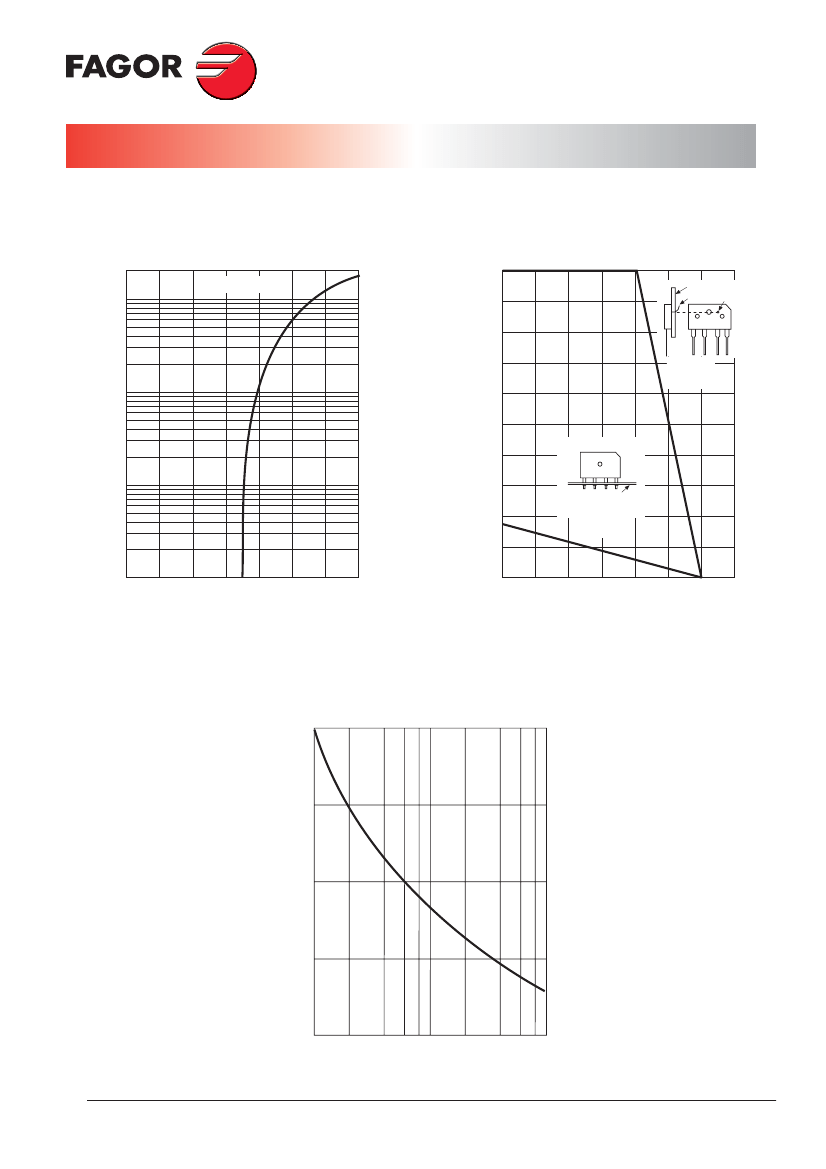

TYPICAL FORWARD CHARACTERISTIC
100
I
F
, instantaneous forward current (A)
Tamb = 25 °C
FORWARD CURRENT DERATING CURVE
25
I
F (AV)
, average forward rectified current (A)
heatsink
Tc
Tc
- ~
~ +
20
10
15
sine wave
R-load
on heatsink
10
5
on glass-epoxi substrate
- ~ ~ +
P.C.B.
soldering land 5 mm ø
sine wave
R-load
free in air
1
0
0
0.6
1.0
1.4
0
0
25
50
75 100 125 150 175
V
F
, instantaneous forward voltage (V)
Tamb, ambient temperature (°C)
MAXIMUM NON-REPETITIVE PEAK
FORWARD SURGE CURRENT
300
I
FSM
, peak forward surge current (A)
225
150
75
0
1
10
Number of cycles at 50 Hz.
100
www.fagorelectronica.com
Document Name: d25xb
Revision: 3
Version: Apr-16
Page Number: 3/4
D25XB40 ........ D25XB100
25 Amp. Glass Passivated Single Phase In Line Bridge Rectifier
Revision History
Date
15-May-2012
15-Jun-2015
21-Apr-2016
28-Apr-2016
Revision
0
1
2
3
Original Data Sheet
Change packing specification
Change Ordering information
Change electrical characteristics
Description of Changes
Disclaimer
All product, product specifications and data are subject to change without notice to improve reliability,
function or design or otherwise.
Fagor Electrónica, S.Coop., its affiliates, agents, and employees, and all persons acting on its or their
behalf (collectively, "Fagor"), disclaim any and all liability for any errors, inaccuracies or incompleteness contained
in any datasheet or in any other disclosure relating to any product.
Fagor makes no warranty, representation or guarantee regarding the suitability of the products for any particular
purpose or the continuing production of any product. To the maximum extent permitted by applicable law,
Fagor disclaims (i) any and all liability arising out of the application or use of any product, (ii) any and all
liability, including without limitation special, consequential or incidental damages, and (iii) any and all implied
warranties, including warranties of fitness for particular purpose, non-infringement and merchantability.
Statements regarding the suitability of products for certain types of applications are based on Fagor's knowledge
of typical requirements that are often placed on Fagor products in generic applications. Such statements are not
binding statements about the suitability of products for a particular application. It is the customer's responsibility
to validate that a particular product with the properties described in the product specification is suitable for use in a
particular application. Parameters provided in datasheets and/or specifications may vary in different applications
and performance may vary over time. All operating parameters, including typical parameters, must be validated
for each customer application by the customer's technical experts. Product specifications do not expand or
otherwise modify Fagor's terms and conditions of purchase, including but nos limited to the warranty expressed
therein.
Except as expressly indicated in writing. Fagor products are not designed for use in medical, life-saving, or
life-sustaining applications or for any other application in which the failure of the Fagor product could result in
personal injury or death. Customers using or selling Fagor products not expressly indicated for use in such
applications do so at their own risk and agree to fully indemnify and hold Fagor and its distributors harmless from
and against any and all claims, liabilities, expenses and damages arising or resulting in connection with such use
or sale, including attomeys fees, even if such claim alleges that Fagor or its distributor was negligent regarding
the design or manufacture of the part. Please contact authorized Fagor personnel to obtain written terms and
conditions regarding products designed for such applications.
No license, express or implied, by estoppel or otherwise, to any intellectual property rights is granted by this
document or by any conduct of Fagor, Product names and markings noted herein may be trademarks of their
respective owners.
www.fagorelectronica.com
Document Name: d25xb
Revision: 3
Version: Apr-16
Page Number: 4/4
