PM7224GBC datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Analog mixed-signal IC> converter> PM7224GBC

PM7224GBC: DescriptionIC PARALLEL, 8 BITS INPUT LOADING, 8-BIT DAC, UUC18, 0.094 X 0.099 INCH, DIE-18, Digital to Analog Converter; CategoryAnalog mixed-signal IC converter; File Size510KB，12 Pages; ManufacturerADI; Websitehttps://www.analog.com

Download Datasheet Parametric Compare View All

PM7224GBC Overview

IC PARALLEL, 8 BITS INPUT LOADING, 8-BIT DAC, UUC18, 0.094 X 0.099 INCH, DIE-18, Digital to Analog Converter

PM7224GBC Parametric

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	ADI
Parts packaging code	DIE
package instruction	0.094 X 0.099 INCH, DIE-18
Contacts	18
Reach Compliance Code	not_compliant
ECCN code	EAR99
Is Samacsys	N
Maximum analog output voltage	12.5 V
Minimum analog output voltage
Converter type	D/A CONVERTER
Enter bit code	BINARY
Input format	PARALLEL, 8 BITS
JESD-30 code	R-XUUC-N18
JESD-609 code	e0
Maximum linear error (EL)	0.391%
Nominal negative supply voltage	-5 V
Number of digits	8
Number of functions	1
Number of terminals	18
Maximum operating temperature	25 °C
Minimum operating temperature	25 °C
Package body material	UNSPECIFIED
encapsulated code	DIE
Encapsulate equivalent code	DIE OR CHIP
Package shape	RECTANGULAR
Package form	UNCASED CHIP
Peak Reflow Temperature (Celsius)	220
power supply	12/15, GND/-5 V
Certification status	Not Qualified
Filter level	MIL-STD-883 Class B (Modified)
Maximum stabilization time	5 µs
Maximum slew rate	4 mA
surface mount	YES
technology	CMOS
Temperature level	OTHER
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	NO LEAD
Terminal location	UPPER
Maximum time at peak reflow temperature	30
Base Number Matches	1

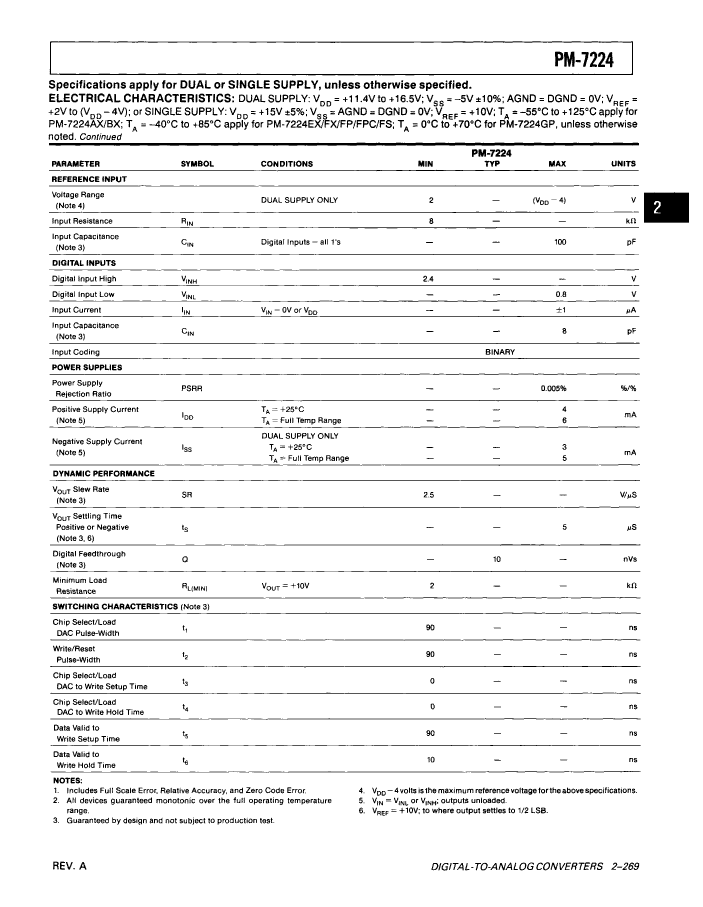

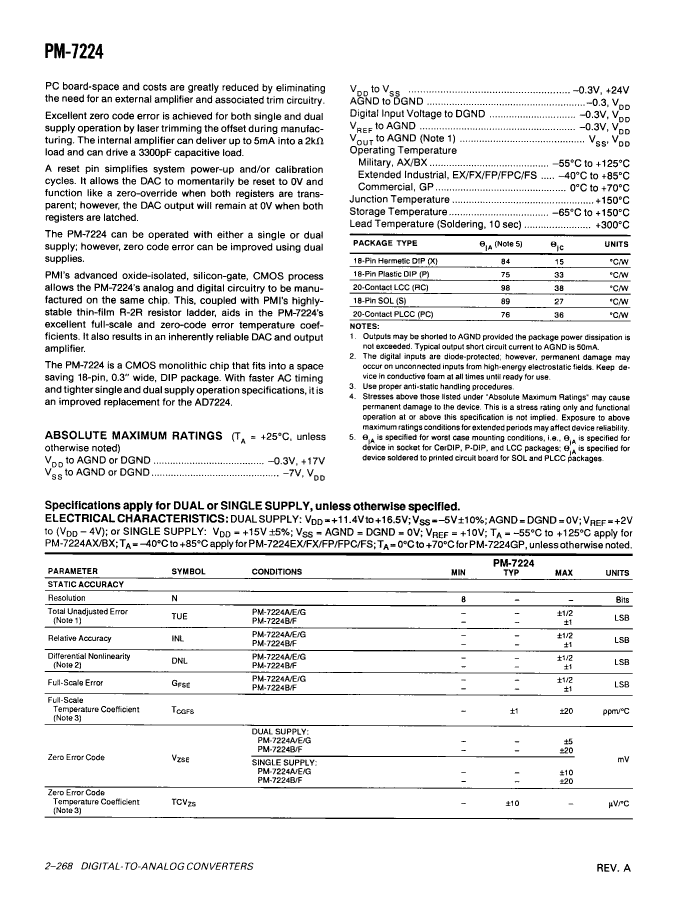

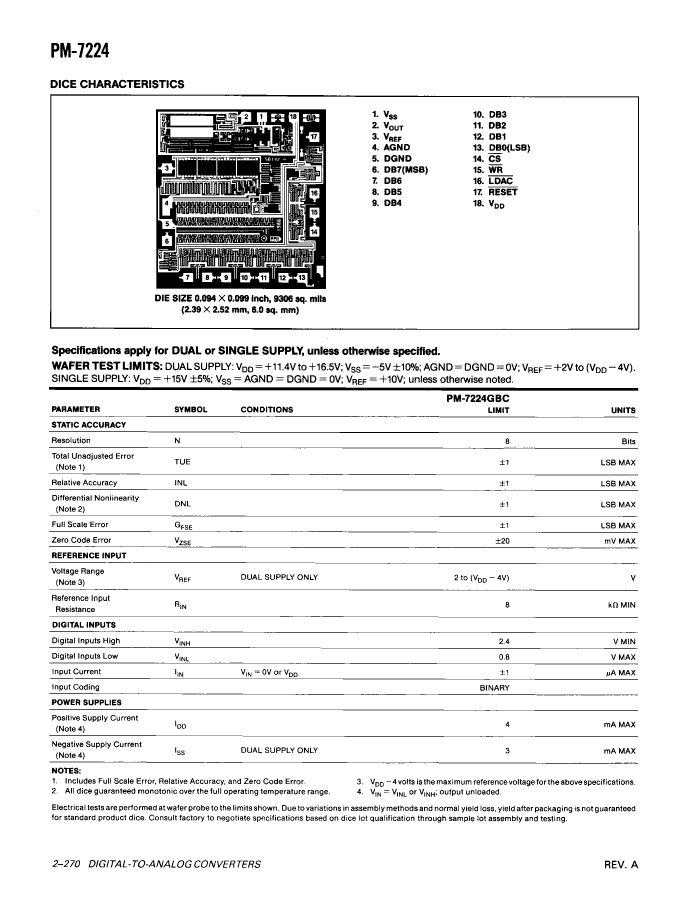

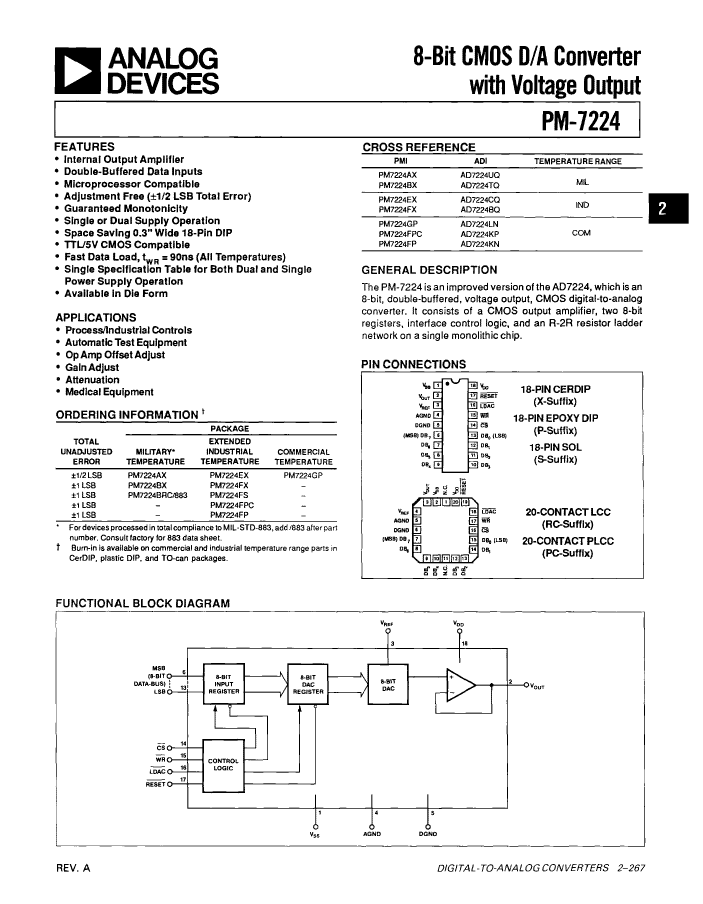

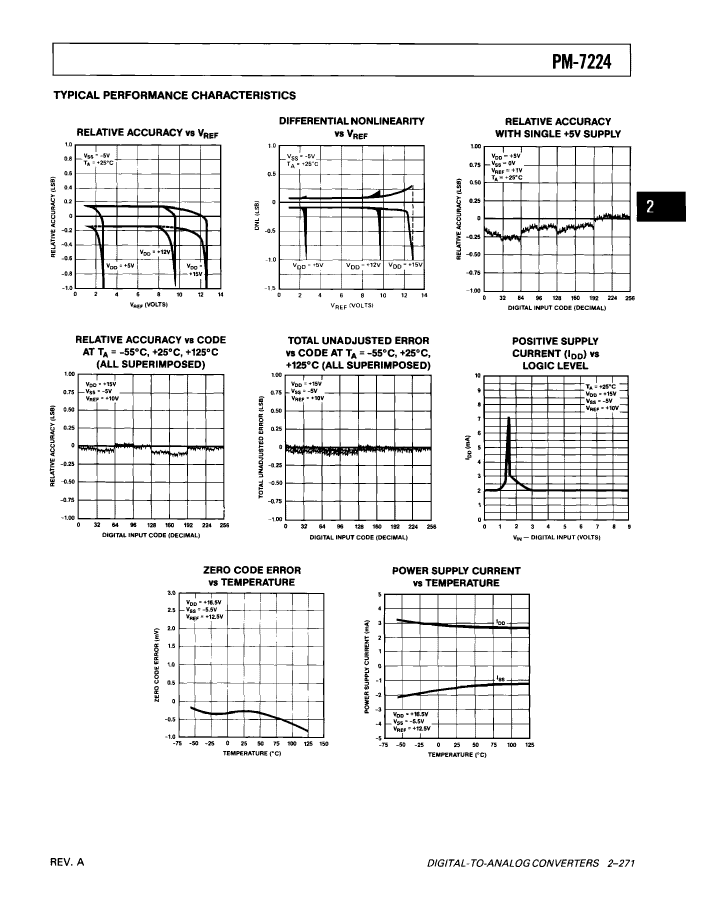

Preview

Download Datasheet

View All

PM7224GBC Related Products

	PM7224GBC	PM7224BX	PM7224FX	PM7224FP	PM7224FPC	PM7224GP	PM7224FS	PM7224BRC/883
Description	IC PARALLEL, 8 BITS INPUT LOADING, 8-BIT DAC, UUC18, 0.094 X 0.099 INCH, DIE-18, Digital to Analog Converter	IC PARALLEL, 8 BITS INPUT LOADING, 8-BIT DAC, CDIP18, 0.300 INCH, CERDIP-18, Digital to Analog Converter	IC PARALLEL, 8 BITS INPUT LOADING, 8-BIT DAC, CDIP18, 0.300 INCH, CERDIP-18, Digital to Analog Converter	IC PARALLEL, 8 BITS INPUT LOADING, 8-BIT DAC, PDIP18, 0.300 INCH, PLASTIC, DIP-18, Digital to Analog Converter	IC PARALLEL, 8 BITS INPUT LOADING, 8-BIT DAC, PQCC20, PLASTIC, LCC-20, Digital to Analog Converter	IC PARALLEL, 8 BITS INPUT LOADING, 8-BIT DAC, PDIP18, 0.300 INCH, PLASTIC, DIP-18, Digital to Analog Converter	IC PARALLEL, 8 BITS INPUT LOADING, 8-BIT DAC, PDSO18, SOL-18, Digital to Analog Converter	IC PARALLEL, 8 BITS INPUT LOADING, 8-BIT DAC, CQCC20, CERAMIC, LCC-20, Digital to Analog Converter
Is it Rohs certified?	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible
Parts packaging code	DIE	DIP	DIP	DIP	QLCC	DIP	SOIC	QLCC
package instruction	0.094 X 0.099 INCH, DIE-18	0.300 INCH, CERDIP-18	0.300 INCH, CERDIP-18	0.300 INCH, PLASTIC, DIP-18	PLASTIC, LCC-20	0.300 INCH, PLASTIC, DIP-18	SOL-18	CERAMIC, LCC-20
Contacts	18	18	18	18	20	18	18	20
Reach Compliance Code	not_compliant	_compli	not_compliant	not_compliant	not_compliant	unknown	unknown	unknown
Maximum analog output voltage	12.5 V	12.5 V	12.5 V	12.5 V	12.5 V	12.5 V	12.5 V	12.5 V
Converter type	D/A CONVERTER	D/A CONVERTER	D/A CONVERTER	D/A CONVERTER	D/A CONVERTER	D/A CONVERTER	D/A CONVERTER	D/A CONVERTER
Enter bit code	BINARY	BINARY	BINARY	BINARY	BINARY	BINARY	BINARY	BINARY
Input format	PARALLEL, 8 BITS	PARALLEL, 8 BITS	PARALLEL, 8 BITS	PARALLEL, 8 BITS	PARALLEL, 8 BITS	PARALLEL, 8 BITS	PARALLEL, 8 BITS	PARALLEL, 8 BITS
JESD-30 code	R-XUUC-N18	R-GDIP-T18	R-GDIP-T18	R-PDIP-T18	S-PQCC-J20	R-PDIP-T18	R-PDSO-G18	S-CQCC-N20
JESD-609 code	e0	e0	e0	e0	e0	e0	e0	e0
Maximum linear error (EL)	0.391%	0.391%	0.391%	0.391%	0.391%	0.195%	0.391%	0.391%
Nominal negative supply voltage	-5 V	-5 V	-5 V	-5 V	-5 V	-5 V	-5 V	-5 V
Number of digits	8	8	8	8	8	8	8	8
Number of functions	1	1	1	1	1	1	1	1
Number of terminals	18	18	18	18	20	18	18	20
Maximum operating temperature	25 °C	125 °C	85 °C	85 °C	85 °C	70 °C	85 °C	125 °C
Minimum operating temperature	25 °C	-55 °C	-40 °C	-40 °C	-40 °C	-	-40 °C	-55 °C
Package body material	UNSPECIFIED	CERAMIC, GLASS-SEALED	CERAMIC, GLASS-SEALED	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	CERAMIC, METAL-SEALED COFIRED
encapsulated code	DIE	DIP	DIP	DIP	QCCJ	DIP	SOP	QCCN
Encapsulate equivalent code	DIE OR CHIP	DIP18,.3	DIP18,.3	DIP18,.3	LDCC20,.4SQ	DIP18,.3	SOP18,.4	LCC20,.35SQ
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	SQUARE	RECTANGULAR	RECTANGULAR	SQUARE
Package form	UNCASED CHIP	IN-LINE	IN-LINE	IN-LINE	CHIP CARRIER	IN-LINE	SMALL OUTLINE	CHIP CARRIER
Peak Reflow Temperature (Celsius)	220	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	220	NOT SPECIFIED
power supply	12/15, GND/-5 V	12/15, GND/-5 V	12/15, GND/-5 V	12/15, GND/-5 V	12/15, GND/-5 V	12/15, GND/-5 V	12/15, GND/-5 V	12/15, GND/-5 V
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified
Maximum stabilization time	5 µs	5 µs	5 µs	5 µs	5 µs	5 µs	5 µs	5 µs
Maximum slew rate	4 mA	6 mA	6 mA	6 mA	6 mA	6 mA	6 mA	6 mA
surface mount	YES	NO	NO	NO	YES	NO	YES	YES
technology	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS
Temperature level	OTHER	MILITARY	INDUSTRIAL	INDUSTRIAL	INDUSTRIAL	COMMERCIAL	INDUSTRIAL	MILITARY
Terminal surface	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)
Terminal form	NO LEAD	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE	J BEND	THROUGH-HOLE	GULL WING	NO LEAD
Terminal location	UPPER	DUAL	DUAL	DUAL	QUAD	DUAL	DUAL	QUAD
Maximum time at peak reflow temperature	30	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	30	NOT SPECIFIED
Maker	ADI	-	ADI	ADI	ADI	ADI	ADI	ADI
Base Number Matches	1	1	1	1	1	-	-	-
Maximum seat height	-	5.08 mm	5.08 mm	5.33 mm	4.57 mm	5.33 mm	2.65 mm	2.54 mm
Terminal pitch	-	2.54 mm	2.54 mm	2.54 mm	1.27 mm	2.54 mm	1.27 mm	1.27 mm
width	-	7.62 mm	7.62 mm	7.62 mm	8.89 mm	7.62 mm	7.5 mm	8.89 mm
length	-	-	-	22.48 mm	8.89 mm	22.48 mm	11.55 mm	8.89 mm
