DAP213TV3 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Discrete semiconductor> diode> DAP213TV3

DAP213TV3: DescriptionRectifier Diode, 2 Element, 1A, 150V V(RRM), Silicon; CategoryDiscrete semiconductor diode; File Size43KB，2 Pages; ManufacturerROHM Semiconductor; Websitehttps://www.rohm.com/

Download Datasheet Parametric Compare View All

DAP213TV3 Overview

Rectifier Diode, 2 Element, 1A, 150V V(RRM), Silicon

DAP213TV3 Parametric

Parameter Name	Attribute value
Maker	ROHM Semiconductor
package instruction	R-PSIP-W3
Reach Compliance Code	unknown
ECCN code	EAR99
Is Samacsys	N
Configuration	COMMON ANODE, 2 ELEMENTS
Diode component materials	SILICON
Diode type	RECTIFIER DIODE
JESD-30 code	R-PSIP-W3
Number of components	2
Number of terminals	3
Maximum output current	1 A
Package body material	PLASTIC/EPOXY
Package shape	RECTANGULAR
Package form	IN-LINE
Certification status	Not Qualified
Maximum repetitive peak reverse voltage	150 V
surface mount	NO
Terminal form	WIRE
Terminal location	SINGLE
Base Number Matches	1

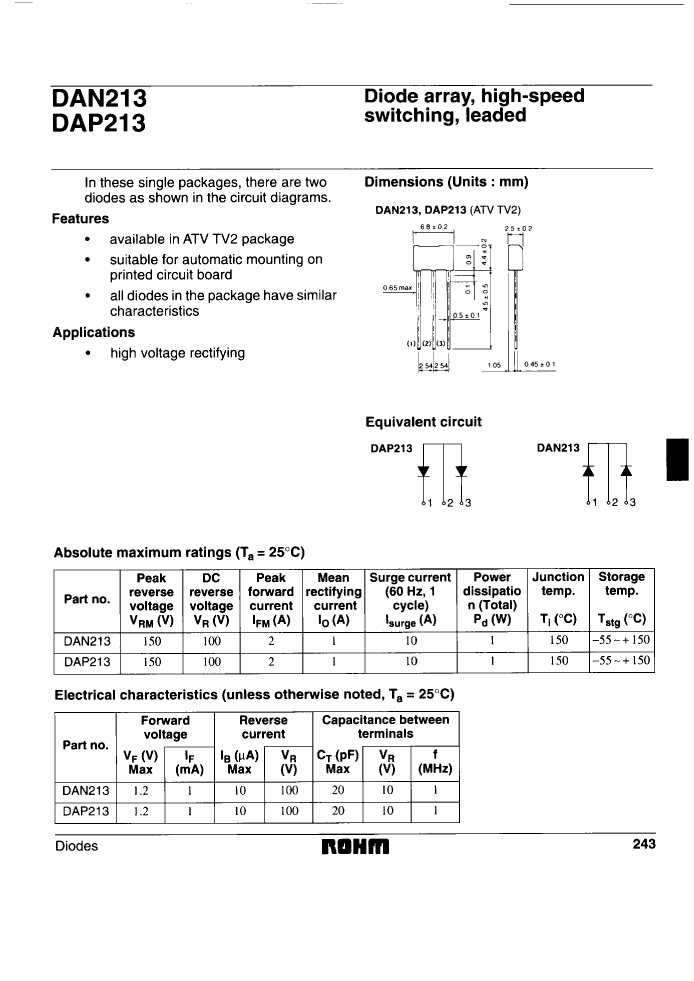

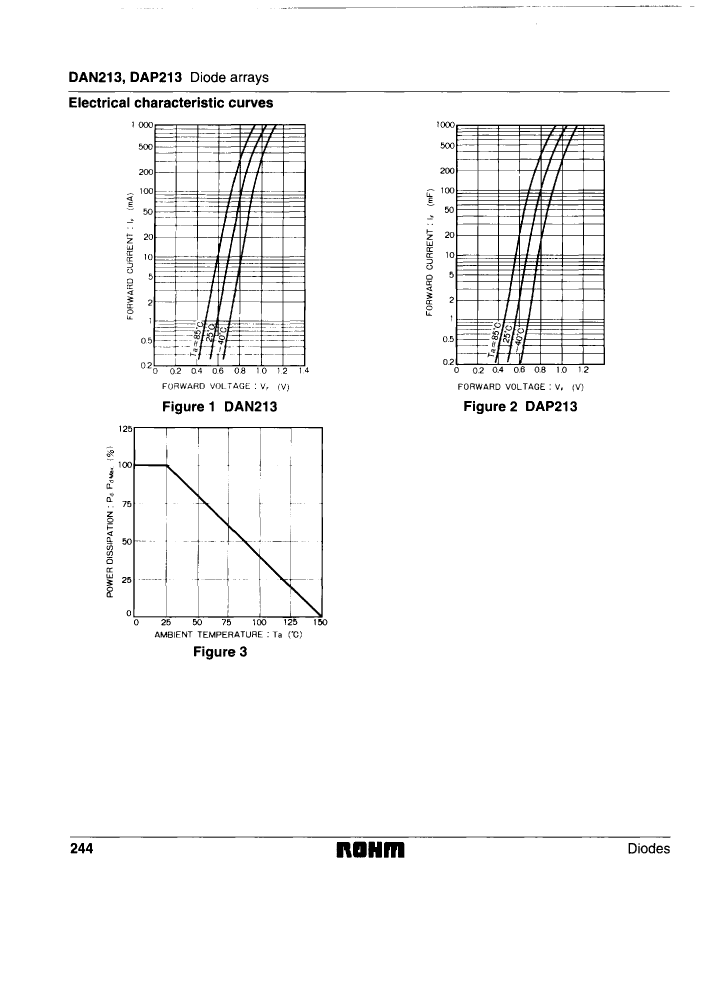

Preview

Download Datasheet

View All

DAP213TV3 Related Products

	DAP213TV3	DAN213TV2	DAN213TV3	DAN213TV6	DAN213TV4	DAP213TV2	DAP213TV6	DAP213TV4
Description	Rectifier Diode, 2 Element, 1A, 150V V(RRM), Silicon	Rectifier Diode, 2 Element, 1A, 150V V(RRM), Silicon	Rectifier Diode, 2 Element, 1A, 150V V(RRM), Silicon	Rectifier Diode, 2 Element, 1A, 150V V(RRM), Silicon	Rectifier Diode, 2 Element, 1A, 150V V(RRM), Silicon	Rectifier Diode, 2 Element, 1A, 150V V(RRM), Silicon	Rectifier Diode, 2 Element, 1A, 150V V(RRM), Silicon	Rectifier Diode, 2 Element, 1A, 150V V(RRM), Silicon
Maker	ROHM Semiconductor	ROHM Semiconductor	ROHM Semiconductor	ROHM Semiconductor	ROHM Semiconductor	ROHM Semiconductor	ROHM Semiconductor	ROHM Semiconductor
package instruction	R-PSIP-W3	R-PSIP-W3	R-PSIP-W3	R-PSIP-W3	R-PSIP-W3	R-PSIP-W3	R-PSIP-W3	R-PSIP-W3
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown	unknown	unknown	unknown
ECCN code	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99
Is Samacsys	N	N	N	N	N	N	N	N
Configuration	COMMON ANODE, 2 ELEMENTS	COMMON CATHODE, 2 ELEMENTS	COMMON CATHODE, 2 ELEMENTS	COMMON CATHODE, 2 ELEMENTS	COMMON CATHODE, 2 ELEMENTS	COMMON ANODE, 2 ELEMENTS	COMMON ANODE, 2 ELEMENTS	COMMON ANODE, 2 ELEMENTS
Diode component materials	SILICON	SILICON	SILICON	SILICON	SILICON	SILICON	SILICON	SILICON
Diode type	RECTIFIER DIODE	RECTIFIER DIODE	RECTIFIER DIODE	RECTIFIER DIODE	RECTIFIER DIODE	RECTIFIER DIODE	RECTIFIER DIODE	RECTIFIER DIODE
JESD-30 code	R-PSIP-W3	R-PSIP-W3	R-PSIP-W3	R-PSIP-W3	R-PSIP-W3	R-PSIP-W3	R-PSIP-W3	R-PSIP-W3
Number of components	2	2	2	2	2	2	2	2
Number of terminals	3	3	3	3	3	3	3	3
Maximum output current	1 A	1 A	1 A	1 A	1 A	1 A	1 A	1 A
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	IN-LINE	IN-LINE	IN-LINE	IN-LINE	IN-LINE	IN-LINE	IN-LINE	IN-LINE
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified
Maximum repetitive peak reverse voltage	150 V	150 V	150 V	150 V	150 V	150 V	150 V	150 V
surface mount	NO	NO	NO	NO	NO	NO	NO	NO
Terminal form	WIRE	WIRE	WIRE	WIRE	WIRE	WIRE	WIRE	WIRE
Terminal location	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE
Base Number Matches	1	1	1	1	1	1	1	1
