PM7645G datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Analog mixed-signal IC> converter> PM7645G

PM7645G: DescriptionIC PARALLEL, WORD INPUT LOADING, 12-BIT DAC, UUC20, 0.102 X 0.100 INCH, DIE-20, Digital to Analog Converter; CategoryAnalog mixed-signal IC converter; File Size400KB，12 Pages; ManufacturerADI; Websitehttps://www.analog.com

Download Datasheet Parametric Compare View All

PM7645G Overview

IC PARALLEL, WORD INPUT LOADING, 12-BIT DAC, UUC20, 0.102 X 0.100 INCH, DIE-20, Digital to Analog Converter

PM7645G Parametric

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	ADI
Parts packaging code	DIE
package instruction	0.102 X 0.100 INCH, DIE-20
Contacts	20
Reach Compliance Code	compliant
Is Samacsys	N
Maximum analog output voltage	15 V
Minimum analog output voltage
Converter type	D/A CONVERTER
Enter bit code	BINARY, 2'S COMPLEMENT BINARY
Input format	PARALLEL, WORD
JESD-30 code	R-XUUC-N20
JESD-609 code	e0
Maximum linear error (EL)	0.012%
Number of digits	12
Number of functions	1
Number of terminals	20
Package body material	UNSPECIFIED
encapsulated code	DIE
Package shape	RECTANGULAR
Package form	UNCASED CHIP
Peak Reflow Temperature (Celsius)	NOT SPECIFIED
Certification status	Not Qualified
Maximum stabilization time	1 µs
Maximum slew rate	2 mA
Nominal supply voltage	15 V
surface mount	YES
technology	CMOS
Terminal surface	TIN LEAD
Terminal form	NO LEAD
Terminal location	UPPER
Maximum time at peak reflow temperature	NOT SPECIFIED
Base Number Matches	1

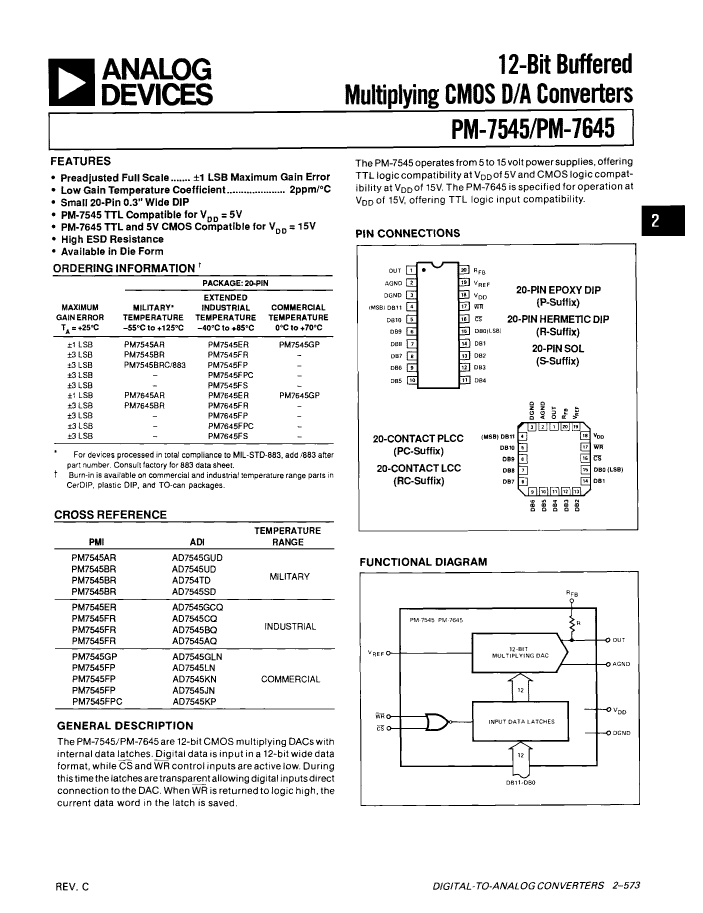

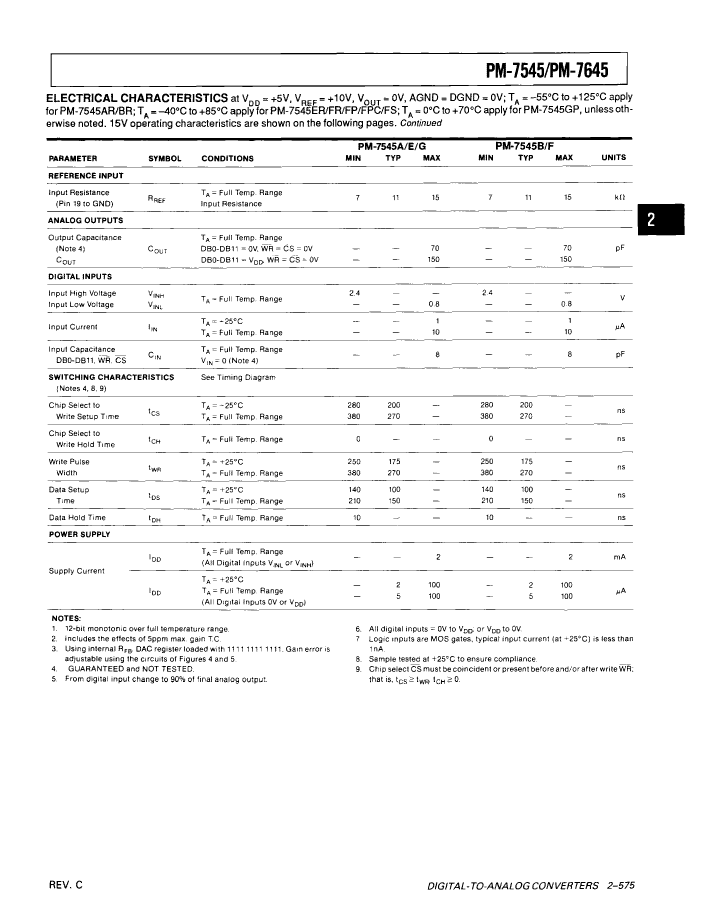

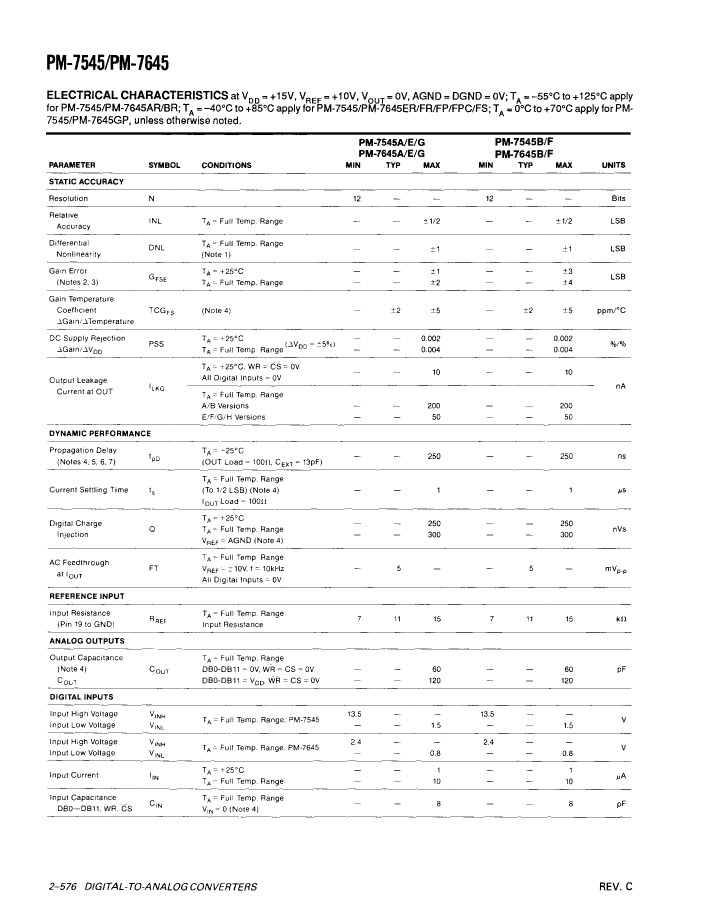

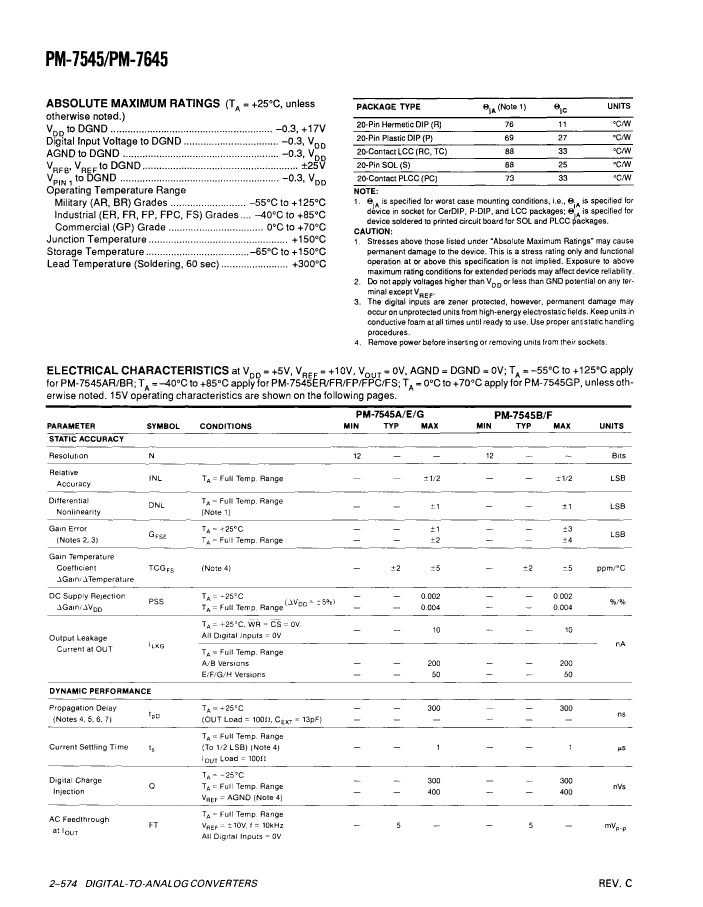

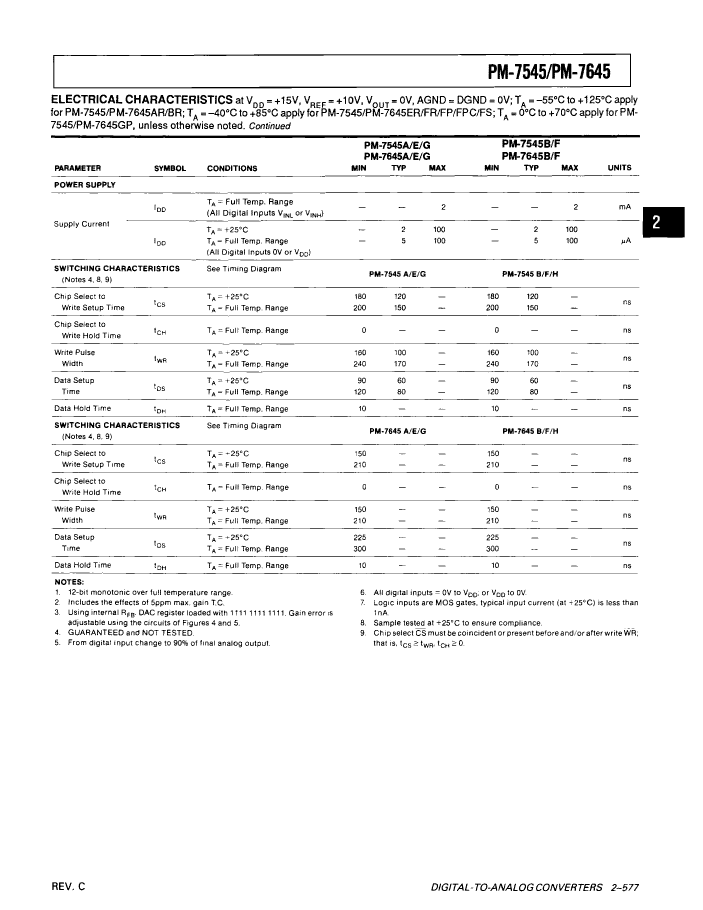

Preview

Download Datasheet

View All

PM7645G Related Products

	PM7645G	PM7645GP	PM7545GP	PM7545G	PM7545BRC/883	PM7545BRC/883C
Description	IC PARALLEL, WORD INPUT LOADING, 12-BIT DAC, UUC20, 0.102 X 0.100 INCH, DIE-20, Digital to Analog Converter	IC PARALLEL, WORD INPUT LOADING, 12-BIT DAC, PDIP20, 0.300 INCH, PLASTIC, DIP-20, Digital to Analog Converter	IC PARALLEL, WORD INPUT LOADING, 12-BIT DAC, PDIP20, 0.300 INCH, PLASTIC, DIP-20, Digital to Analog Converter	IC PARALLEL, WORD INPUT LOADING, 12-BIT DAC, UUC20, 0.102 X 0.100 INCH, DIE-20, Digital to Analog Converter	IC PARALLEL, WORD INPUT LOADING, 12-BIT DAC, CQCC20, CERAMIC, LCC-20, Digital to Analog Converter	IC PARALLEL, WORD INPUT LOADING, 12-BIT DAC, CQCC20, CERAMIC, LCC-20, Digital to Analog Converter
Is it Rohs certified?	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible
Parts packaging code	DIE	DIP	DIP	DIE	QLCC	QLCC
package instruction	0.102 X 0.100 INCH, DIE-20	0.300 INCH, PLASTIC, DIP-20	0.300 INCH, PLASTIC, DIP-20	0.102 X 0.100 INCH, DIE-20	CERAMIC, LCC-20	CERAMIC, LCC-20
Contacts	20	20	20	20	20	20
Reach Compliance Code	compliant	not_compliant	not_compliant	compliant	unknown	unknown
Maximum analog output voltage	15 V	15 V	15 V	15 V	15 V	15 V
Converter type	D/A CONVERTER	D/A CONVERTER	D/A CONVERTER	D/A CONVERTER	D/A CONVERTER	D/A CONVERTER
Enter bit code	BINARY, 2'S COMPLEMENT BINARY	BINARY, 2'S COMPLEMENT BINARY	BINARY, 2'S COMPLEMENT BINARY	BINARY, 2'S COMPLEMENT BINARY	BINARY, 2\'S COMPLEMENT BINARY	BINARY, 2\'S COMPLEMENT BINARY
Input format	PARALLEL, WORD	PARALLEL, WORD	PARALLEL, WORD	PARALLEL, WORD	PARALLEL, WORD	PARALLEL, WORD
JESD-30 code	R-XUUC-N20	R-PDIP-T20	R-PDIP-T20	R-XUUC-N20	S-CQCC-N20	S-CQCC-N20
JESD-609 code	e0	e0	e0	e0	e0	e0
Maximum linear error (EL)	0.012%	0.012%	0.012%	0.012%	0.012%	0.012%
Number of digits	12	12	12	12	12	12
Number of functions	1	1	1	1	1	1
Number of terminals	20	20	20	20	20	20
Package body material	UNSPECIFIED	PLASTIC/EPOXY	PLASTIC/EPOXY	UNSPECIFIED	CERAMIC, METAL-SEALED COFIRED	CERAMIC, METAL-SEALED COFIRED
encapsulated code	DIE	DIP	DIP	DIE	QCCN	QCCN
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	SQUARE	SQUARE
Package form	UNCASED CHIP	IN-LINE	IN-LINE	UNCASED CHIP	CHIP CARRIER	CHIP CARRIER
Peak Reflow Temperature (Celsius)	NOT SPECIFIED	NOT SPECIFIED	NOT APPLICABLE	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified
Maximum stabilization time	1 µs	1 µs	1 µs	1 µs	1 µs	1 µs
Maximum slew rate	2 mA	2 mA	2 mA	2 mA	2 mA	2 mA
Nominal supply voltage	15 V	15 V	15 V	15 V	15 V	15 V
surface mount	YES	NO	NO	YES	YES	YES
technology	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS
Terminal surface	TIN LEAD	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	TIN LEAD	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)
Terminal form	NO LEAD	THROUGH-HOLE	THROUGH-HOLE	NO LEAD	NO LEAD	NO LEAD
Terminal location	UPPER	DUAL	DUAL	UPPER	QUAD	QUAD
Maximum time at peak reflow temperature	NOT SPECIFIED	NOT SPECIFIED	NOT APPLICABLE	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED
Maker	ADI	ADI	-	-	ADI	ADI
Base Number Matches	1	1	1	1	-	-
length	-	25.2 mm	25.2 mm	-	8.89 mm	8.89 mm
Maximum operating temperature	-	70 °C	70 °C	-	125 °C	125 °C
Encapsulate equivalent code	-	DIP20,.3	DIP20,.3	-	LCC20,.35SQ	LCC20,.35SQ
power supply	-	15 V	5/15 V	-	5/15 V	5/15 V
Maximum seat height	-	5.33 mm	5.33 mm	-	2.54 mm	2.54 mm
Temperature level	-	COMMERCIAL	COMMERCIAL	-	MILITARY	MILITARY
Terminal pitch	-	2.54 mm	2.54 mm	-	1.27 mm	1.27 mm
width	-	7.62 mm	7.62 mm	-	8.89 mm	8.89 mm
