5〜6 Watts 4 : 1 Wide Input Range DC/DC Converters
Single and Dual Outputs
Key Features
MIW4000 Series
High Efficiency up to 86%
High Power Density
4:1 Input Range
I/O Isolation 1500VDC
Industry Standard Pinout
SMT Technology
Short Circuit Protection
EMI Complies With EN55022 Class A
MTBF > 1,000,000 Hours

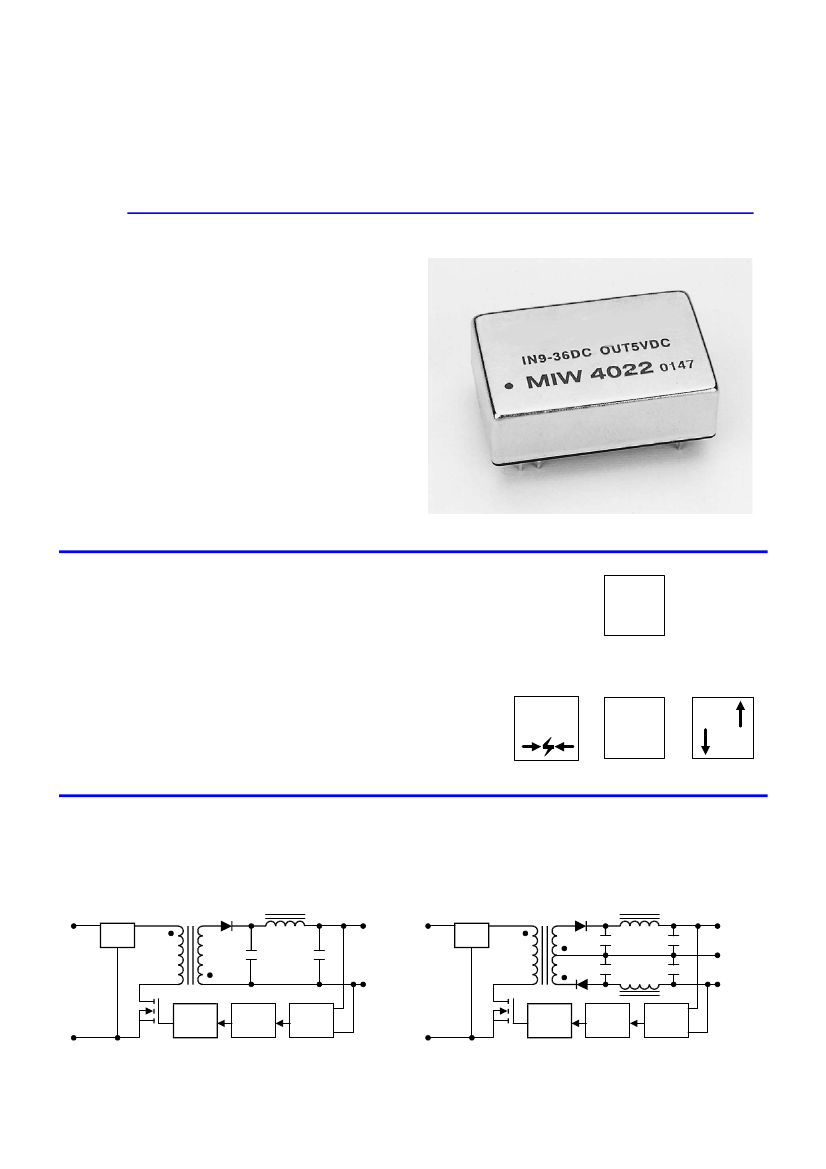

Minmax's MIW4000-Series power modules are low-profile
dc-dc converters that operate over input voltage ranges of 9-36VDC
and 18-75VDC and provide precisely regulated output voltages of
3.3V, 5V, 12V, 15V, {5V, {12V and {15V.
The -25] to +71] operating temperature range makes it ideal
for data communication equipments, mobile battery driven
equipments, distributed power systems, telecommunication
equipments, mixed analog/digital subsystems, process/machine
control equipments, computer peripheral systems and industrial robot
systems.
The modules have a maximum power rating of 6W and a typical
full-load efficiency of 86%, continuous short circuit, EN55022 level A
conducted noise compliance minimize design-in time, cost and
eliminate the need for external components.
High
Power
Density
More Power
1500
VDC
I/O Isolation
EMI
EN55022
4:1
Wide Range
Block Diagram
Single Output
Dual Output
+Vin
LC
Filter
+Vo
+Vin
LC
Filter
+Vo
Com.
-Vo
PFM
Isolation
Ref.Amp
PFM
Isolation
Ref.Amp
-Vo
-Vin
-Vin
MIW4000 Series
Model Selection Guide
Model
Number
Input
Voltage
Output
Voltage
Output Current
Input Current
Reflected
Ripple
Current
mA (Typ.)
Efficiency
VDC
MIW4021
MIW4022
MIW4023
MIW4024
MIW4025
MIW4026
MIW4027
MIW4031
MIW4032
MIW4033
MIW4034
MIW4035
MIW4036
MIW4037
48
( 18 ~ 75 )
24
( 9 ~ 36 )
VDC
3.3
5
12
15
{5
{12
{15
3.3
5
12
15
{5
{12
{15
Max.
mA
1200
1000
500
400
{500
{250
{200
1200
1000
500
400
{500
{250
{200
Min.
mA
120
100
50
40
{50
{25
{20
120
100
50
40
{50
{25
{20
@Max. Load
mA (Typ.)
212
257
291
294
257
291
294
106
129
145
147
123
145
147
@No Load
mA (Typ.)
@Max. Load
% (Typ.)
78
81
86
20
10
85
81
86
85
78
81
86
10
10
85
81
86
85
Absolute Maximum Ratings
Parameter
Input Surge Voltage
( 1000 mS )
Internal Power Dissipation
24VDC Input Models
48VDC Input Models
Min.
-0.7
-0.7
---
---
Max.
50
100
260
2,500
Unit
VDC
VDC
]
mW
Note :
1. Specifications typical at Ta=+25], resistive load,
nominal input voltage, rated output current unless
otherwise noted.
2. Transient recovery time is measured to within 1%
error band for a step change in output load of 75%
to 100%.
3. Ripple & Noise measurement bandwidth is 0-20
MHz.
4. These power converters require a minimum output
loading to maintain specified regulation.
Lead Temperature (1.5mm from case for 10 Sec.)
Exceeding these values can damage the module. These are not continuous
operating ratings.
Environmental Specifications
Parameter
Operating Temperature
Operating Temperature
Storage Temperature
Humidity
Cooling
Conducted EMI
Conditions
Ambient
Case
Min.
-25
-40
-40
---
Free-Air Convection
EN55022 Class A
Max.
+71
+90
+125
95
Unit
]
]
]
%
5. Operation under no-load conditions will not
damage these devices; however they may not
meet all listed specifications.
6. All DC/DC converters should be externally fused at
the front end for protection.
7. Other input and output voltage may be available,
please contact factory.
8. Specifications subject to change without notice.
MIW4000 Series
Input Specifications
Parameter
Start Voltage
Under Voltage Shortdown
Reverse Polarity Input Current
Short Circuit Input Power
Input Filter
All Models
Model
24V Input Models
48V Input Models
24V Input Models
48V Input Models
Min.
7
14
---
---
---
---
Typ.
8
16
---
---
---
---
Pi Filter
Max.
9
18
8.5
16
0.5
2500
A
mW
VDC
Unit
Output Specifications
Parameter
Output Voltage Accuracy
Output Voltage Balance
Line Regulation
Load Regulation
Ripple & Noise (20MHz)
Ripple & Noise (20MHz)
Ripple & Noise (20MHz)
Over Power Protection
Transient Recovery Time
Transient Response Deviation
Temperature Coefficient
Output Short Circuit
25% Load Step Change
Over Line,Load & Temp
Dual Output Balance Load
Vin=Min. to Max.
Io=10% to 100%
Conditions
Min.
---
---
---
---
---
---
---
110
---
---
---
Continuous
Typ.
{0.5
{0.5
{0.1
{0.3
50
---
---
250
250
{3
{0.01
Max.
{1.0
{2.0
{0.3
{1.0
75
100
15
350
500
---
{0.02
Unit
%
%
%
%
mV P-P
mV P-P
mV rms.
%
uS
%
%/]
General Specifications
Parameter
Isolation Voltage
Isolation Test Voltage
Isolation Resistance
Isolation Capacitance
Switching Frequency
MTBF
MIL-HDBK-217F @ 25], Ground Benign
Conditions
60 Seconds
Flash Tested for 1 Second
500VDC
100KHz,1V
Min.
1500
1650
1000
---
---
1000
Typ.
---
---
---
350
340
---
Max.
---
---
---
550
---
---
Unit
VDC
VDC
M[
pF
KHz
K Hours
Capacitive Load
Models by Vout
Maximum Capacitive Load
Note: # For each output .
3.3V
3000
5V
3000
12V
3000
15V
3000
{5V
#
680
{12V
#
680
{15V
#
680
Unit
uF
MIW4000 Series
Input Fuse Selection Guide
24V Input Models
1500mA Slow-Blow type
48V Input Models
750mA Slow-Blow type
Input Voltage Transient Rating
150
140
130
120
110
100
Vin ( VDC )
90
80
70
60
50
40
30
20
10
0
10uS
100uS
1mS
10mS
100mS
24VDC Input Models
48VDC Input Models
MIW4000 Series
100
90
Efficiency (%)
80
70
60
50
Efficiency (%)
100
90
80
70
60
50
Low
Nom
Input Voltage (V)
High
Low
Nom
Input Voltage (V)
High
Efficiency vs Input Voltage ( Single Output )
Efficiency vs Input Voltage ( Dual Output )
90
80
Efficiency (%)
Efficiency (%)
10
20
40
60
80
70
60
50
40
30
20
100
90
80
70
60
50
40
30
20
10
20
40
60
80
100
Load Current (%)
Load Current (%)
Efficiency vs Output Load ( Single Output )
Efficiency vs Output Load ( Dual Output )
100
80
Output Power (%)
100LFM
Natural
convection
400LFM
200LFM
60
40
20
0
-40
〜
50
60
70
80
]
90
100
110
Ambient Temperature
Derating Curve
