PL2598PHN: DescriptionRF UHF Connector, Male, Cable Mount, Solder Terminal, Plug; CategoryThe connector The connector; File Size400KB，1 Pages; ManufacturerRadiall; Websitehttps://www.radiall.com/

Download Datasheet Parametric Compare View All

PL2598PHN Overview

RF UHF Connector, Male, Cable Mount, Solder Terminal, Plug

PL2598PHN Parametric

Parameter Name	Attribute value
Maker	Radiall
Reach Compliance Code	unknown
Is Samacsys	N
Body/casing type	PLUG
Connector type	RF UHF CONNECTOR
Contact to complete cooperation	NICKEL
Contact completed and terminated	NICKEL
Contact point gender	MALE
Contact material	BRASS
Coupling type	THREADED
DIN compliance	NO
Filter function	NO
IEC compliance	NO
MIL compliance	NO
Manufacturer's serial number	UHF
Installation method	STRAIGHT
Installation type	CABLE
Options	GENERAL PURPOSE
Panel mounting	NO
Termination type	SOLDER
Base Number Matches	1

Preview

Download Datasheet

View All

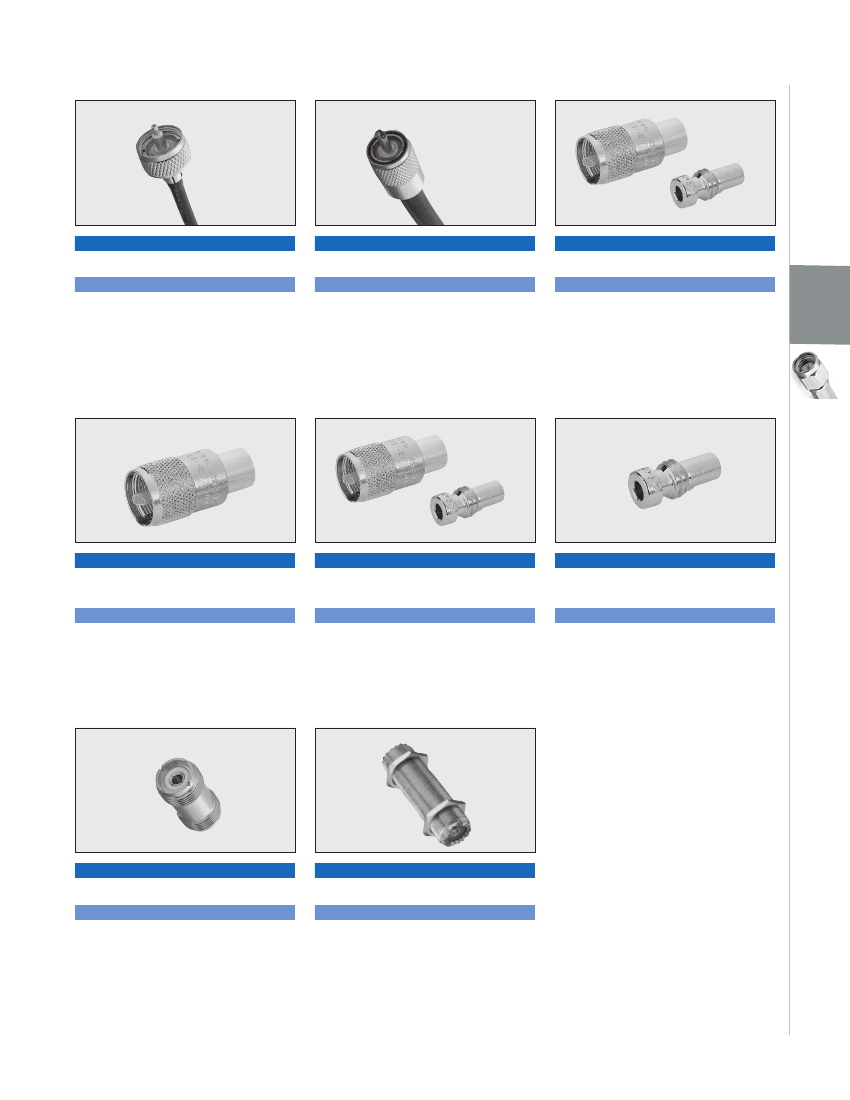

UHF COAXIAL CONNECTORS

MODEL

58FCP

SPECIFICATIONS

SERIES

CABLE GROUP

FINISH

INSULATION

IMPEDANCE

DESCRIPTION

UHF FCP Plug 58/U

MODEL

PL2598PHN

SPECIFICATIONS

SERIES

CABLE GROUP

FINISH

INSULATION

IMPEDANCE

DESCRIPTION

UHF Solder Plug PL 259/U

MODEL

PL259

SPECIFICATIONS

SERIES

CABLE GROUP

FINISH

INSULATION

IMPEDANCE

UHF

58

Nickel

Phenolic

n/a

UHF

n/a

Nickel

Phenolic

n/a

UHF

n/a

Silver

Teflon

50

Ω

MODEL

PL2598

DESCRIPTION

UHFSolderPlugPL259/

Teflon&SilverPlate

U

MODEL

PL259T

DESCRIPTION

UHF Solder Plug PL 259/U

Teflon & Silver & UG175 adapter

MODEL

UG175

DESCRIPTION

UHF Reducing adapter 58/U

SPECIFICATIONS

SERIES

CABLEGROUP

FINISH

INSULATION

IMPEDANCE

UHF

N/A

Nickle

Phenolic

50

Ω

SPECIFICATIONS

SERIES

CABLE GROUP

FINISH

INSULATION

IMPEDANCE

UHF

n/a

Nickel

Teflon

50

Ω

SPECIFICATIONS

SERIES

CABLE GROUP

FINISH

INSULATION

IMPEDANCE

UHF

n/a

Silver

n/a

MODEL

PL258

SPECIFICATIONS

SERIES

CABLE GROUP

FINISH

INSULATION

IMPEDANCE

DESCRIPTION

UHF adapter J/J

MODEL

UHFBJJ

SPECIFICATIONS

SERIES

CABLE GROUP

FINISH

INSULATION

IMPEDANCE

DESCRIPTION

UHF bulkhead

UHF

n/a

Nickel

Delrin

n/a

UHF

n/a

Nickel

Delrin

50

Ω

1 800 ANTENNA

COAXIAL CABLES

DESCRIPTION

UHF Solder Plug PL

259/U w/UG 175 adapter

197

PL2598PHN Related Products

	PL2598PHN	PL2598	58FCP	PL259T	PL259
Description	RF UHF Connector, Male, Cable Mount, Solder Terminal, Plug	RF UHF Connector, Male, Cable Mount, Solder Terminal, Plug	RF UHF Connector, Male, Cable Mount, Plug	RF UHF Connector, Male, Cable Mount, Solder Terminal, Plug	RF UHF Connector, Male, Cable Mount, Solder Terminal, Plug
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown
Body/casing type	PLUG	PLUG	PLUG	PLUG	PLUG
Connector type	RF UHF CONNECTOR	RF UHF CONNECTOR	RF UHF CONNECTOR	RF UHF CONNECTOR	RF UHF CONNECTOR
Contact point gender	MALE	MALE	MALE	MALE	MALE
Coupling type	THREADED	THREADED	THREADED	THREADED	THREADED
Filter function	NO	NO	NO	NO	NO
Installation method	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT
Installation type	CABLE	CABLE	CABLE	CABLE	CABLE
Options	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE
Panel mounting	NO	NO	NO	NO	NO
Maker	Radiall	Radiall	-	Radiall	Radiall
Contact to complete cooperation	NICKEL	NICKEL	NICKEL	NICKEL	-
Contact completed and terminated	NICKEL	NICKEL	NICKEL	NICKEL	-
Contact material	BRASS	BRASS	BRASS	BRASS	-
DIN compliance	NO	NO	NO	NO	-
IEC compliance	NO	NO	NO	NO	-
MIL compliance	NO	NO	NO	NO	-
Manufacturer's serial number	UHF	UHF	UHF	UHF	-
Termination type	SOLDER	SOLDER	-	SOLDER	SOLDER
Base Number Matches	1	1	1	-	-
Characteristic impedance	-	50 Ω	-	50 Ω	50 Ω
