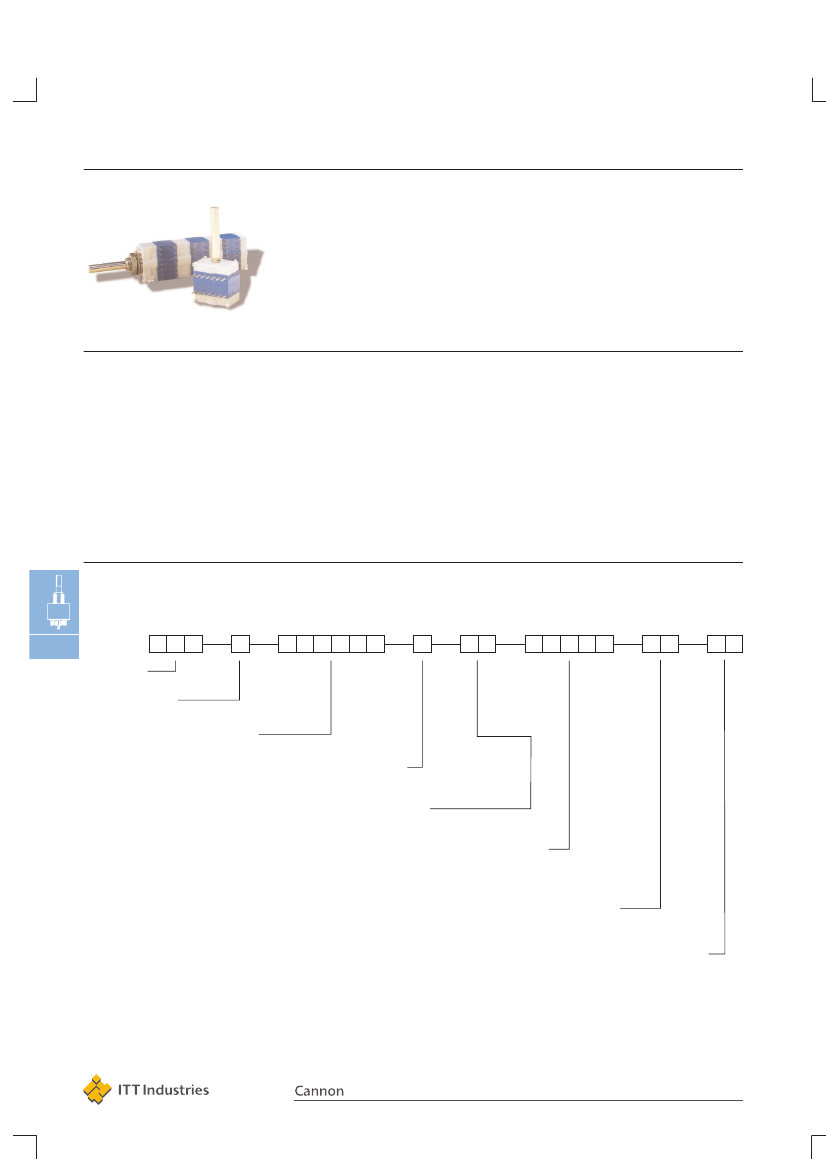

C&K MIL Series
1-4 Pole Miniature Right
Typical Applications
•
Telecom switching equipment
•
Military communications
5 banks per switch
•
Instrumentation
•
Totally sealed (insert molded contacts
•
Medical monitors
Features/Benefits
•
Bushing option for panel mounting
•
1 to 4 poles per bank and up to
and terminals)
•
Low profile – 12 mm above PCB
Specifications
CONTACT RATING: Switch: 20 mA, 1 VA max. resistive load
Carry: 1 AMP.
ELECTRICAL LIFE: 20,000 operations.
OPERATING TORQUE: < 6 Ncm.
STOP STRENGTH: > 50 Ncm.
CONTACT RESISTANCE: < 40 mΩ
INSULATION RESISTANCE: 109
Ω
DIELECTRIC STRENGTH: 500 V rms
OPERATING TEMPERATURE: –40ºC to + 85ºC
STORAGE TEMPERATURE: –55ºC to + 85ºC
NOTE:
Specifications and materials listed above are for switches with standard options.
For information on specific and custom switches, consult Customer Service Center.
Materials
HOUSING: Thermoplastic (nylon) and thermoset (diallyl phthalate)
ACTUATOR: Steel
MOVABLE CONTACTS: Brass, gold plated.
ROTOR: Thermoset (polysulfone)
O-RING: Silicone
STATIONARY CONTACTS & TERMINALS: Brass, gold plated.
TERMINAL SEAL: Totally sealed (insert molded).
BUSHING: Brass
STOP PIN: Stainless steel
HARDWARE: Nut: Brass, nickel plated. Washer: Brass, nickel plated.
Gasket: Neopren.
Build-A-Switch
To order, simply select desired option from each category and place in the appropriate box. Available options are shown and
described on pages K-23 thru K-25. For additional options not shown in catalog, consult Customer Service Center.
K
Rotary
Designation
MIL
Number of Banks
1
(STD.) 1 Bank
2
2 Banks
Switch Function
3
3 Banks
112S
(STD.) SP, 30° Index, 12 pos. no stop
4
4 Banks
102B02
SP, 30° Index, 2 pos.
5
5 Banks
Switching Mode
103B03
SP, 30° Index, 3 pos.
N
(STD.) Non-shorting BBM (break-before-make)
104B04
SP, 30° Index, 4 pos.
C
Shorting, MBB (make-before-break)
105B05
SP, 30° Index, 5 pos.
106B06
SP, 30° Index, 6 pos.

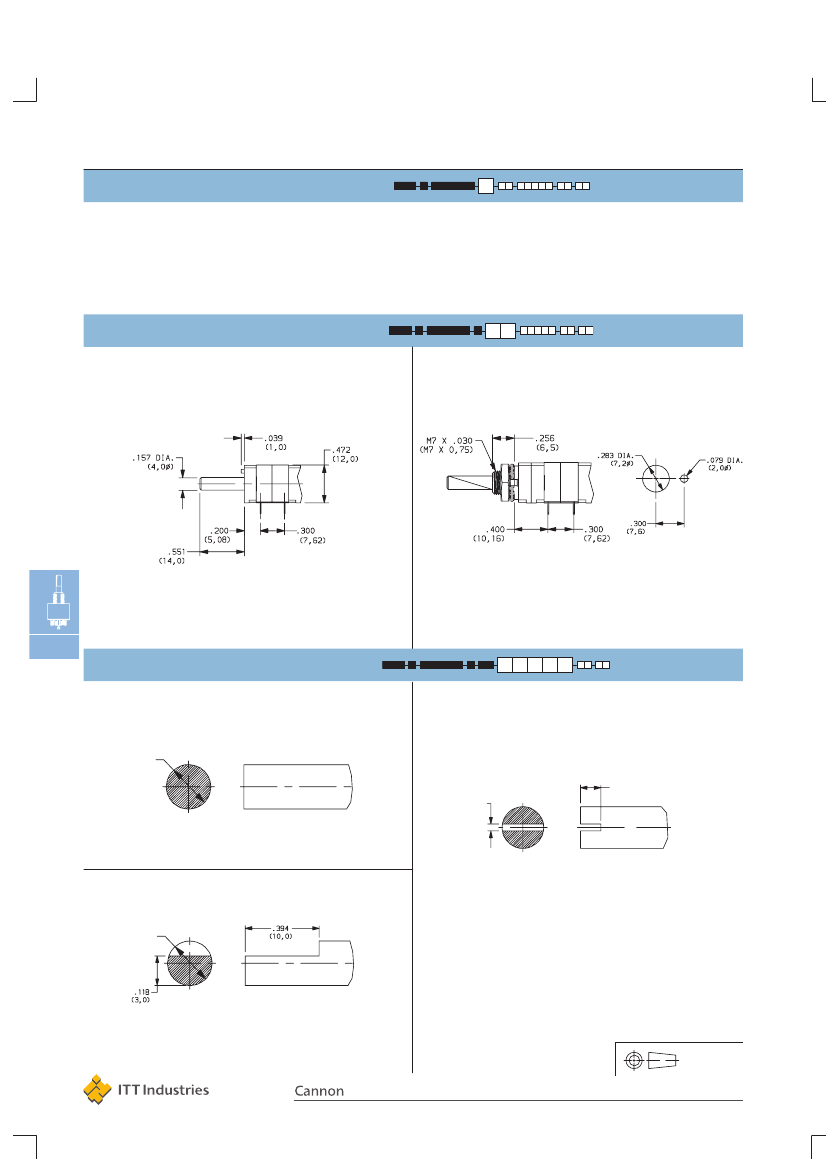

Mounting Style
107B07
SP, 30° Index, 7 pos.
SD
(STD.) Without panel mount
108B08
SP, 30° Index, 8 pos.
AD
(STD.) With panel mount
109B09
SP, 30° Index, 9 pos.
Actuator Option
110B10
SP, 30° Index, 10 pos.
(NONE)
(STD.) 4 mm diameter shaft
111B11
SP, 30° Index, 11 pos.
M10X3
4 mm shaft with flat
112B12
(STD.) SP, 30° Index, 12 pos.
F2X1
4 mm shaft with screwdriver slot
206S
(STD.) DP, 30° Index, 6 pos. no stop

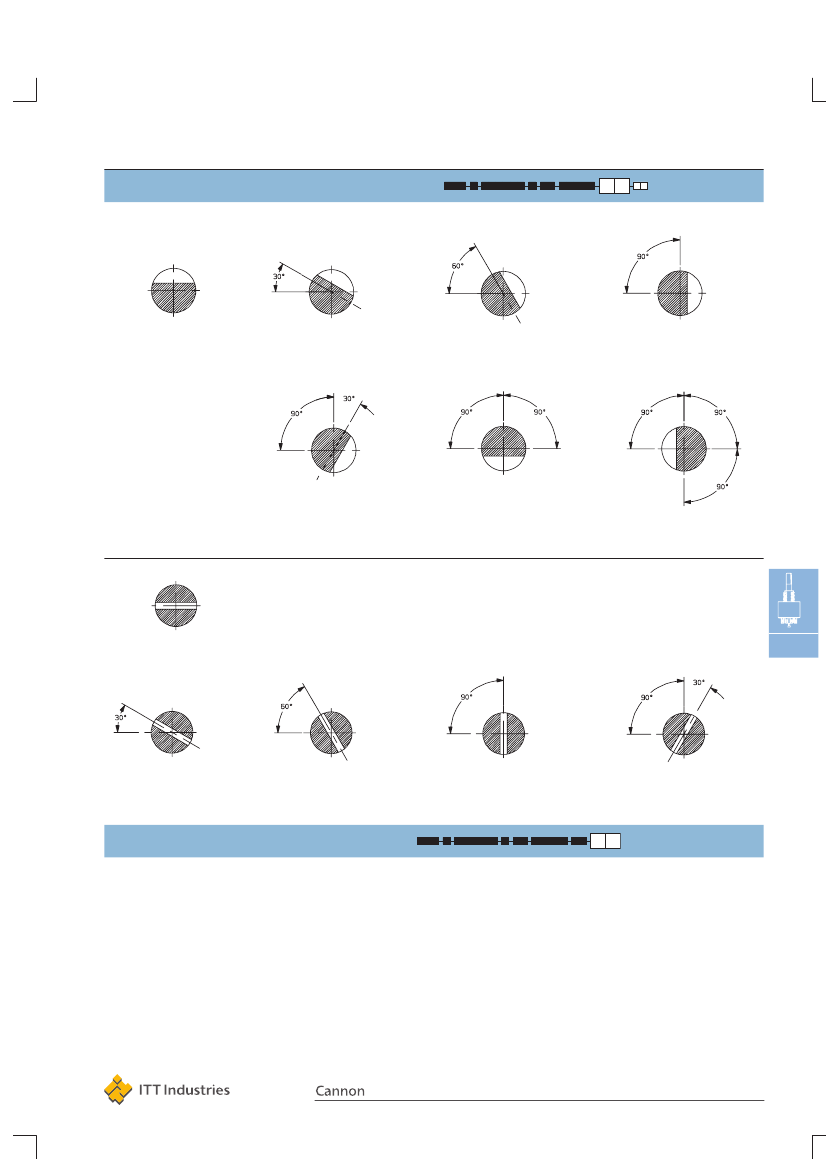

Actuator Option Angle*
202B02
DP, 30° Index, 2 pos.
(NONE)
(STD.)
203B03
DP, 30° Index, 3 pos.
K0
0° angle
204B04
DP, 30° Index, 4 pos.
K30
30° angle
205B05
DP, 30° Index, 5 pos.
K60
60° angle
Actuator Option Length**
206B06
(STD.) DP, 30° Index, 6 pos.
K90
90° angle
25
(STD.) 25 mm standard shaft
303S
3P, 30° Index, 3 pos. no stop
K120
120° angle
302B02
3P, 30° Index, 2 pos.
K180
180° angle
303B03
3P, 30° Index, 3 pos.
K270
270° angle
402S
4P, 30° Index, 2 pos. no stop
402B02
4P, 30° Index, 2 pos.
* Other angles available by request
** Other lengths available by request.

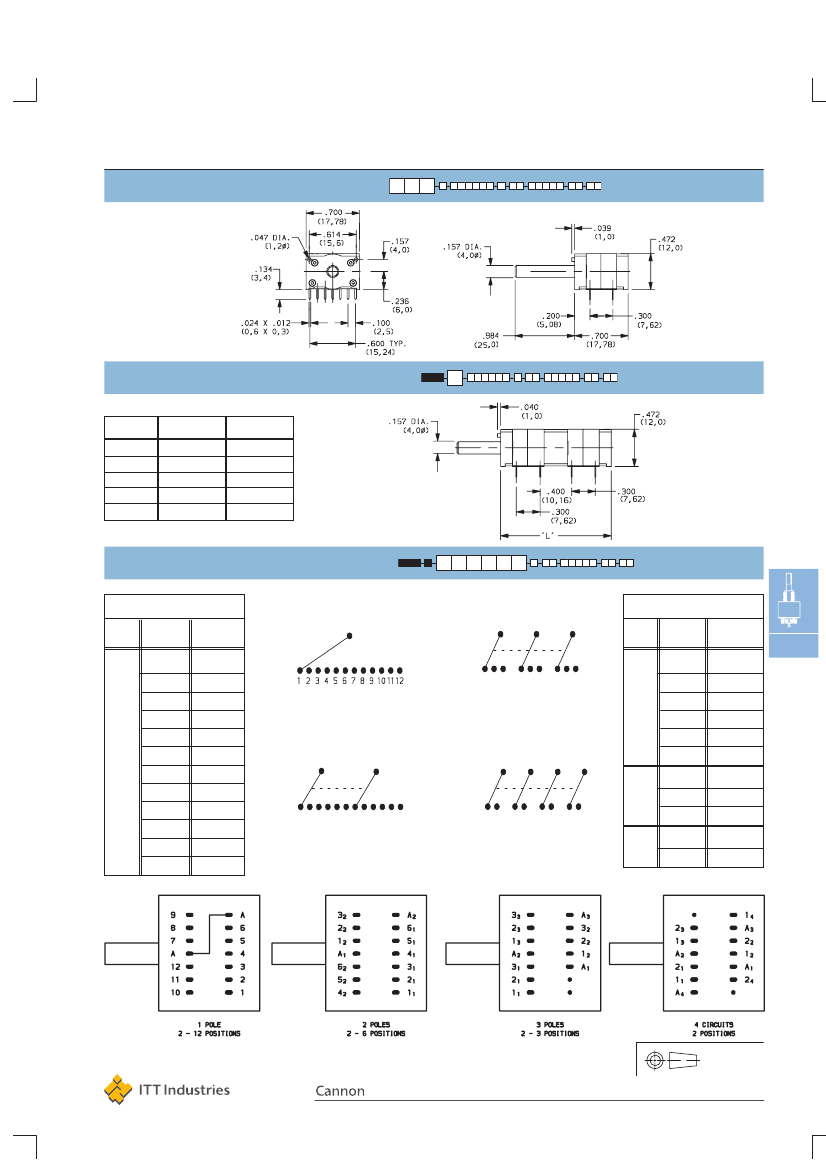

Dimensions are shown: IN (mm)
Dimensions subject to change
K-22
www.ittcannon.com
