MOTOROLA
SEMICONDUCTOR TECHNICAL DATA
One Watt Amplifier Transistors
PNP Silicon
COLLECTOR
3
2
BASE
1
EMITTER
BDB02C
1
2
3
MAXIMUM RATINGS
Rating
Collector – Emitter Voltage
Collector – Base Voltage
Emitter – Base Voltage
Collector Current — Continuous
Total Device Dissipation
@ TA = 25°C
Derate above 25°C
Total Device Dissipation
@ TC = 25°C
Derate above 25°C
Operating and Storage Junction
Temperature Range
Symbol
VCEO
VCES
VEBO
IC
PD
Value
–80
–80
–5.0
–0.5
1.0
8.0
2.5
20
– 55 to +150
Unit
Vdc
Vdc
Vdc
Adc
Watt
mW/°C
Watt
mW/°C
°C
CASE 29–05, STYLE 1
TO–92 (TO–226AE)
PD
TJ, Tstg
THERMAL CHARACTERISTICS
Characteristic
Thermal Resistance, Junction to Ambient
Thermal Resistance, Junction to Case
Symbol
R
q
JA
R
q
JC
Max
125
50
Unit
°C/W
°C/W
ELECTRICAL CHARACTERISTICS
(TA = 25°C unless otherwise noted)
Characteristic
Symbol
Min
Max
Unit
OFF CHARACTERISTICS
Collector – Emitter Voltage
(IC = –10 mA, IB = 0)
Collector Cutoff Current
(VCB = –80 V, IE = 0)
Emitter Cutoff Current (IC = 0, VEB = –5.0 V)
V(BR)CEO
–80
ICBO
—
IEBO
—
–0.1
–100
nAdc
—
Vdc
m
Adc
ON CHARACTERISTICS
DC Current Gain
(IC = –100 mA, VCE = –1.0 V)
(IC = –500 mA, VCE = –2.0 V)
Collector – Emitter Saturation Voltage(1) (IC = –1000 mA, IB = –100 mA)
Collector – Emitter On Voltage(1) (IC = –1000 mA, VCE = –1.0 V)
hFE
40
25
VCE(sat)
VBE(on)
—
—
400
—
–0.7
–1.2
Vdc
Vdc
—
DYNAMIC CHARACTERISTICS
Current–Gain — Bandwidth Product (IC = –200 mA, VCE = –5.0 V, f = 20 MHz)
Output Capacitance (VCB = –10 V, IE = 0, f = 1.0 MHz)
1. Pulse Test: Pulse Width
REV 1
fT
Cob
50
—
—
30
MHz
pF
v
300
m
s, Duty Cycle 2.0%.
Motorola Small–Signal Transistors, FETs and Diodes Device Data
2–225
BDB02C
400
TJ = 125°C
hFE, DC CURRENT GAIN
200
25°C
–55°C
100
80
60
40
–0.5 –0.7
VCE = –1.0 V
–1.0
–2.0
–3.0
–5.0
–7.0 –10
–20
–30
IC, COLLECTOR CURRENT (mA)
–50
–70
–100
–200
–300
–500

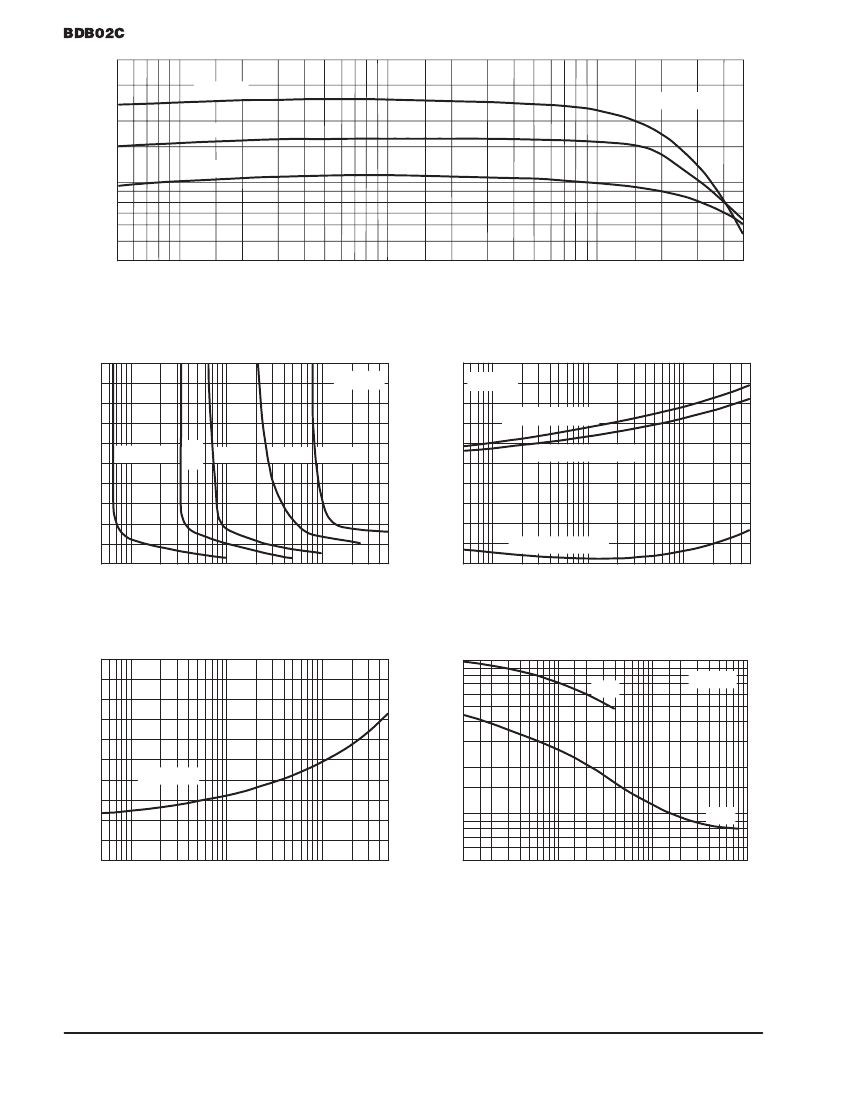

Figure 1. DC Current Gain
VCE , COLLECTOR–EMITTER VOLTAGE (VOLTS)
–1.0
TJ = 25°C
–0.8
V, VOLTAGE (VOLTS)
–1.0
TJ = 25°C
–0.8
VBE(sat) @ IC/IB = 10
–0.6
VBE(on) @ VCE = –1.0 V
–0.6
IC = –10 mA
–0.4
–50
mA
–100 mA
–250 mA
–500 mA
–0.4
–0.2
–0.2
VCE(sat) @ IC/IB = 10
0
–0.05 –0.1
–0.2
–0.5 –1.0 –2.0
–5.0
IB, BASE CURRENT (mA)
–10
–20
–50
0
–0.5 –1.0
–2.0
–5.0 –10 –20
–50 –100 –200
IC, COLLECTOR CURRENT (mA)
–500
Figure 2. Collector Saturation Region
Figure 3. On Voltages
θ
VB, TEMPERATURE COEFFICIENT (mV/
°
C)
–0.8
–1.2
C, CAPACITANCE (pF)
100
70
50
30
20
Cibo
TJ = 25°C
–1.6
θ
VB for VBE
–2.0
–2.4
10
7.0
Cobo
–2.8
–0.5
–1.0
–2.0
–5.0 –10 –20
–50 –100 –200
IC, COLLECTOR CURRENT (mA)
–500
5.0
–0.1
–0.2
–0.5 –1.0 –2.0
–5.0 –10 –20
VR, REVERSE VOLTAGE (VOLTS)
–50 –100
Figure 4. Base–Emitter Temperature Coefficient
Figure 5. Capacitance
2–226
Motorola Small–Signal Transistors, FETs and Diodes Device Data
BDB02C
f T, CURRENT–GAIN — BANDWIDTH PRODUCT (MHz
300
IC, COLLECTOR CURRENT (mA)
200
VCE = –2.0 V
TJ = 25°C
DUTY CYCLE
≤
10%
–2 k
–1 k
–500
–200
–100
–50
–20
30
–2.0 –3.0
–5.0 –7.0 –10
–20 –30 –50 –70 –100
IC, COLLECTOR CURRENT (mA)
–200
–10
–1.0
BDB02C
–2.0
–5.0
–10
–20
–45 –60 –80 –100
VCE, COLLECTOR–EMITTER VOLTAGE (VOLTS)
TA = 25°C
TC = 25°C
10 s
dc
1.0 ms
100
µs
100
70
50
dc
CURRENT LIMIT
THERMAL LIMIT
SECOND BREAKDOWN LIMIT
Figure 6. Current–Gain — Bandwidth Product
Figure 7. Active Region — Safe Operating Area
Motorola Small–Signal Transistors, FETs and Diodes Device Data
2–227
