BCX70G-TAPE-13 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Discrete semiconductor> The transistor> BCX70G-TAPE-13

BCX70G-TAPE-13: DescriptionTRANSISTOR 200 mA, 45 V, NPN, Si, SMALL SIGNAL TRANSISTOR, BIP General Purpose Small Signal; CategoryDiscrete semiconductor The transistor; File Size59KB，4 Pages; ManufacturerNXP; Websitehttps://www.nxp.com

Download Datasheet Parametric Compare View All

BCX70G-TAPE-13 Overview

TRANSISTOR 200 mA, 45 V, NPN, Si, SMALL SIGNAL TRANSISTOR, BIP General Purpose Small Signal

BCX70G-TAPE-13 Parametric

Parameter Name	Attribute value
Maker	NXP
package instruction	SMALL OUTLINE, R-PDSO-G3
Reach Compliance Code	unknown
ECCN code	EAR99
Is Samacsys	N
Other features	LOW NOISE
Maximum collector current (IC)	0.2 A
Collector-emitter maximum voltage	45 V
Configuration	SINGLE
Minimum DC current gain (hFE)	50
JESD-30 code	R-PDSO-G3
Number of components	1
Number of terminals	3
Maximum operating temperature	150 °C
Package body material	PLASTIC/EPOXY
Package shape	RECTANGULAR
Package form	SMALL OUTLINE
Polarity/channel type	NPN
Certification status	Not Qualified
surface mount	YES
Terminal form	GULL WING
Terminal location	DUAL
Transistor component materials	SILICON
Nominal transition frequency (fT)	250 MHz
Maximum off time (toff)	800 ns
Maximum opening time (tons)	150 ns
VCEsat-Max	0.55 V
Base Number Matches	1

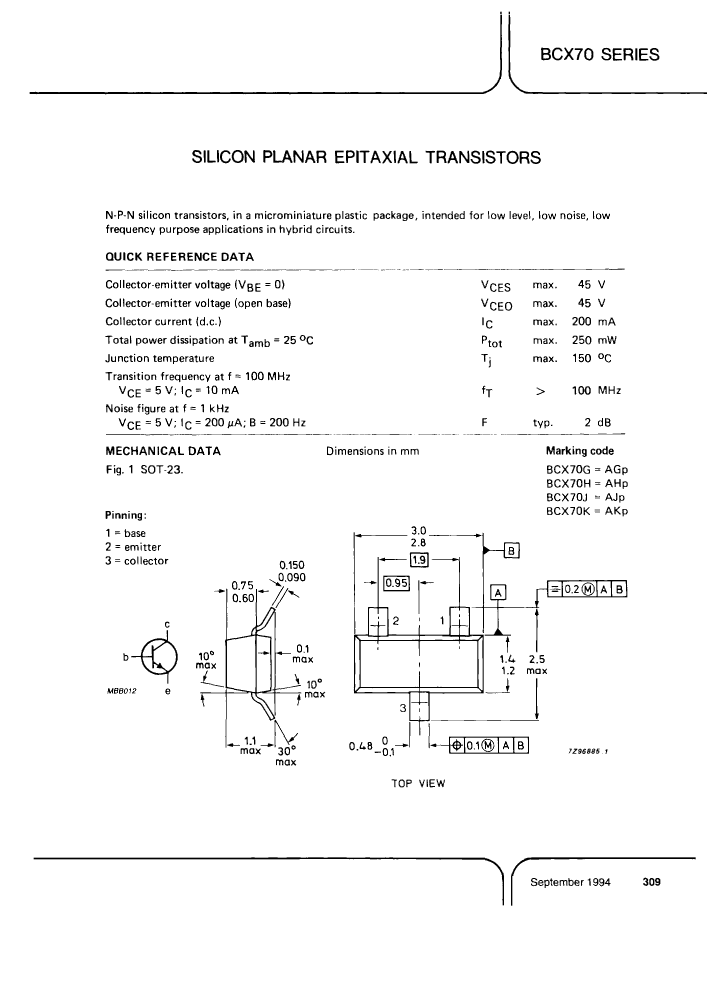

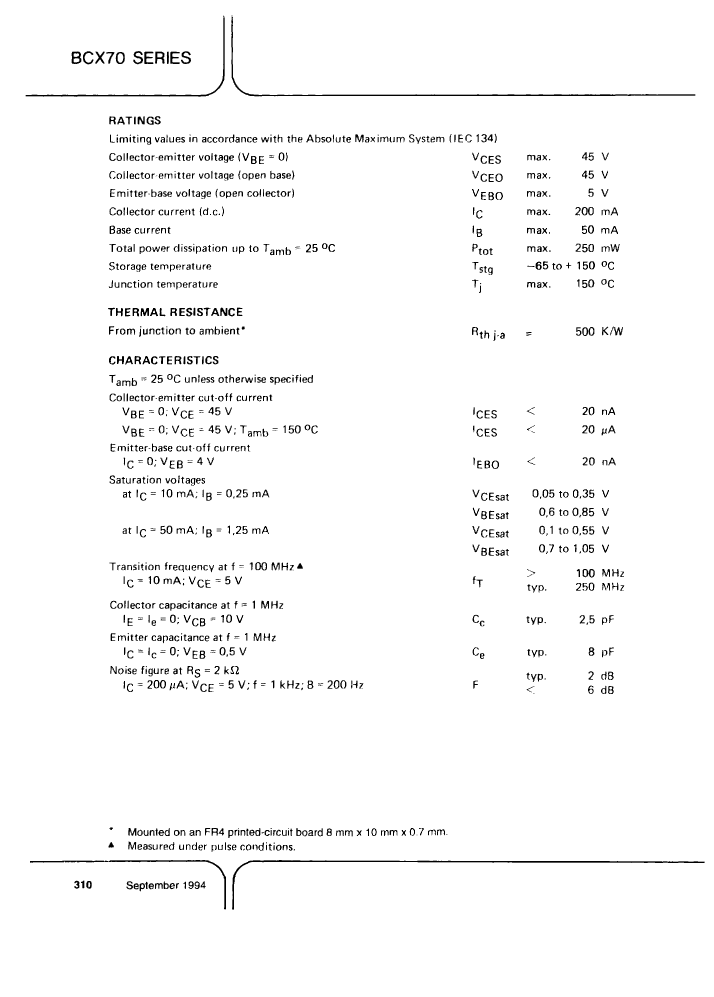

Preview

Download Datasheet

View All

BCX70G-TAPE-13 Related Products

	BCX70G-TAPE-13	BCX70K-TAPE-7	BCX70K-TAPE-13	BCX70G-TAPE-7	BCX70H-TAPE-13	BCX70H-TAPE-7	BCX70J-TAPE-7	BCX70J-TAPE-13
Description	TRANSISTOR 200 mA, 45 V, NPN, Si, SMALL SIGNAL TRANSISTOR, BIP General Purpose Small Signal	TRANSISTOR 200 mA, 45 V, NPN, Si, SMALL SIGNAL TRANSISTOR, BIP General Purpose Small Signal	TRANSISTOR 200 mA, 45 V, NPN, Si, SMALL SIGNAL TRANSISTOR, BIP General Purpose Small Signal	TRANSISTOR 200 mA, 45 V, NPN, Si, SMALL SIGNAL TRANSISTOR, BIP General Purpose Small Signal	TRANSISTOR 200 mA, 45 V, NPN, Si, SMALL SIGNAL TRANSISTOR, BIP General Purpose Small Signal	TRANSISTOR 200 mA, 45 V, NPN, Si, SMALL SIGNAL TRANSISTOR, BIP General Purpose Small Signal	TRANSISTOR 200 mA, 45 V, NPN, Si, SMALL SIGNAL TRANSISTOR, BIP General Purpose Small Signal	TRANSISTOR 200 mA, 45 V, NPN, Si, SMALL SIGNAL TRANSISTOR, BIP General Purpose Small Signal
package instruction	SMALL OUTLINE, R-PDSO-G3	SMALL OUTLINE, R-PDSO-G3	SMALL OUTLINE, R-PDSO-G3	SMALL OUTLINE, R-PDSO-G3	SMALL OUTLINE, R-PDSO-G3	SMALL OUTLINE, R-PDSO-G3	SMALL OUTLINE, R-PDSO-G3	SMALL OUTLINE, R-PDSO-G3
Reach Compliance Code	unknown	unknow	unknown	unknown	unknown	unknown	unknown	unknown
ECCN code	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99
Maker	NXP	-	-	NXP	NXP	NXP	NXP	NXP
Other features	LOW NOISE	LOW NOISE	LOW NOISE	LOW NOISE	-	LOW NOISE	LOW NOISE	LOW NOISE
Maximum collector current (IC)	0.2 A	0.2 A	0.2 A	0.2 A	-	0.2 A	0.2 A	0.2 A
Collector-emitter maximum voltage	45 V	45 V	45 V	45 V	-	45 V	45 V	45 V
Configuration	SINGLE	SINGLE	SINGLE	SINGLE	-	SINGLE	SINGLE	SINGLE
Minimum DC current gain (hFE)	50	100	100	50	-	70	90	90
JESD-30 code	R-PDSO-G3	R-PDSO-G3	R-PDSO-G3	R-PDSO-G3	-	R-PDSO-G3	R-PDSO-G3	R-PDSO-G3
Number of components	1	1	1	1	-	1	1	1
Number of terminals	3	3	3	3	-	3	3	3
Maximum operating temperature	150 °C	150 °C	150 °C	150 °C	-	150 °C	150 °C	150 °C
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	-	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	-	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	SMALL OUTLINE	SMALL OUTLINE	SMALL OUTLINE	SMALL OUTLINE	-	SMALL OUTLINE	SMALL OUTLINE	SMALL OUTLINE
Polarity/channel type	NPN	NPN	NPN	NPN	-	NPN	NPN	NPN
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified	-	Not Qualified	Not Qualified	Not Qualified
surface mount	YES	YES	YES	YES	-	YES	YES	YES
Terminal form	GULL WING	GULL WING	GULL WING	GULL WING	-	GULL WING	GULL WING	GULL WING
Terminal location	DUAL	DUAL	DUAL	DUAL	-	DUAL	DUAL	DUAL
Transistor component materials	SILICON	SILICON	SILICON	SILICON	-	SILICON	SILICON	SILICON
Nominal transition frequency (fT)	250 MHz	250 MHz	250 MHz	250 MHz	-	250 MHz	250 MHz	250 MHz
Maximum off time (toff)	800 ns	800 ns	800 ns	800 ns	-	800 ns	800 ns	800 ns
Maximum opening time (tons)	150 ns	150 ns	150 ns	150 ns	-	150 ns	150 ns	150 ns
VCEsat-Max	0.55 V	0.55 V	0.55 V	0.55 V	-	0.55 V	0.55 V	0.55 V
