RD-14597F2-425 datasheet, PDF - EEWORLD Datasheet

RD-14597F2-425: DescriptionSynchro or Resolver to Digital Converter, CDFP36, CERAMIC, FP-36; CategoryAnalog mixed-signal IC converter; File Size265KB，6 Pages; ManufacturerData Device Corporation

Download Datasheet Parametric View All

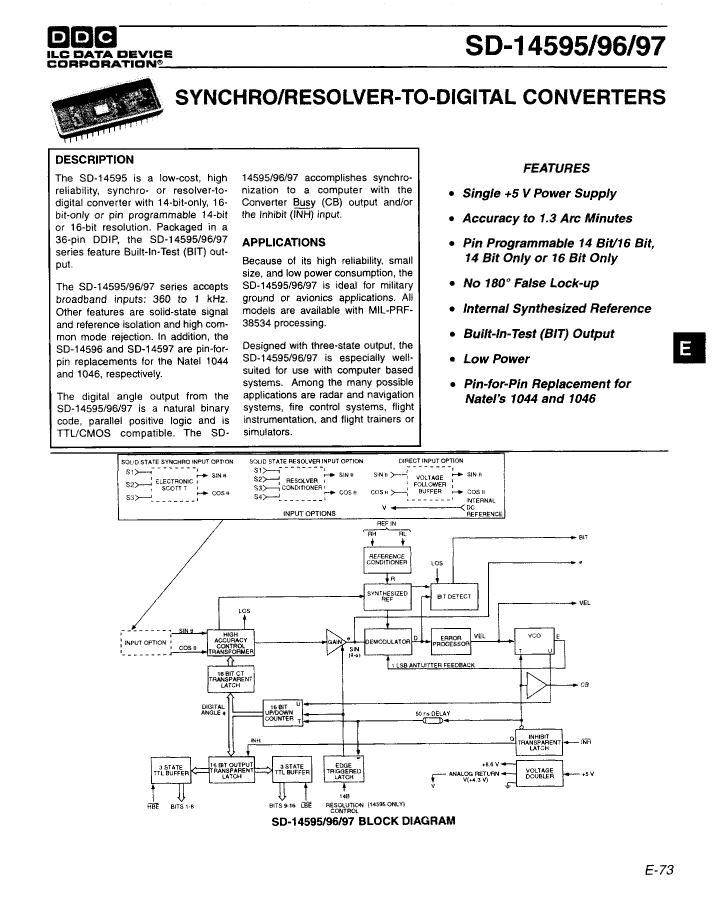

RD-14597F2-425 Overview

Synchro or Resolver to Digital Converter, CDFP36, CERAMIC, FP-36

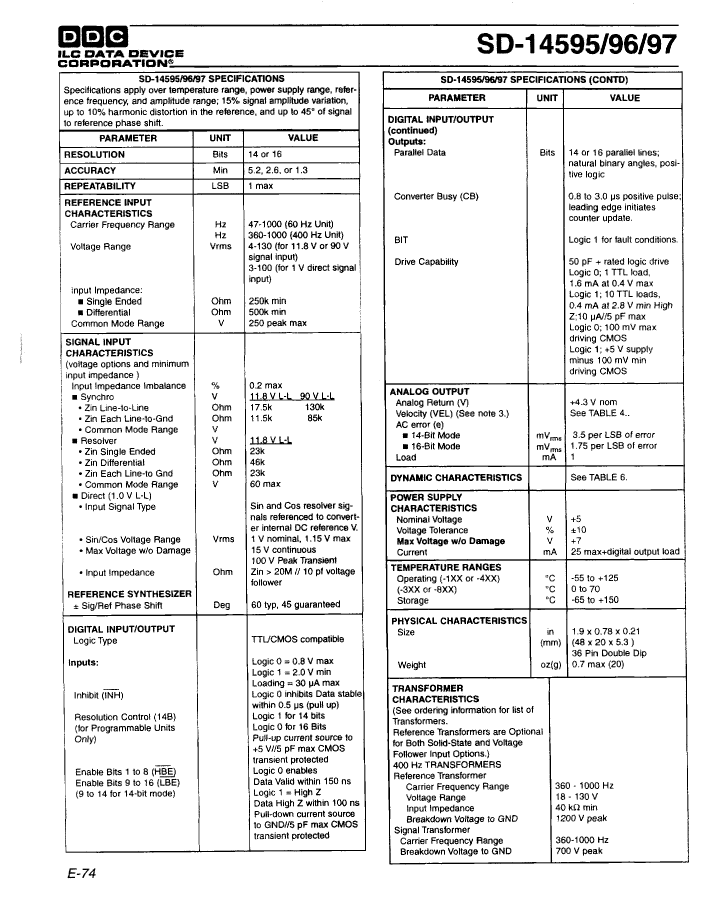

Parameter Name	Attribute value
Is it lead-free?	Contains lead
Is it Rohs certified?	incompatible
Maker	Data Device Corporation
Parts packaging code	DFP
package instruction	CERAMIC, FP-36
Contacts	36
Reach Compliance Code	compliant
ECCN code	EAR99
Is Samacsys	N
Other features	BUILT-IN-TEST
Maximum analog input voltage	90 V
Maximum angular accuracy	1.3 arc min
Converter type	SYNCHRO OR RESOLVER TO DIGITAL CONVERTER
JESD-30 code	R-CDFP-F36
JESD-609 code	e0
Number of digits	16
Number of functions	1

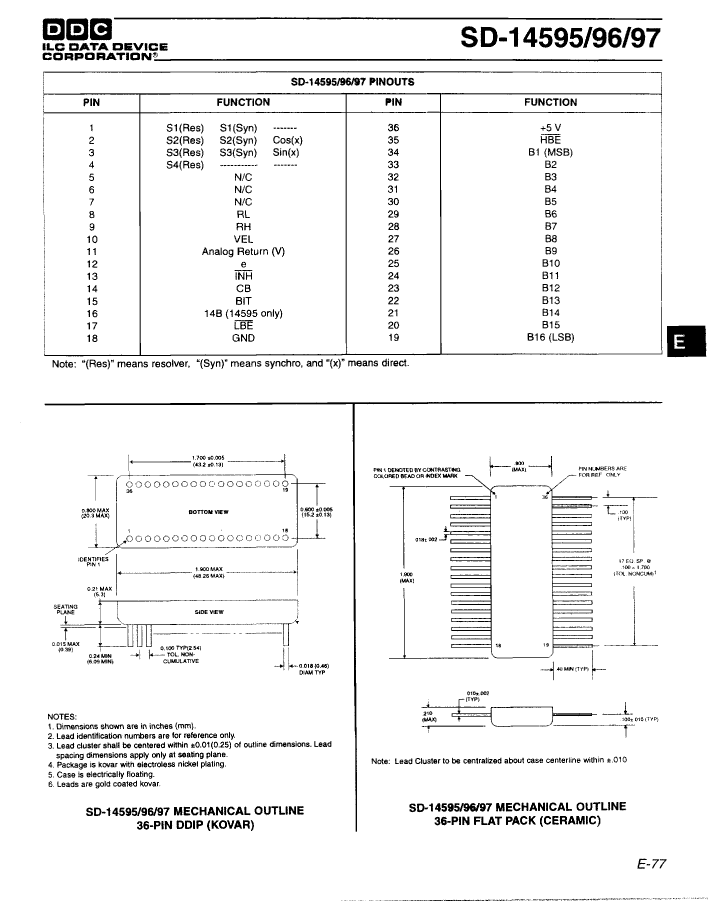

Number of terminals	36
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Package body material	CERAMIC, METAL-SEALED COFIRED
encapsulated code	DFP
Package shape	RECTANGULAR
Package form	FLATPACK
Peak Reflow Temperature (Celsius)	NOT SPECIFIED
Certification status	Not Qualified
Maximum seat height	5.334 mm
Signal/output frequency	400 Hz
Maximum supply voltage	5.5 V
Minimum supply voltage	4.5 V
Nominal supply voltage	5 V
surface mount	YES
Temperature level	MILITARY
Terminal surface	TIN LEAD
Terminal form	FLAT
Terminal pitch	2.54 mm
Terminal location	DUAL
Maximum time at peak reflow temperature	NOT SPECIFIED
Base Number Matches	1
