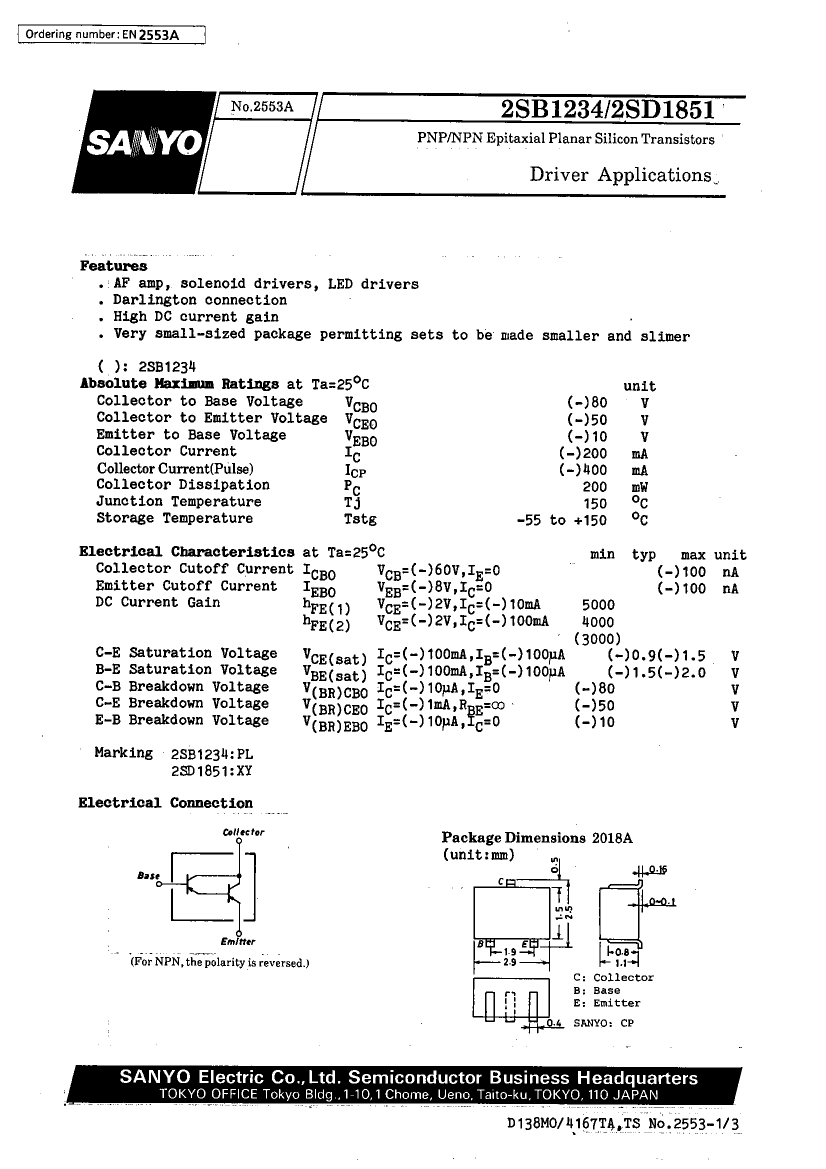

2SB1234 datasheet, PDF - EEWORLD Datasheet

2SB1234: DescriptionDriver Applications　; CategoryDiscrete semiconductor The transistor; File Size85KB，3 Pages; ManufacturerSANYO; Websitehttp://www.semic.sanyo.co.jp/english/index-e.html

Download Datasheet Parametric Compare View All

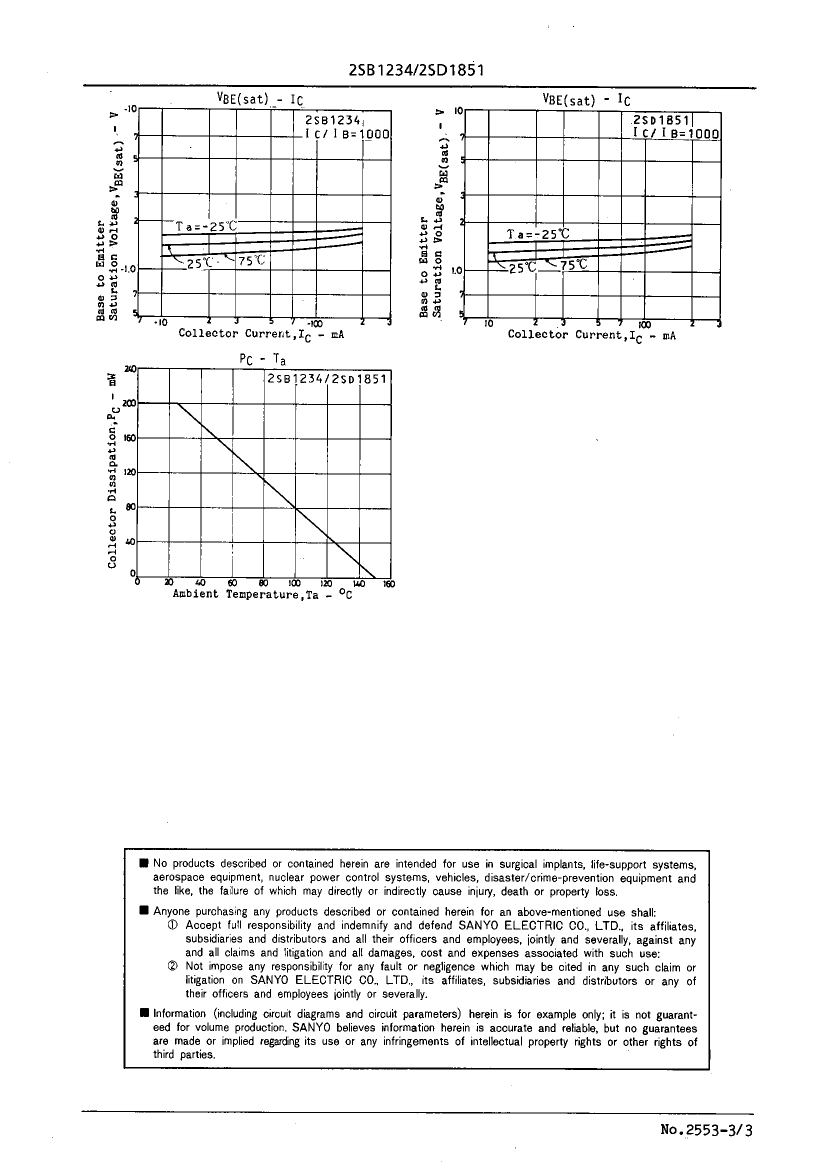

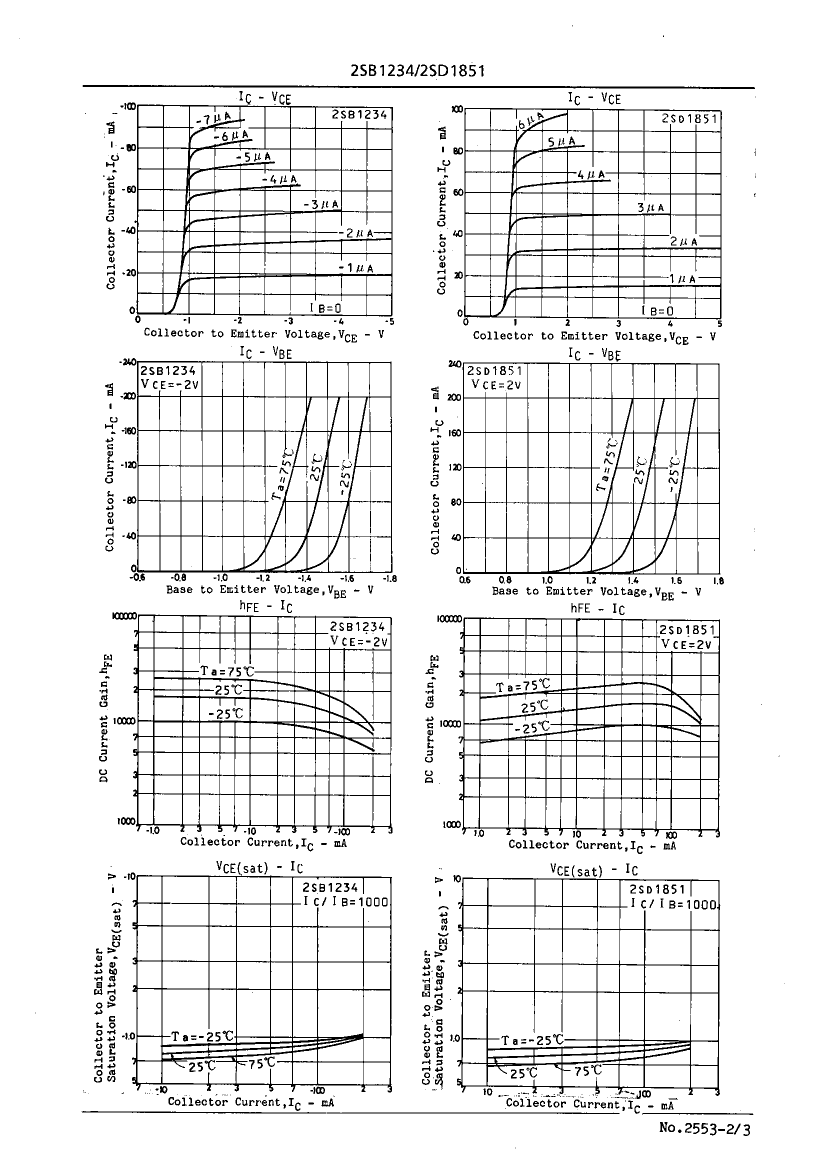

2SB1234 Overview

Driver Applications　

Parameter Name	Attribute value
package instruction	SMALL OUTLINE, R-PDSO-G3
Contacts	3
Reach Compliance Code	unknow
ECCN code	EAR99
Maximum collector current (IC)	0.2 A
Collector-emitter maximum voltage	50 V
Configuration	DARLINGTON
Minimum DC current gain (hFE)	3000
JESD-30 code	R-PDSO-G3
Number of components	1
Number of terminals	3
Maximum operating temperature	150 °C
Package body material	PLASTIC/EPOXY
Package shape	RECTANGULAR
Package form	SMALL OUTLINE
Polarity/channel type	PNP
Certification status	Not Qualified
surface mount	YES
Terminal form	GULL WING
Terminal location	DUAL
transistor applications	AMPLIFIER
Transistor component materials	SILICON
VCEsat-Max	1.5 V
Base Number Matches	1

	2SB1234	2SD1851
Description	Driver Applications	Small Signal Bipolar Transistor, 0.2A I(C), 50V V(BR)CEO, 1-Element, NPN, Silicon, ULTRA SMALL, CP, 3 PIN
package instruction	SMALL OUTLINE, R-PDSO-G3	SMALL OUTLINE, R-PDSO-G3
Contacts	3	3
Reach Compliance Code	unknow	unknown
ECCN code	EAR99	EAR99
Maximum collector current (IC)	0.2 A	0.2 A
Collector-emitter maximum voltage	50 V	50 V
Configuration	DARLINGTON	DARLINGTON
Minimum DC current gain (hFE)	3000	4000
JESD-30 code	R-PDSO-G3	R-PDSO-G3
Number of components	1	1
Number of terminals	3	3
Maximum operating temperature	150 °C	150 °C
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY
Package shape	RECTANGULAR	RECTANGULAR
Package form	SMALL OUTLINE	SMALL OUTLINE
Polarity/channel type	PNP	NPN
Certification status	Not Qualified	Not Qualified
surface mount	YES	YES
Terminal form	GULL WING	GULL WING
Terminal location	DUAL	DUAL
transistor applications	AMPLIFIER	AMPLIFIER
Transistor component materials	SILICON	SILICON
VCEsat-Max	1.5 V	1.5 V
