OM7915H datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Power/power management> The power supply circuit> OM7915H

OM7915H: DescriptionFixed Negative Standard Regulator, 15V, BIPolar, PSFM3, HERMETIC SEALED, TO-257AA, 3 PIN; CategoryPower/power management The power supply circuit; File Size58KB，5 Pages; ManufacturerInfineon; Websitehttp://www.infineon.com/

Download Datasheet Parametric View All

OM7915H Overview

Fixed Negative Standard Regulator, 15V, BIPolar, PSFM3, HERMETIC SEALED, TO-257AA, 3 PIN

OM7915H Parametric

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	Infineon
package instruction	HERMETIC SEALED, TO-257AA, 3 PIN
Reach Compliance Code	compliant
Is Samacsys	N
Adjustability	FIXED
Maximum absolute input voltage	35 V
Maximum input voltage	30 V
Minimum input voltage	17.5 V
JESD-30 code	R-PSFM-T3
JESD-609 code	e0
Maximum grid adjustment rate	0.05%
Maximum load regulation	0.075%
Number of functions	1
Output times	1
Number of terminals	3
Working temperatureTJ-Max	150 °C
Working temperature TJ-Min	-55 °C
Maximum output current 1	1.5 A
Maximum output voltage 1	15.45 V
Minimum output voltage 1	14.55 V
Nominal output voltage 1	15 V
Package body material	PLASTIC/EPOXY
Encapsulate equivalent code	SIP3,.1TB
Package shape	RECTANGULAR
Package form	FLANGE MOUNT
Peak Reflow Temperature (Celsius)	NOT SPECIFIED
Certification status	Not Qualified
Regulator type	FIXED NEGATIVE SINGLE OUTPUT STANDARD REGULATOR
Filter level	MIL-STD-883
surface mount	NO
technology	BIPOLAR
Terminal surface	TIN LEAD
Terminal form	THROUGH-HOLE
Terminal pitch	2.54 mm
Terminal location	SINGLE
Maximum time at peak reflow temperature	NOT SPECIFIED
Maximum voltage tolerance	3%
Base Number Matches	1

Preview

Download Datasheet

View All

OM7900IH Series

OM7900SR Series

ISOLATED HERMETIC TO-257AA FIXED

VOLTAGE NEGATIVE REGULATORS

Three Terminal, Fixed Voltage, 1.5 Amp

Precision Negative Regulators In Hermetic

JEDEC TO-257AA Package and D

Pac

FEATURES

•

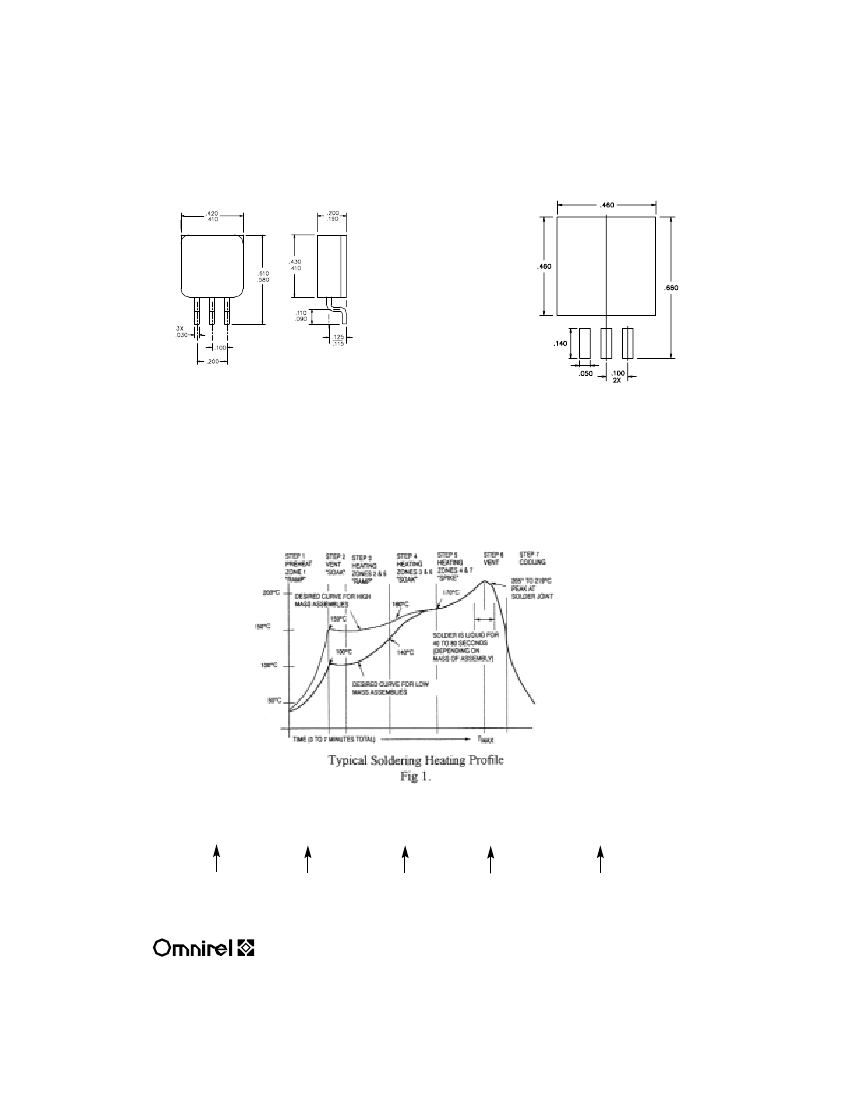

Isolated Hermetic Package, JEDEC TO-257AA Outline

Output Voltages: -5V, -12V, -15V (Other Voltages Available)

Output Voltages Set Internally To ±1% or ±2%

Built-In Thermal Overload Protection

Short Circuit Current Limiting

Product Is Available Screened To MIL-STD-883

DESCRIPTION

These three terminal negative regulators are supplied in a hermetically sealed

metal package whose outline is similar to the industry standard TO-220 plastic pack-

age. All protective features are designed into the circuit, including thermal shutdown,

current limiting and safe-area control. With heat sinking, they can deliver over 1.5

amps of output current. These units feature internally trimmed output voltages to ±1%

or 2% of nominal voltage.

Standard voltages are -5V, -12V, and

-15V. However, other voltages are available up to -24 volts. These units are ideally

suited for Military applications where a hermetically sealed package is required.

ABSOLUTE MAXIMUM RATINGS

@ 25°C

Input Voltage . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . -35 V

Operating Junction Temperature Range . . . . . . . . . . . . . . . . . . . . . . . . . . - 55°C to + 150°C

Storage Temperature Range . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . - 65°C to + 150°C

Typical Power/Thermal Characteristics:

Rated Power @ 25° C T

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17.5W

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3W

Thermal Resistance

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4.2°C/W

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 42°C/W

Notes:

Product also available in Non-Isolated construction. To order this version,

delete “I” from part number.

Non-Isolated

Example:

Isolated

OM79XXIH

OM79XXH

Use letter “A” after part number to designate ±1% output voltage tolerance.

Example:

OM7905AIH

0 03 R5

Supersedes 4 11 R4

3.3

3.3 - 1
