CIG22L1R0MAC datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Passive components> inductor> CIG22L1R0MAC

CIG22L1R0MAC: DescriptionGeneral Purpose Inductor, 1uH, 20%, 1 Element, Ferrite-Core, SMD, 1008, CHIP, 1008, ROHS COMPLIANT; CategoryPassive components inductor; File Size238KB，3 Pages; ManufacturerSAMSUNG; Websitehttp://www.samsung.com/Products/Semiconductor/; Environmental Compliance

Download Datasheet Parametric Compare View All

CIG22L1R0MAC Overview

General Purpose Inductor, 1uH, 20%, 1 Element, Ferrite-Core, SMD, 1008, CHIP, 1008, ROHS COMPLIANT

CIG22L1R0MAC Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	SAMSUNG
package instruction	1008
Reach Compliance Code	compliant
ECCN code	EAR99
Is Samacsys	N
uppercase and lowercase codes	1008
core material	FERRITE
DC Resistance	0.06 Ω
Nominal inductance(L)	1 µH
Inductor Applications	POWER INDUCTOR
Inductor type	GENERAL PURPOSE INDUCTOR
Manufacturer's serial number	CIG22L
Number of functions	1
Number of terminals	2
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
Maximum rated current	1.6 A
Shape/Size Description	RECTANGULAR PACKAGE
shield	YES
special characteristics	DCR IS MEASURED AT 30% TOLERANCE
surface mount	YES
Terminal location	DUAL ENDED
Terminal shape	WRAPAROUND
Test frequency	1 MHz
Tolerance	20%
Base Number Matches	1

Preview

Download Datasheet

View All

Multilayer Power Inductor

CIG22L Series- CIG22L1R0MNE (2520 / EIA 1008)

CIG Series has ferrite body and 100% Ag internal conductor.

Also, It has the magnetically shielded structure and lower

DC Resistance than winding type.

FEATURES

Super Low DC resistance

Low Profile (1.0mm max)

Magnetically shielded structure

Free of all RoHS-regulated substances

Monolithic structure for high reliability

APPLICATION

Mobile phones,DSC,DVC,PDA etc. for DC-DC Converter

SPECIFICATION

Operating temperature range –40 to +85°C

Storage temperature range

–10 to +40°C

PRODUCT IDENTIFICATION

(1)

(2)

(3)

(4)

(5)

(6)

(7)

(8)

(2)

(3)

(4)

1R0

(5)

(6)

(7)

(8)

Chip Inductor

Power Inductor

Dimension

Product Series (L:Low RDC Type)

Inductance(1R0:1.0uH)

Tolerance(M:±20%)

Thickness option(N:Standard, A:Thinner than standard, B:Thicker than standard)

Packaging(C:paper tape, E:embossed tape)

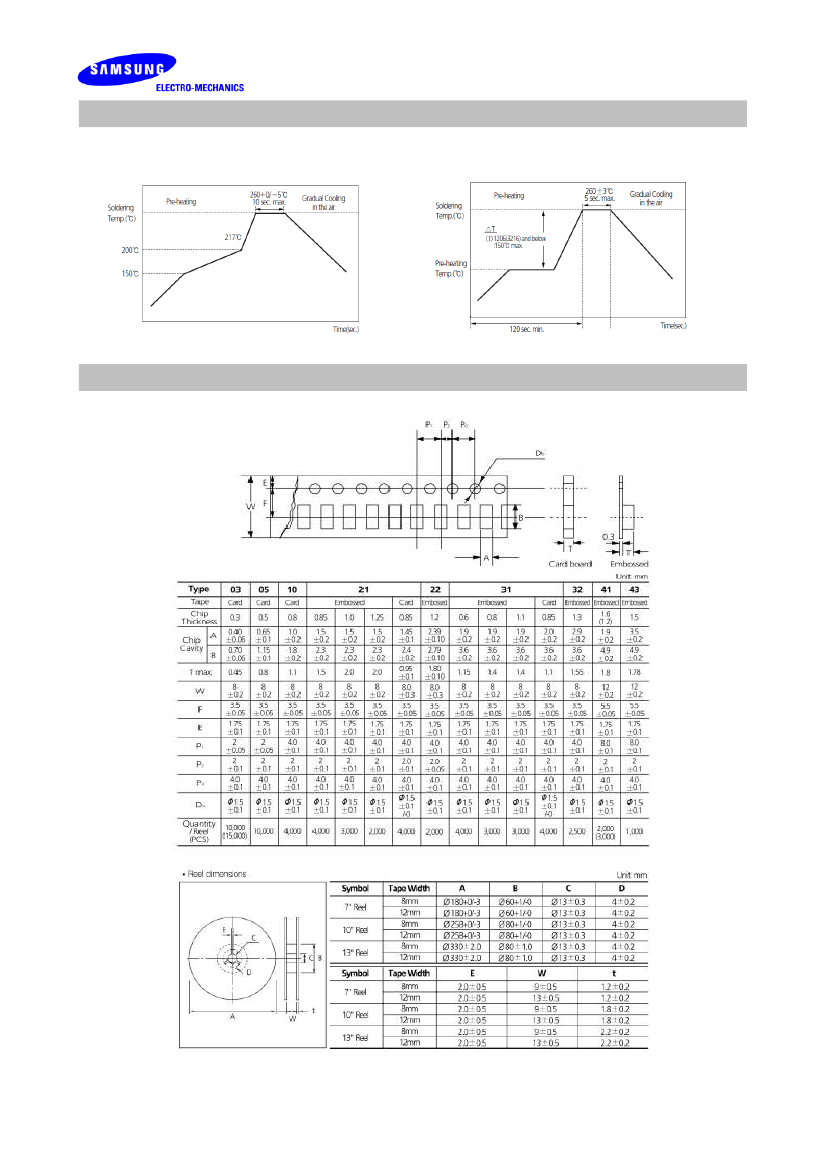

CIG22L1R0MAC Related Products

	CIG22L1R0MAC	CIG22L1R0MBE	CIG22L1R0MAE	CIG22L1R0MBC
Description	General Purpose Inductor, 1uH, 20%, 1 Element, Ferrite-Core, SMD, 1008, CHIP, 1008, ROHS COMPLIANT	General Purpose Inductor, 1uH, 20%, 1 Element, Ferrite-Core, SMD, 1008, CHIP, 1008, ROHS COMPLIANT	General Purpose Inductor, 1uH, 20%, 1 Element, Ferrite-Core, SMD, 1008, CHIP, 1008, ROHS COMPLIANT	General Purpose Inductor, 1uH, 20%, 1 Element, Ferrite-Core, SMD, 1008, CHIP, 1008, ROHS COMPLIANT
Is it lead-free?	Lead free	Lead free	Lead free	Lead free
Is it Rohs certified?	conform to	conform to	conform to	conform to
package instruction	1008	1008	1008	1008
Reach Compliance Code	compliant	compliant	compliant	compliant
ECCN code	EAR99	EAR99	EAR99	EAR99
uppercase and lowercase codes	1008	1008	1008	1008
core material	FERRITE	FERRITE	FERRITE	FERRITE
DC Resistance	0.06 Ω	0.06 Ω	0.06 Ω	0.06 Ω
Nominal inductance(L)	1 µH	1 µH	1 µH	1 µH
Inductor Applications	POWER INDUCTOR	POWER INDUCTOR	POWER INDUCTOR	POWER INDUCTOR
Inductor type	GENERAL PURPOSE INDUCTOR	GENERAL PURPOSE INDUCTOR	GENERAL PURPOSE INDUCTOR	GENERAL PURPOSE INDUCTOR
Number of functions	1	1	1	1
Number of terminals	2	2	2	2
Maximum operating temperature	85 °C	85 °C	85 °C	85 °C
Minimum operating temperature	-40 °C	-40 °C	-40 °C	-40 °C
Maximum rated current	1.6 A	1.6 A	1.6 A	1.6 A
Shape/Size Description	RECTANGULAR PACKAGE	RECTANGULAR PACKAGE	RECTANGULAR PACKAGE	RECTANGULAR PACKAGE
shield	YES	YES	YES	YES
special characteristics	DCR IS MEASURED AT 30% TOLERANCE	DCR IS MEASURED AT 30% TOLERANCE	DCR IS MEASURED AT 30% TOLERANCE	DCR IS MEASURED AT 30% TOLERANCE
surface mount	YES	YES	YES	YES
Terminal location	DUAL ENDED	DUAL ENDED	DUAL ENDED	DUAL ENDED
Terminal shape	WRAPAROUND	WRAPAROUND	WRAPAROUND	WRAPAROUND
Test frequency	1 MHz	1 MHz	1 MHz	1 MHz
Tolerance	20%	20%	20%	20%
Base Number Matches	1	1	1	-
