W a t k i n s - J o h n s o n :
T h e
C e l l
E x t e n d e r s
Power Amplifiers
SA1106
TDMA 40-Watt
1.93 GHz to 1.99 GHz
Linear Power Amplifier Module
s
s
s
s
40 Watts TDMA IS-136
+48 dBm P1dB
45 dB Gain
-30°C to +85°C

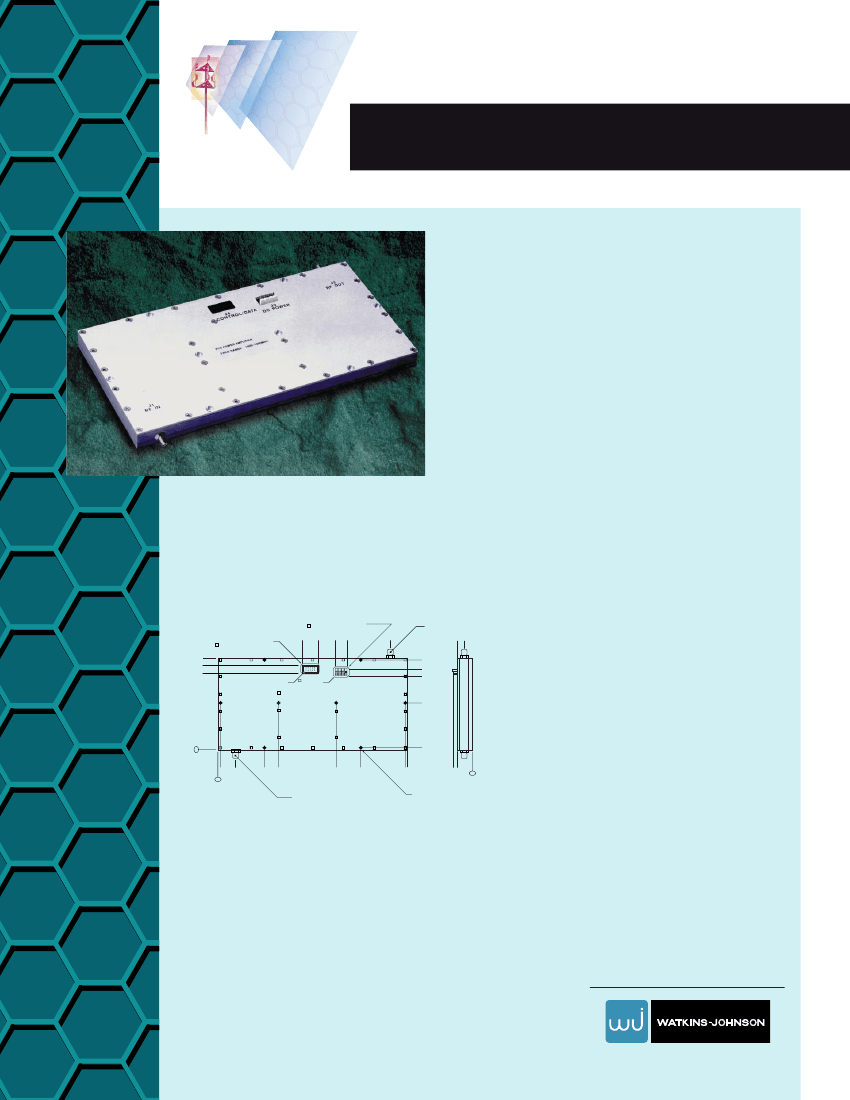

OUTLINE DRAWING
4 PIN,
CONNECTOR, J4, CONTROL/DATA
10 PIN, .025 PINS, .100 CENTERS
5.00
4.53
4.17
PIN 1
4.48
CONNECTOR, J3, DC POWER
.045 PINS, .156 CENTERS
5.28
6.17 6.80
9.15
CONNECTOR, J2, RF OUTPUT
SMA, FEMALE
.70 2X .36
2X 4.86
4.35
4.00
PIN 1
4X 2.50
2X .14
.14
.85
2X 2.50 3.21
6.08
2X 7.50
9.86 10.00
.89 .67
CONNECTOR, J1, RF INPUT
SMA, FEMALE
8X MOUNTING HOLES,
COUNTERBORED FOR
4–40 PAN HEAD SCREW
atkins-Johnson’s SA1106 Power Amplifier
provides exceptional linearity for TDMA
digital modulation applications. Utilizing WJ’s
GaAs amplifiers driving bipolar transistors in the
class AB output stage, the SA1106 achieves a
high third-order intercept point combined with
superior efficiency when compared to an equiva-
lent power class A amplifier. Special non-linear
design techniques are utilized to minimize
unwanted adjacent channel power. To aid top
level system diagnostics and reliability, the unit
includes alarms to identify if an active part fails
or if a poor load is presented to the RF output.
In the event that a fault is detected or to simply
save DC power, a digitally controlled shutdown
is provided. The amplifier is protected from
thermal overload by an internal temperature sen-
sor which triggers a digital alarm and shuts
down the power stages if the baseplate tempera-
ture rises above 95°C. An integral logarithmic
power detector measures the output power of
the amplifier over a 16 dB dynamic range.
W
The Wireless Edge
™
WJ Wireless Products: 1-800-WJ1-4401
•
FAX: 650-813-2447
•
e-mail: wireless.info
@
wj.com.
W a t k i n s - J o h n s o n :
T h e
C e l l
E x t e n d e r s
Power Amplifiers
SA1106
TDMA 40-Watt 1.93 GHz to 1.99 GHz
Linear Power Amplifier Module
Specifications
Parameters
(Baseplate Temperature: -30°C to +85°C)
Frequency
Pout at 1 dB Gain Compression
Gain (Small signal at 25°C)
Gain Variation over Temp (-30°C to +85°C)
NADC IS-136 Specifications: Pout = 40 watts
ACP (30 KHz offset)
ACP (60 KHz offset)
ACP (90 KHz offset)
Harmonic Output (with a +46 dBm TDMA output at the fundamental)
a) 2nd Harmonic
b) 3rd Harmonic
Third-Order 2-Tone Output Intermodulation Product Rejection
(Pout = +37 dBm per CW tone)
Maximum Noise Figure
Input and Output Impedence
Return Loss (1.930-1.990 GHz)
Input and Output
Load Mismatch Sustainable without Damage
Output Power Monitor
a) Pout = +46 dBm CW
b) Pout = +38 dBm CW
a) Pout = +30 dBm CW
Supply Voltages
Maximum Supply without Damage, +24 Volt Supply
Maximum DC Current, +24 Volt Supply
Maximum DC Power Dissipation, +24 Volt Supply
RF Connectors
Stability (No spurious outputs above -50 dBc)
Size (Heat sink not included)
Weight (Heat sink not included)
Typical Level
+48 dBm
Specified Limits
1.930-1.990 GHz
45 ± 1.0 dB
±1.5 dB
-27 dBc
-47 dBc
-13.5 dBm
0 dBm
-5 dBm
-35 dB
5.0 dB
-26 dBc max
-45 dBc max
-13 dBm max
-30 dB max
6.5 dB
50 ohm
-15 dB
3.0:1
-20 dB
5.0 V max, 4.0 V min
3.0 V max, 2.0 V min
1.0 V max, 0.0 V min
23.5-26.5 V
+28 VDC
11 amps
12.5 amps
265 watts
300 watts
SMA Female
Unconditionally stable for all loads
0.67" (H), 5.0" (W), 10.0" (L)
40 oz. max
4.5 V
2.5 V
0.5 V
+24 V
The Wireless Edge
™
W A T K I N S - J O H N S O N C O M P A N Y
•
3 3 3 3 H i l l v i e w A v e n u e
•
P a l o A l t o , C A 9 4 3 0 4 - 12 2 3
